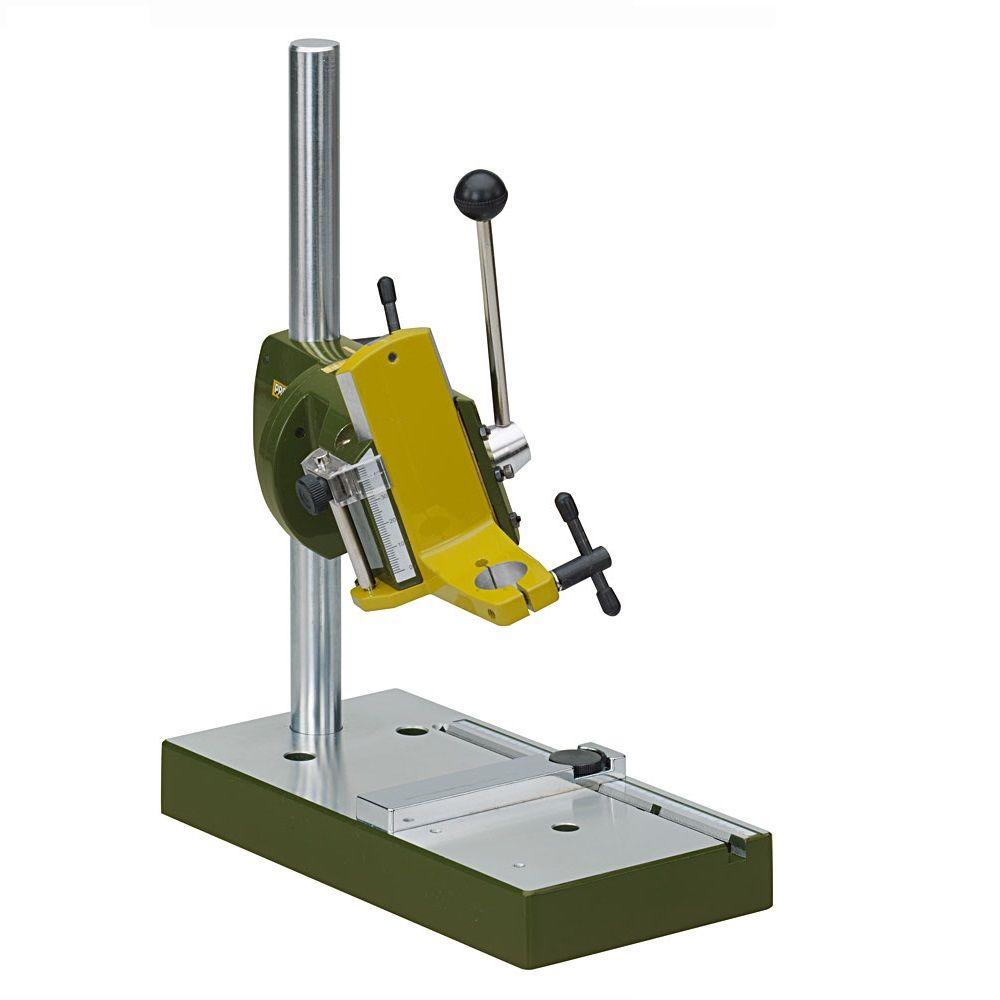

Proxxon Micromot Drill Stand for MB 200

Geared rack and pinion feed with return spring allowing effortless and sensitive operation. Practical drill depth scale with adjustable limit stop (maximum travel 1-1/2 in. (40 mm)). With standard 4/5 in. (20 mm) collar for Micromot drilling and milling devices. With solid, hard chromium-plated steel column 11 in. x 4/5 in. (280 x 20 mm), throat capacity (column inside to centre of tool) 5-1/2 in. (140 mm).

• Head with dovetail guides can be tilted through 90° (scale ring available)
• Enables beveled drilling and versatile milling operations
• Plane-milled table (8) 11/16 in. x (4) 3/4 in. (220 x 120 mm) with parallel limit stop and scale
• Drilled, tapped holes for securing the micro compound table KT 70 and holes to fix the drill stand itself are also provided
