Description

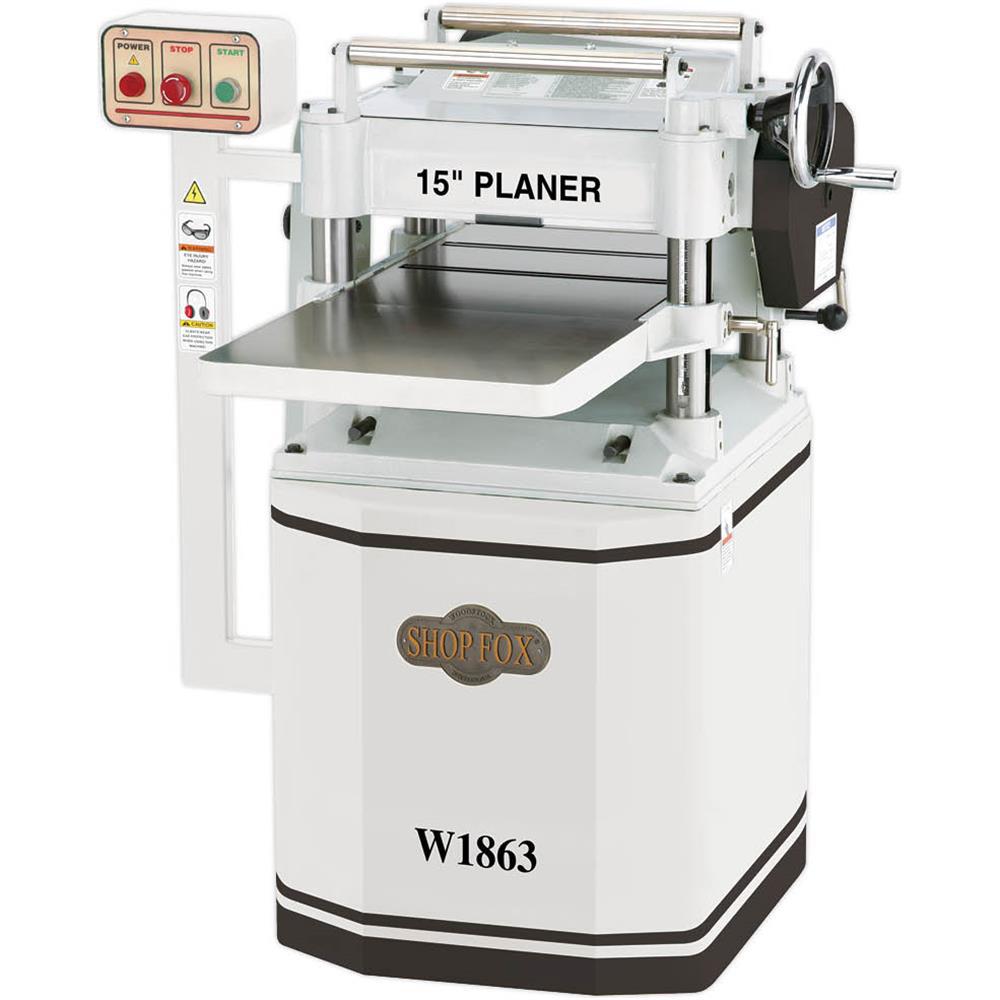

No corners were cut when putting together this feature-rich 15 in. planer. With its 4-flute helical cutterhead, 52 indexable four-sided carbide inserts and 2-speed gearbox, ultra-smooth surfacing is the new normal, even on figured grain. Other features include a pedestal-mounted switch, precision-ground cast-iron infeed and outfeed tables and large board return rollers for efficient production.
- Motor: 3 HP, 240-Volt, 15 Amp, single-phase
- Helical cutterhead with triple V-belt drive
- Maximum cutting width: 15 in.
- Maximum cutting height: 6 in.
- Cutterhead inserts: 52
- Cutterhead flutes: 4
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 640 lbs |
|---|---|
| Dimensions | 51 × 36.00 × 28.25 in |
| Model | W1863 |
| Amperage (amps) | 15 |
| Bench & Stationary Tool Type | Planer |
| Blade(s) Included | Yes |
| Color Family | White |
| Color/Finish | White |
| Condition | New |
| Maximum Board Thickness | 6.13 |
| Maximum Speed (rpm) | 3450 |
| Maximum cut depth (in.) | 6 |
| Minimum cut depth (in.) | 0.125 |
| Number of Cutting Blades | 52 |
| Portability | Stationary |
| Tools Product Type | Power Tool |
