Description

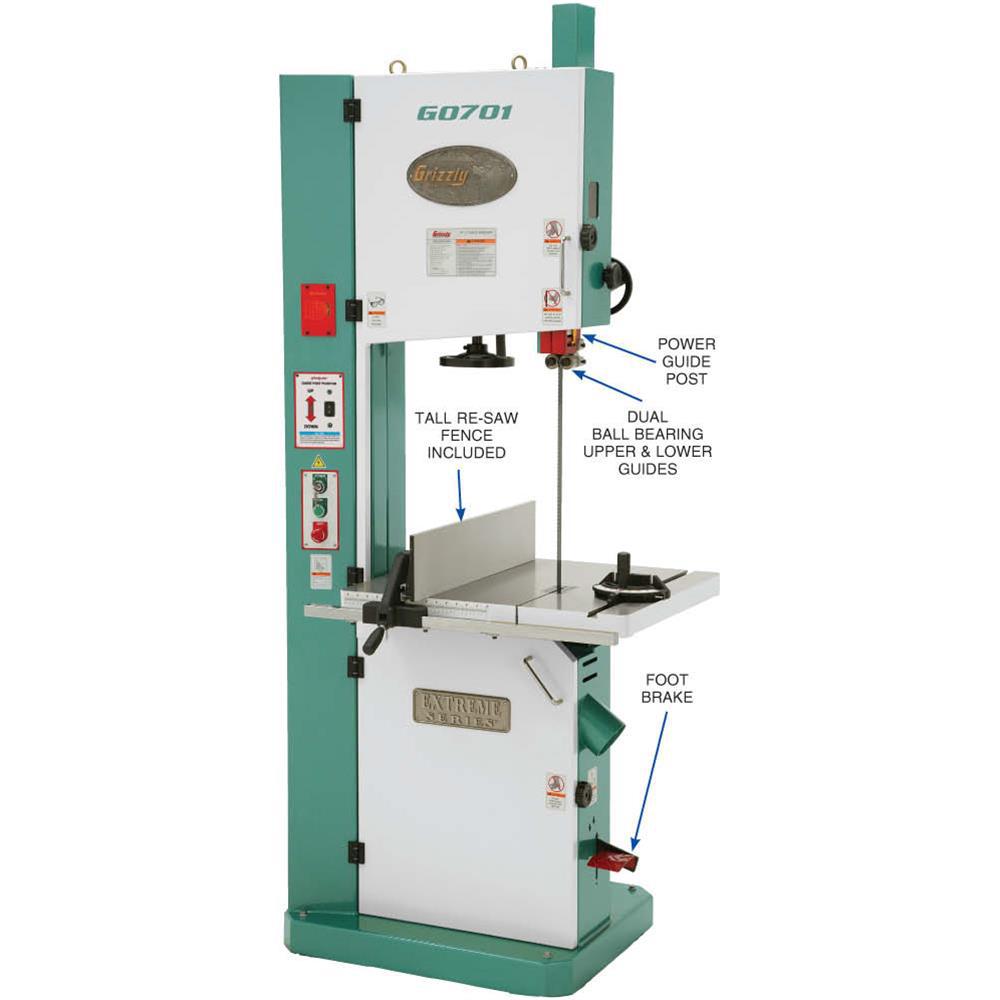

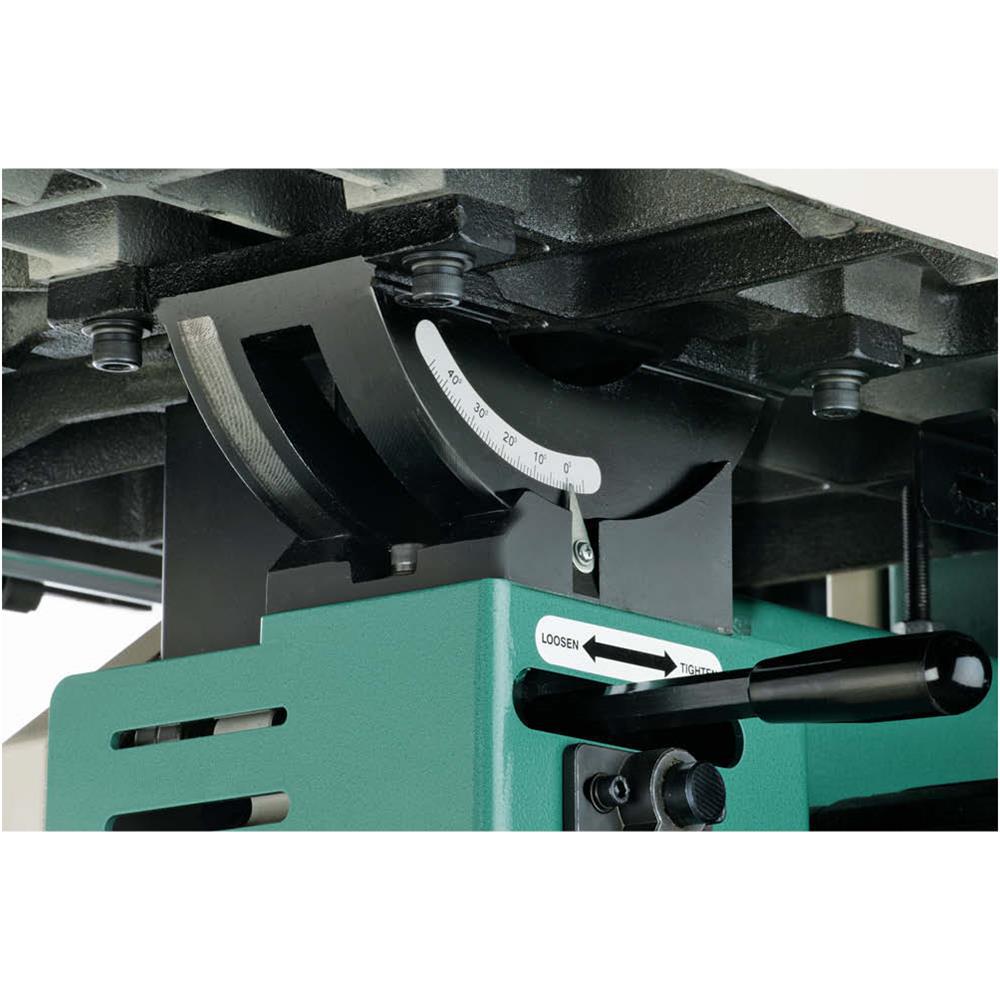

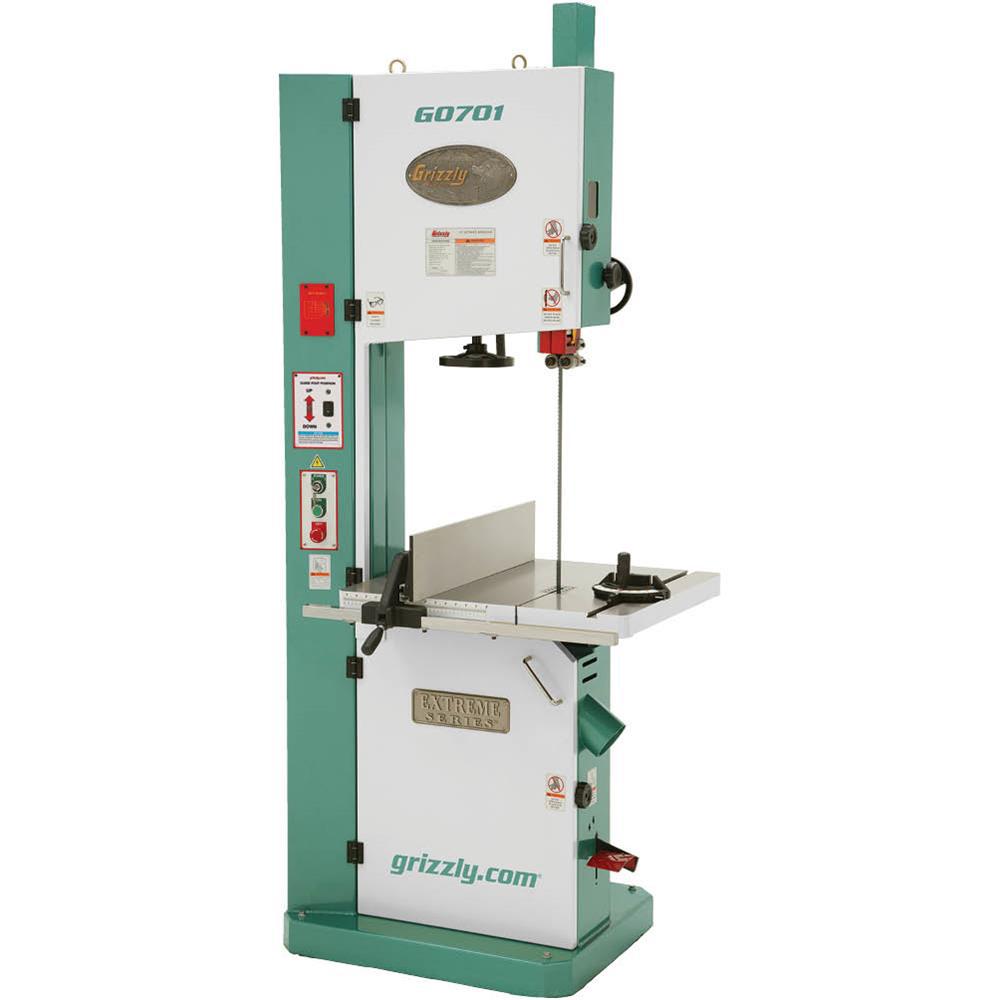

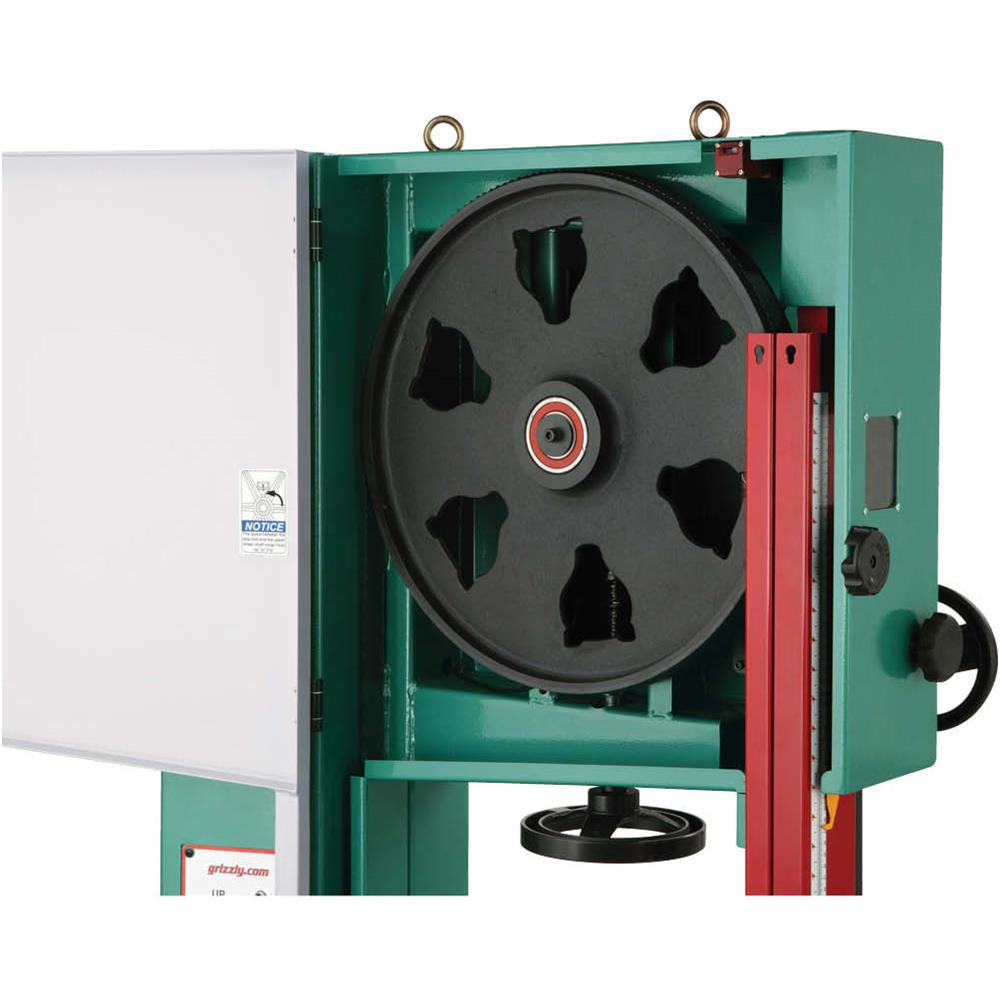

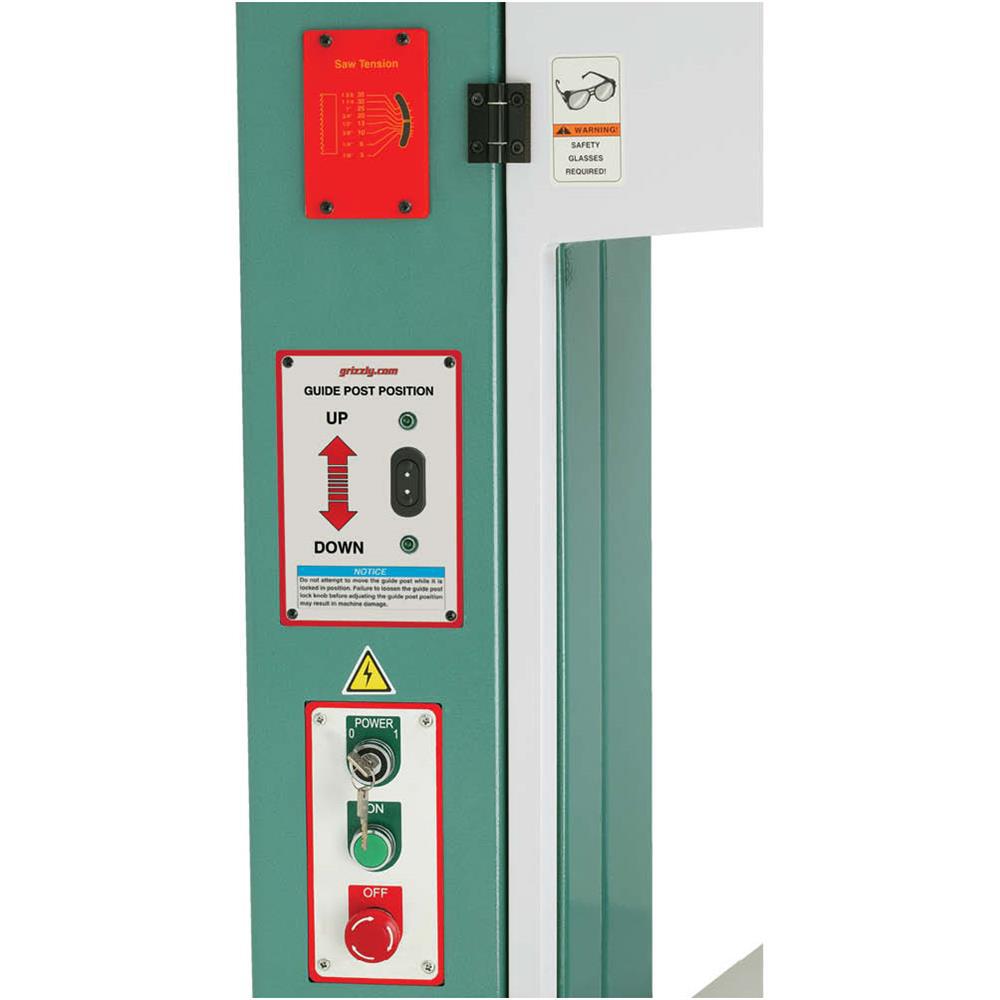

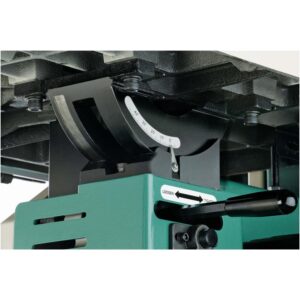

This 19 in. Ultimate Bandsaw is made for production work with its large cutting capacities, foot brake, resaw fence, and motorized upper blade guide. No more cumbersome 2-handed height positioning. Simply toggle the switch up or down for motorized blade guide adjustments. You’ll also appreciate the computer balanced cast-iron wheels with rubber tires for the smoothest operation possible, large precision-ground table, and rack and pinion table tilt adjustment. Once you get your hands on this Bandsaw, you’ll agree, it’s the Ultimate Bandsaw.

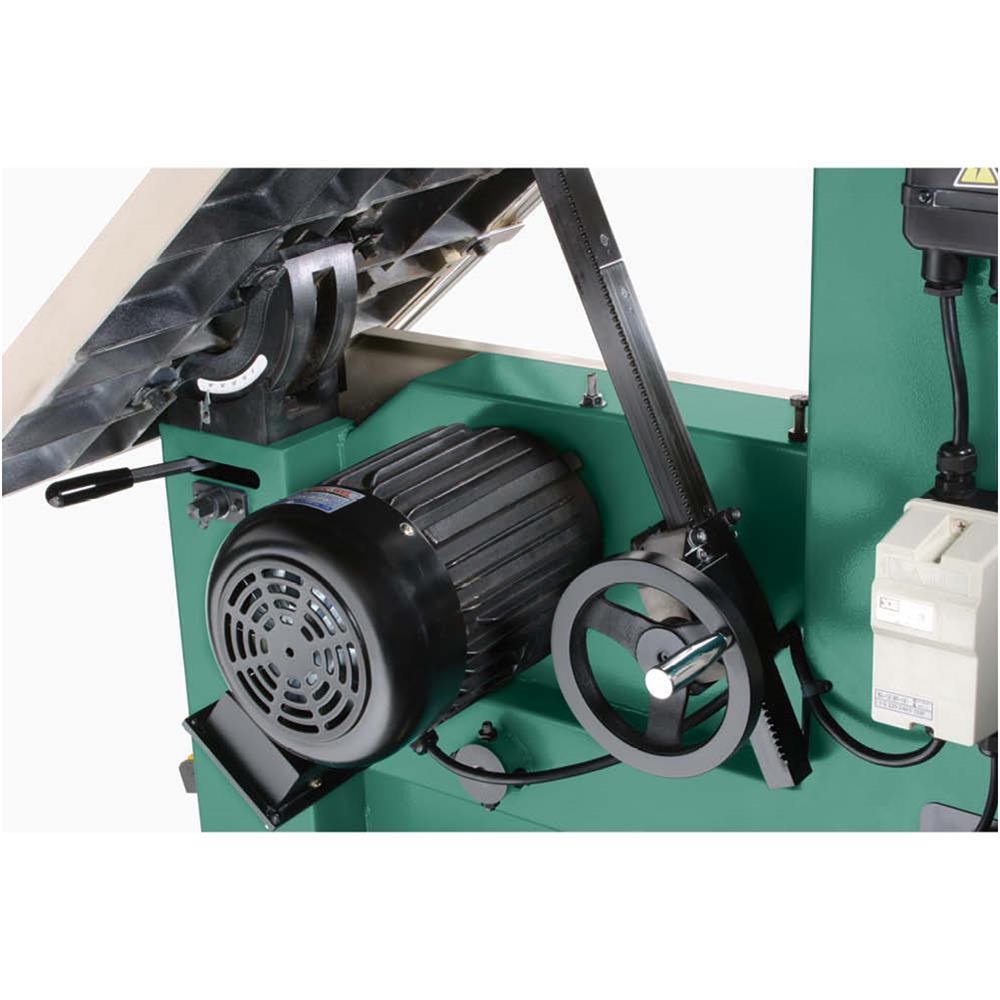

- Motor: 5 HP, 230-Volt, single-phase, TEFC, 60 Hz, 22A, 1725 RPM
- Guide post motor: universal DC, 40-Watt
- Table size: 28 in. x 24 in.
- Floor to table height: 35-1/4 in.
- Cutting capacity/throat: 18-3/8 in.
- Maximum cutting height: 19-1/2 in.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 717 lbs |
|---|---|
| Dimensions | 36 × 28 × 87 in |
| Model | G0701 |
| Voltage (volts) | 230 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 28 |
| Table Tilt Right Max (degrees) | 45 |
| Table Tilt Left Max (degrees) | 5 |
| Table Length (in.) | 24 |
| Power Tool Features | Lockout Power Switch, No Tool Blade Change, Quick-Release Tension, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 5 |
| Minimum Blade Width | 3/8 |
| Minimum Blade Length | 166 |
| Maximum Speed (rpm) | 1720 |
| Maximum Blade Width | 1-3/8 |
| Maximum Blade Length | 168 |
| Included Accessories | Stand |
| Dust Port Size (In.) | 4 |
| Dust Collection Method | 4 in. Dust Port |
| Cutting Capacity Width / Depth Of Throat(In.) | 18-3/8 |
| Cutting Capacity Height / Height under Guide (In.) | 19-1/2 |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 0 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Multi-Colored |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Vertical |
| Amperage (amps) | 5 |
| Work Table Surface | 24 in. x 28 in. |
