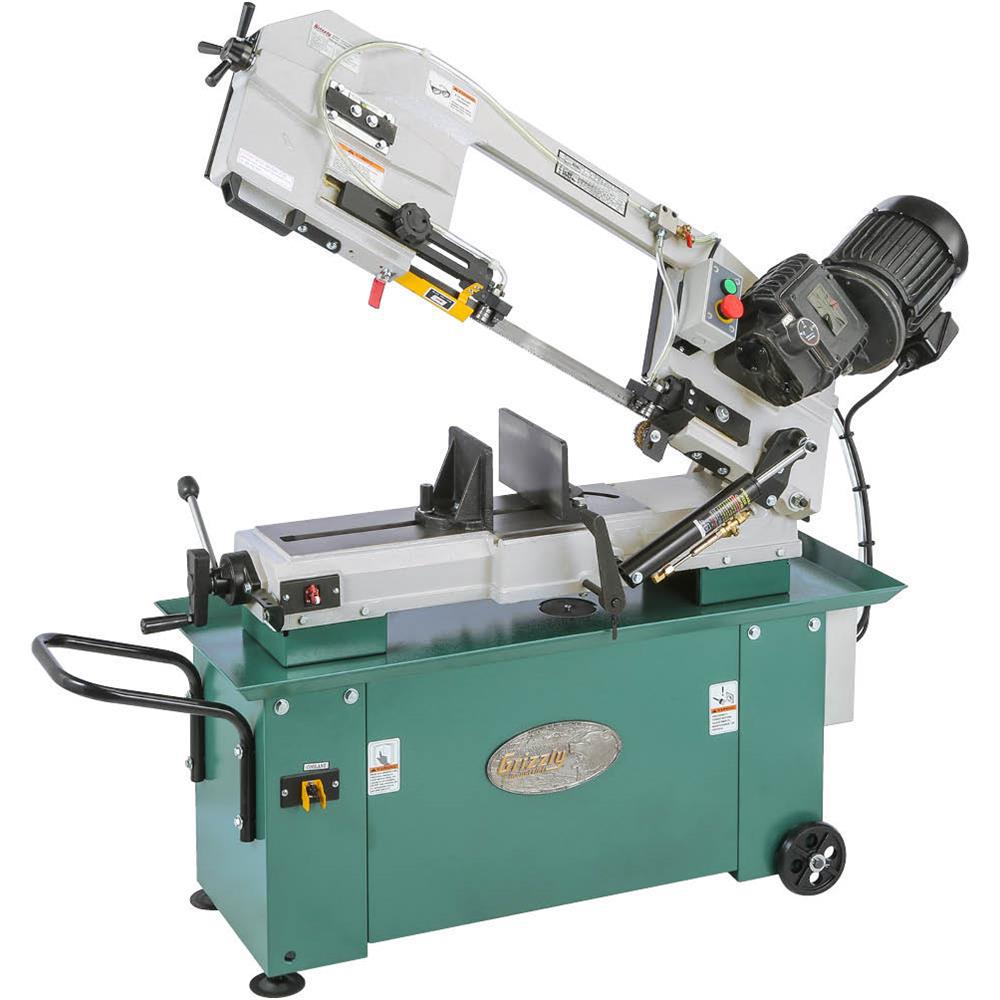

Grizzly Industrial 7 in. x 12 in. Geared Head Metal-Cutting Bandsaw
$2,065.50
Complete your cutting applications with the selection of this affordable Grizzly Industrial Geared Head MetalCutting Bandsaw.
In stock
Description

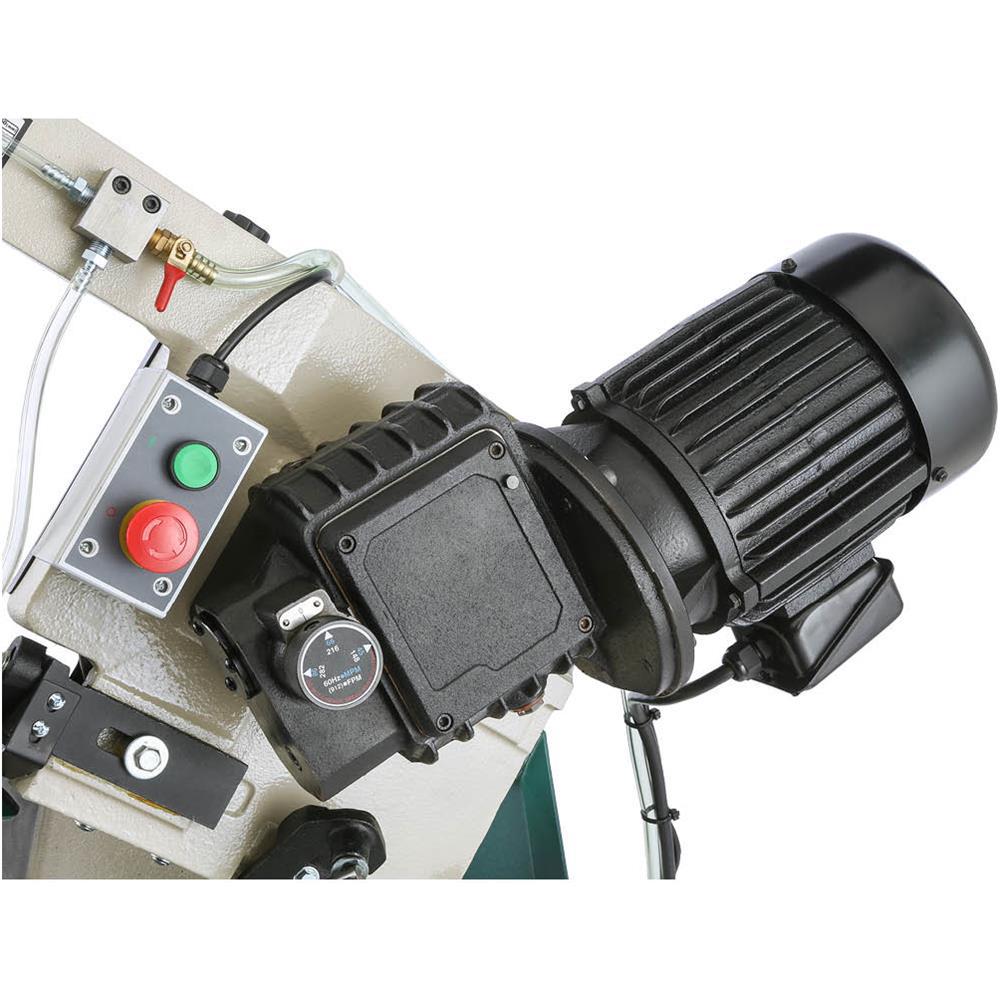

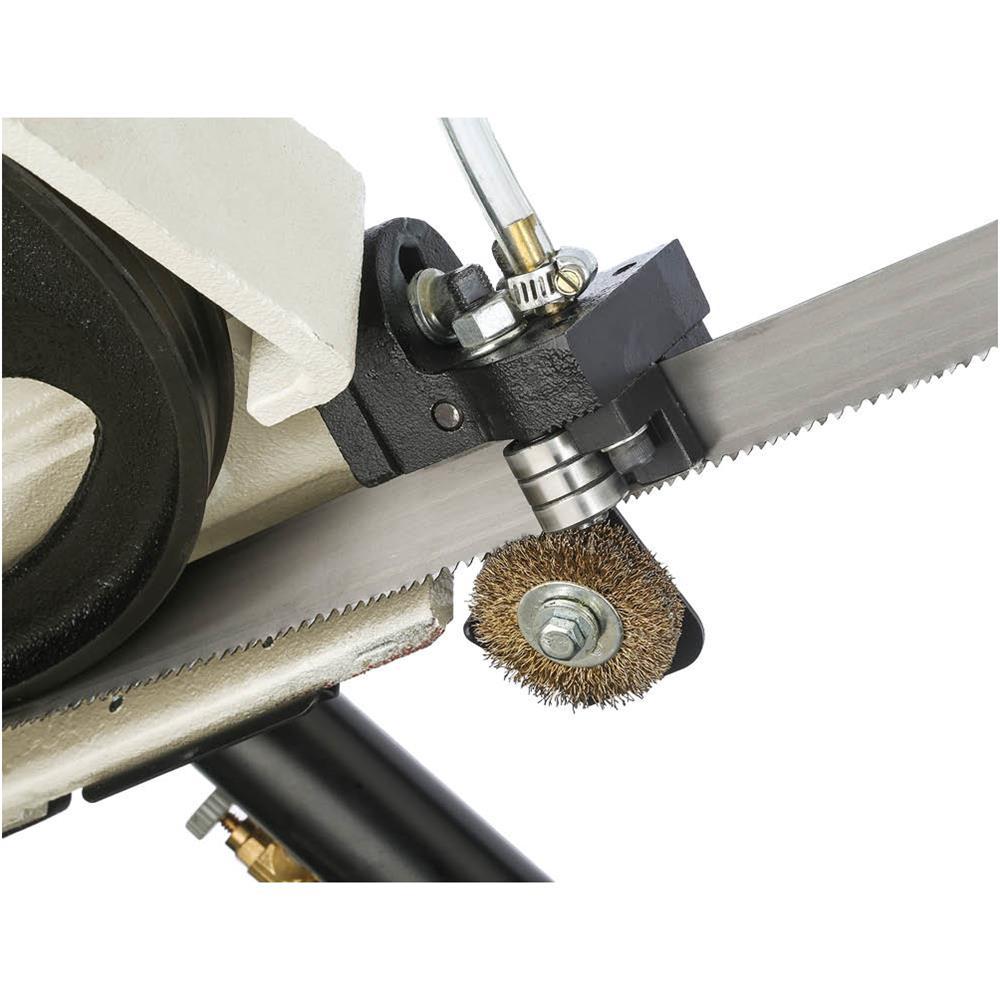

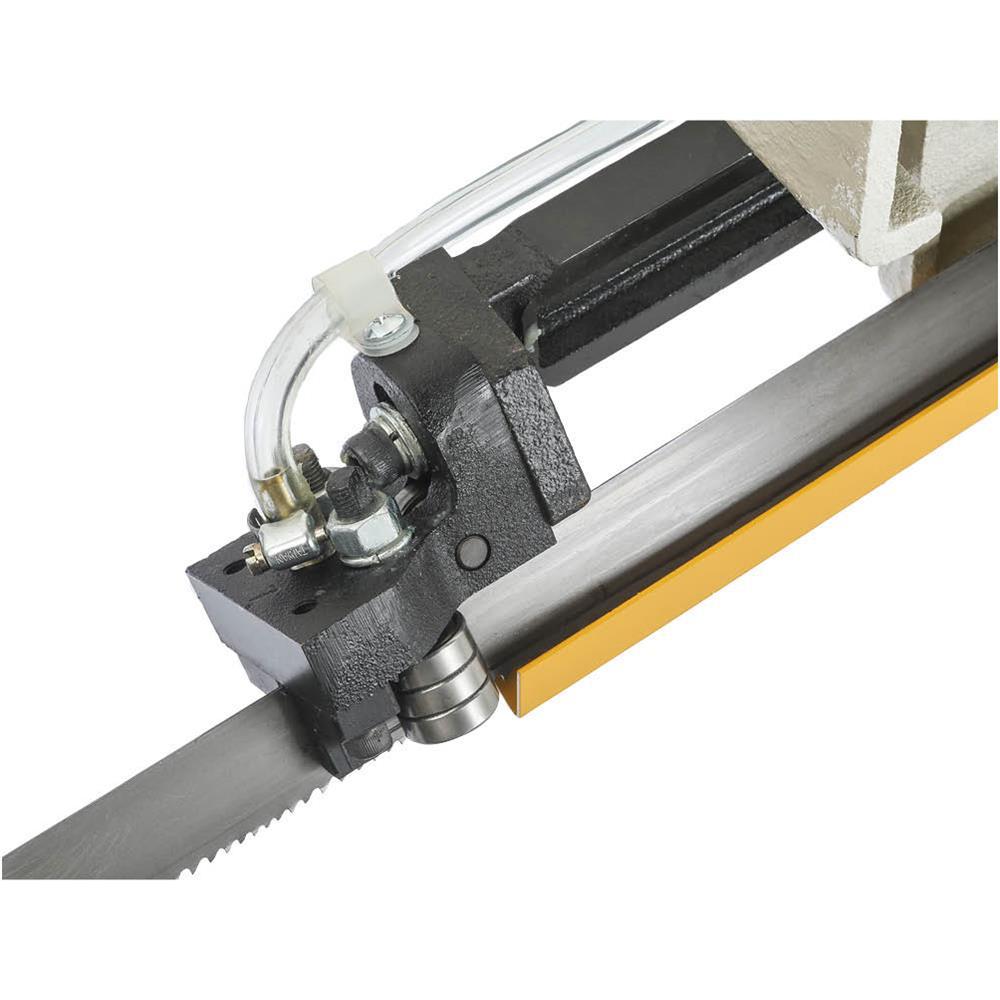

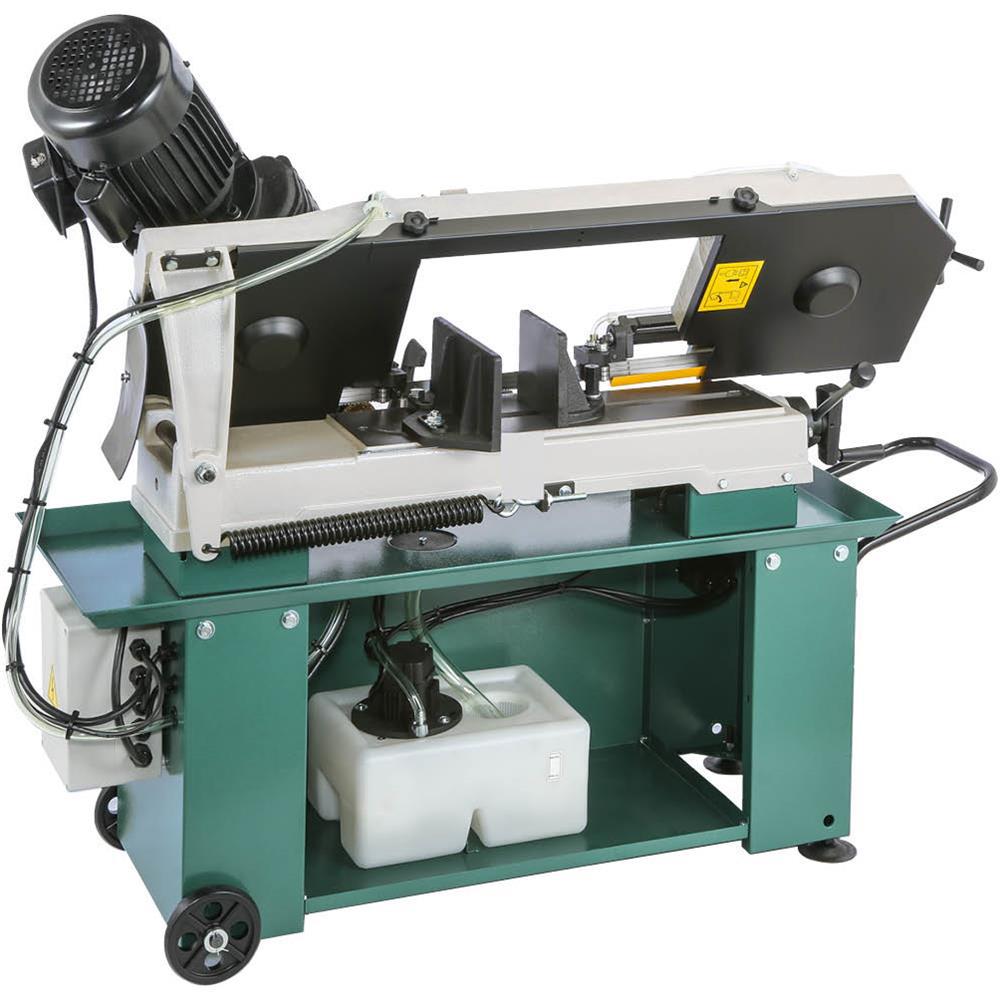

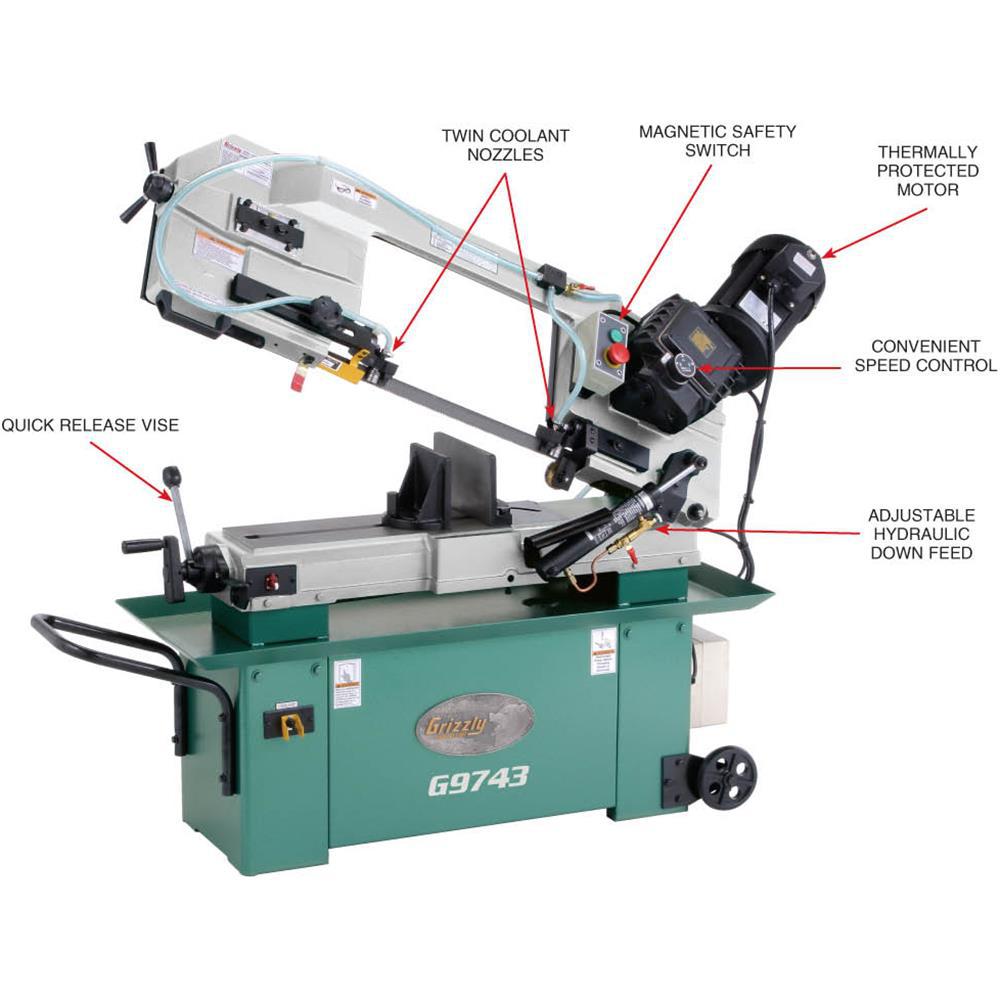

This Gearhead Bandsaw is another great member of our growing family of metal cutting machines. It’s packed with features like 7 in. x 12 in. capacity, 3-speed quick-change gearbox, hydraulic down feed control, coolant pump, electrical control package, thermal protection right on the motor, and 3 ball bearings per side on the blade guides.
- Motor: 1-1/2 HP, 110-Volt/220-Volt, single-phase, 60 Hz, prewired 110-Volt
- Blade size: 104-1/2 in. x 1 in.
- Wheel size: 7-1/2 in.
- Blade speeds: 158 FPM, 213 FPM, 308 FPM
- Maximum capacity rectangular 90°: 7 in. x 12 in.
- Maximum capacity rectangular at plus/minus 45°: 4 in. x 8 in.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 383 lbs |
|---|---|
| Dimensions | 26 × 57 × 46 in |
| Model | G9743 |
| Voltage (volts) | 110 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 7.75 |
| Table Tilt Right Max (degrees) | 0 |
| Table Tilt Left Max (degrees) | 0 |
| Table Length (in.) | 18 |
| Power Tool Features | Lockout Power Switch, No Tool Blade Change, Quick-Release Tension, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 1-1/2 |
| Minimum Blade Width | 1 |
| Minimum Blade Length | 104-1/2 |
| Maximum Speed (rpm) | 1720 |
| Maximum Blade Width | 1 |
| Maximum Blade Length | 104-1/2 |
| Included Accessories | Stand |
| Dust Port Size (In.) | 0 |
| Dust Collection Method | None |
| Cutting Capacity Width / Depth Of Throat(In.) | 12 |
| Cutting Capacity Height / Height under Guide (In.) | 8 |
| Cuts Through | Steel |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 0 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Multi-Colored |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Horizontal |
| Amperage (amps) | 18 |
| Work Table Surface | 18 in. x 7.75 in. |
