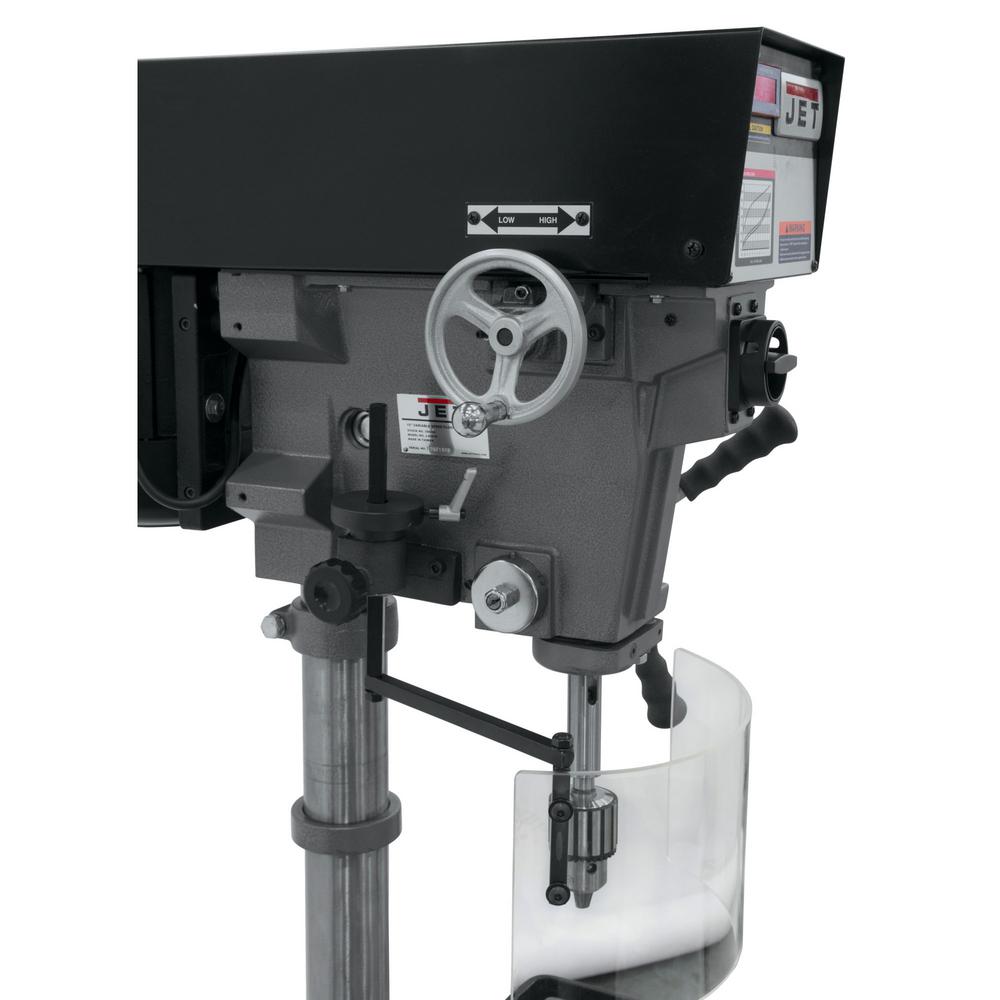

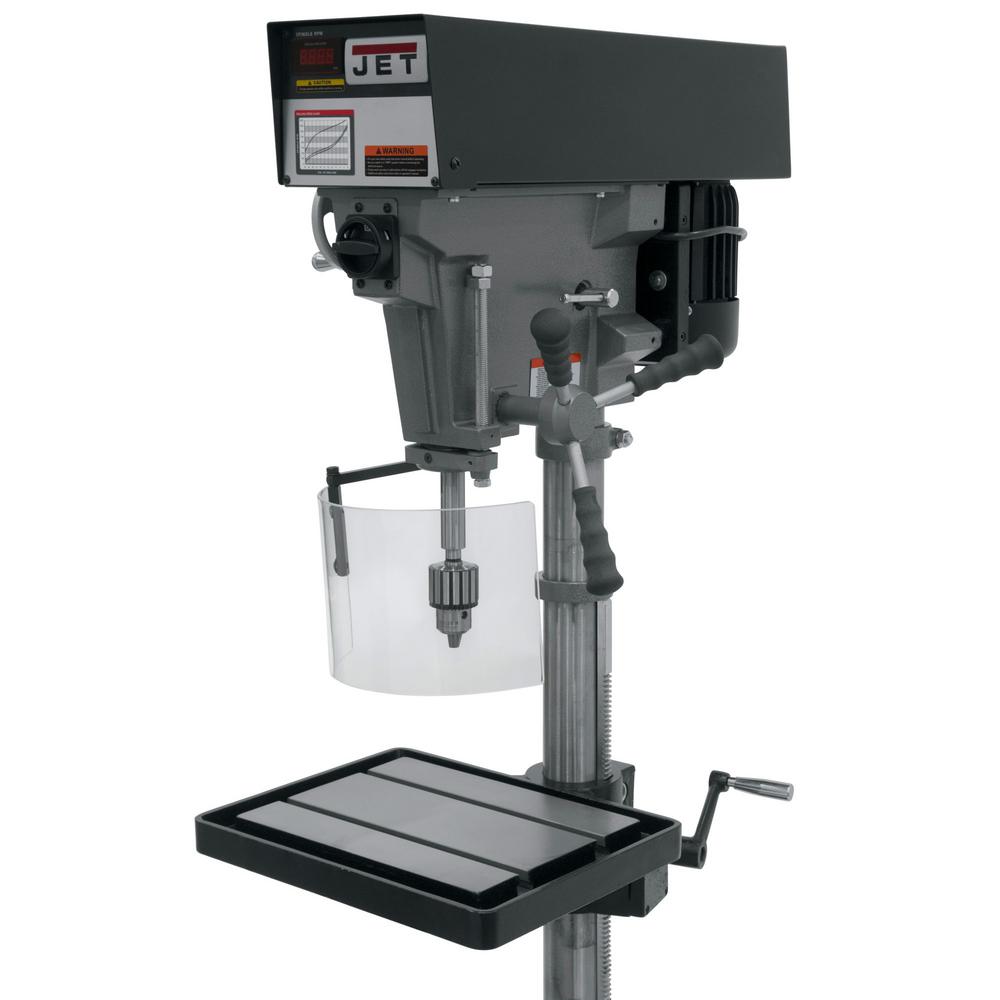

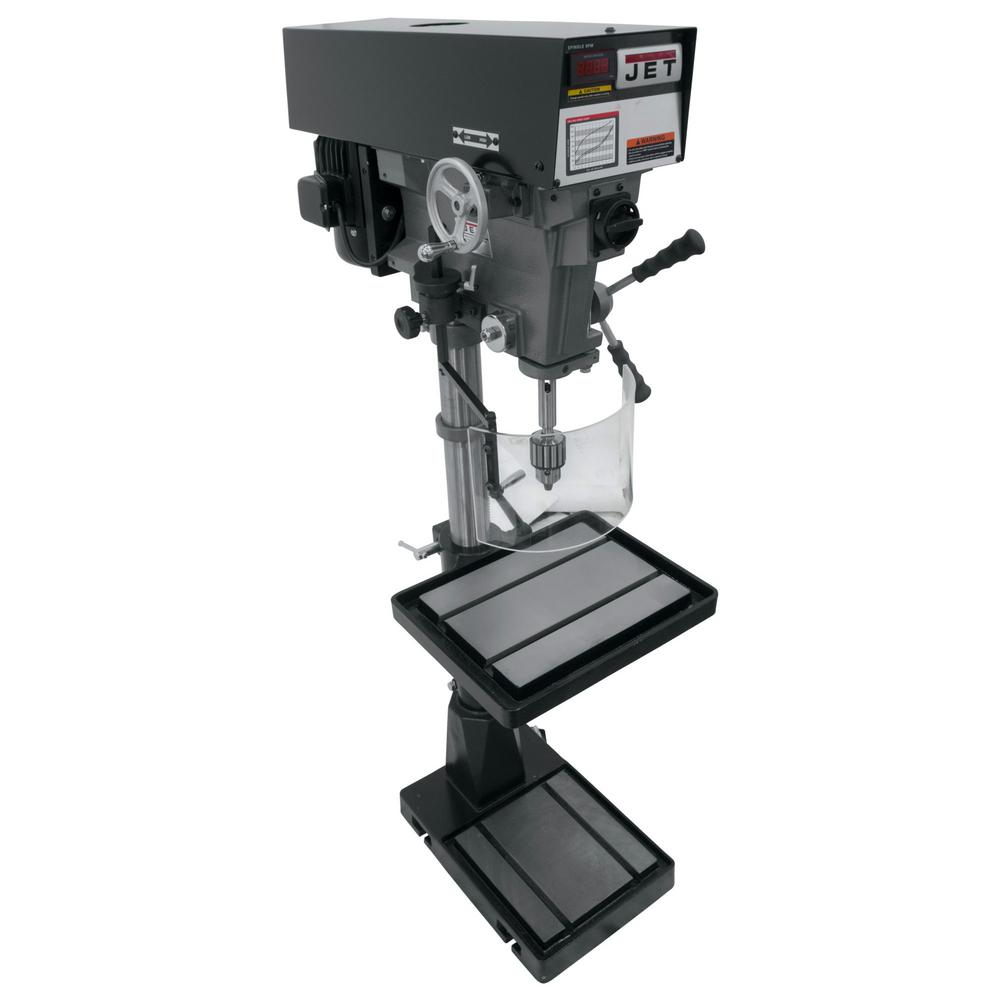

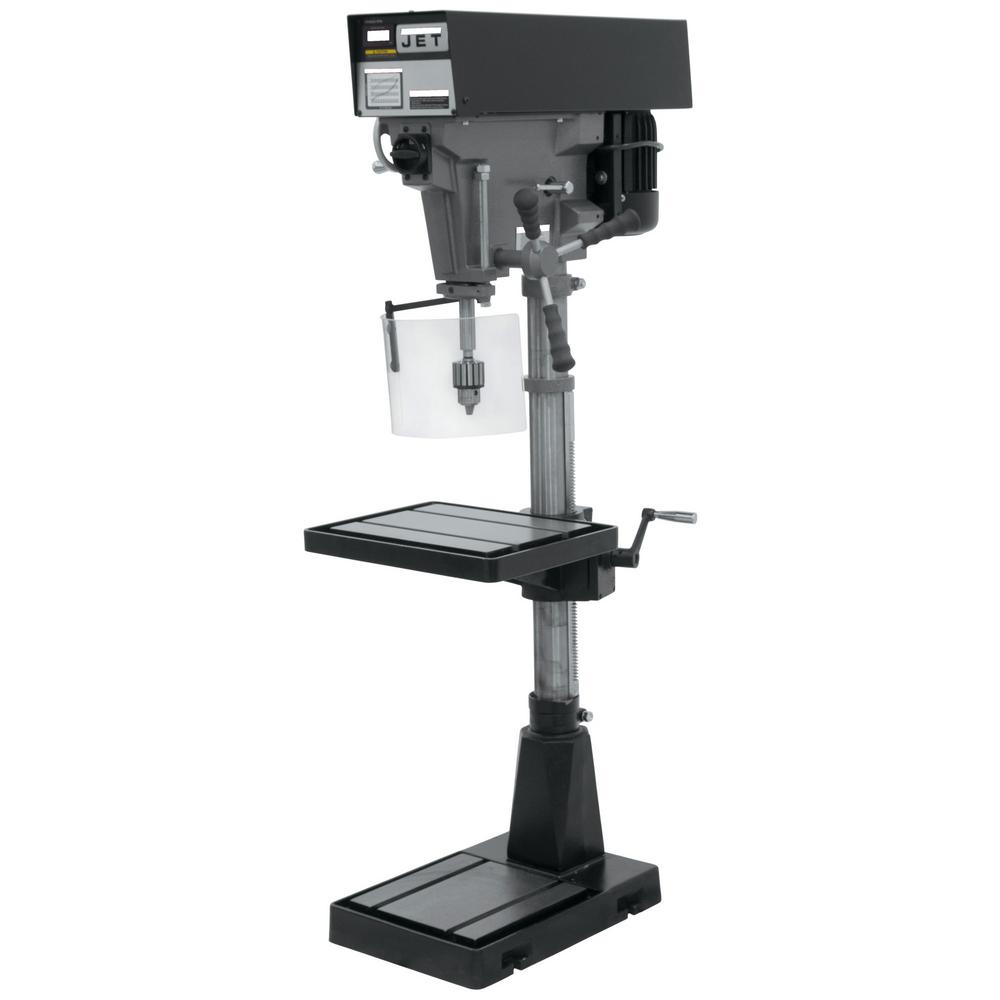

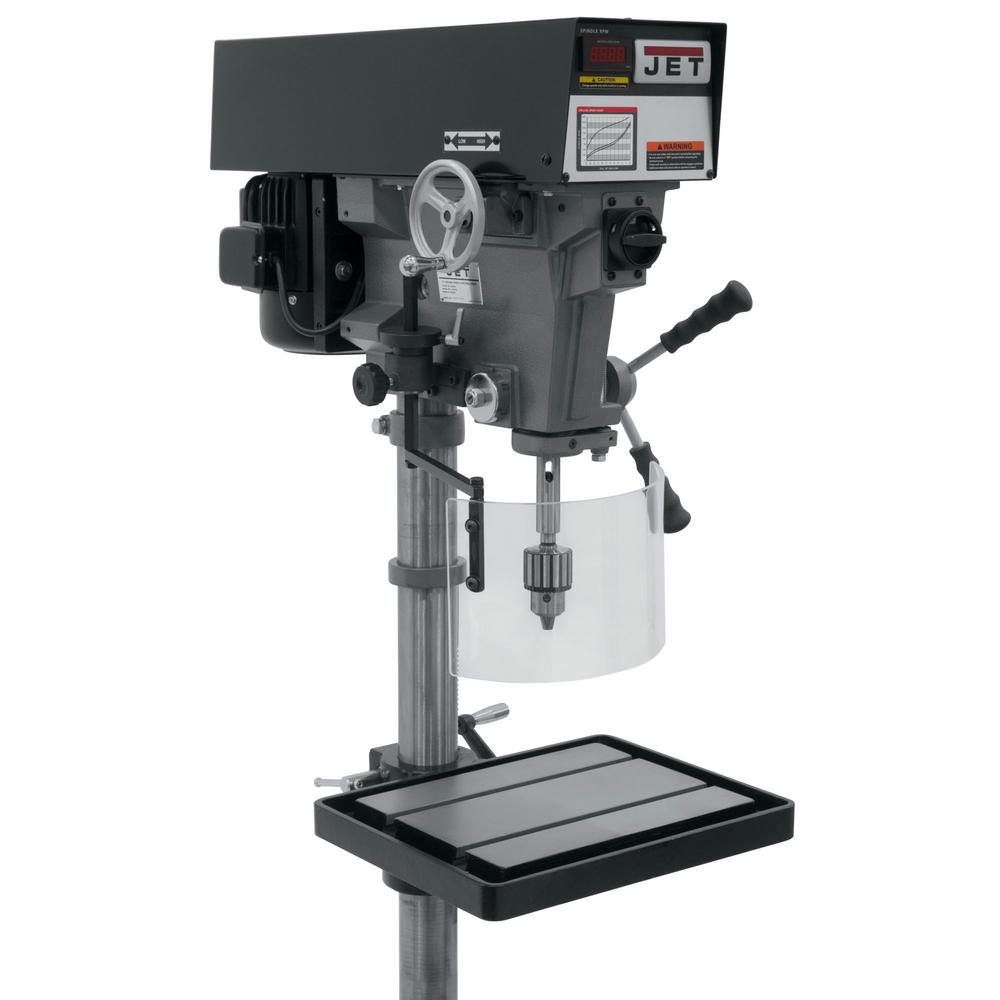

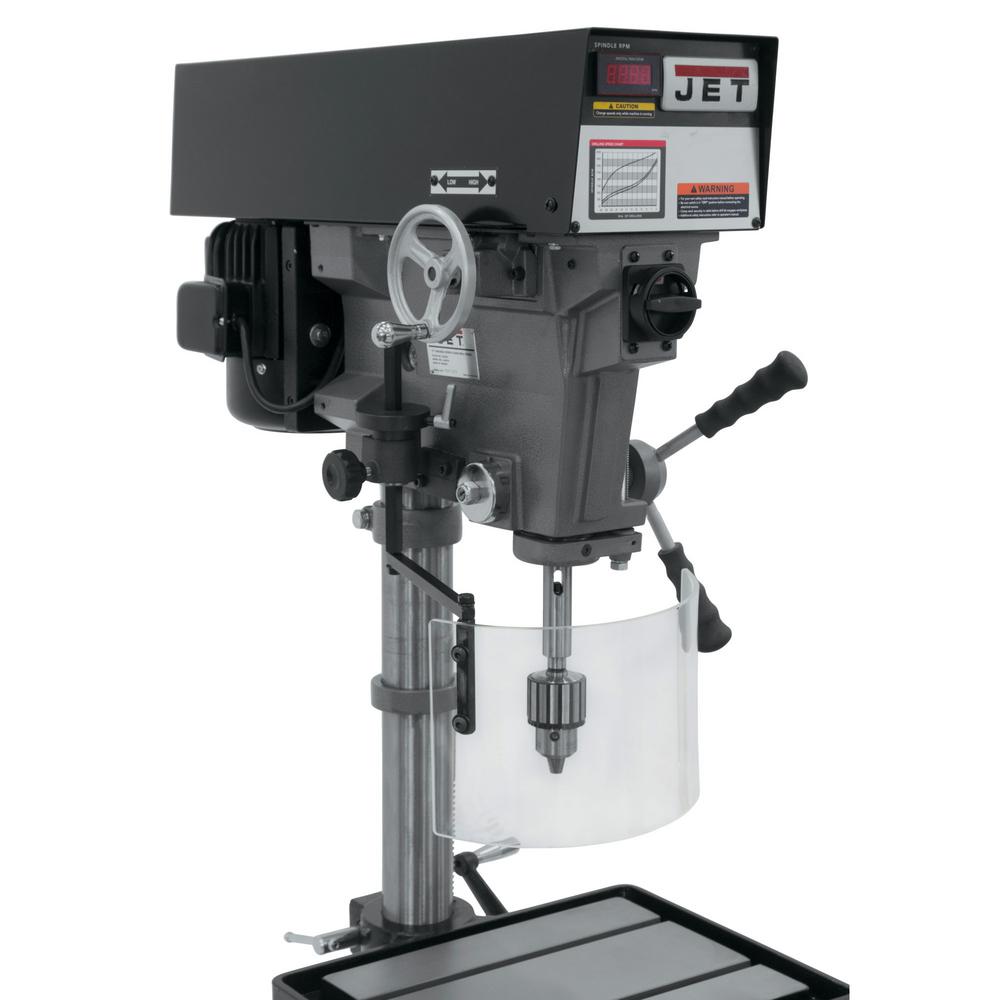

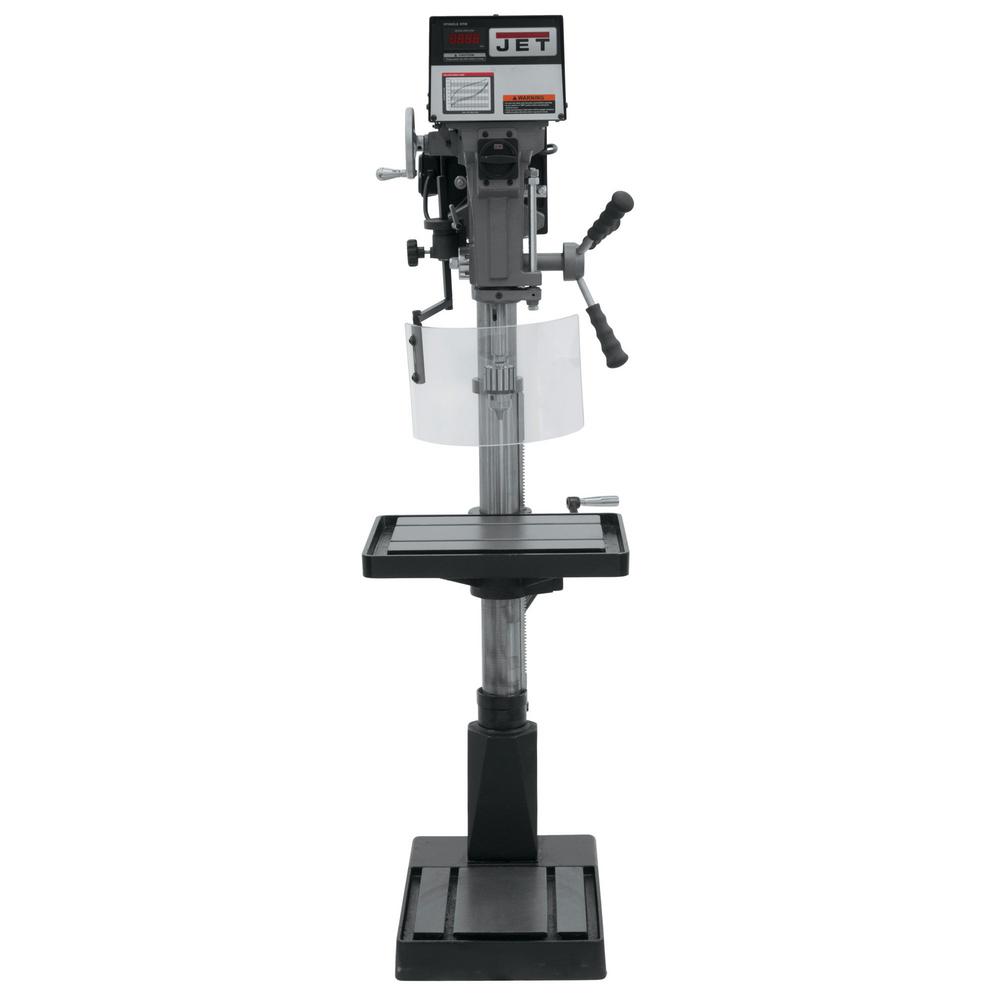

This JET Drill Press use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor’s fixed pulley and the output shaft’s variable pulley, changing the speed of the chuck. A tensioned pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.
- Full bearing support on quill for maximum spindle stiffness
- Hand wheel speed adjustment of 400 to 5,000 RPM
- Large 2-1/4 in. quill for greater accuracy
- 3 in. column diameter for maximum head support
- 6 in. stroke for deep hole application
- Accurate depth stop for precise hole depths
- 1/2 in. drill chuck and arbor included
- Safety collar
- An oversized/bulky item that requires delivery by truck; please be aware of the dimensions and weight of this machine
- JET offers full tech support in order to assist with any warranty issues; please call 1800-274-6846 for assistance
