Description

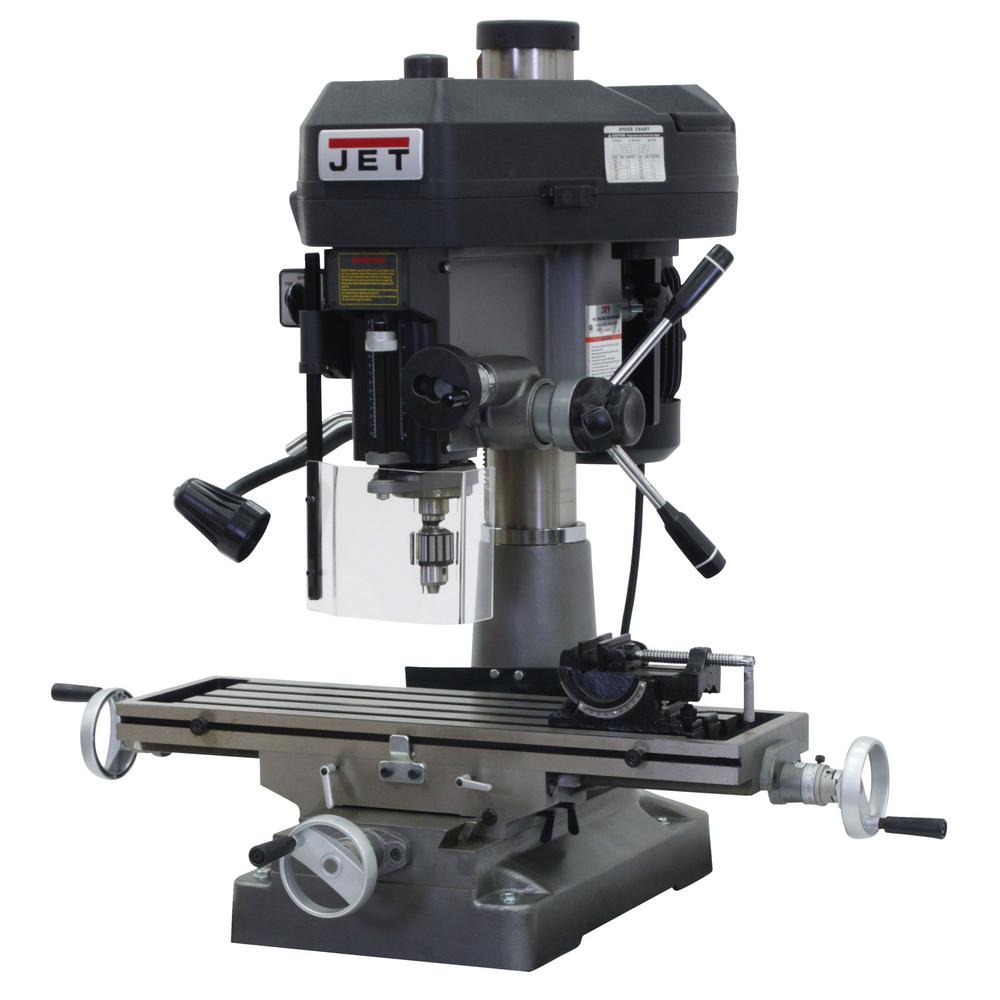

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine’s table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
- 1-piece cast iron column for added support

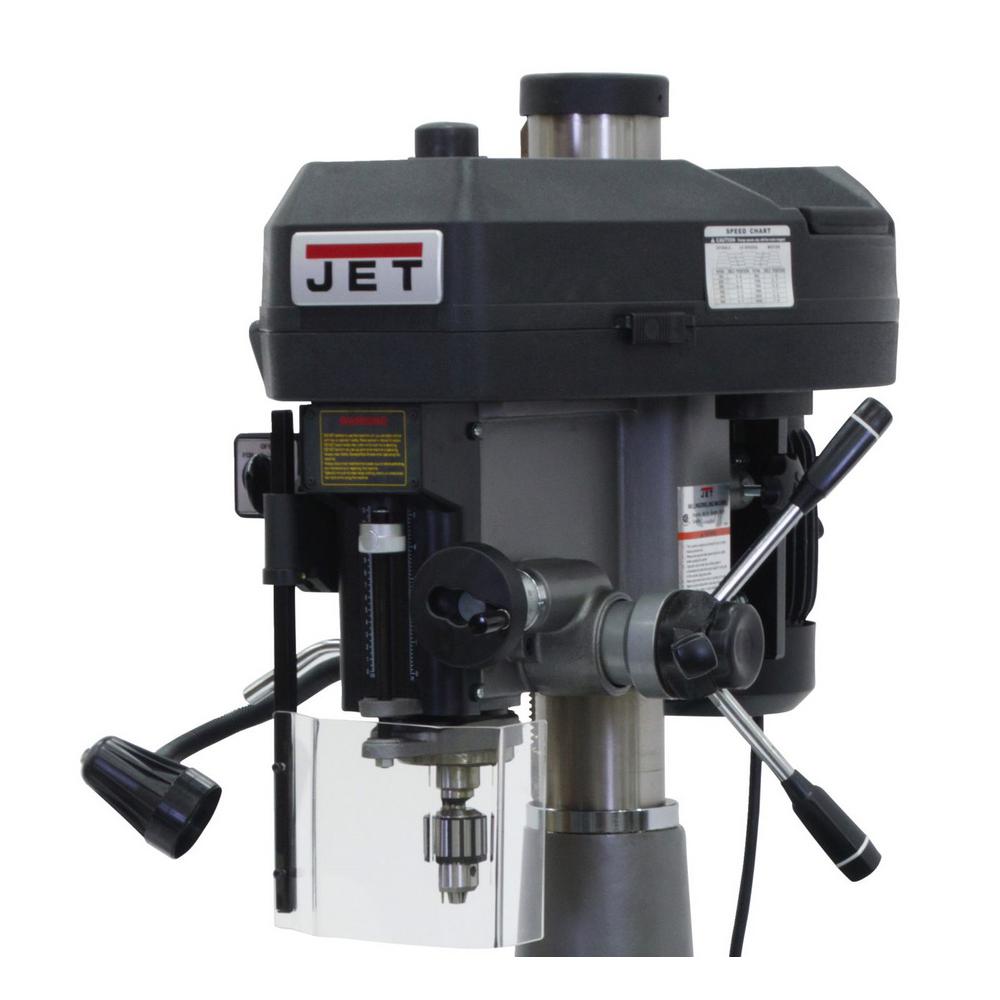

- Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
- Base taper allows for easier clean up
- Drill press angle vise
- UL listed motor

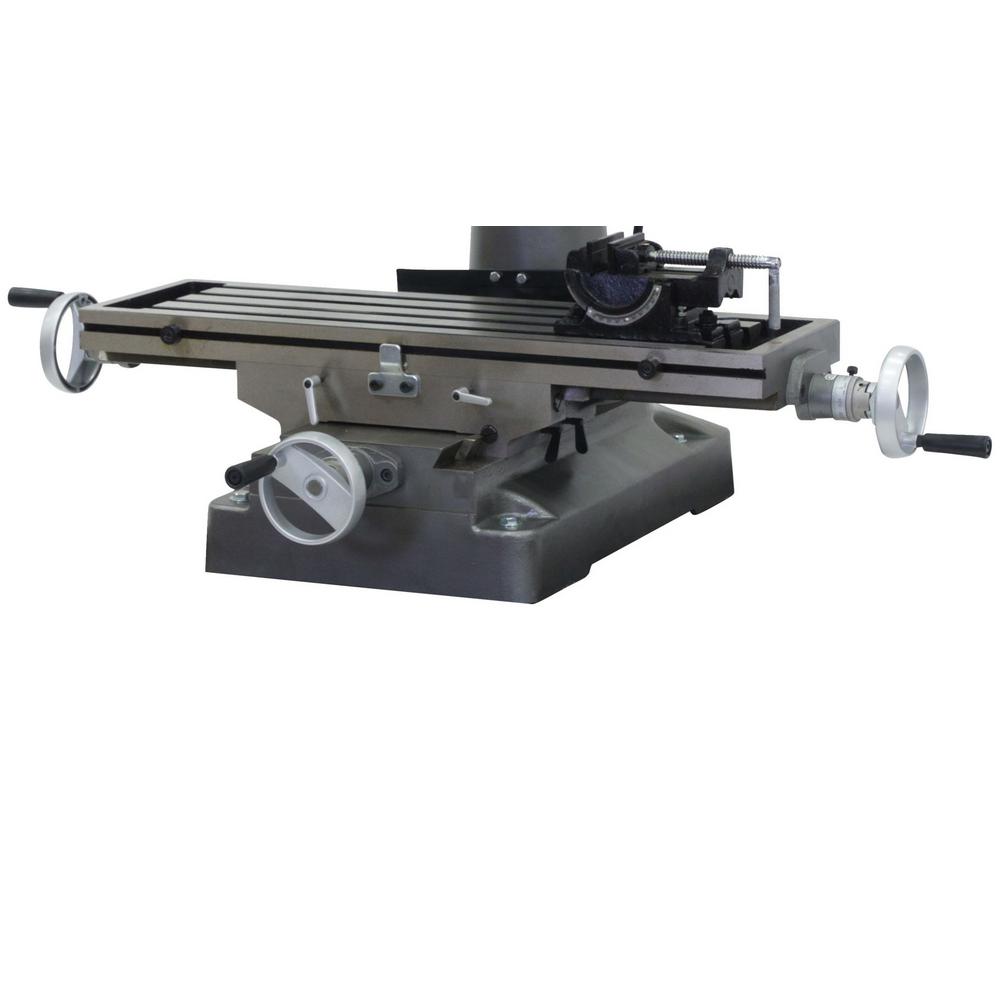

- Extra large worktable
- Positive quick-stop knob and easy to read internal depth gauge
- 360° head swivel
- Work lamp
Additional information
| Weight | 700 lbs |
|---|---|
| Dimensions | 42.5 × 39.75 × 43.5 in |
| Model | 350126 |
| Voltage (volts) | 115/230 |
| Tools Product Type | Power Tool |
| Spindle Travel | 5 in |
| Portability | Bench |
| Number of Speeds | 12 |
| Minimum speed (rpm) | 150 |
| Maximum Speed (rpm) | 3000 |
| Magnetic | No |
| Cord Length (ft.) | 6 |
| Lockout Power Switch | No |
| Condition | New |
| Color Family | Gray |
| Chuck Key Storage | Yes |
| Chuck Capacity | 1/2 In. |
| Built-In Light | Yes |
| Bench & Stationary Tool Type | Drill Press |
| Amperage (amps) | 20 A |
| 360- Degree Swivel | Yes |
| Work Light | Yes |
