Description

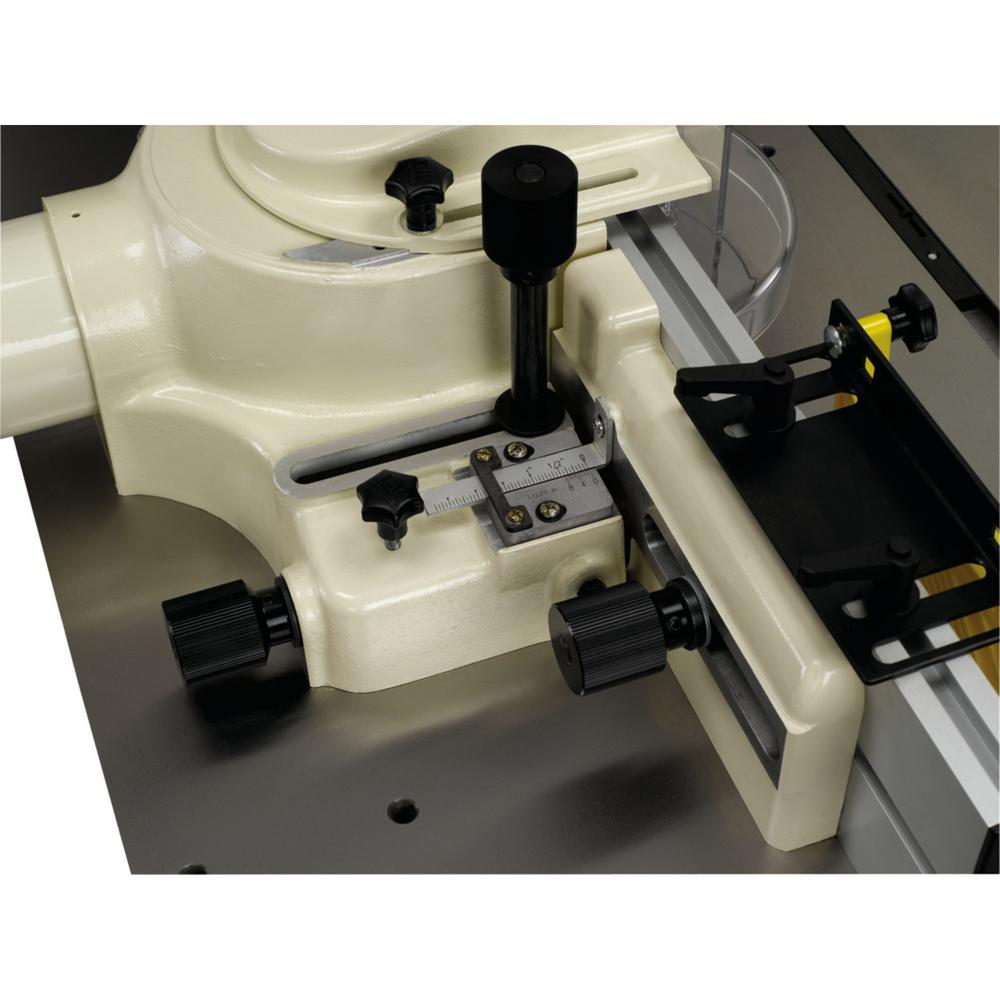

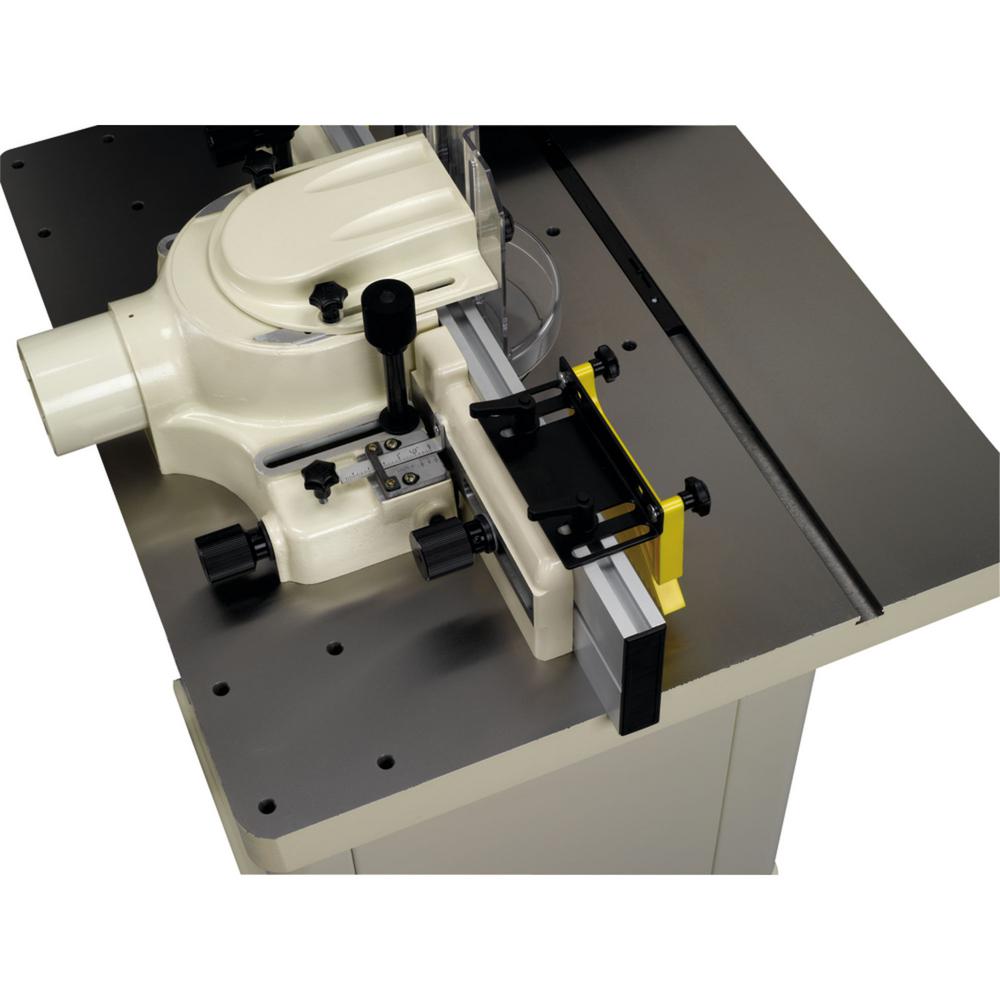

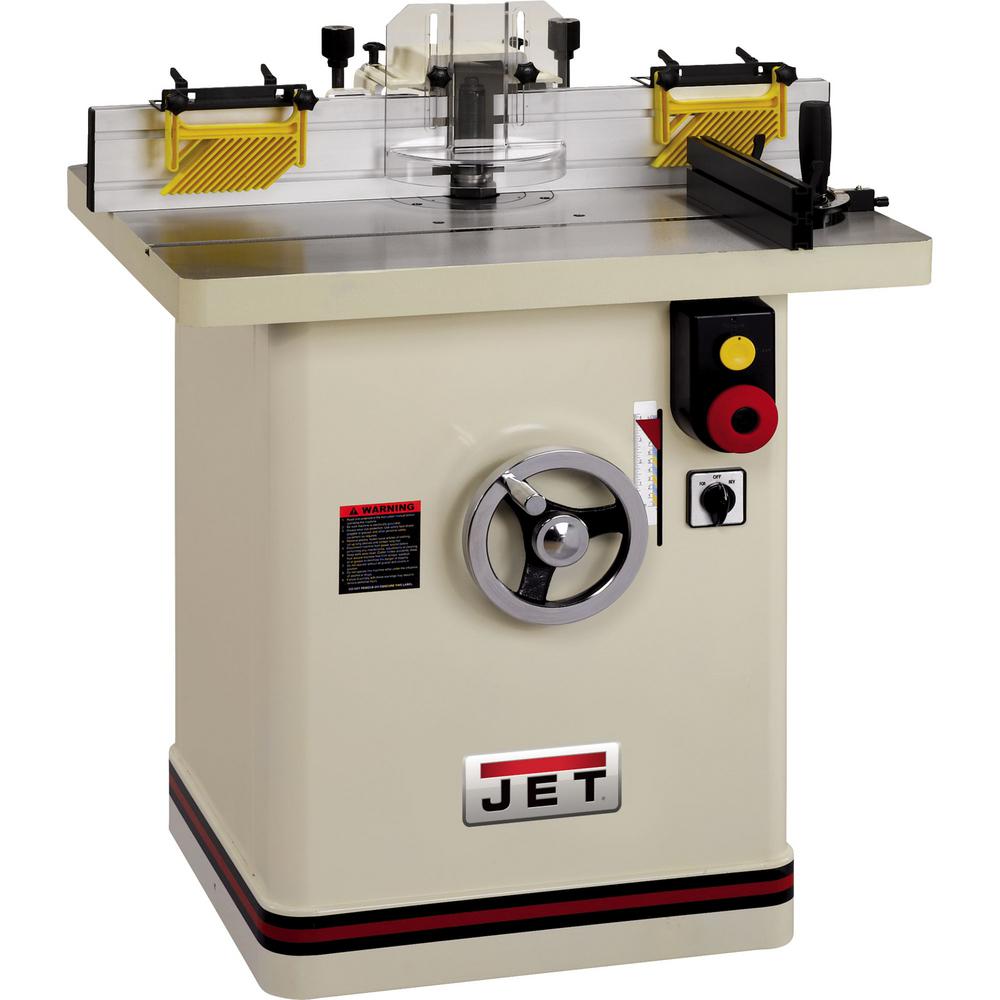

This heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The 4-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.
- 4-speeds 4000 RPM, 6000 RPM, 8000 RPM, 10000 RPM let you select the best speed and torque for different cutter diameters
- Powerful 3 HP, 1 pH motor with magnetic controls

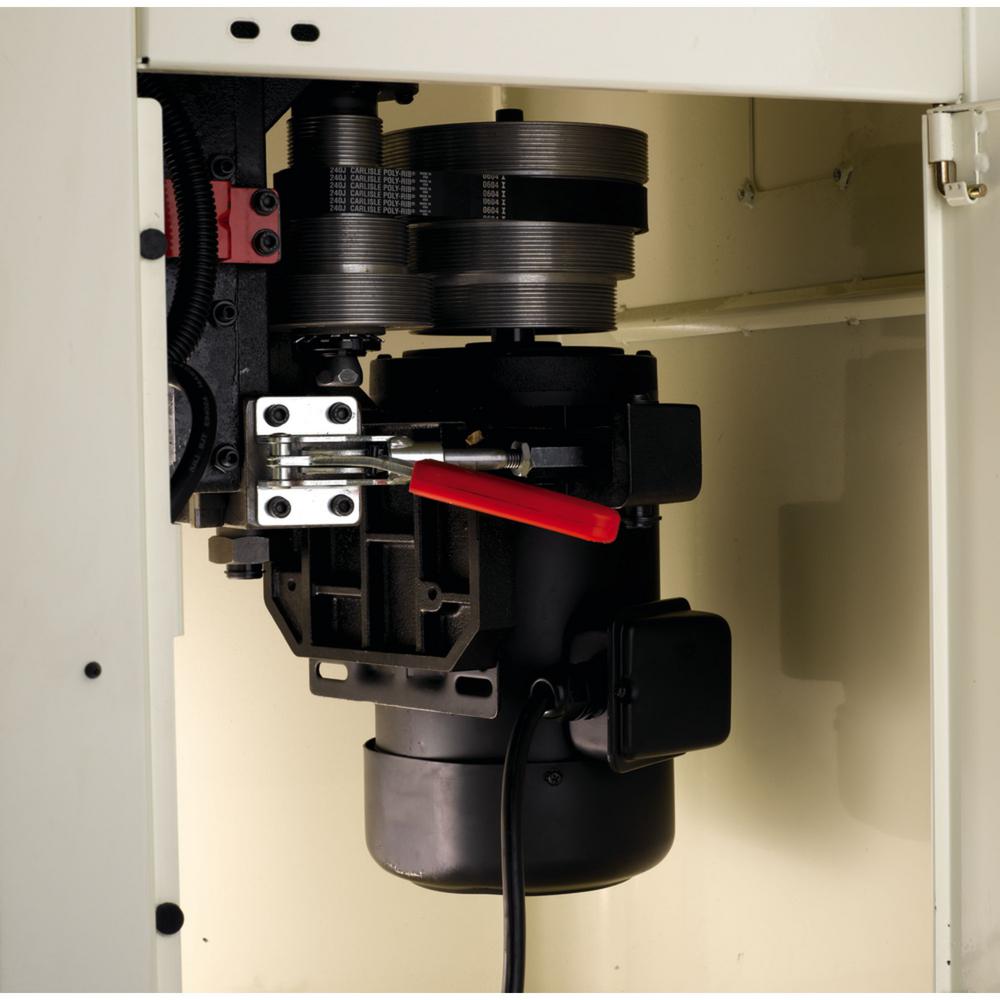

- Poly-V-belt transfers maximum power to the spindle

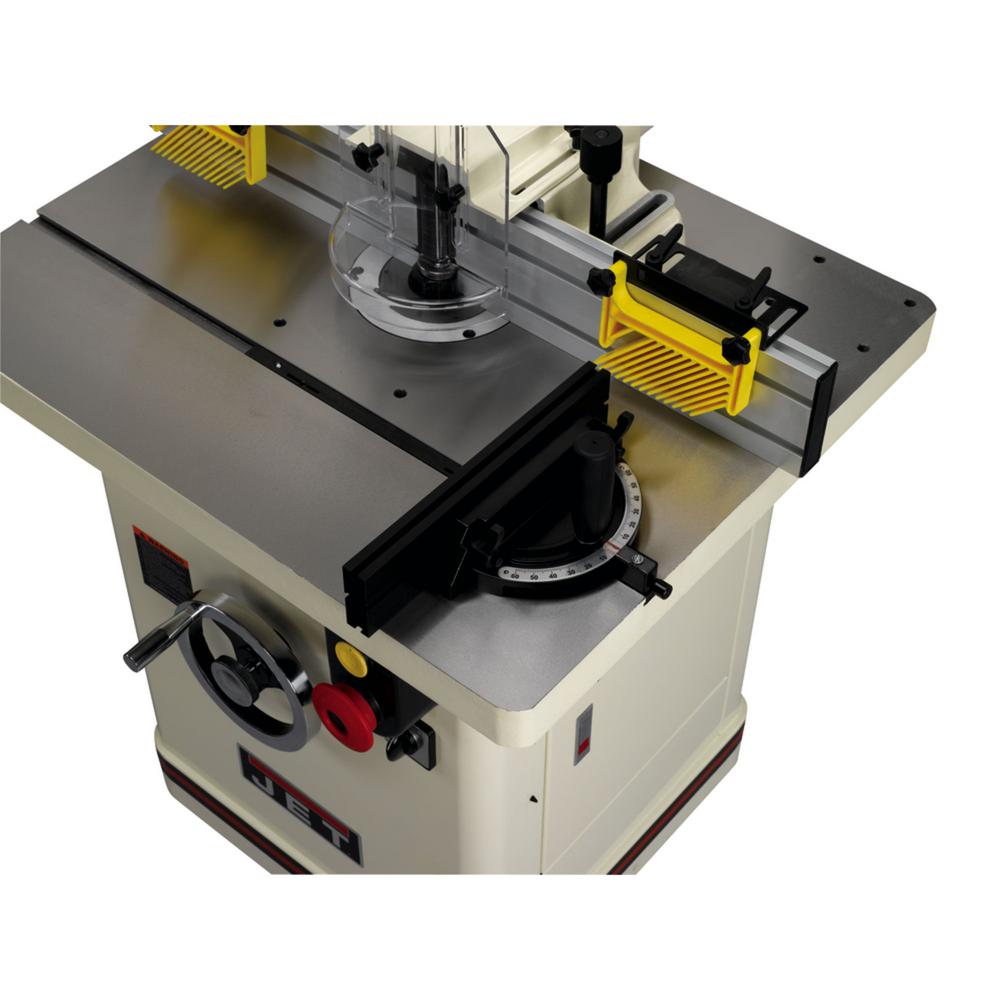

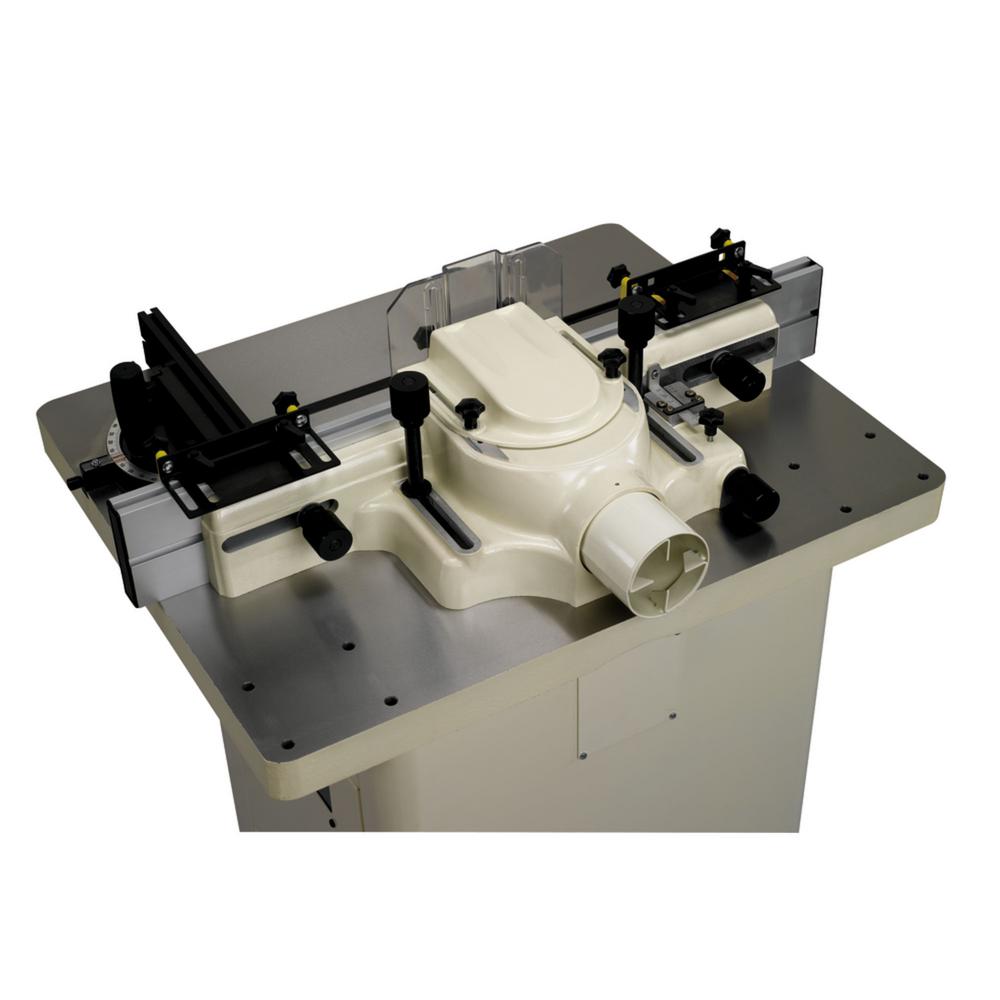

- Large 26-3/4 in. x 32-1/4 in. precision ground cast iron table provides a durable work area, predrilled for power feeder
- Spindle height scale
- Starting pins for irregular shaping

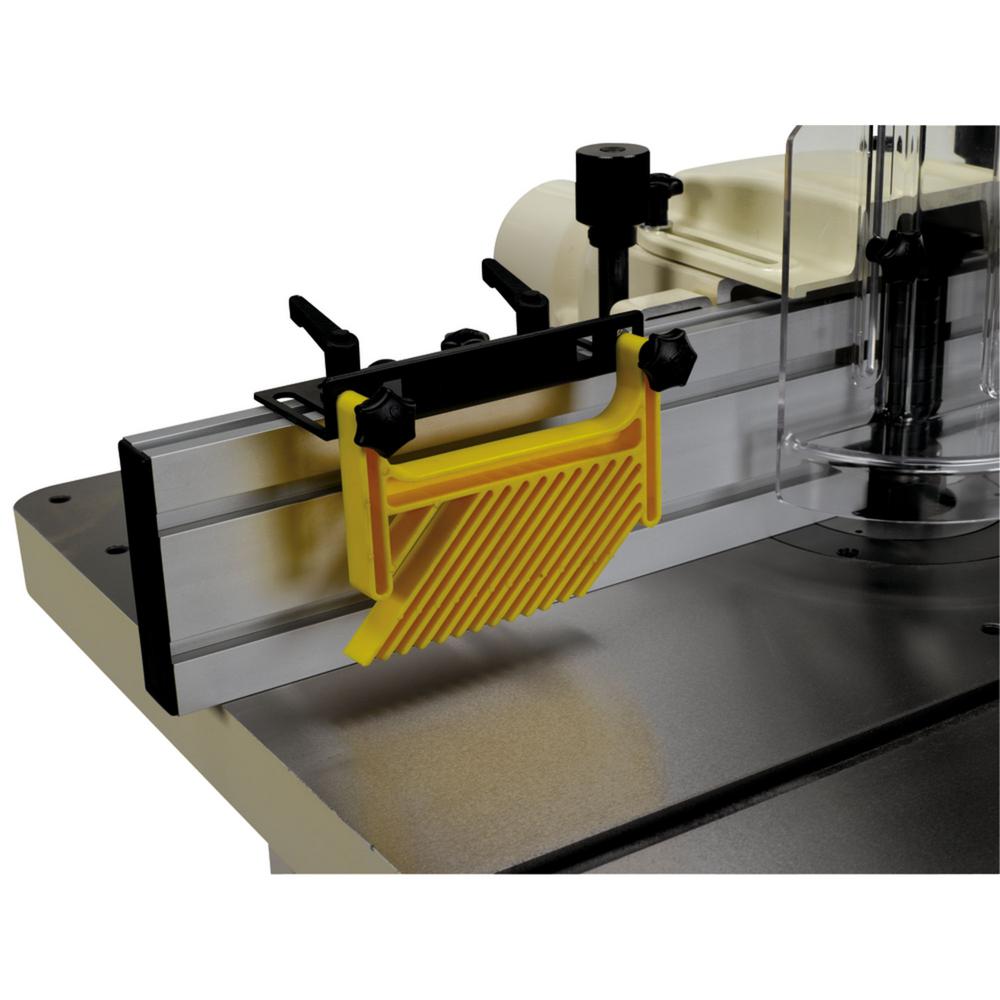

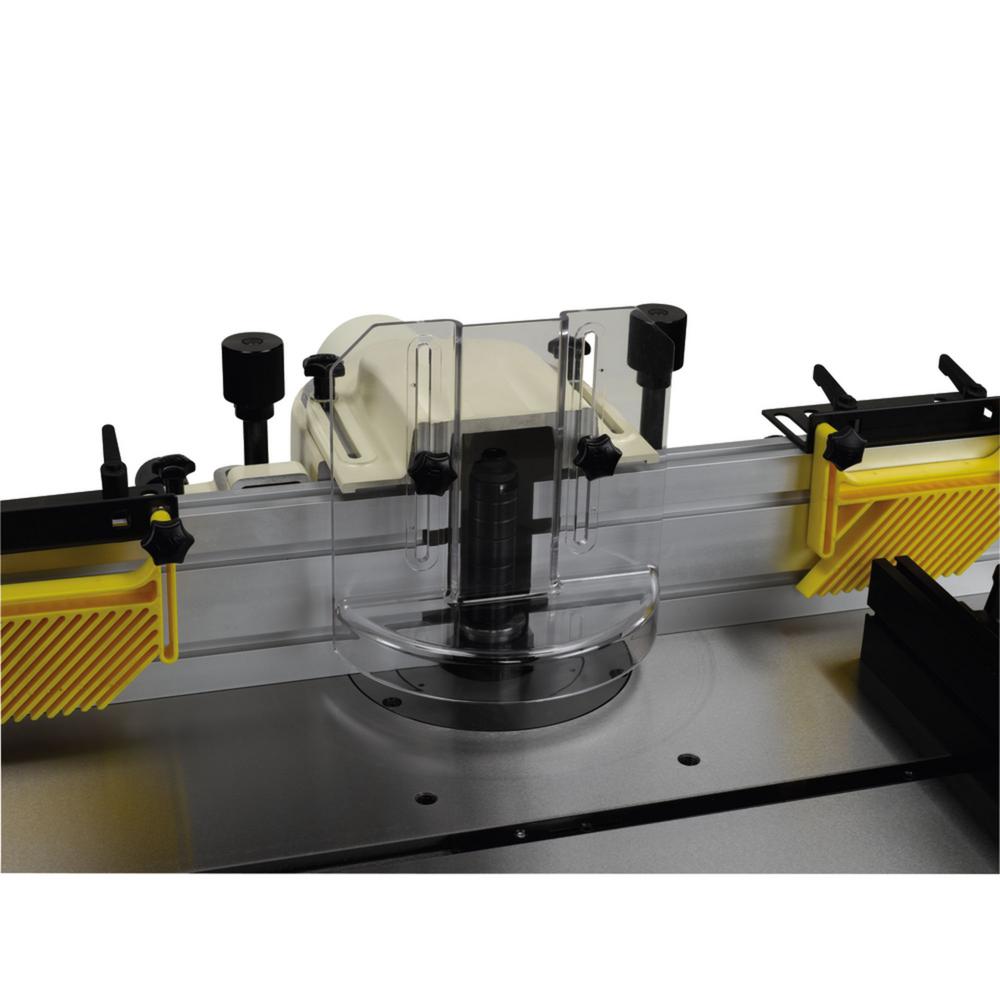

- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs

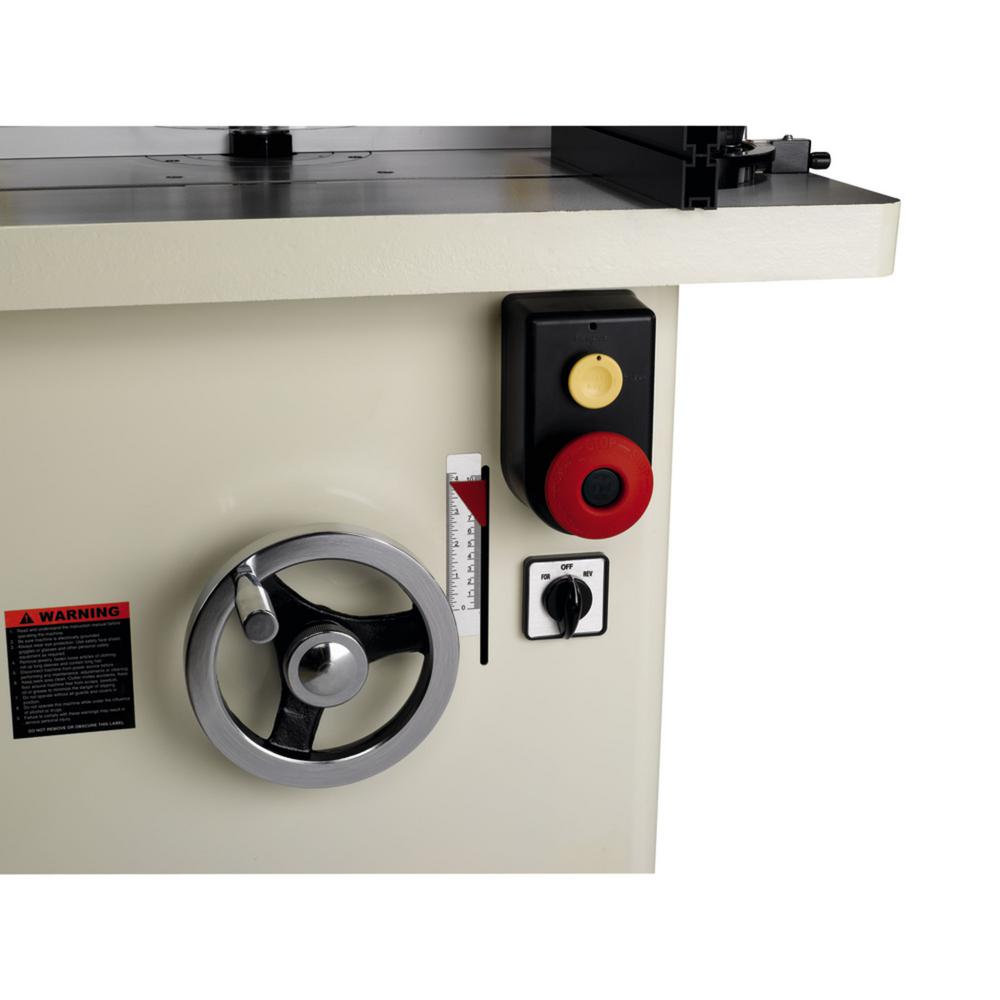

- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Reversible spindle speeds for diverse shaping jobs
Additional information
| Weight | 550 lbs |
|---|---|
| Dimensions | 30 × 40 × 41 in |
| Model | 708323 |
| Variable Speed | Yes |
| Tools Product Type | Power Tool |
| Table Width (in.) | 26.75 |
| Table Length (in.) | 32.25 |
| Spindle height (in.) | 4 |
| Spindle diameter (in.) | 1.25 |
| Reconditioned | No |
| Portability | Stationary |
| Power Tool Features | Variable Speed |
| PT Horsepower (Hp) | 3 |
| Dust collection type | Port |
| Cord Length (ft.) | 6 |
| Condition | New |
| Color Family | Tan |
| Bench & Stationary Tool Type | Spindle Sander |
| Amperage (amps) | 14 |
| Voltage (volts) | 230 |
