Description

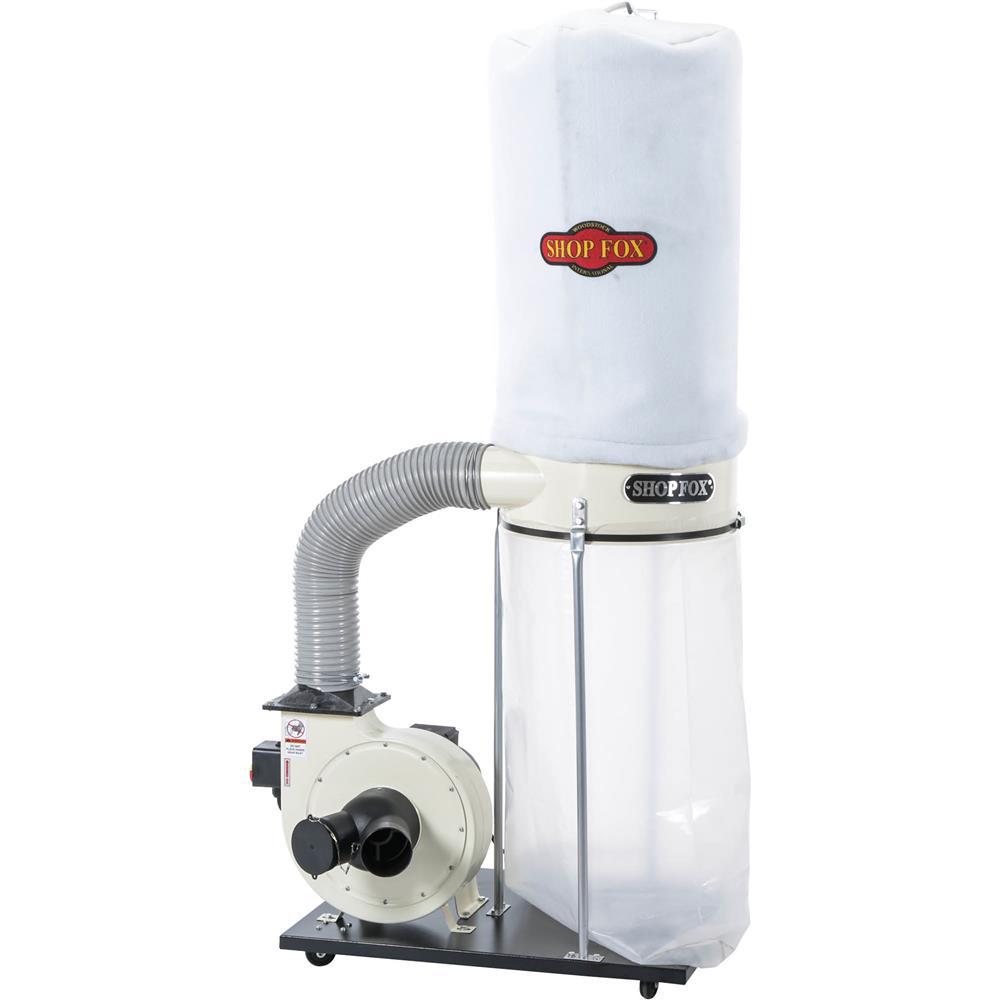

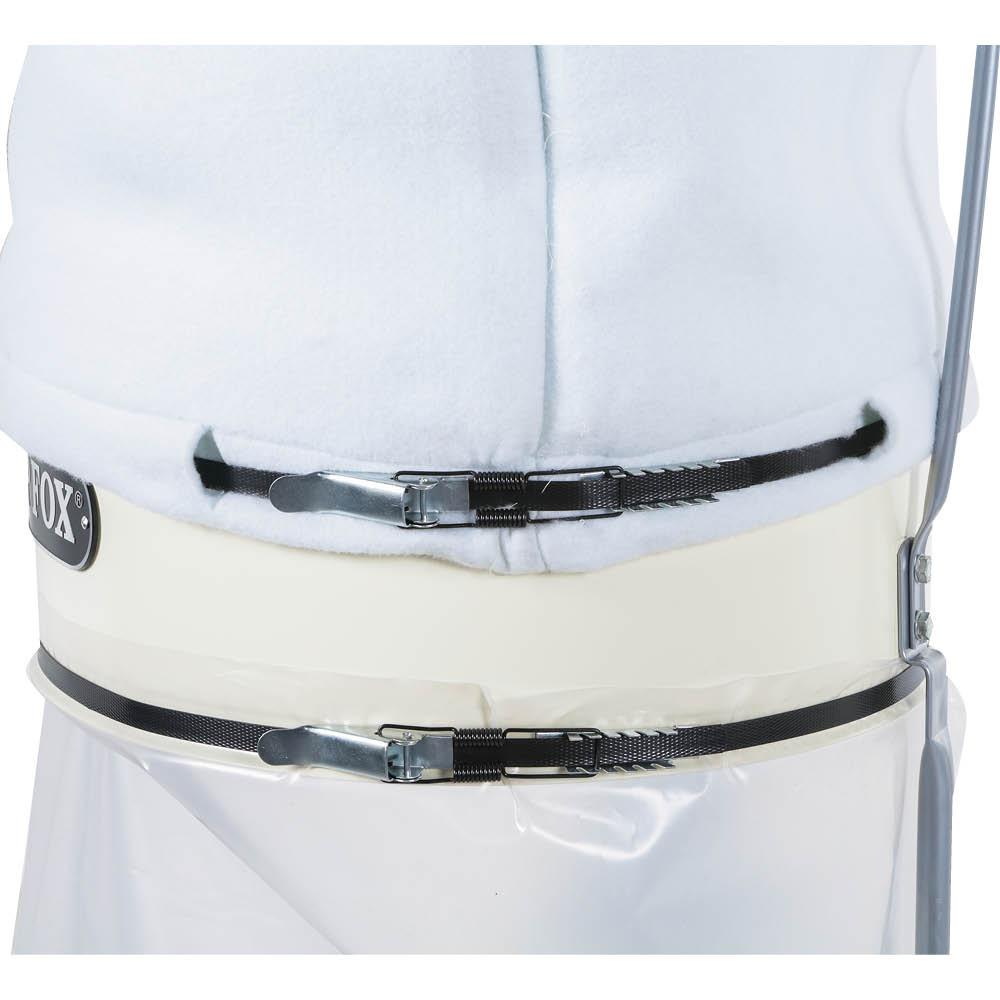

A powerful dust collector from Shop Fox. This unit features an extra heavy-duty 12 in. steel impeller and a 1-1/2 HP motor that runs on 110-Volt. For wood dust only. Models manufactured after June 2015 come with a 2.5 mic felt upper filtration and a plastic (PE) lower collection bag. The upper 2.5 mic bag (D4572) and lower plastic bags (D4573 5-pack) can be purchased separately for any collectors that do not include them.

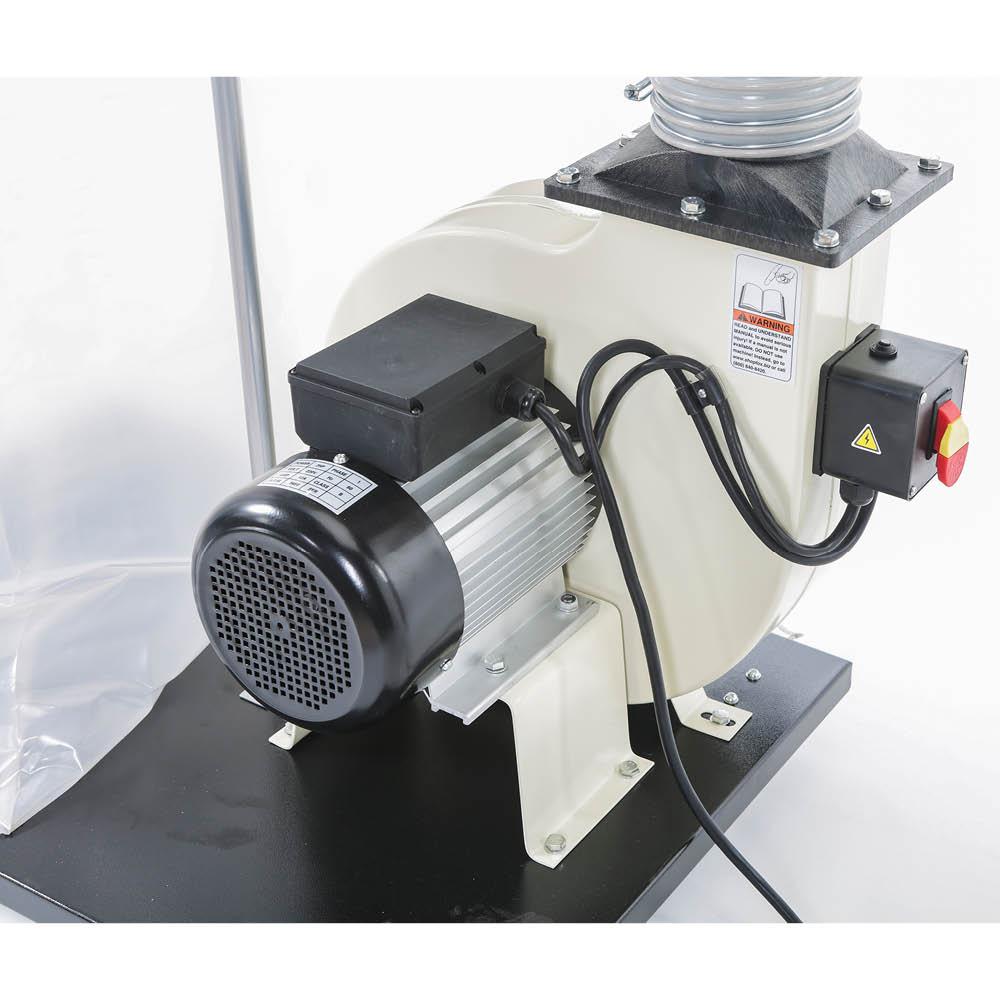

- Motor: 1-1/2 HP, 110-Volt, single-phase, 3450 RPM, 16 Amp
- Portable base size: 21-1/2 in. x 33-1/2 in.
- Bag capacity: 5.4 cu. ft.
- Height (with bags inflated): 78 in.
- Air suction capacity: approximately 1280 CFM

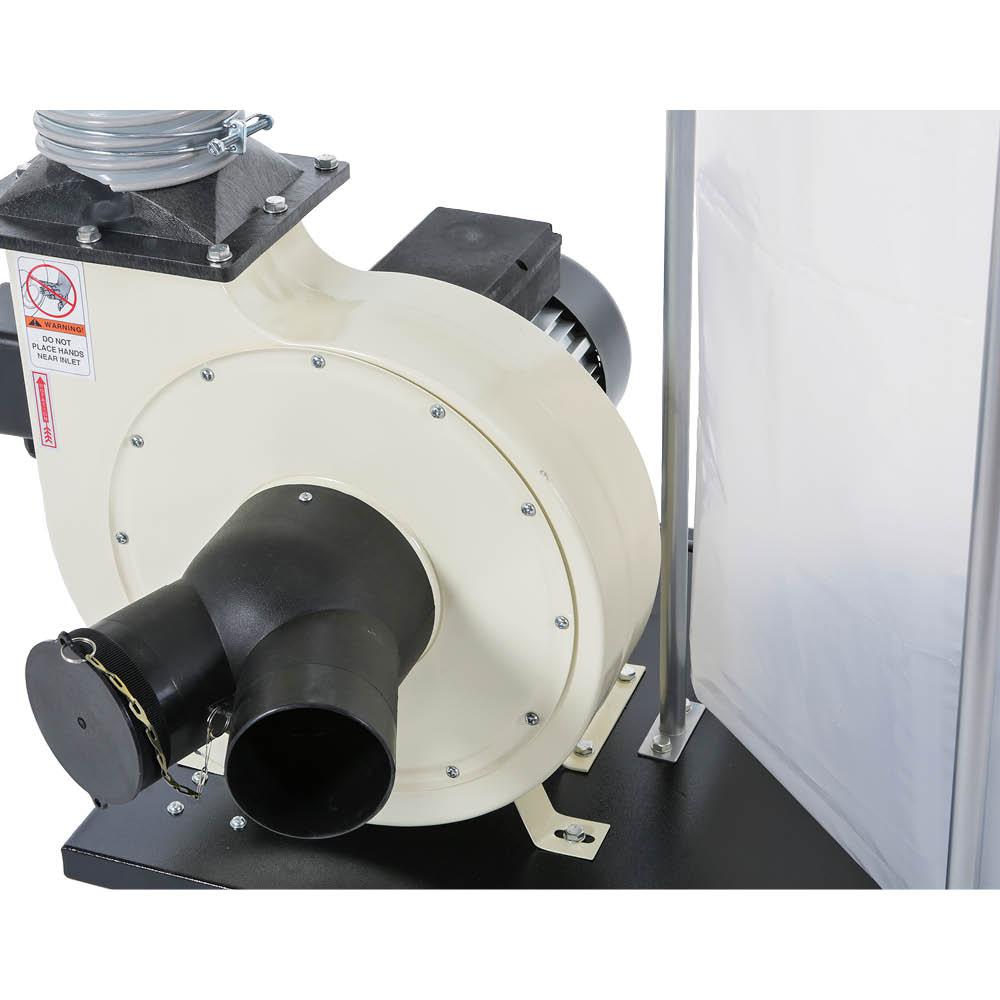

- Impeller: 12 in. balanced steel, radial fin
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 90 lbs |
|---|---|
| Dimensions | 36 × 23 × 23 in |
| Model | W1685 |
| Bag Capacity/Dry Volume (cu. ft.) | 5.4 |
| Color Family | White |
| Dust Collection Product Type | Dust Collector |
| Interior Hose Diameter (In.) | 6 |
| Tools Product Type | Power Tool |
