Shop Fox 20 in. 5 HP 240-Volt Planer with Built-in Mobile Base
$2,304.99
Finish your all toughest works easily with the selection of this Shop Fox Planer with Builtin Mobile Base. Forward and reverse switch.
In stock
Description

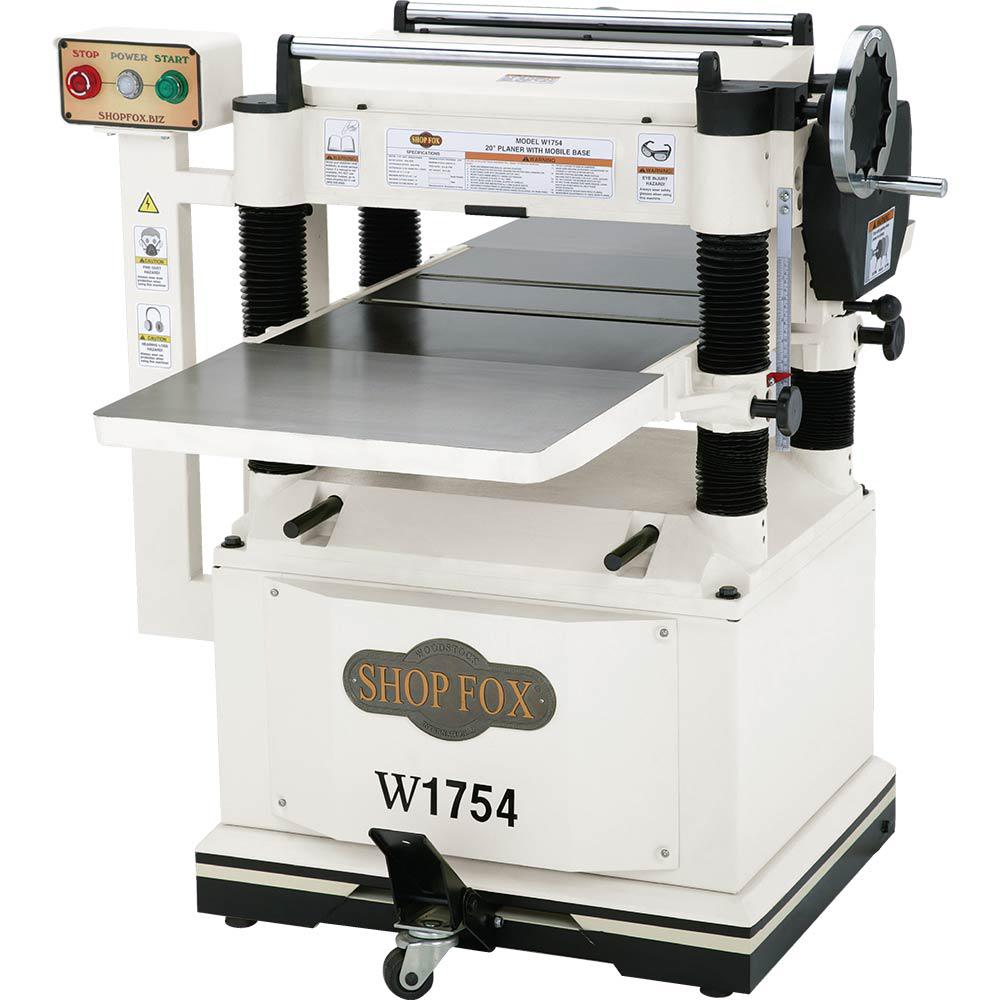

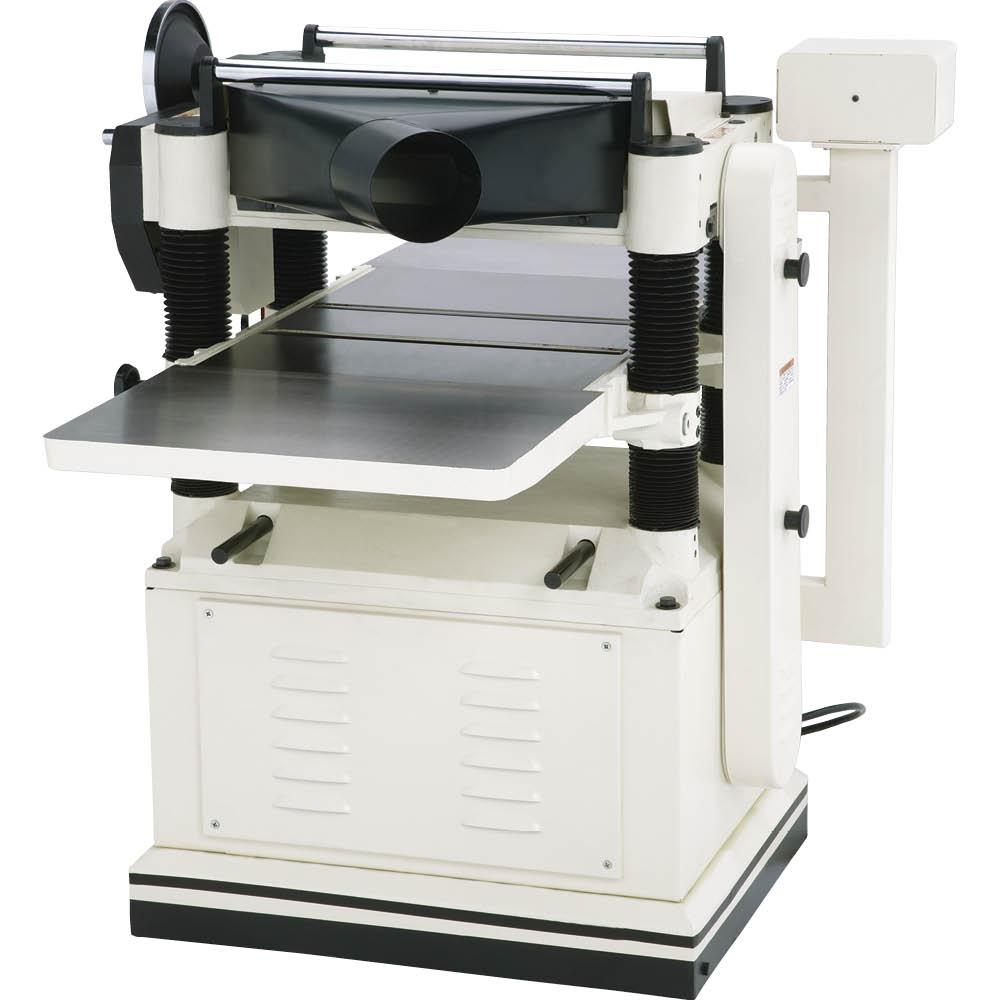

With its built-in locking mobile base and pedestal-mounted switch, our Model W1754 planer is easy to move and operate. Just press down on the lock lever with your foot and this planer is mobile. Standard features include a 55-5/8 in. L precision-ground cast iron table with the cast iron extension wings, 2 feed speeds, return rollers, a 20 in. x 8 in. capacity, adjustable bed rollers, magnetic switch with thermal overload protection and a 5 HP motor.
- Motor: 5 HP, 240-Volt, single-phase, 19 Amp
- Infeed roller: solid serrated steel
- Outfeed rollers: knurled steel
- 4 column support with table locks
- 2 speed gear box
- Cast-iron table and extension wings
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 924 lbs |
|---|---|
| Dimensions | 43 × 29 × 48 in |
| Model | W1754 |
| Amperage (amps) | 19 A |
| Bench & Stationary Tool Type | Planer |
| Blade(s) Included | Yes |
| Color Family | Steel |
| Color/Finish | White |
| Condition | New |
| Maximum Board Thickness | 8 in |
| Maximum Speed (rpm) | 3450 |
| Maximum cut depth (in.) | 0.125 |
| Minimum cut depth (in.) | 0.03125 |
| Number of Cutting Blades | 4 |
| Portability | Stationary |
| Tools Product Type | Power Tool |
