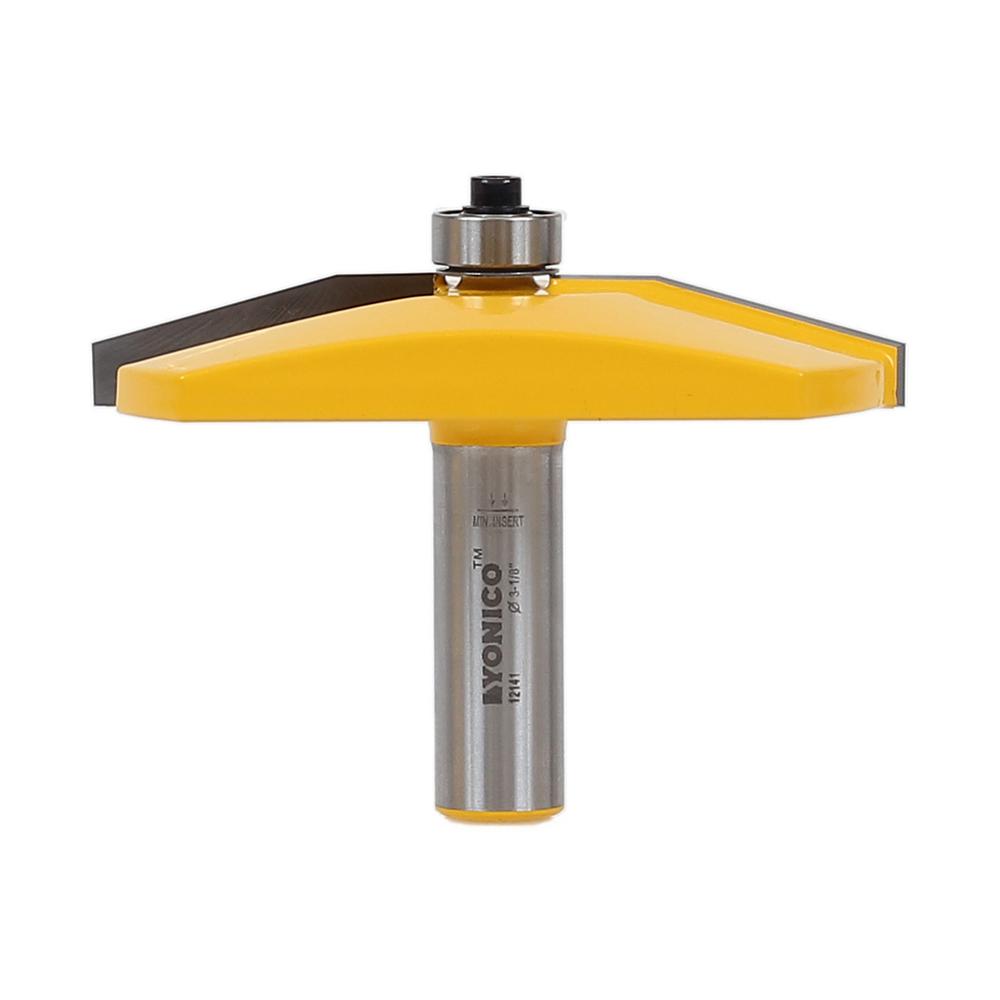

Yonico Raised Panel Bevel 1/2 in. Shank Carbide Tipped Router Bit

This 3-1/8 in. bevel panel raiser has a cutting depth of 1-5/16 in. and a total cutting height of 1/2 in. which includes a 1/4 in. fillet. This bit can cut panels for door frames with grooves of up to 3/8 in. D. This bit features thick carbide cutters and a 1/2 in. shank. Use a raised panel router bit to reduce the thickness of the center panel of rail and stile doors while at the same time adding a beautiful profile to the edge. Install 1 of these bits in your table mounted router and route your panels face down. Raised panel router bits have a large diameter and remove a lot of material, so make sure you have a router with enough horsepower to handle this kind of work. All standard raised panel bits are fitted with radial bearings to make adjustment of the router table fence easy. Do not use these bits in handheld routers. If you are using stock that is very thick, choose 1 of our raised panel router bits with a back cutter blade. These will remove excess stock from the back of the panel as well.

• Create center panels for standard rail and stile cabinet doors
• Premium C3 micro-grain tungsten carbide blades for a sharper and longer lasting edge
• For use on table mount router
• Silver induction brazing for maximum strength and durability
• Manufactured with anti-kickback design to help prevent workshop mishaps
