Description

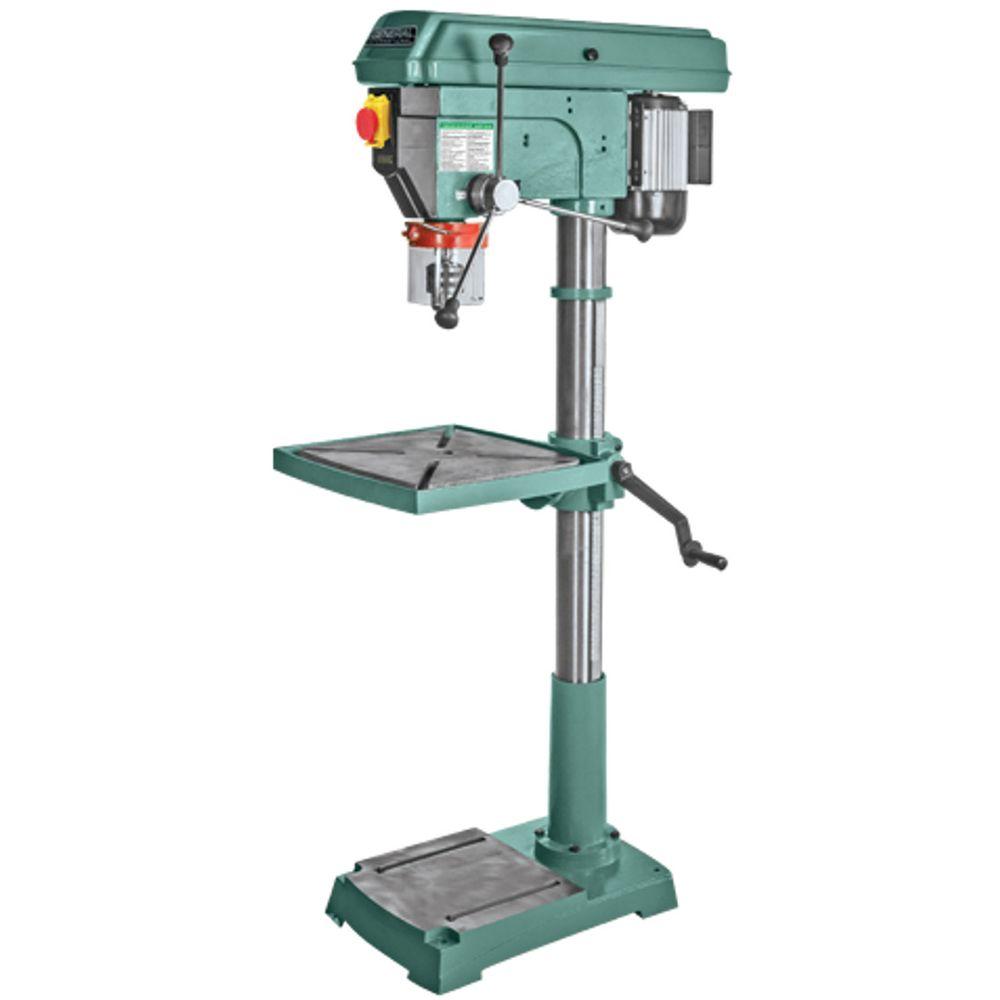

General International specializes in high quality woodworking and metal working machinery and related accessories. The 20 in. Variable Speed Drill Press has a sturdy design with a cast iron head, table and base. It features high-quality bearings for smooth, vibration-free operation and a simple hand lever controlled mechanical variable speed from 280 to 2100 RPMs.
- Adjustable spindle tension returns spring
- Built-in laser guide
- Digital spindle speed display
- Industrial-quality 120-Volt motor
- Includes chuck with key
- Easy to use see-through flip-up chuck guard included for added safety
- Crank-operated rack and pinion table height adjustment
- 20 in. swing (515 mm)
- Drilling capacity: 1-1/4 in. (32 mm)
- Chuck size: 3/4 in. (20 mm)
- Spindle distance to table 27-3/4 in. (705 mm)
- Spindle distance to base: 46-7/8 in. (1190 mm)
- Table size: 18-3/4 in. x 16-3/4 in. (475 x 425 mm)
- Column diameter: 3-5/8 in. (92 mm)
- Base size: 23-5/8 in. x 5-3/4 in. (600 x 400 mm)
- Motor: 1 HP, 120-Volt, 10-Amp
Additional information
| Weight | 339 lbs |
|---|---|
| Dimensions | 40 × 48 × 30 in |
| Model | 75-510 M1 |
| Voltage (volts) | 120 |
| Tools Product Type | Power Tool |
| Spindle Travel | 4.75 |
| Portability | Bench |
| Number of Speeds | 20 |
| Minimum speed (rpm) | 280 |
| Maximum Speed (rpm) | 2100 |
| Magnetic | No |
| Cord Length (ft.) | 6 |
| Lockout Power Switch | Yes |
| Condition | New |
| Color Family | Green |
| Chuck Key Storage | Yes |
| Chuck Capacity | 3/4 In. |
| Built-In Light | No |
| Bench & Stationary Tool Type | Drill Press |
| Amperage (amps) | 10 |
| 360- Degree Swivel | Yes |
| Work Light | No |
