Description

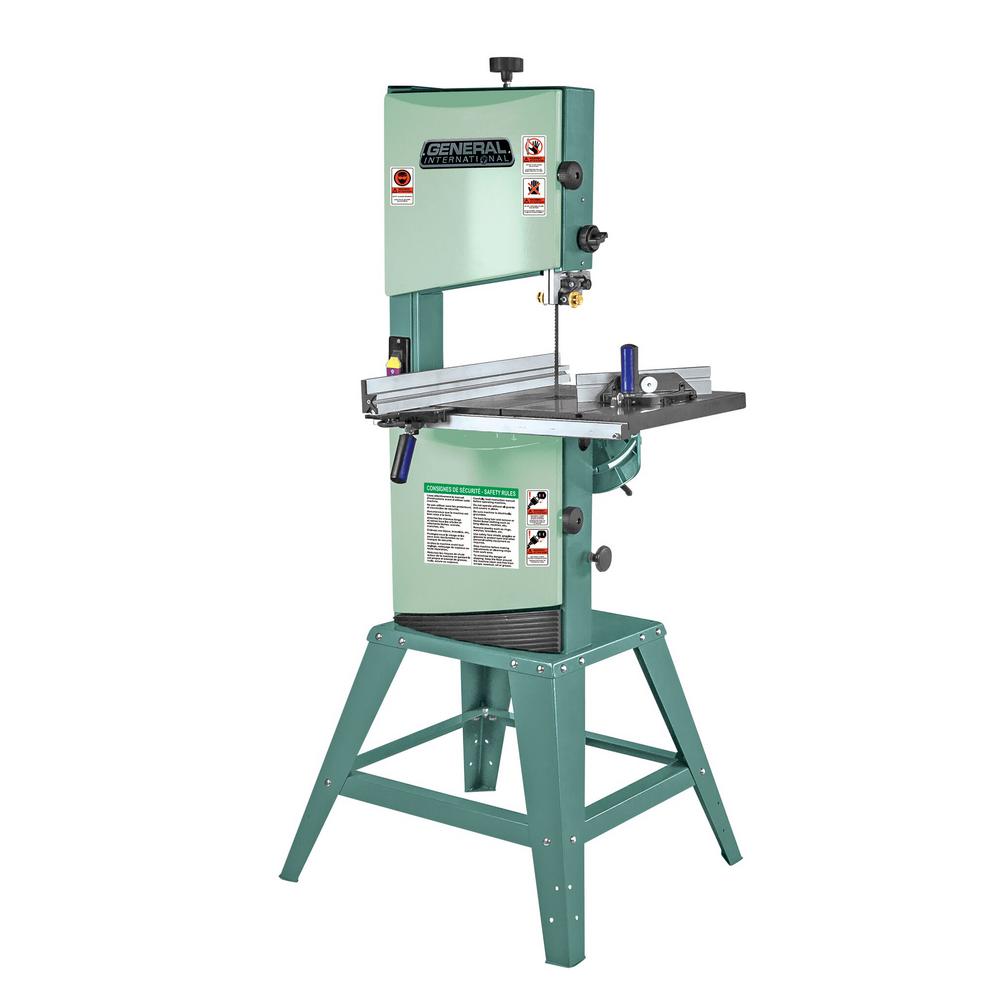

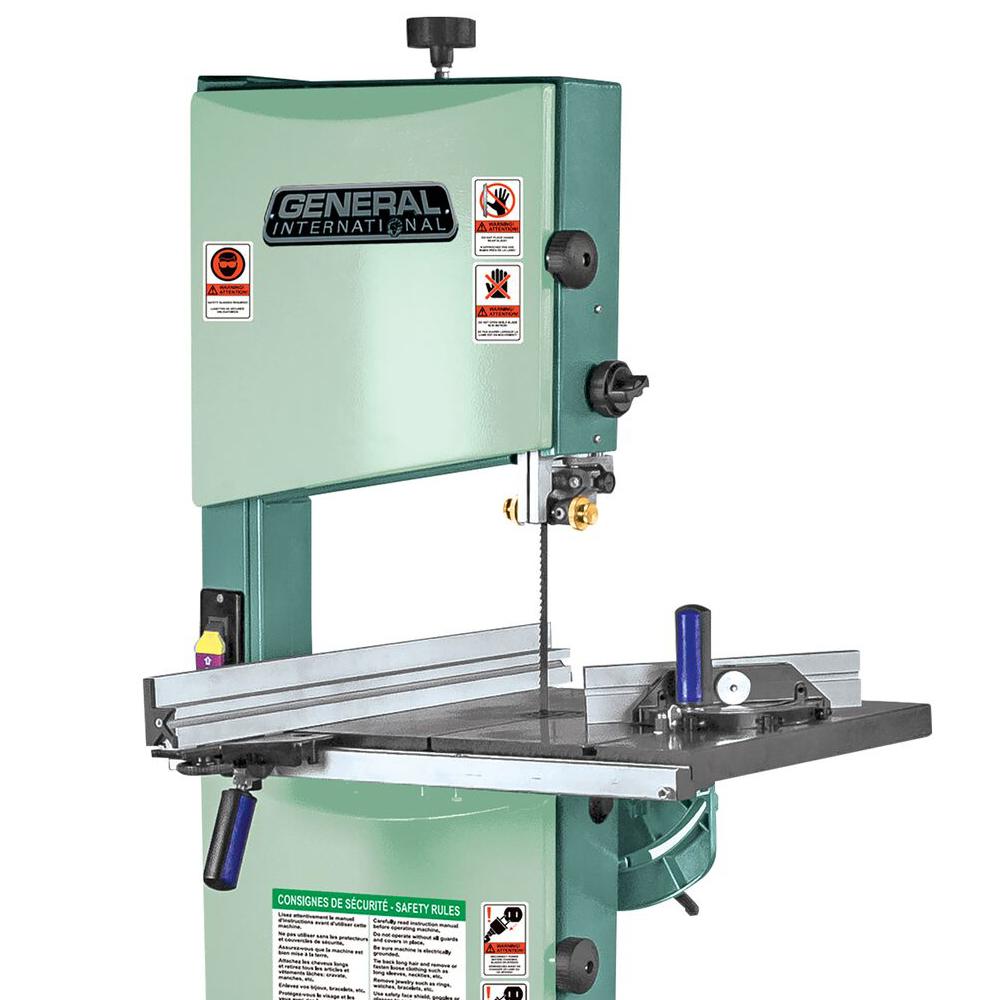

The General International 4 Amp 12 in. Woodcutting Band Saw features a steel frame and precision balanced internal working wheels with replaceable tires for maximum durability. Includes an easy-to-assemble, open-base sturdy steel stand. Includes precision easy-adjusting European style blade guide bearings. 2 cutting speeds makes for excellent results in either hard or soft woods. A Miter gauge with aluminum crosscut fence is included as a bonus. Hinged doors and easily accessible blade tension knob, for fast blade changes and adjustments. Extra-large designed 21-1/2 in. x 15-3/4 in. cast-iron table for stability and durability. The oversized paddle, safety lock-out on/off switch with removable key, prevents unauthorized use and easy to shut on and off. The bonus, multi-size dust port fits 4 in., 3 in. or 2 in. hose. Limited 2-year warranty.
- Smooth running durable heavy-duty 2/3 HP, sturdy welded steel frame and precision balanced wheels with replaceable tires, easy to assemble open base steel stand
- Precision easy adjust European style blade guide bearings included, 2 cutting speeds for excellent results in either hard or soft woods
- Miter gauge with aluminum crosscut fence included, deluxe dual-position rip fence system, hinged doors and easily accessible blade tension knob, for fast blade changes and adjustments
- Extra-large 21-1/2 in. x 15-3/4 in. cast iron table, safety lock-out switch with removable key to prevent unauthorized use
- Wheel size: 12 in., wheel speeds two: 445 and 970 RPM, blade speeds two: 1444 and 3150 lin. Fpm, blade width: 1/8 in. – 3/4 in., blade length: 88 in.
- Table size: 21-1/2 in. x 15-3/4 in., table tilt: 0° to 45° (right), table height: 37-3/8 in., motor M1: 2/3HP, 120-Volt, 1 Phase, 6.4 Amp
- Maximum width of cut: 12 in., maximum depth of cut: 6-1/2 in., dust port diameter: 4 in., 3 in., or 2 in. hose
- Base dimensions: (L x W) 18-1/4 in. x 15-3/4 in., 165 lbs.
- 2-year limited warranty
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 172 lbs |
|---|---|
| Dimensions | 21 × 17 × 21 in |
| Model | 90-040 M1 |
| Voltage (volts) | 120 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 15.75 |
| Table Tilt Right Max (degrees) | 45 |
| Table Tilt Left Max (degrees) | 0 |
| Table Length (in.) | 21.5 |
| Power Tool Features | No Additional Features |
| Portability | Stationary |
| PT Horsepower (Hp) | 2/3 |
| Minimum Blade Width | 0.13 |
| Minimum Blade Length | 88 |
| Maximum Speed (rpm) | 970 |
| Maximum Blade Width | 0.75 |
| Maximum Blade Length | 88 |
| Included Accessories | Tool Only |
| Dust Port Size (In.) | 4 |
| Dust Collection Method | 4 in. Dust Port |
| Cutting Capacity Width / Depth Of Throat(In.) | 12 |
| Cutting Capacity Height / Height under Guide (In.) | 6.5 |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 6 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Green |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Vertical |
| Amperage (amps) | 6.4 |
| Work Table Surface | 21.5 in. x 15.75 in. |
