Grizzly Industrial 10 in. 3 HP 240-Volt Cabinet Left-Tilting Table Saw
$1,624.00
Complete all your tool work easily by selecting this useful Grizzly Industrial Cabinet Left-Tilting Table Saw. Angled dust chute in bottom of stand.
Hurry! Order in the next 19h 58m to get delivery by Mon, Oct 5th!
In stock
Description

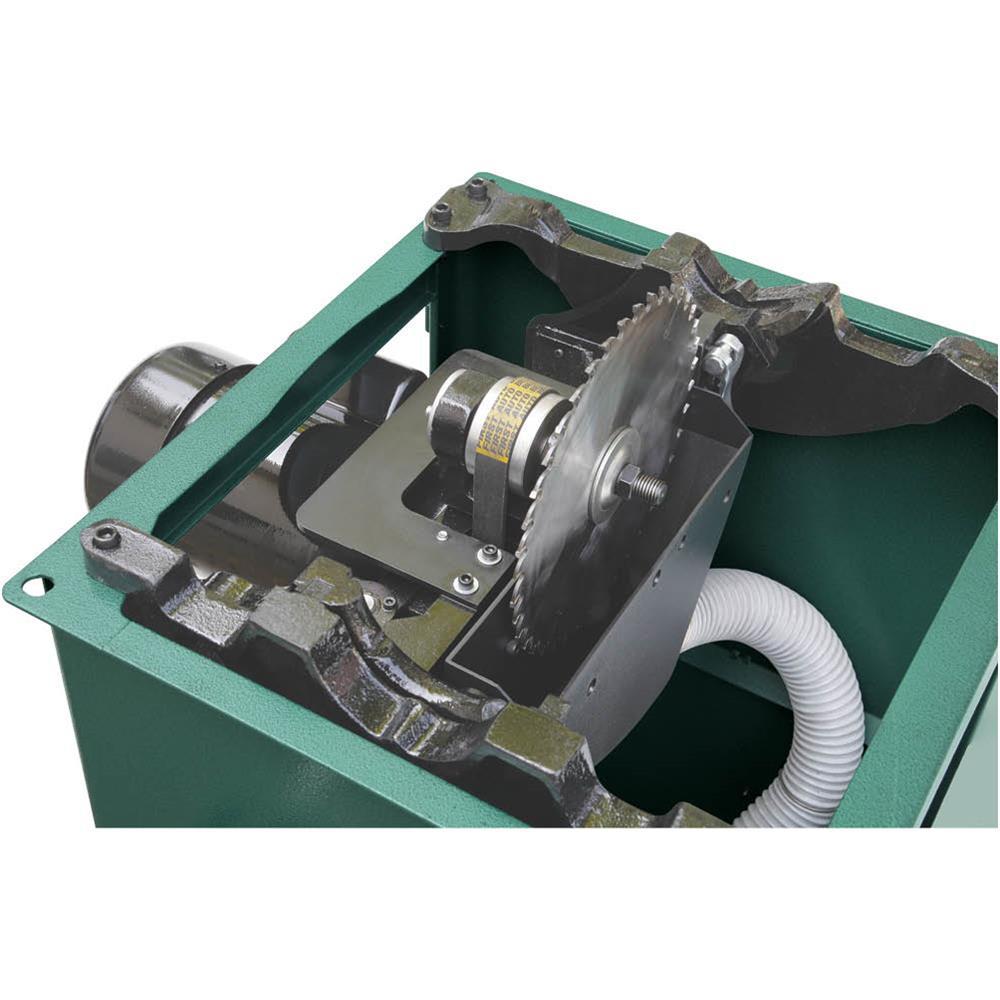

It took nearly 2-years of refinement and design optimization to improve our best-selling “G1023S” series table saws. The result is our new line of “G1023R” series table saws, featuring all the best from the old models plus a new riving knife system, serpentine-belt power transfer that runs quieter and smoother, encapsulated dust collection around the underside of the blade, and an improved quick-release blade guard. CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7th standards. Features: Motor: 3HP, 240-Volt, single-phase, 14 Amp, 3450 RPM. Solid cast iron table is first heat treated for strength then milled perfectly flat and ground to a mirror-like finish. Table size (with 2 solid extension wings attached) is 40 in. x 27 in. Table has T-slots so your miter gauge will not fall off the table when retracted. 5/8 in. Dia arbor is long enough to accept dado blades up to 13 in./16 in. Extra large handwheels really ease arbor movement. Quick change between riving knife and splitter guard. Cutting capacity: 8 in. left, 32 in. right of blade. Maximum depth of cut at 90° 3 in. Maximum depth of cut at 45° 2-1/8 in. 4 in. dust port included. Magnetic safety switch is standard. 1-piece steel cabinet type stand. All sealed ball bearing construction. Poly-V serpentine belt system transfers power more efficiently and with less noise than standard V-belts. Powder coated paint. Footprint: 20-1/2 in. x 20-1/2 in. Approximate shipping weight: 508 lbs. includes 10 in. x 40T blade.
- 2 precision-ground cast-iron wings
- Angled dust chute in bottom of stand
- Included 10 in. x 40 in. T carbide-tipped blade
- 2 table inserts for blade and dado
- Table has T-slots so your miter gauge will not fall off the table when retracted
- 1-piece steel cabinet-style stand
- All sealed ball bearing construction
- Quick-release blade guard and spreader
- Inboard and outboard arbor bearing
- Magnetic safety switch protects motor and operator
- Powder coated paint

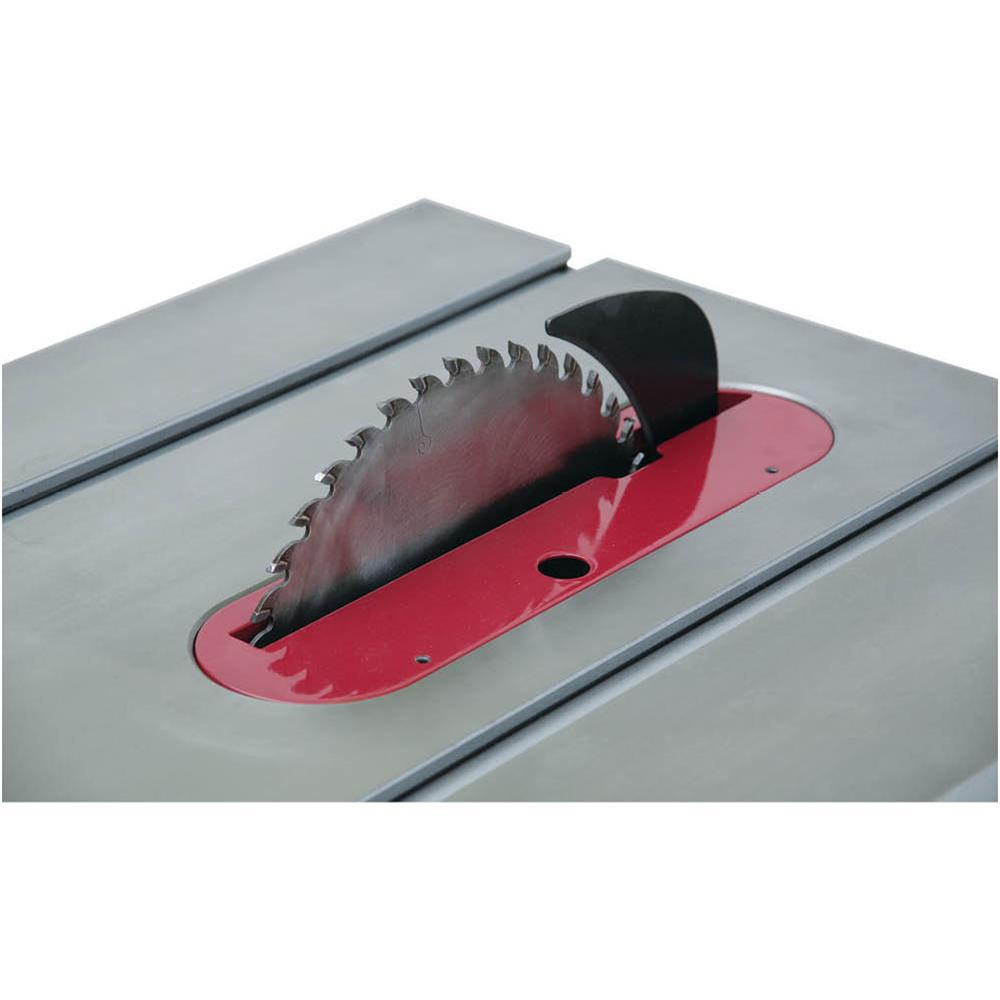

- Riving knife included

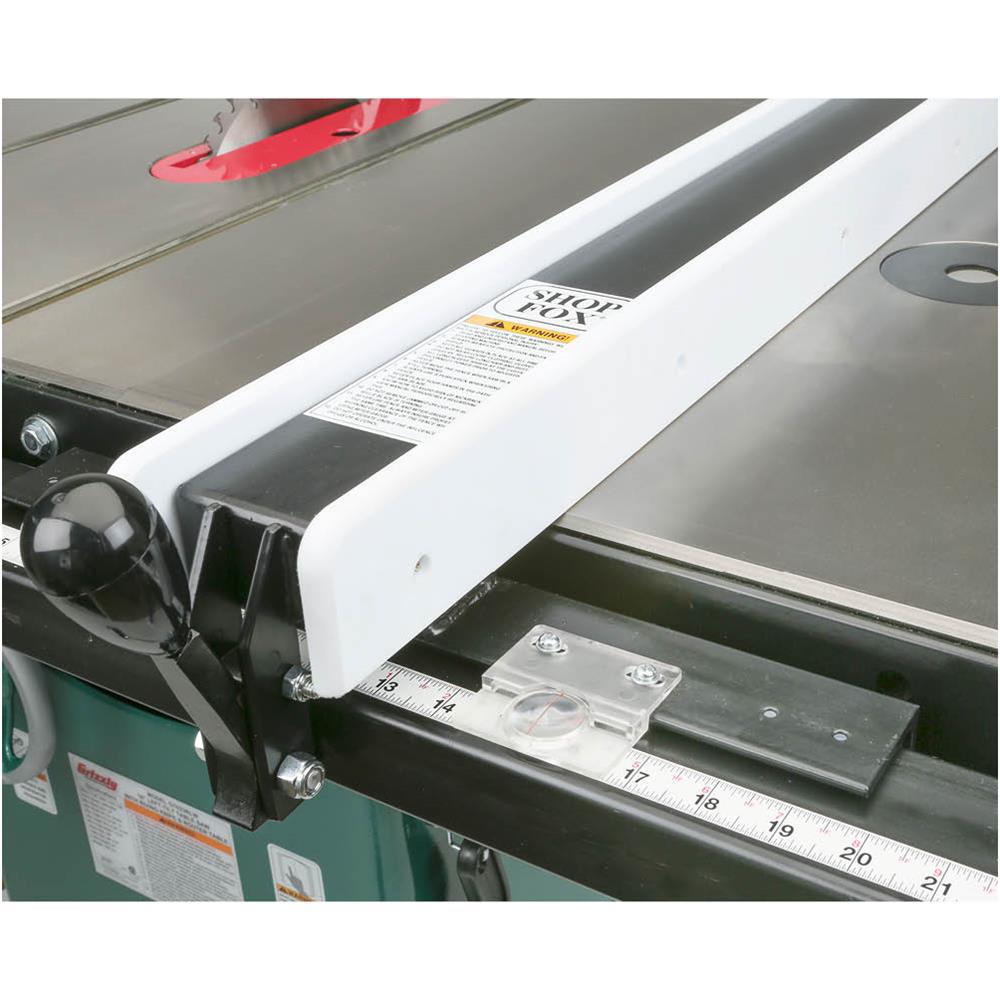

- Shop fox classic table saw fence

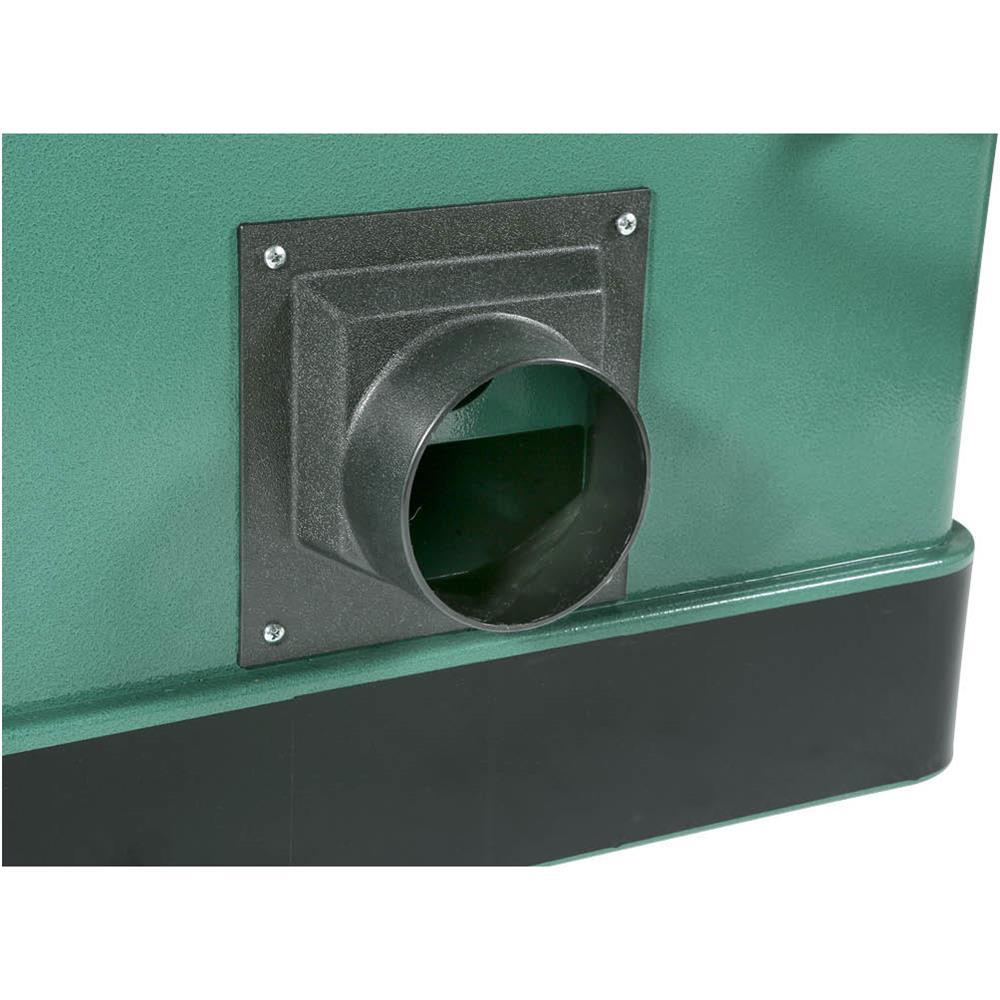

- 4 in. dust port
- Extra-large cast-iron handwheels and lock
- Heavy-duty miter gauge
- Smooth and quiet poly-V serpentine belt system
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 471 lbs |
|---|---|
| Dimensions | 28.5 × 30 × 39 in |
| Model | G1023RL |
| Tools Product Type | Power Tool |
| Table Width (in.) | 40 |
| Table Tilt Right Max (degrees) | 0 |
| Table Tilt Left Max (degrees) | 45 |
| Table Length (in.) | 40 |
| Rip Capacity - Right | 32 |
| Rip Capacity - Left | 8 |
| Power Tool Features | Blade Guard System, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 3 |
| Maximum Speed (rpm) | 4200 |
| Maximum Cut Depth @ 90 Deg. | 3 |
| Maximum Cut Depth @ 45 Deg. | 2.13 |
| Horsepower (hp) | 3 |
| Included Accessories | Blade Guard System, Blades |
| Dust Collection Method | 4 in. Dust Port |
| Depth Control | Adjustable |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 10 |
| Construction Material | Cast Iron |
| Condition | New |
| Color Family | Multi-Colored |
| Blade Speed | 4200 |
| Blade Location | Centered |
| Blade Diameter (in.) | 10 |
| Bench & Stationary Tool Type | Table Saw |
| Amperage (amps) | 14 A |
| Work Table Surface | 40 in. x 40 in. |
