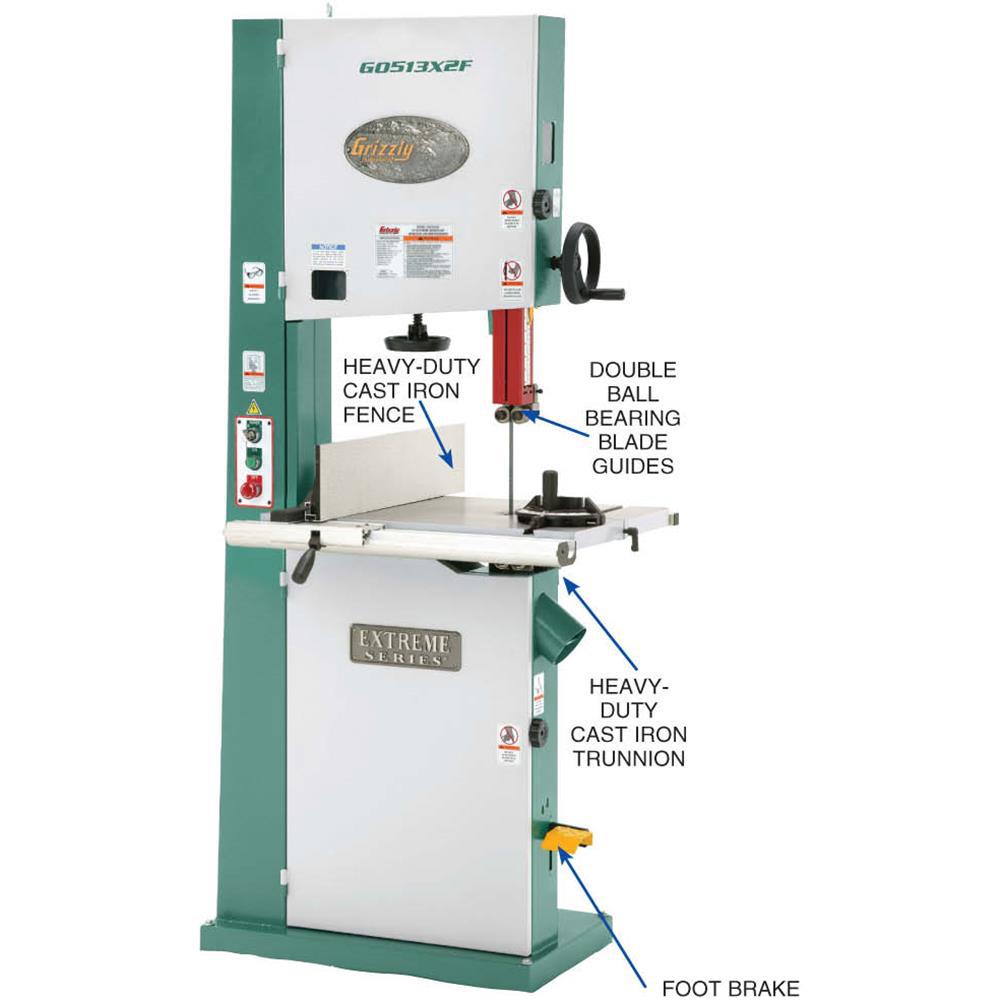

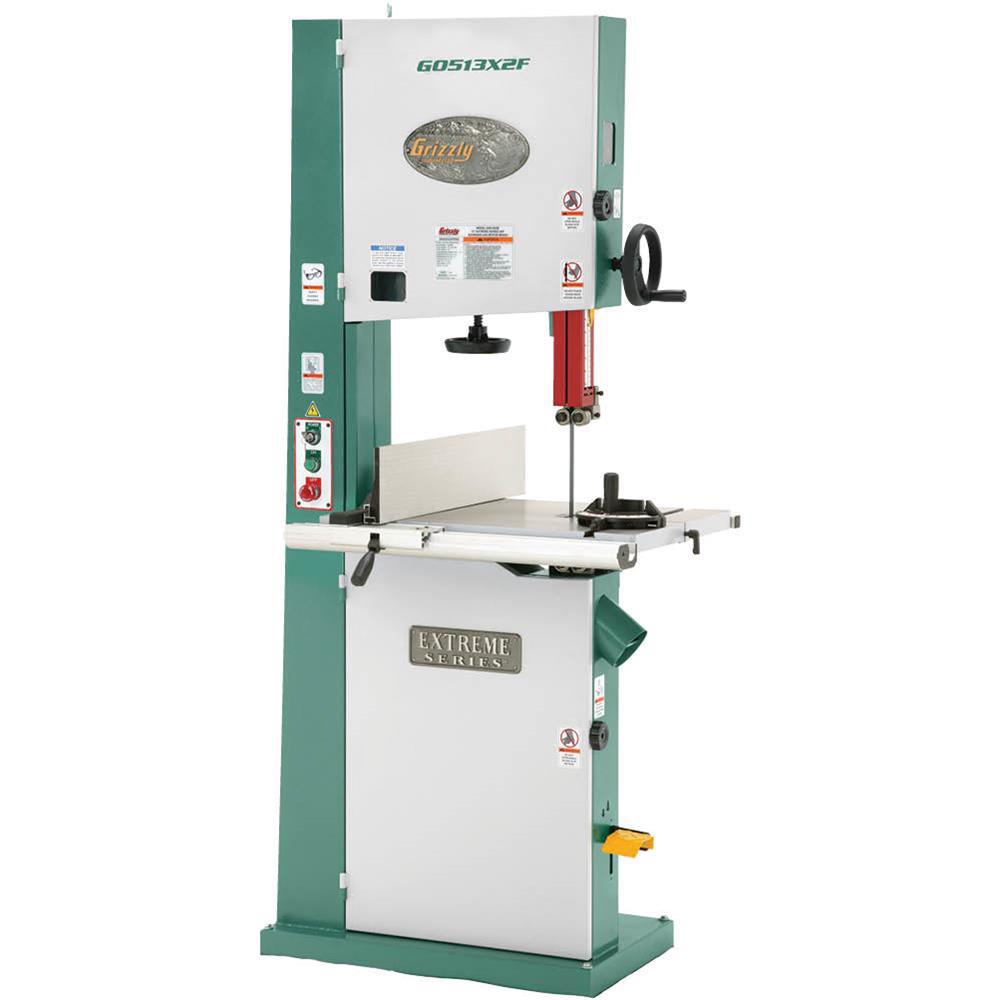

Grizzly Industrial 17″ 2 HP Extreme-Series Bandsaw with Cast-Iron Trunnion & Foot Brake
$1,594.79
Bring an accurate work support to your work area with the addition of this sophisticated and adorable Grizzly Industrial 5-ExtremeSeries Bandsaw with CastIron Trunnion Foot Brake. Fits into budget.
In stock
Description

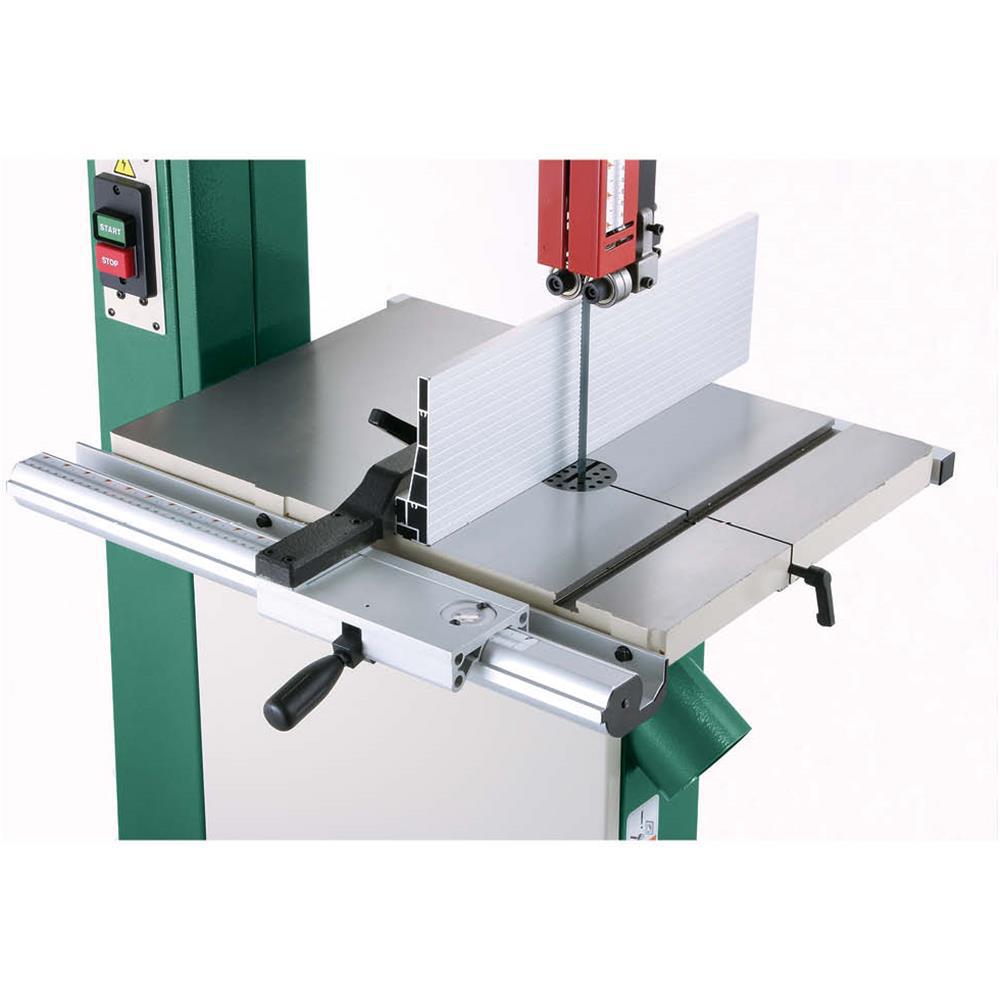

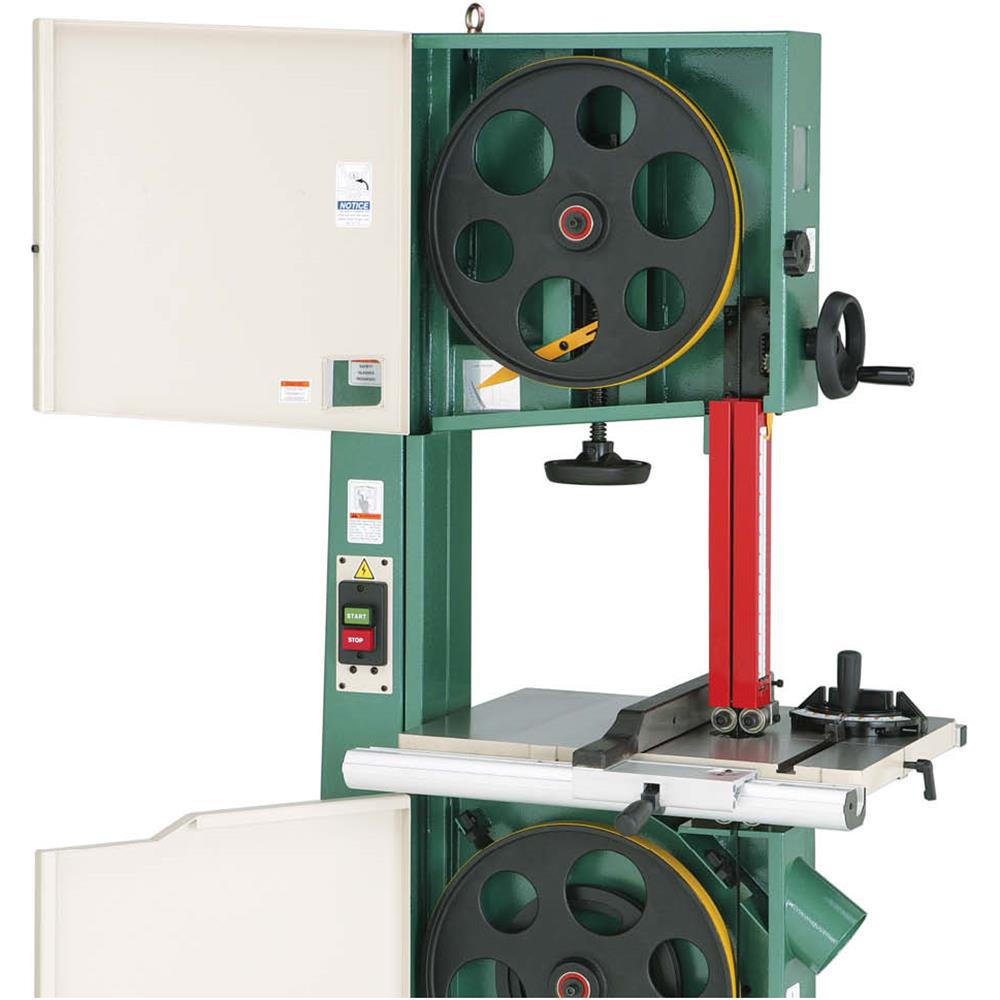

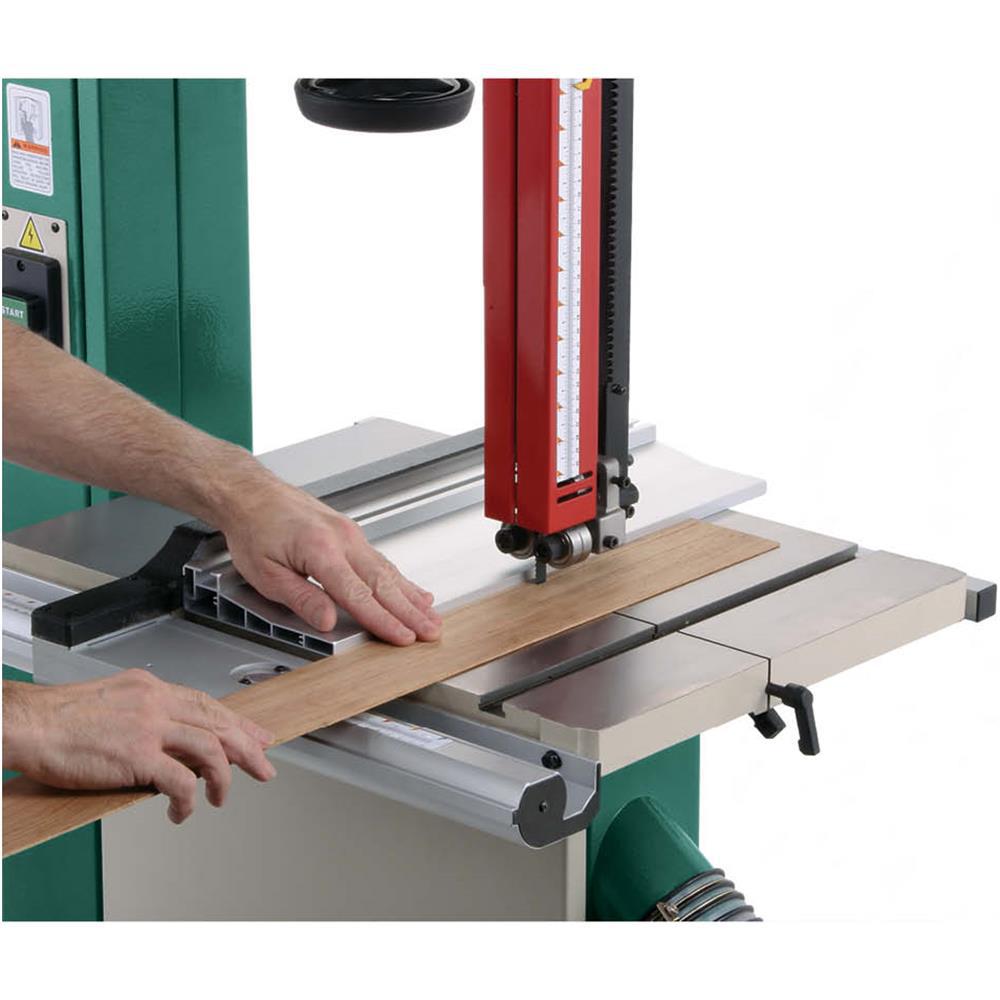

Grizzly is proud to offer this full-featured Extreme 17 in. Heavy-duty Bandsaw with cast-iron wheels. This 2 HP motor powers through wood with a maximum cutting capacity of 12 in. H and a 16-1/4 in. throat which is plenty for most applications. Features like the deluxe fence, extra-wide cast-iron table, heavy-duty miter gauge, dual 4 in. dust ports, micro-adjusting geared table, and double ball-bearing blade guides are usually found on machines costing much more. And, the ISO 9001 factory designation assures high quality standards.
- Motor: 2 HP, 110-Volt/220-Volt, single-phase, TEFC capacitor start induction, 60 Hz, 1725 RPM, prewired to 220-Volt
- Amps: 19 Amp at 110-Volt, 9.5 Amp at 220-Volt
- Table size: 23-5/8 in. x 17-1/4 in. x 1-1/2 in. thick
- Table tilt: 5° left, 45° right
- Floor to table height: 37-1/2 in.
- Cutting capacity/throat: 16-1/4 in. left of blade
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 335 lbs |
|---|---|
| Dimensions | 21 × 31 × 81 in |
| Model | G0513X2F |
| Voltage (volts) | 110 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 17.25 |
| Table Tilt Right Max (degrees) | 45 |
| Table Tilt Left Max (degrees) | 5 |
| Table Length (in.) | 24 |
| Power Tool Features | Lockout Power Switch, No Tool Blade Change, Quick-Release Tension, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 2 |
| Minimum Blade Width | 1/8 |
| Minimum Blade Length | 130 |
| Maximum Speed (rpm) | 1725 |
| Maximum Blade Width | 1 |
| Maximum Blade Length | 131-1/2 |
| Included Accessories | Stand |
| Dust Port Size (In.) | 4 |
| Dust Collection Method | 4 in. Dust Port |
| Cutting Capacity Width / Depth Of Throat(In.) | 16-1/4 |
| Cutting Capacity Height / Height under Guide (In.) | 12 |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 0 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Multi-Colored |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Vertical |
| Amperage (amps) | 19 |
| Work Table Surface | 24 in. x 17.25 in. |
