Description

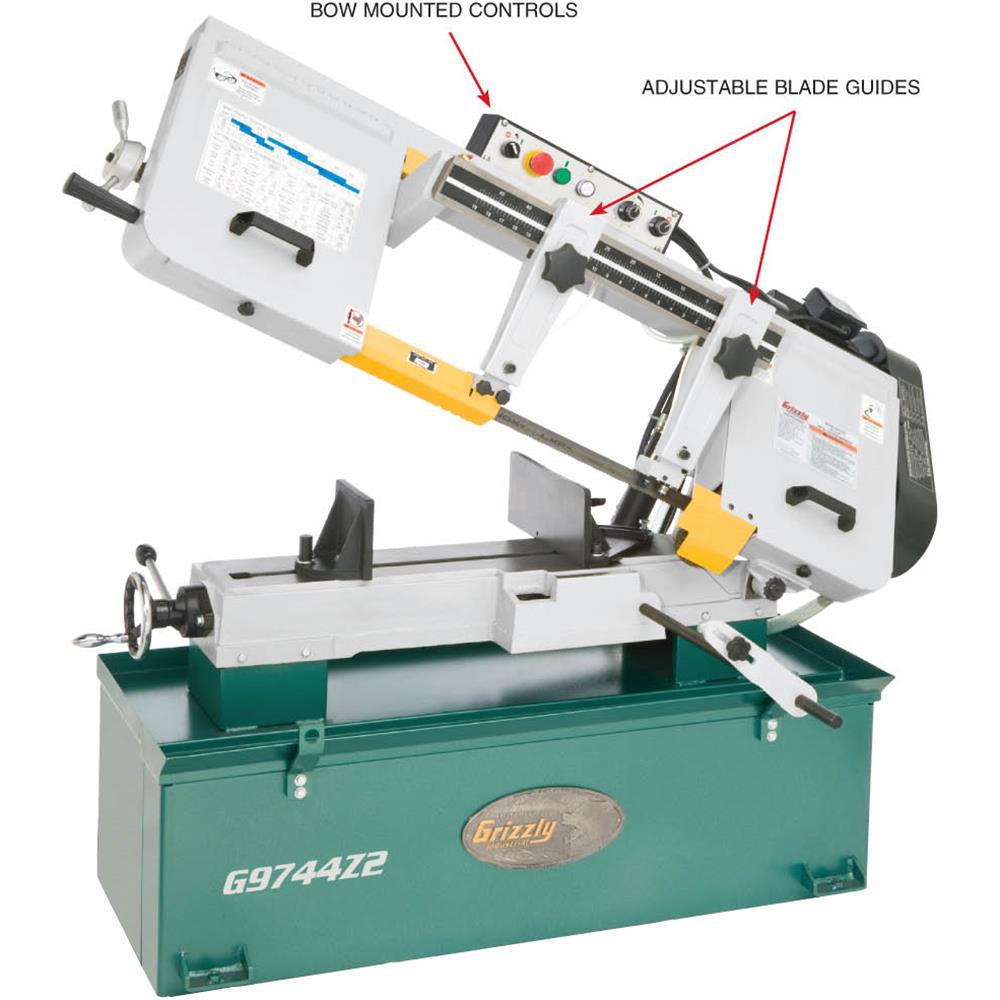

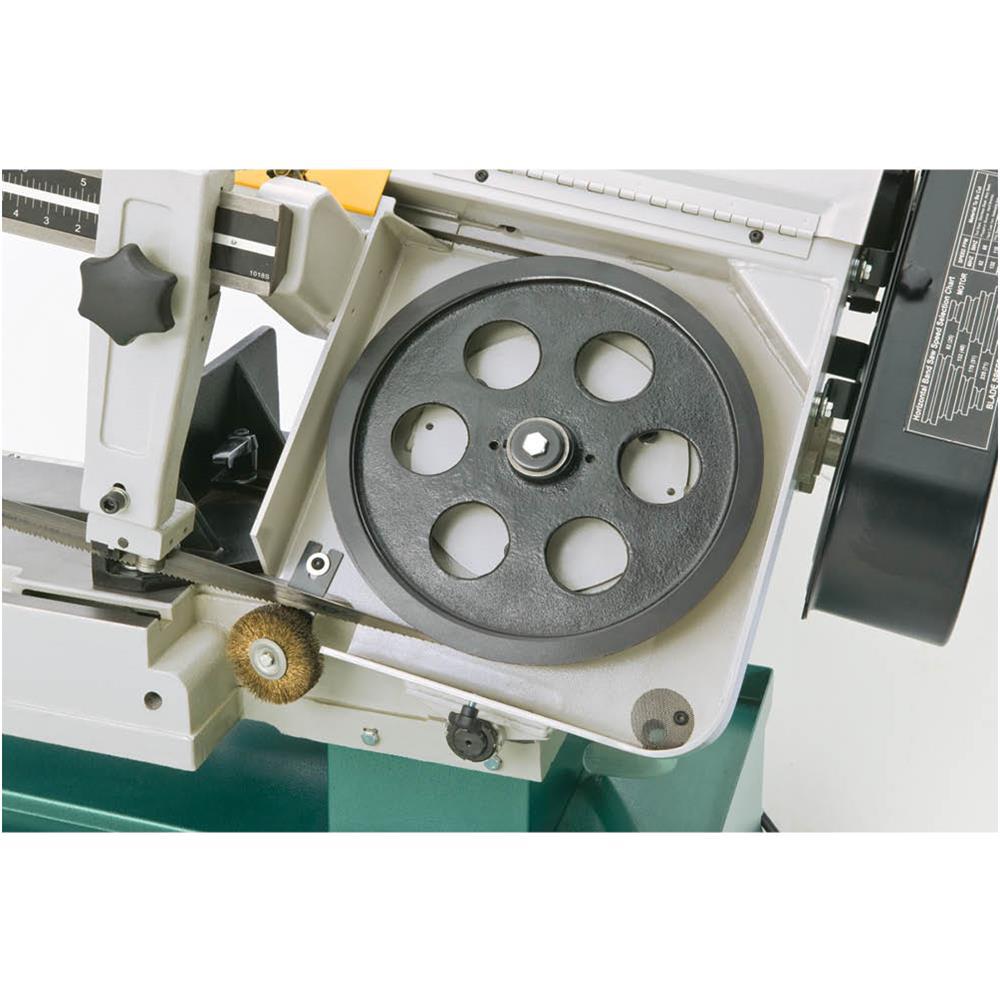

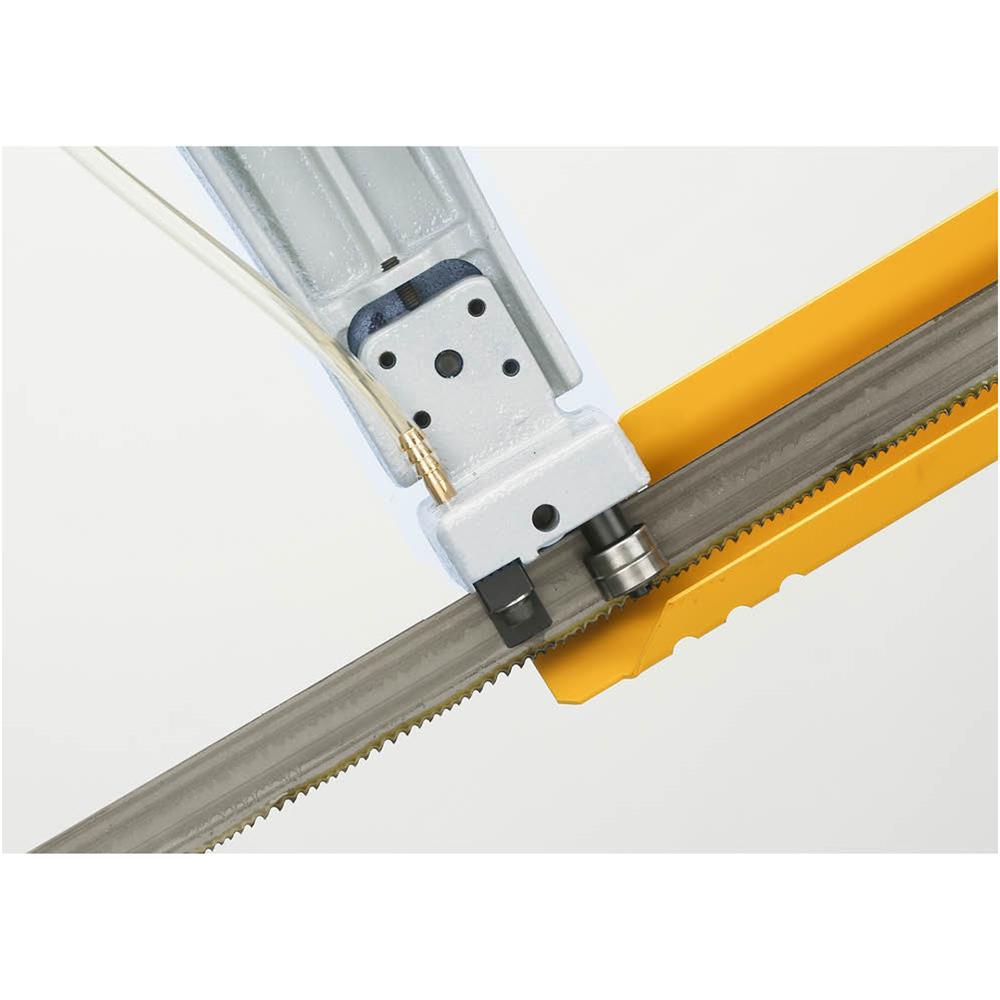

We’ve taken our already great G9744Z Metal-Cutting Bandsaw and added a few extra features to offer you a truly outstanding Bandsaw. We’ve added a 1-piece saw bow, deluxe blade tension hand wheel, deluxe True-lock vise system and easy access pulley cover for fast speed changes. You still get optimum control and accuracy with sliding ball bearing blade guides, work stop and hydraulic down feed. Round it out with a 1-1/2 Gal. coolant system and chip tray and you’ve got a real metal-cutting workhorse.
- Motor: 1-1/2 HP, 220-Volt (only), single-phase, 1725 RPM
- Blade size: 121-1/2 in. x 1 in.
- Blade speeds 114, 196, 288, 377 FPM
- Table size: 30 in. L x 6-1/2 in. W
- Floor to vise height: 22-3/4 in.
- Coolant capacity: 1-1/2 Gal.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 705 lbs |
|---|---|
| Dimensions | 69 × 30 × 48 in |
| Model | G9744Z2 |
| Voltage (volts) | 220 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 6.5 |
| Table Tilt Right Max (degrees) | 0 |
| Table Tilt Left Max (degrees) | 0 |
| Table Length (in.) | 30 |
| Power Tool Features | Lockout Power Switch, No Tool Blade Change, Quick-Release Tension, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 1-1/2 |
| Minimum Blade Width | 1 |
| Minimum Blade Length | 121-1/2 |
| Maximum Speed (rpm) | 1725 |
| Maximum Blade Width | 1 |
| Maximum Blade Length | 121-1/2 |
| Included Accessories | Stand |
| Dust Port Size (In.) | 0 |
| Dust Collection Method | None |
| Cutting Capacity Width / Depth Of Throat(In.) | 18 |
| Cutting Capacity Height / Height under Guide (In.) | 10 |
| Cuts Through | Steel |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 7 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Multi-Colored |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Horizontal |
| Amperage (amps) | 15.5 |
| Work Table Surface | 30 in. x 6.5 in. |
