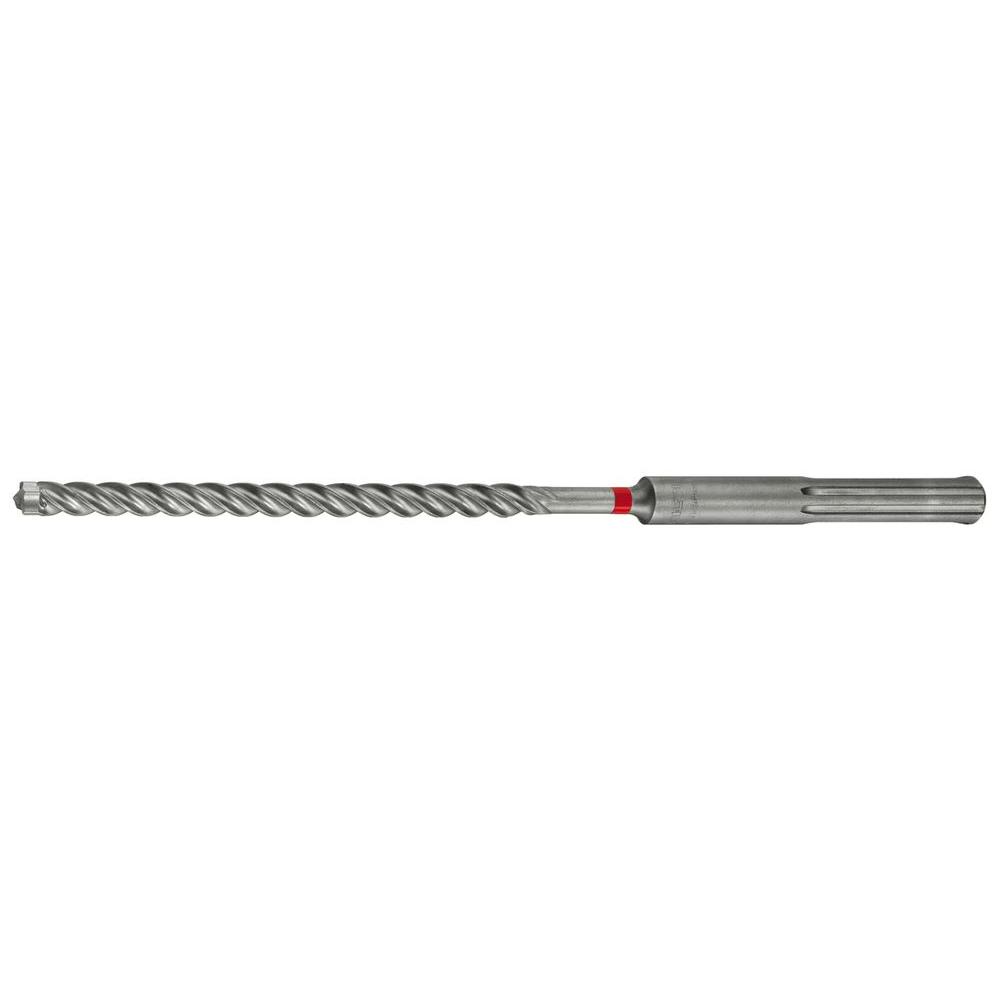

Hilti TE-YX 9/16 in. x 22 in. Carbide Head SDS Max Imperial Hammer Drill Bit
$176.34
The Hilti TE-YX 9/16 in. x 14 in. Carbide Hammer Drill Bit features a solid metal carbide head for durability and less jamming. It comes with double-helical fluting and ductile core. The TE-YX connection head is apt for use with a variety of tools.
Hurry! Order in the next 14h 29m to get delivery by Thu, Oct 8th!
In stock
Description
With the introduction of the new series of more powerful Hilti combo hammers, the Hilti TE-YX (SDS-MAX) carbide drill bit line has been upgraded to provide maximum performance. Its innovative design consists of a full carbide head to drill faster in rebar with less jamming thanks to its multi-cutter construction. The bit helix is never machined, offering a lighter weight and more body strength. Its the only SDS-Max bits offering a warranty, meaning it can be replaced as long as the wear mark is visible.
- Package includes 1 TE-YX 9/16 in. x 22 in. SDS-Max imperial hammer drill bit

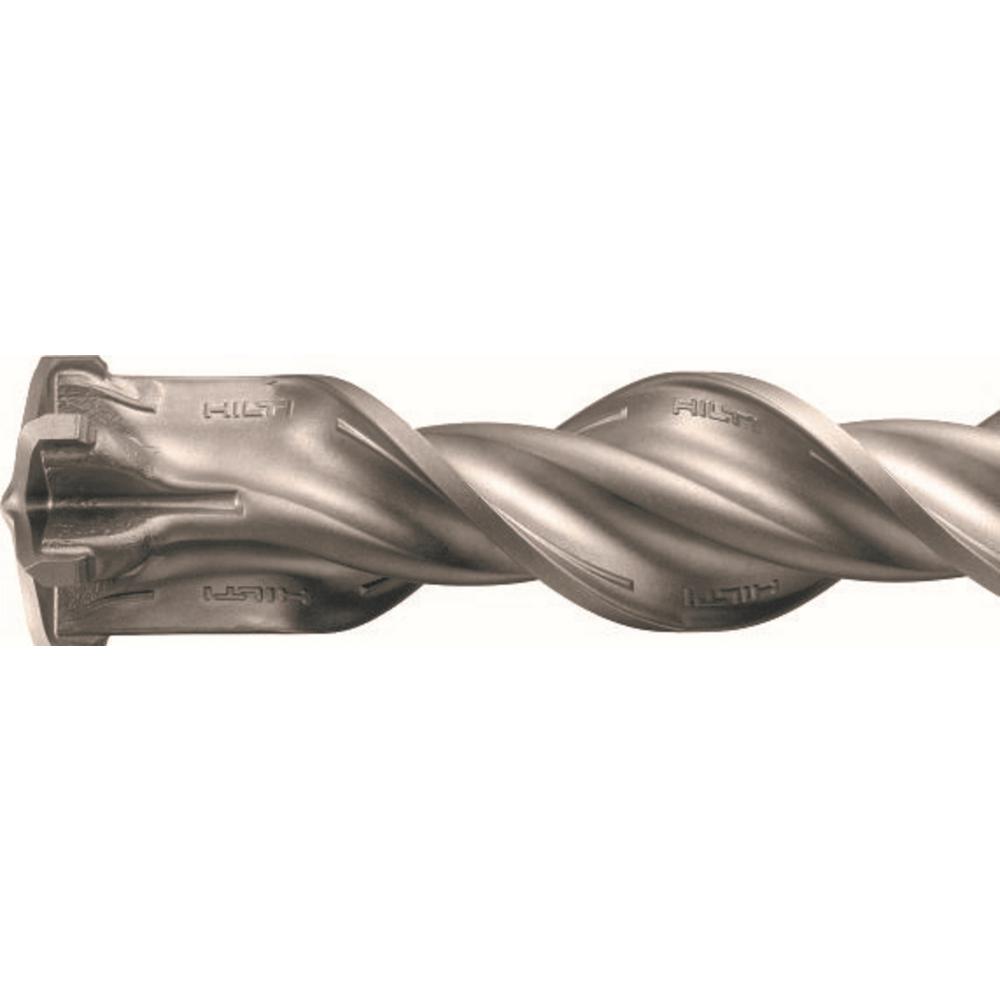

- Solid carbide head
- Heat-treated flute for less wear
- Double-helical fluting for low wear and fast dust removal
- Easier to read longitudinal markings
- Working length: 15-31/32 in.
- Head shape: multi-cutter
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 21.0 × 1.0 × 1.0 in |
| Model | 206512 |
| Assembled Depth (in.) | 22 in |
| Assembled Height (in.) | 9/16 in |
| Assembled Width (in.) | 9/16 in |
| Bit Diameter | 9/16 in |
| Bit Length (in.) | 22 |
| Bit Material | Carbide |
| Drill Bit Type | Hammer Drill Bit |
| Drill Bit Type(s) Included | Percussion Bit |
| Individual/Set | Individual |
| Material Application | Concrete |
| Self-Feeding | No |
| Shank Diameter | 16 mm |
| Shank Style | SDS Max |
| Tools Product Type | Power Tool |
