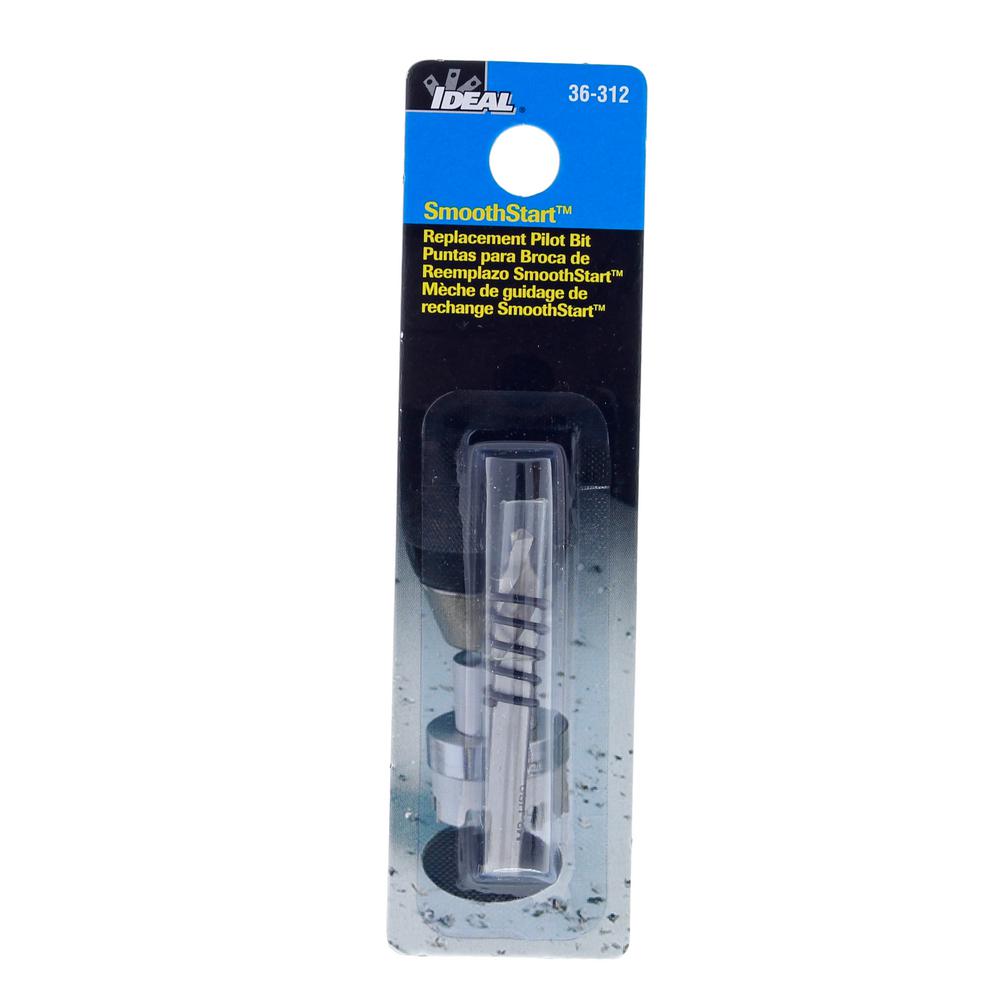

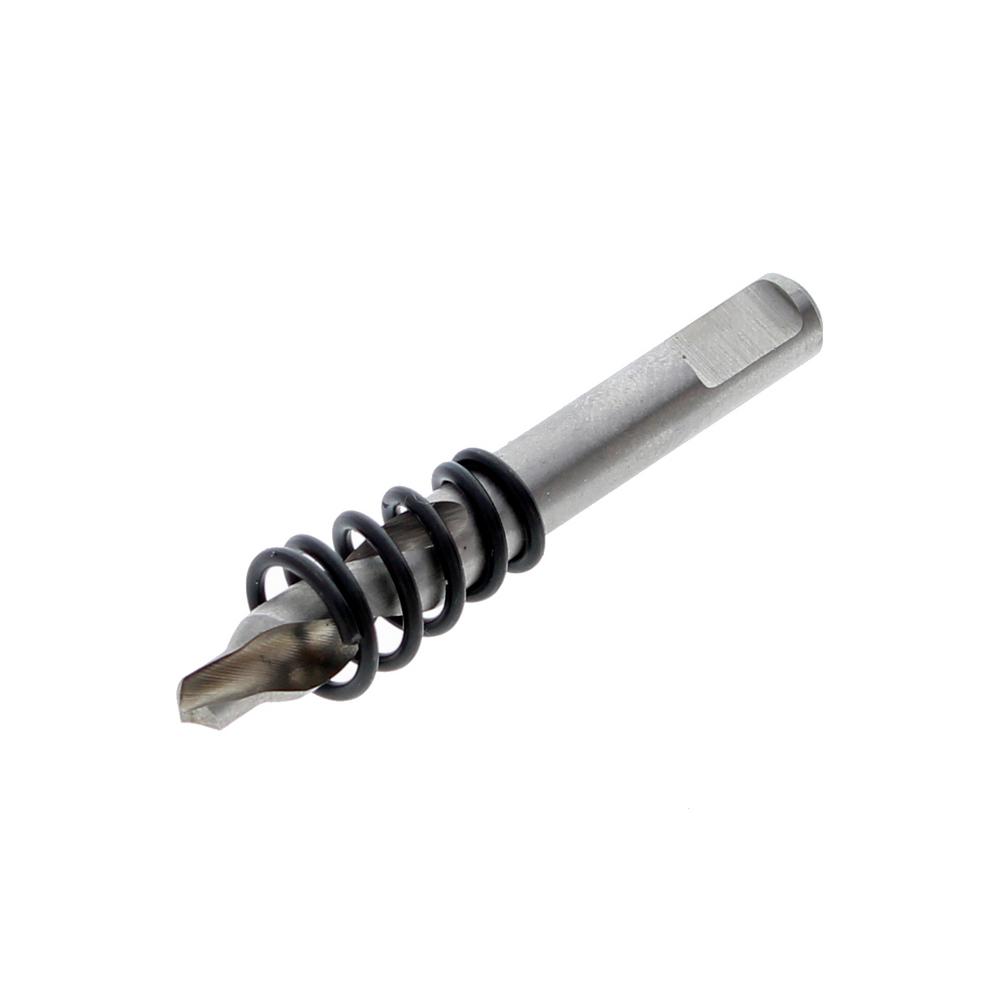

Ideal SmoothStart Replacement Pilot Drill, 1/4 in. x 2 in. (Standard Package is 4 Drill Bits)
$18.73
Get your professional job done with comfort and ease by choosing this Ideal SmoothStart Replacement Pilot Drill.
Order within 16 hours 30 minutes
to get it on or before Mon, Apr 29th (See details)
In stock
Description

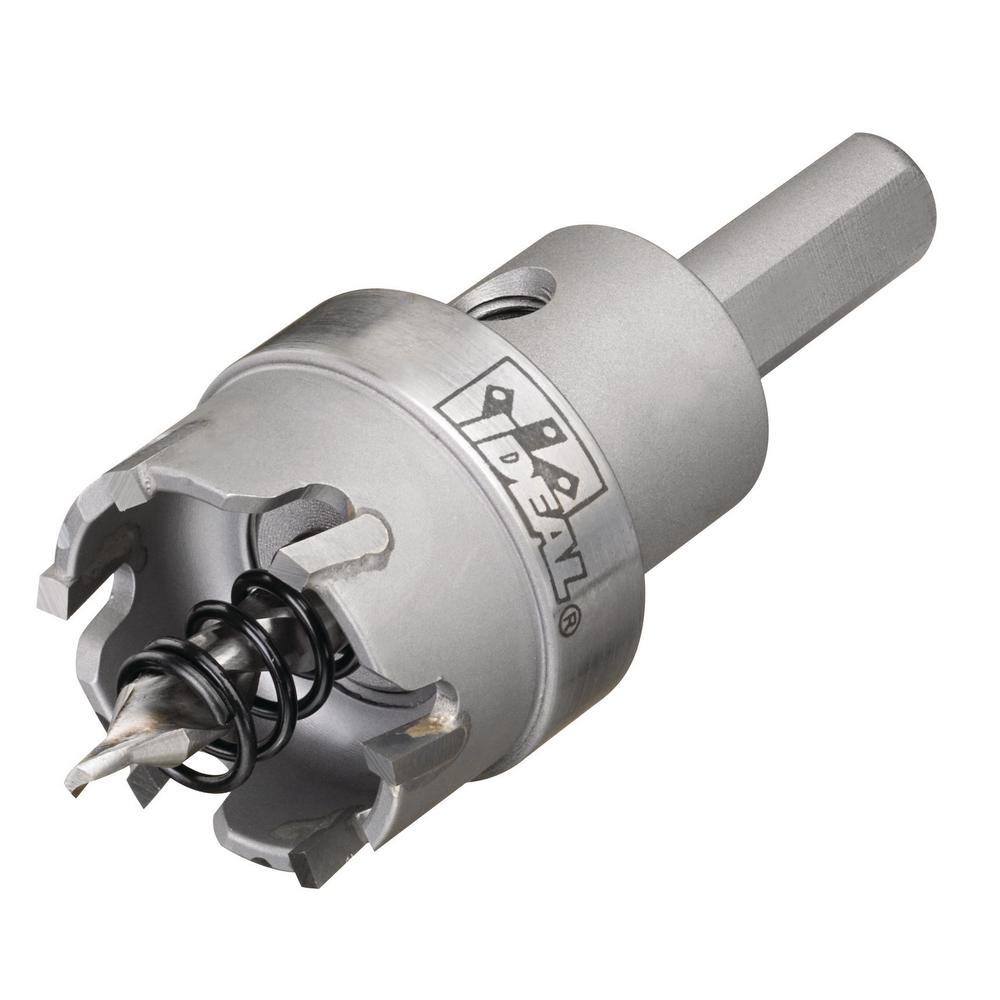

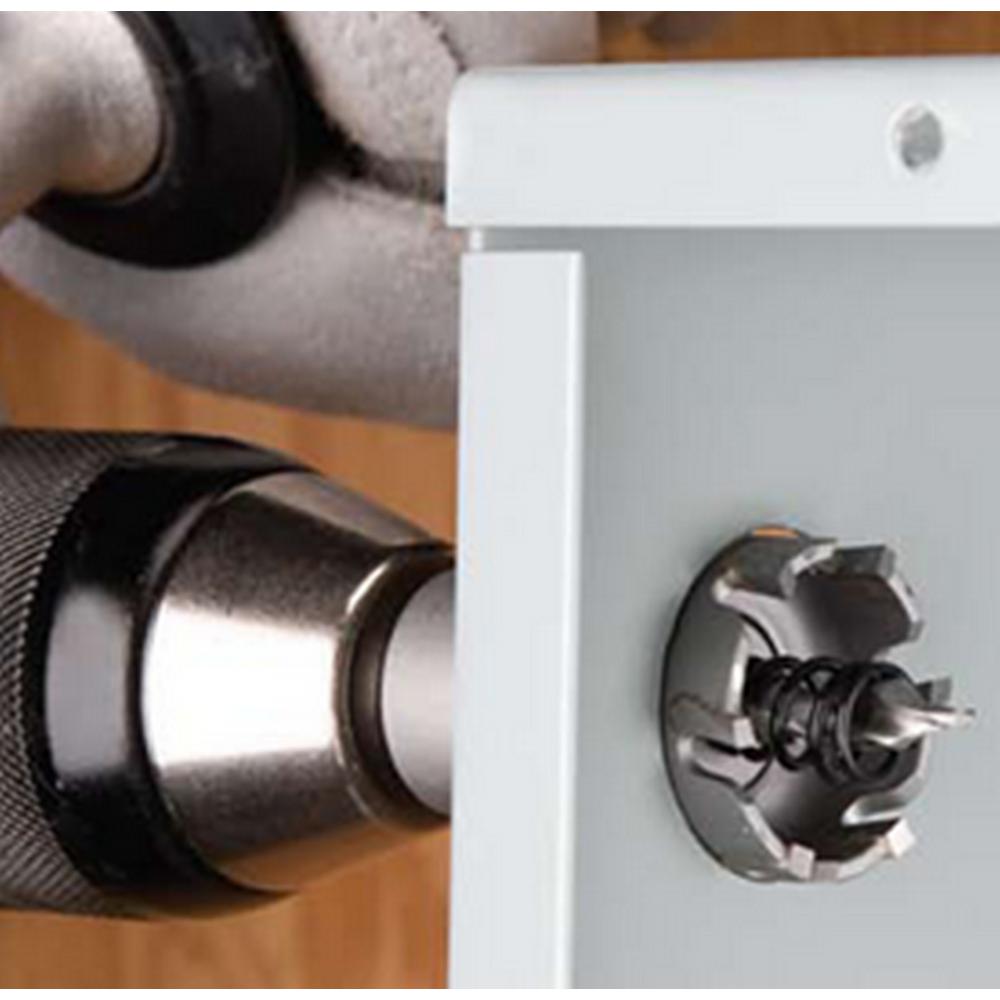

TKO Hole Cutters offer the most efficient and clean cutter replacement for traditional knockouts, by making smooth holes in a fraction of the time at a fraction of the cost. Specifically designed to cut sheet metal, TKO cutters will even cut stainless steel with fine grained, carbide tips. The innovative design includes the exclusive SmoothStart replaceable pilot drill, which guides the cutter to the surface, avoiding cutter damage and providing smoother holes.
- SmoothStart pilot drill prevents bit from “walking” on smooth surfaces
- Designed specifically for sheet metal and stainless-steel
- Replacement Pilot Bit works with all sizes of TKO Hole Cutters

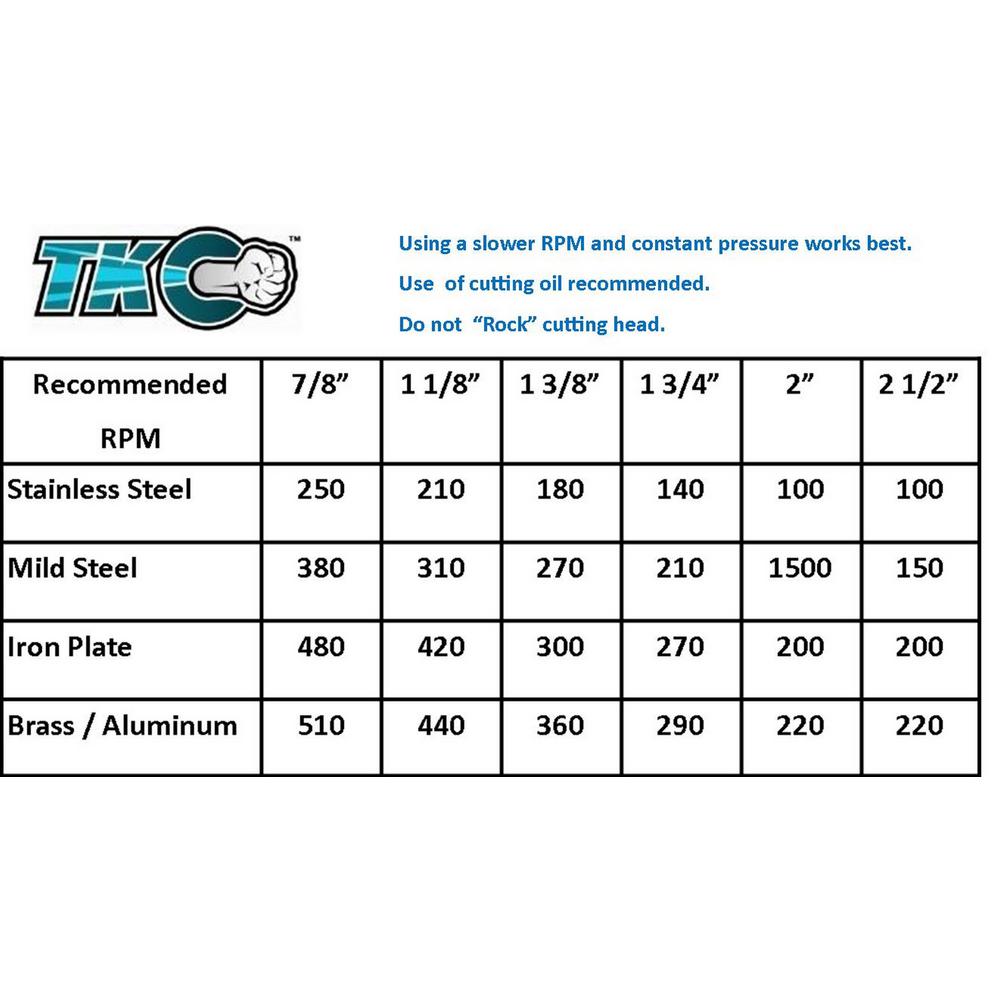

- Low RPM recommended for longer life
- 1/4 in x 2 in shaft
- Use of cutting oil recommended
- Do not “Rock” cutting edge
- Works with all TKO Carbide-Tipped Hole Cutters
Additional information
| Weight | .20 lbs |
|---|---|
| Dimensions | 10.0 × 6.0 × 6.0 in |
| Model | 36-312 |
| Arbor Size | 1/4 in. |
| Compatible Hole Saw Sizes | 1-1/2", 1-1/4", 1-1/8", 1-3/4", 1-3/8", 1-7/16", 2", 2-1/2", 2-7/8", 3-1/2", 3/4", 7/8" |
| Drilling Depth (in) | 0.25 |
| Hole Saw Thread Size | 1/2-20 |
| Material | Carbide |
| Min Chuck Size Required | 3/8 In. |
| Pilot Bit Included | Yes |
| Shank Diameter | 1/4 in |
| Shank Style | Round |
| Teeth Per Inch | 2 |
