Description

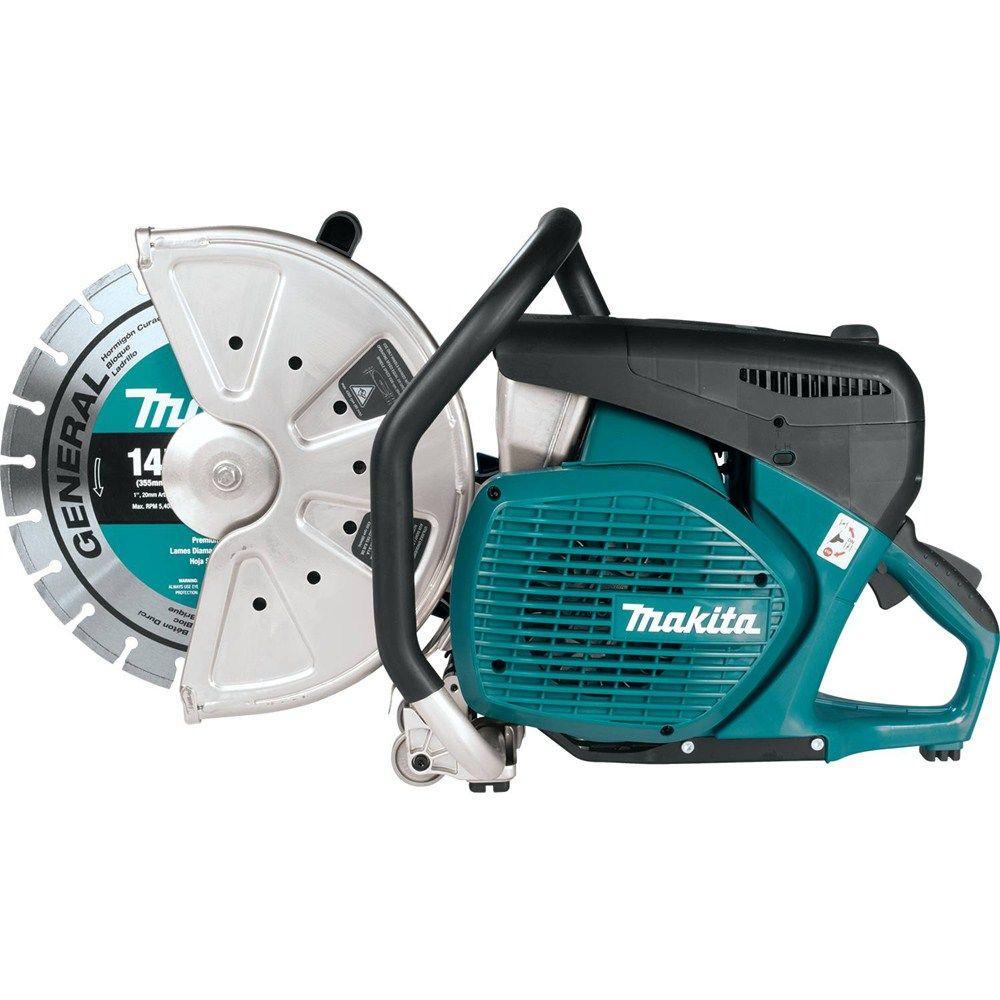

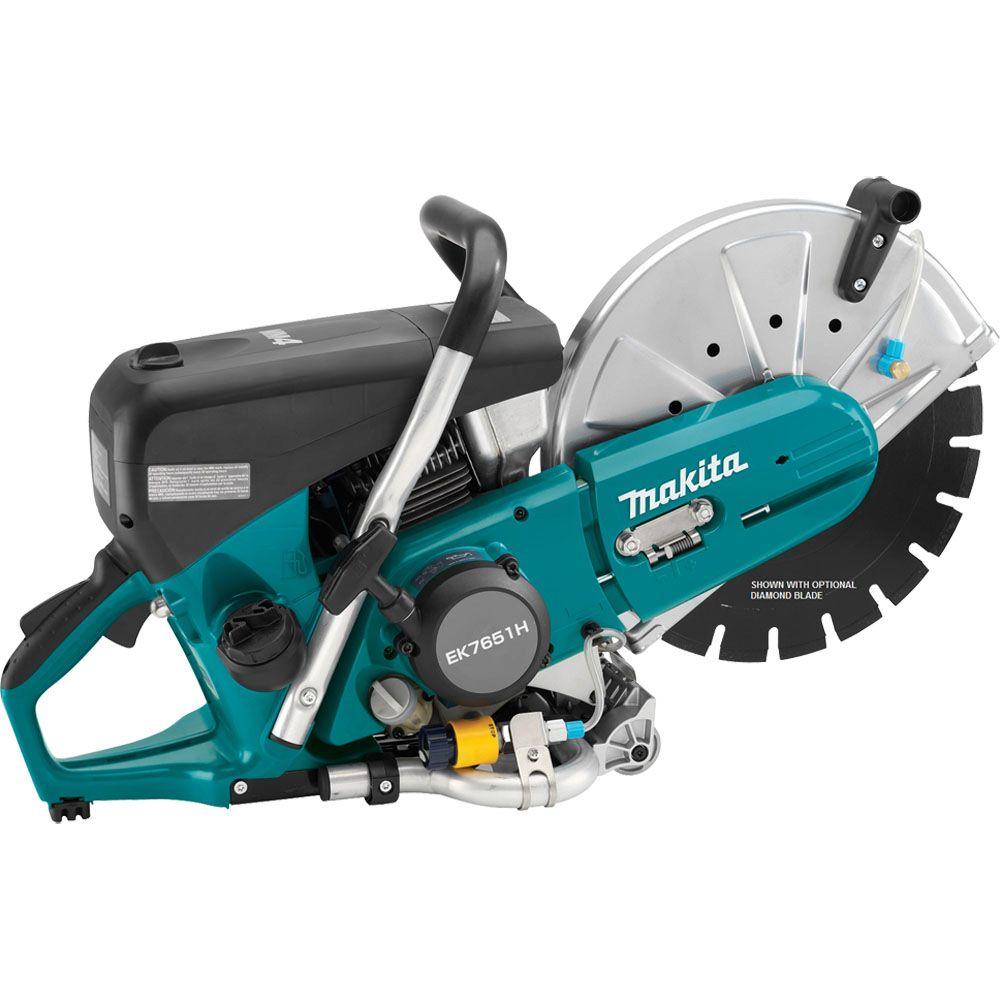

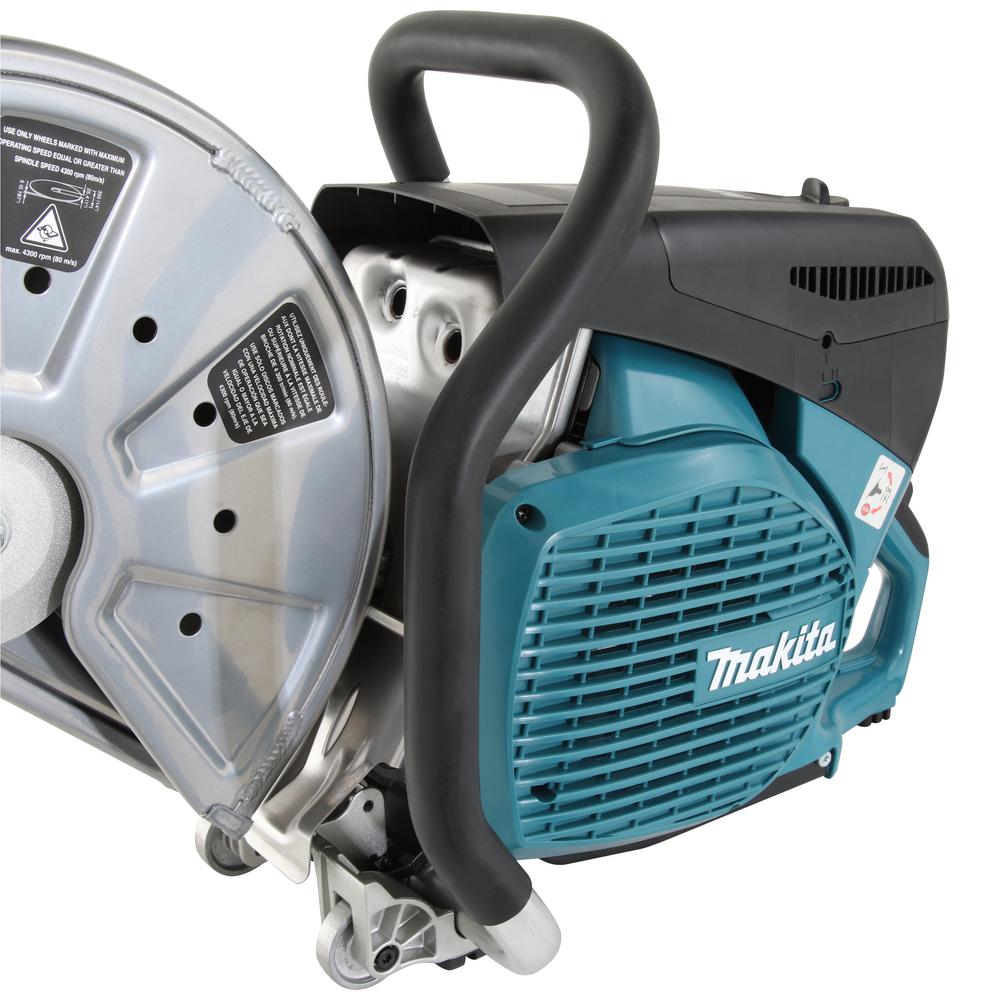

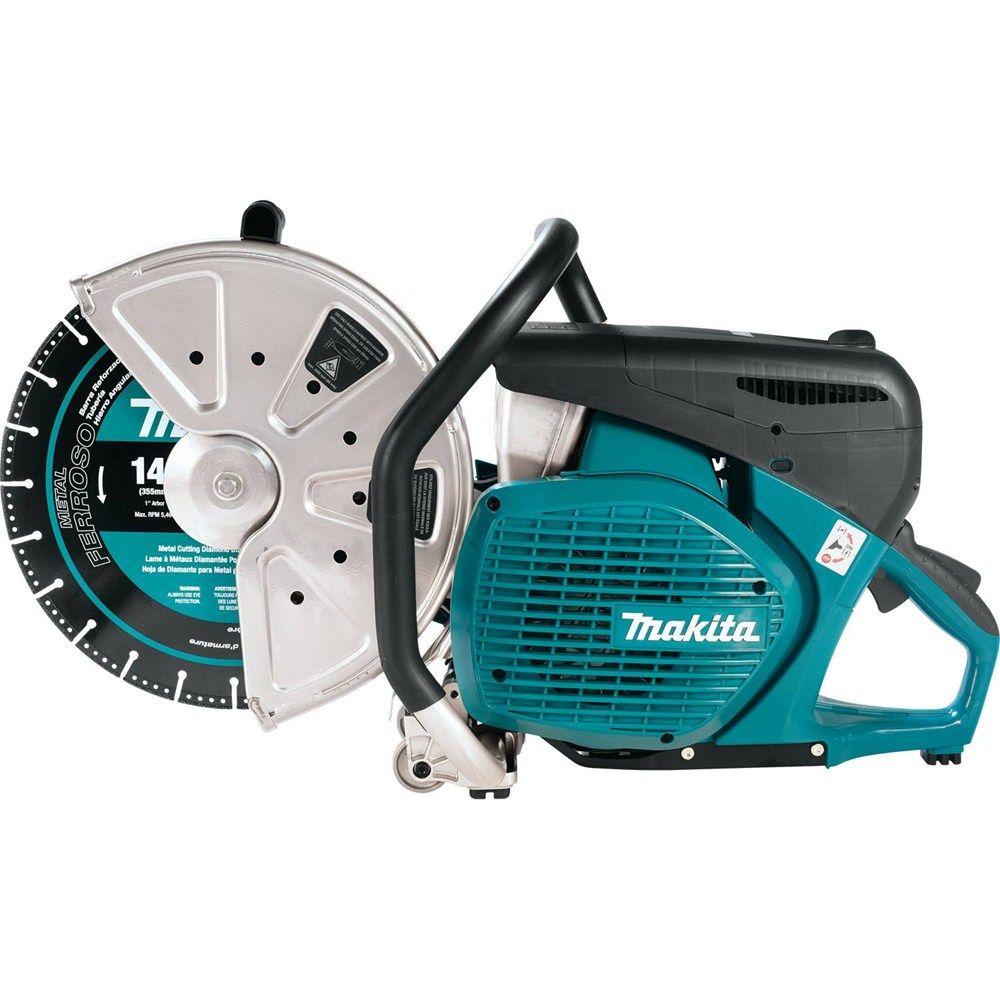

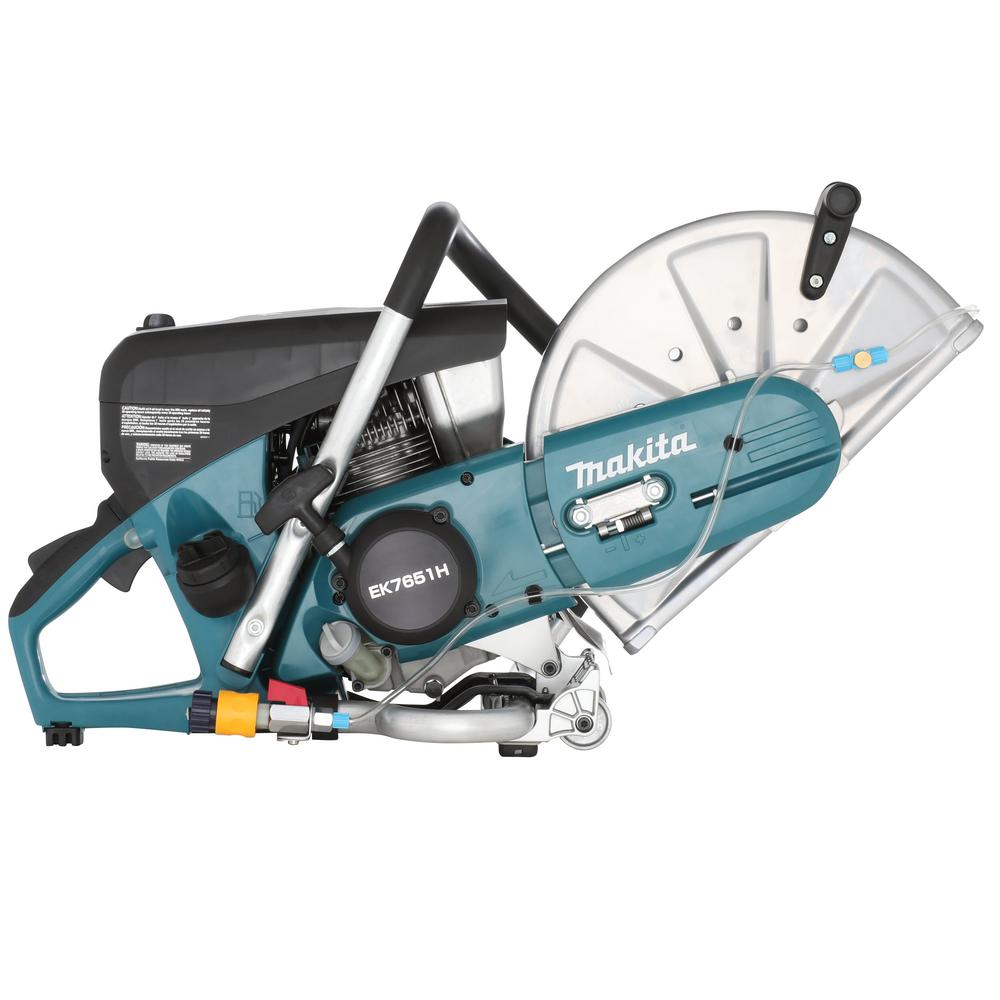

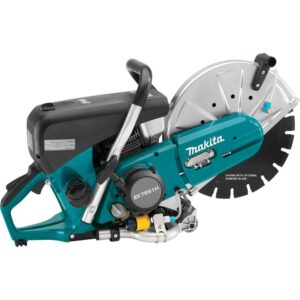

The 14 in. MM4 4-Stroke Power Cutter (model EK7651H) is the world’s first 4-Stroke power cutter. The EK7651H is another innovation in Makita’s expanding line-up of concrete solutions. The 4-Stroke EK7651H delivers several advantages over 2-Stroke. No oil mixing is required, so contractors get simplified operation and no more engine failure due to improper mix. The MM4 4-Stroke engine eliminates the need for separate mixed oil/fuel can.
- Eliminates the need for separate mixed oil/fuel can
- Lower noise at 92.7dB (A) and smoother idle for continuous operation
- Automatic engine decompression valve is engineered into the cam gear to reduce pull-start force by 40%
- Pressure compensating carburetor with vented choke plate is engineered to reduce flooding by automatically adjusting to deliver the proper amount of fuel

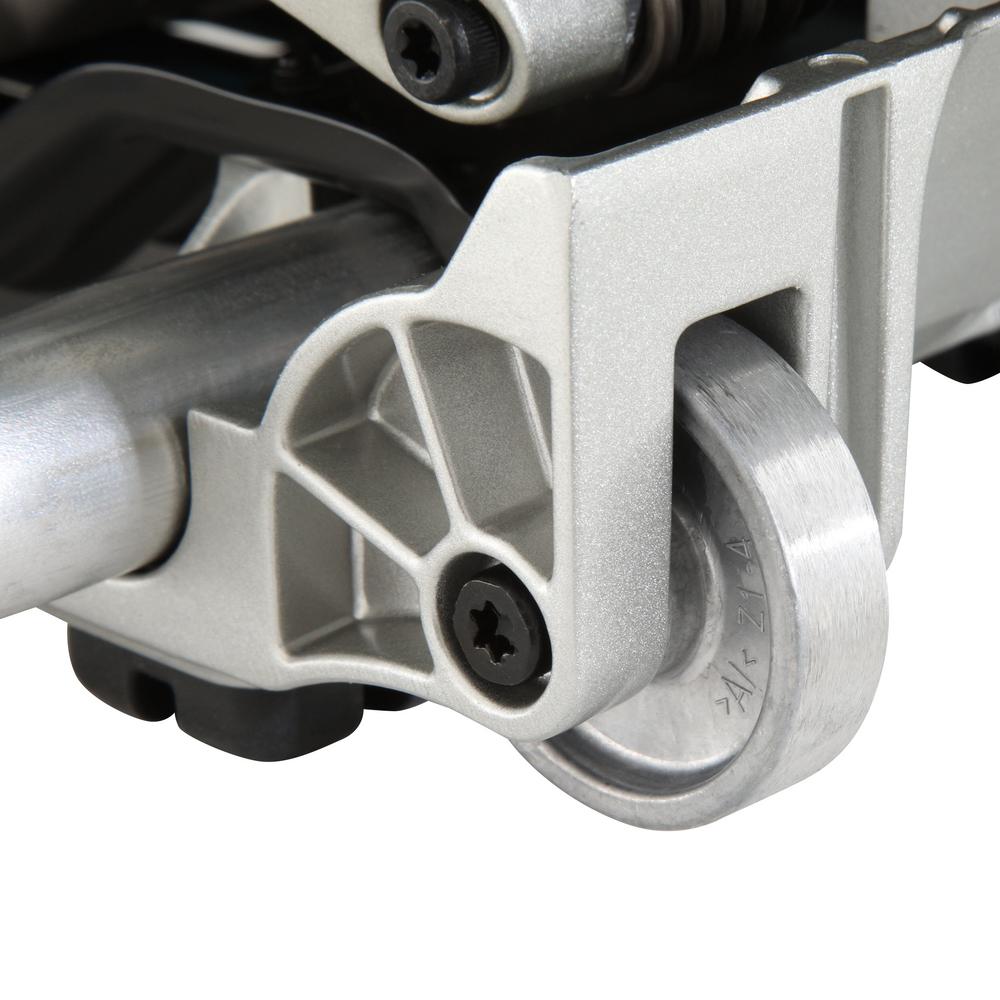

- Integrated all aluminum wheels reduce fatigue during long straight cuts and retract when not in use to prevent unexpected movement
- 5-stage, foam-paper-nylon filtration system with advance direction air flow provides cleaner air for better engine durability
- Lower fuel consumption at 0.45 Gal. per hour
- Reduced exhaust and intake carbon build-up for long cylinder life
- 3 ring piston for improved commercial engine durability
- Clear primer bulb facilitates fuel delivery to the carburetor for easier cold starts
- Advanced oil separation and lubrication system to improve valve train durability and engine life
- Specially treated rods, followers and valves minimize wear and extend engine life

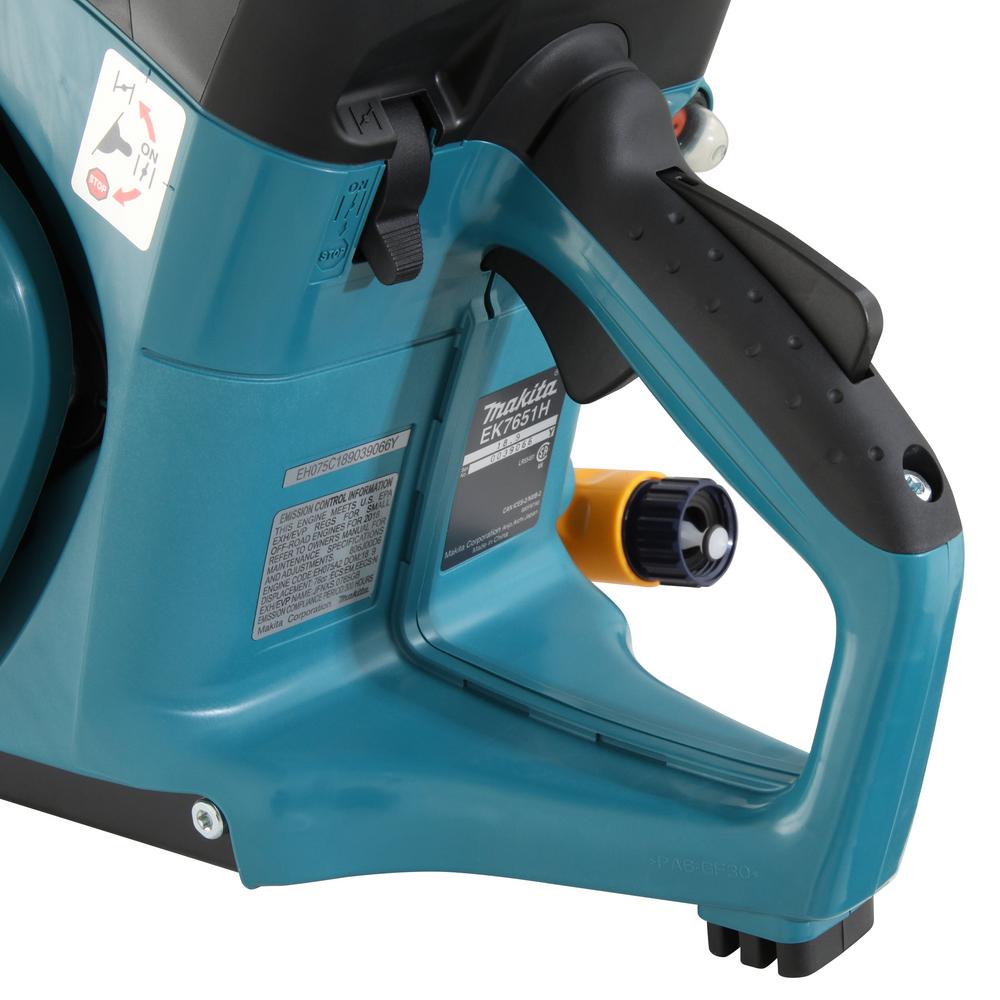

- Single lever on-off-choke operation switch for operator convenience
- Shielded exhaust outlet and larger spark arrestor screen prevents contaminates from restricting air flow
- External fuel tank vent eliminates pressure build up
- Sealed cartridge recoil starter rope reduces wear by keeping out dust and debris
- 1-year warranty

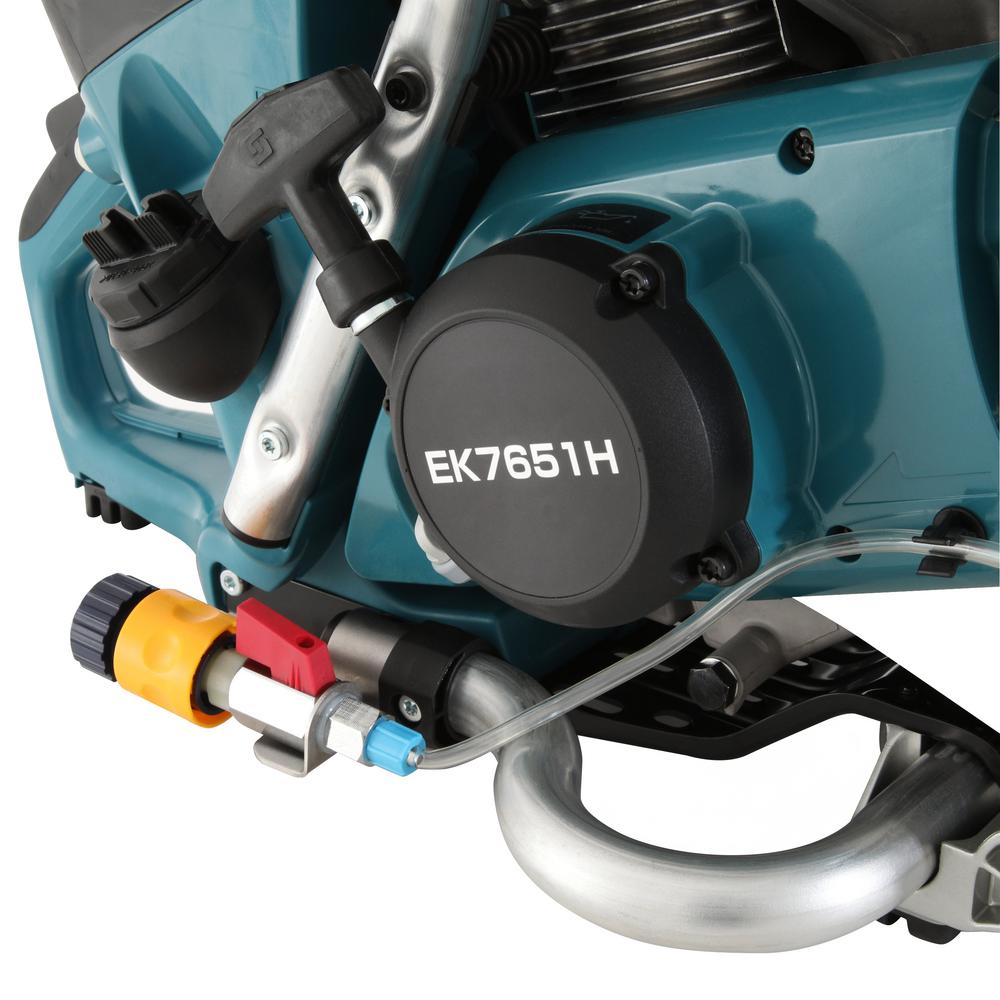

- Includes: wrench (782236-0), Torx wrench (782025-3) and screwdriver (783012-5), adapter ring (20 mm to 1 in.) (394-228-121), tool kit (195488-8), oil bottle (195532-1), water supply kit (195533-9)
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 35.2 lbs |
|---|---|
| Dimensions | 12 × 27.2 × 18.6 in |
| Model | EK7651H |
| Tool weight (lb.) | 28.4 |
| Start Type | Manual |
| Saw Drive Type | Worm Drive |
| Power Tool Features | No Additional Features |
| PT Horsepower (Hp) | 4 |
| Maximum Cutting Thickness (in.) | 3.813 |
| Included Accessories | Dust Blower, Hand Tools |
| Construction Material | Plastic |
| Cuts Through | Concrete |
| Condition | New |
| Color Family | Teal |
| Blade Diameter (in.) | 14 |
| Blade Diameter | 14 |
| Assembled Width (in.) | 27.2 in |
| Assembled Height (in.) | 18.6 in |
| Assembled Depth (in.) | 12 in |
| Tools Product Type | Power Tool |
