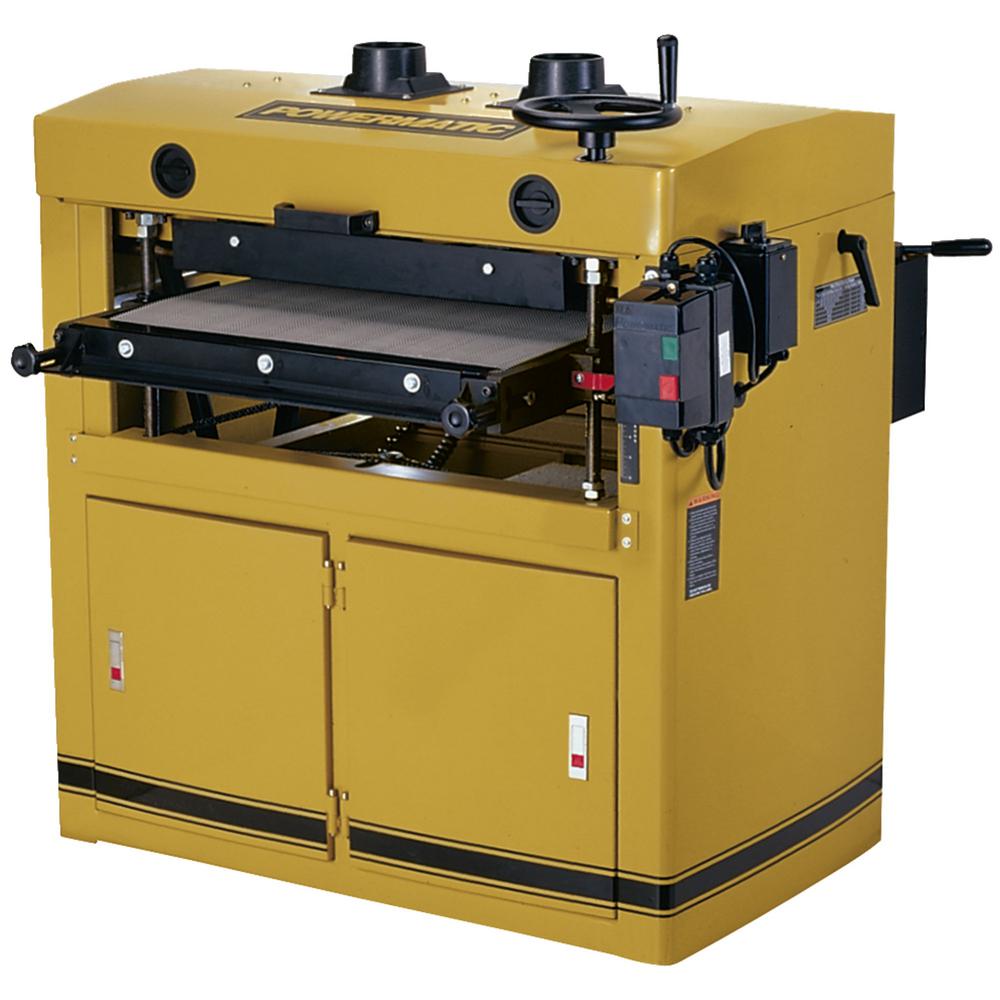

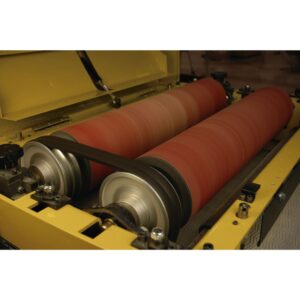

Powermatic DDS225 230-Volt 5 HP 1PH Drum Sander
$4,399.99
Provide years of vibration free-sanding for applications by choosing this Powermatic DDS225 1PH Drum Sander. Full size cast iron table for solid support.
In stock
Description

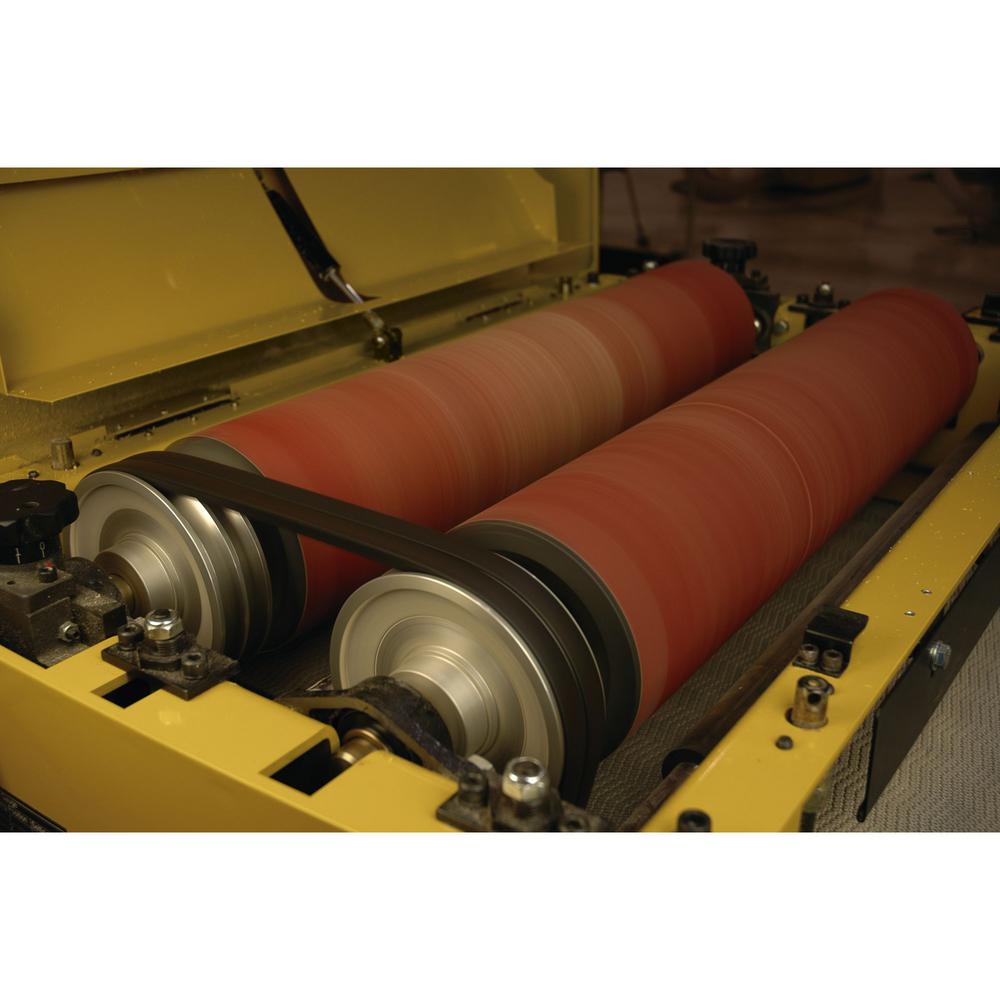

Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5 HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates 4 solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4 HP feed motor is coupled to a 2-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.
- 5 HP motor for plenty of power
- Independently adjustable rear drum for fine tuning

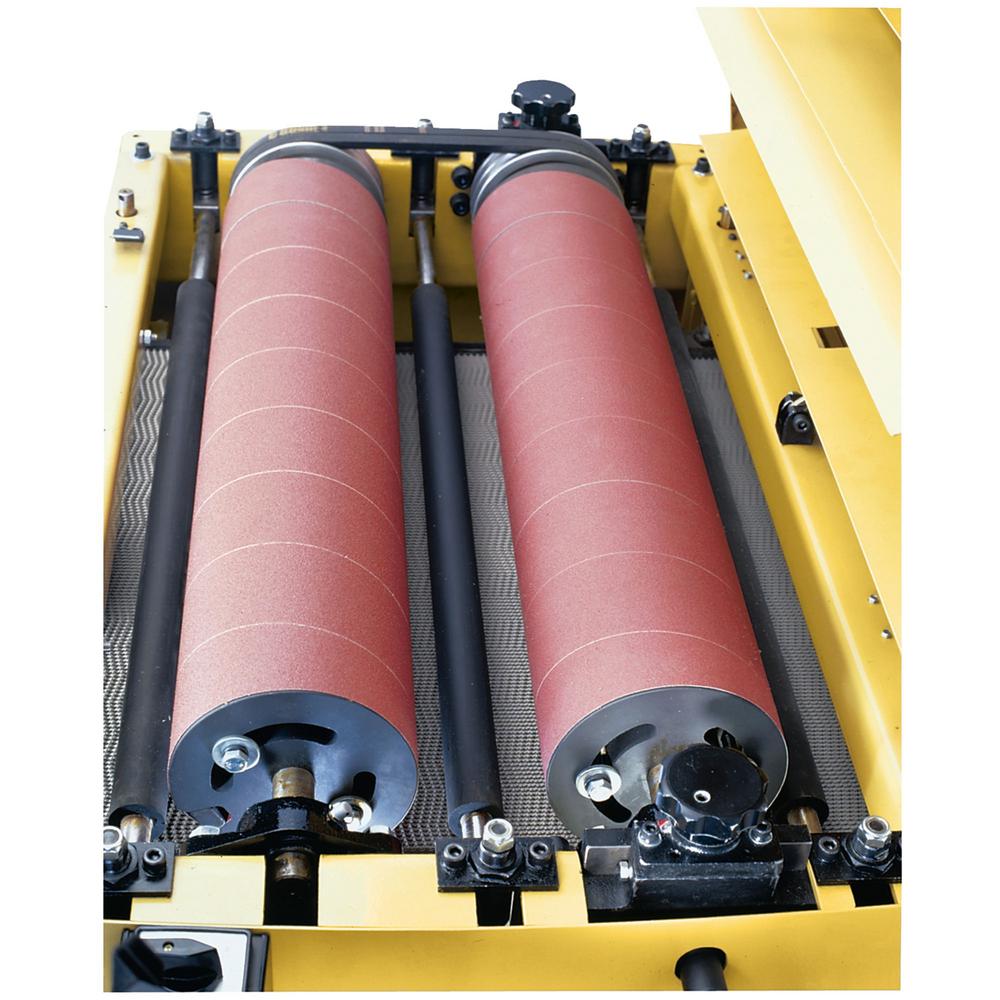

- Hard durometer rubber coating on steel drums provides flat, smooth finish

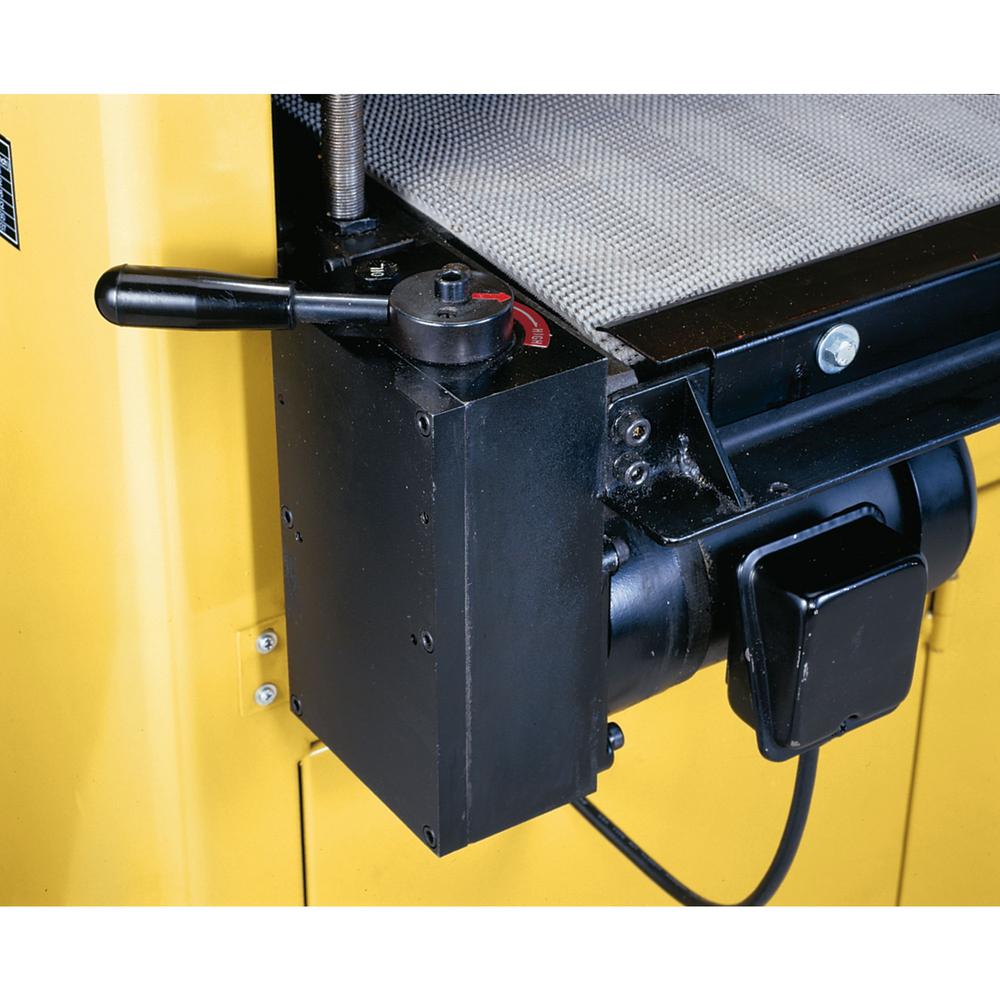

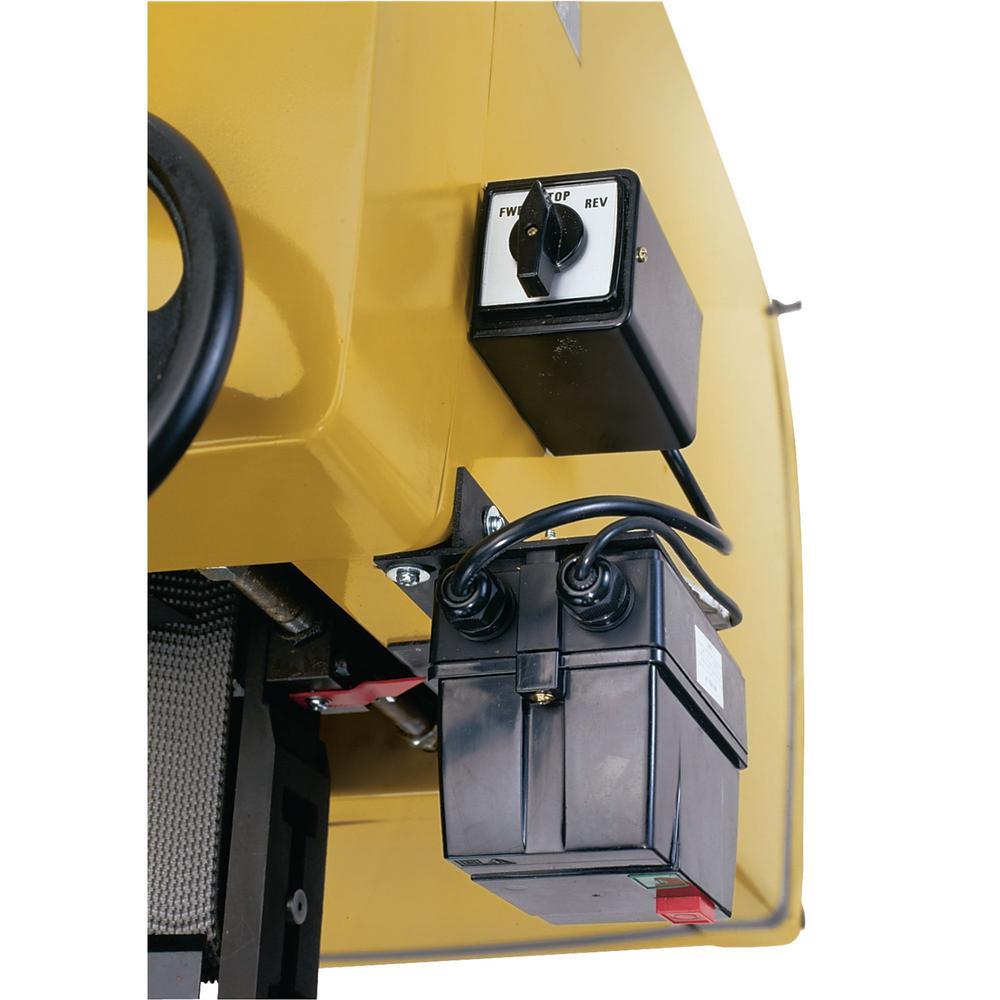

- 2-speed gearbox for wide range of sanding projects
- Full size cast iron table for solid support

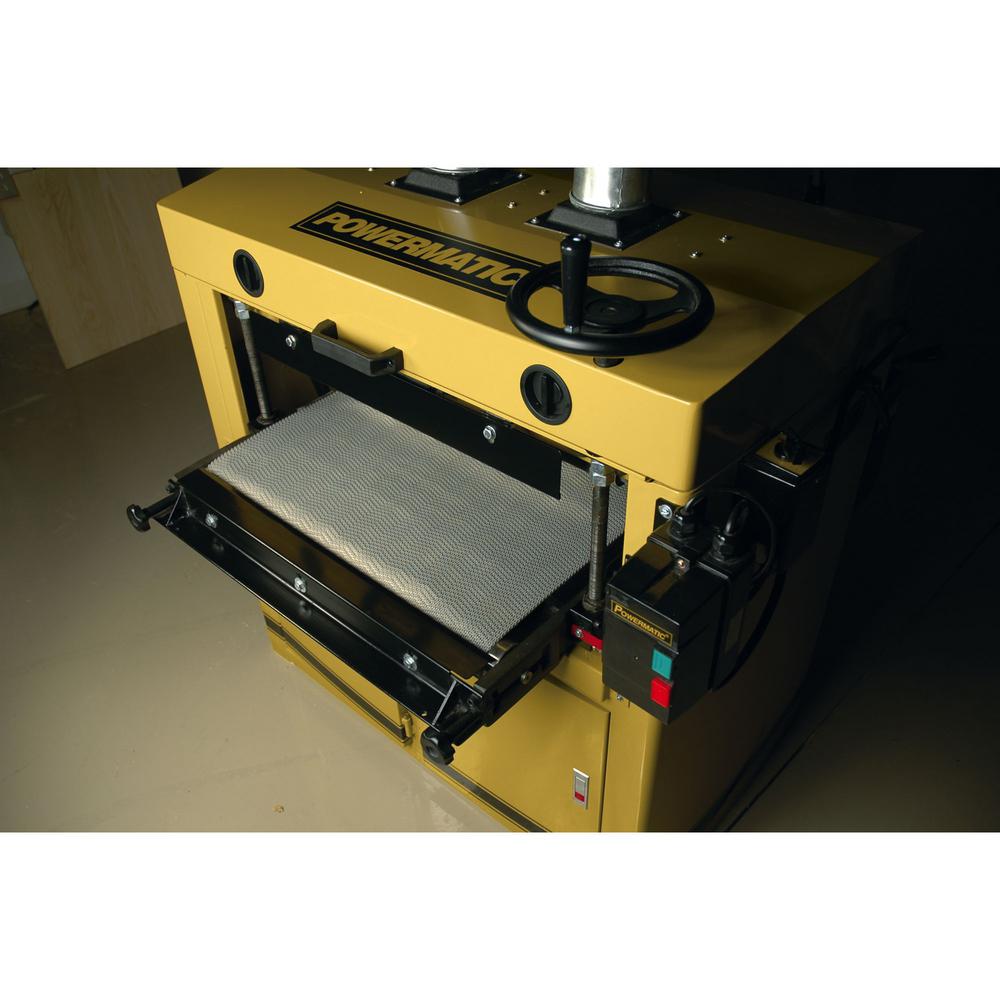

- Forward/reverse poly conveyor belt grips stock evenly

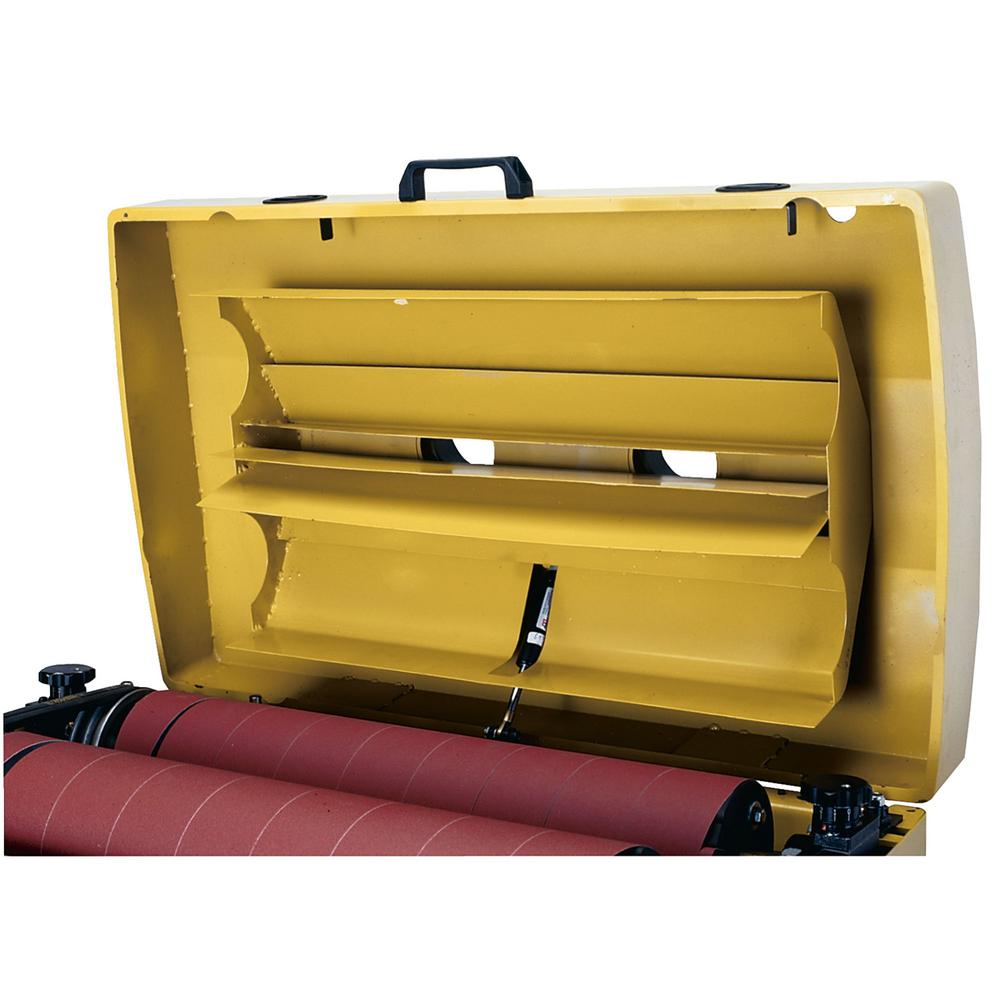

- Dual dust ports with directional baffles for more efficient dust removal
- Standard equipment
- 2-speed gear box
- Dual 4 in. dust ports
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 840 lbs |
|---|---|
| Dimensions | 43 × 44 × 43 in |
| Model | 1791290 |
| Variable Speed | No |
| Tools Product Type | Power Tool |
| Table Width (in.) | 0 |
| Table Length (in.) | 0 |
| Reconditioned | No |
| Power Tool Features | No Additional Features |
| Portability | Stationary |
| Minimum feed height (in.) | .03125 |
| Maximum feed rate (ft./min.) | 12 |
| Maximum feed height (in.) | 5.25 |
| Maximum Speed (rpm) | 1700 |
| Dust collection type | Port |
| Cord Length (ft.) | 6 |
| Condition | New |
| Color Family | Yellow |
| Bench & Stationary Tool Type | Drum Sander |
| Belt width (in.) | 25 |
| Belt length (in.) | 25 |
| Amperage (amps) | 40 A |
| Voltage (volts) | 230 |
