Description

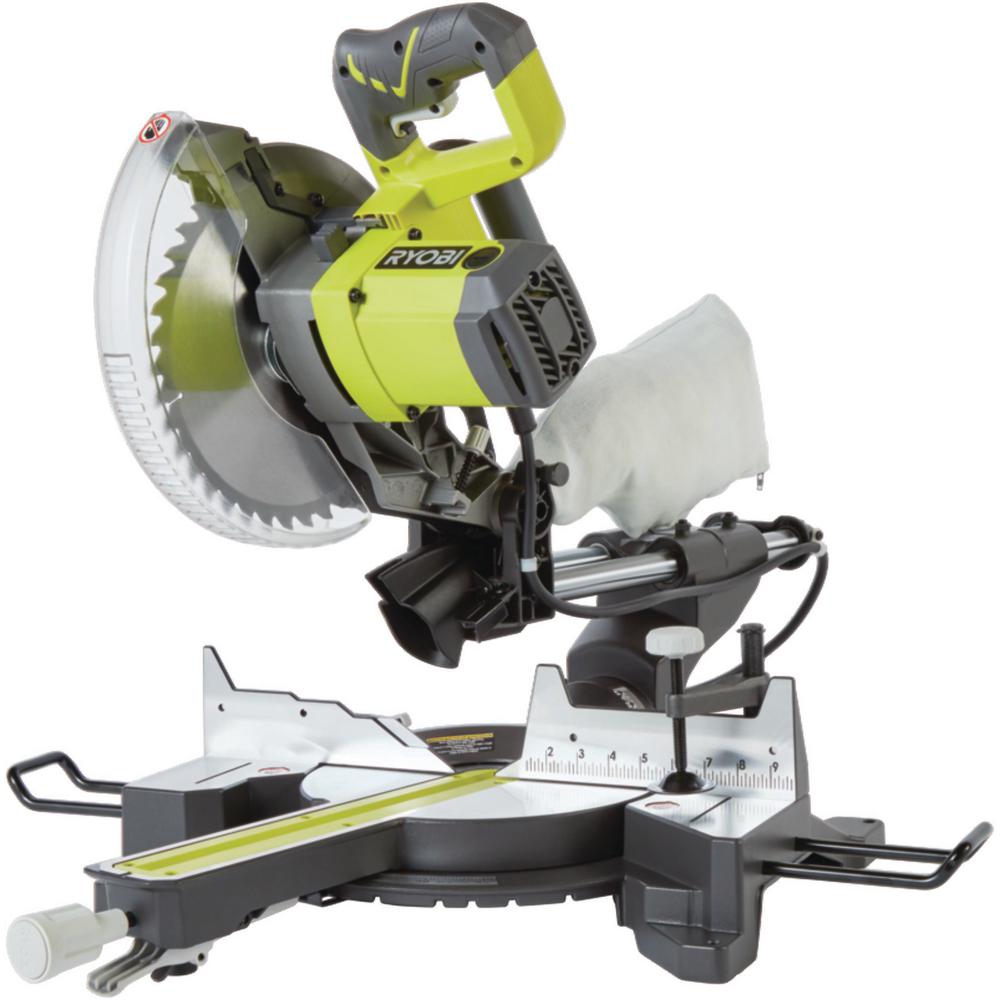

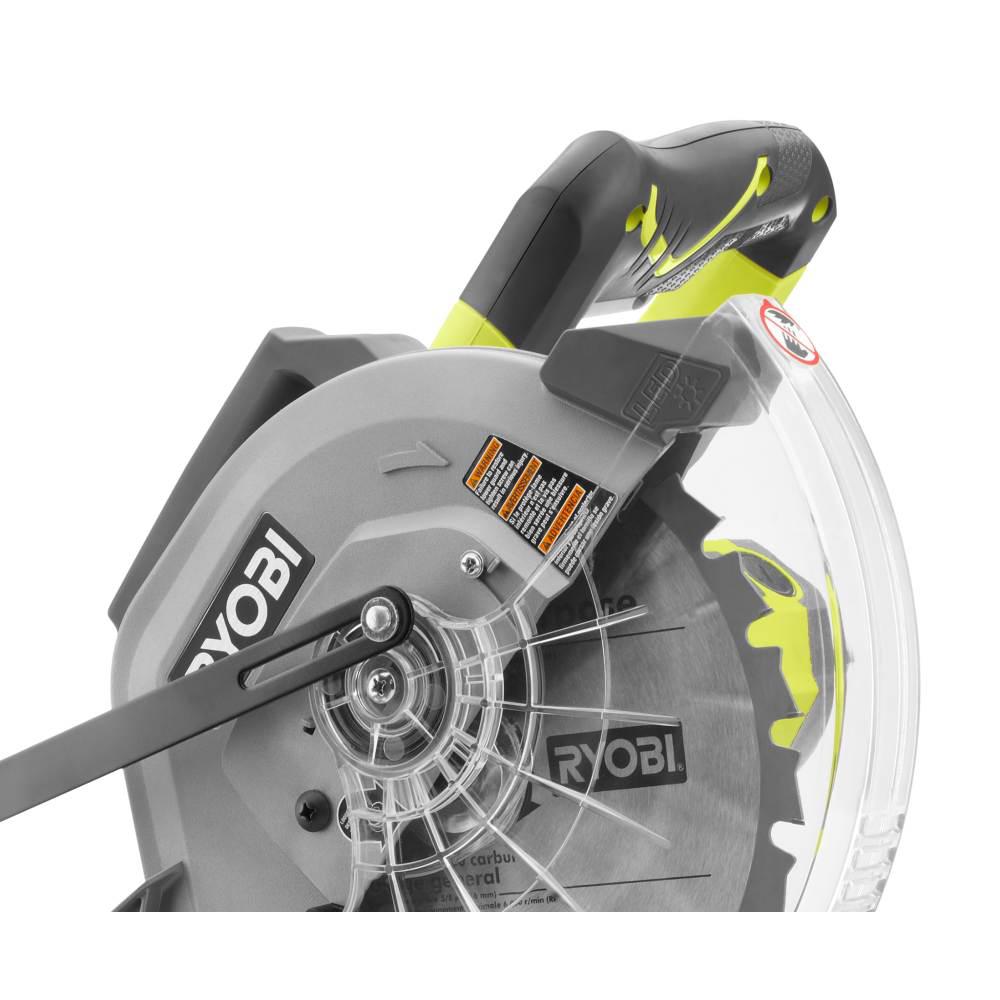

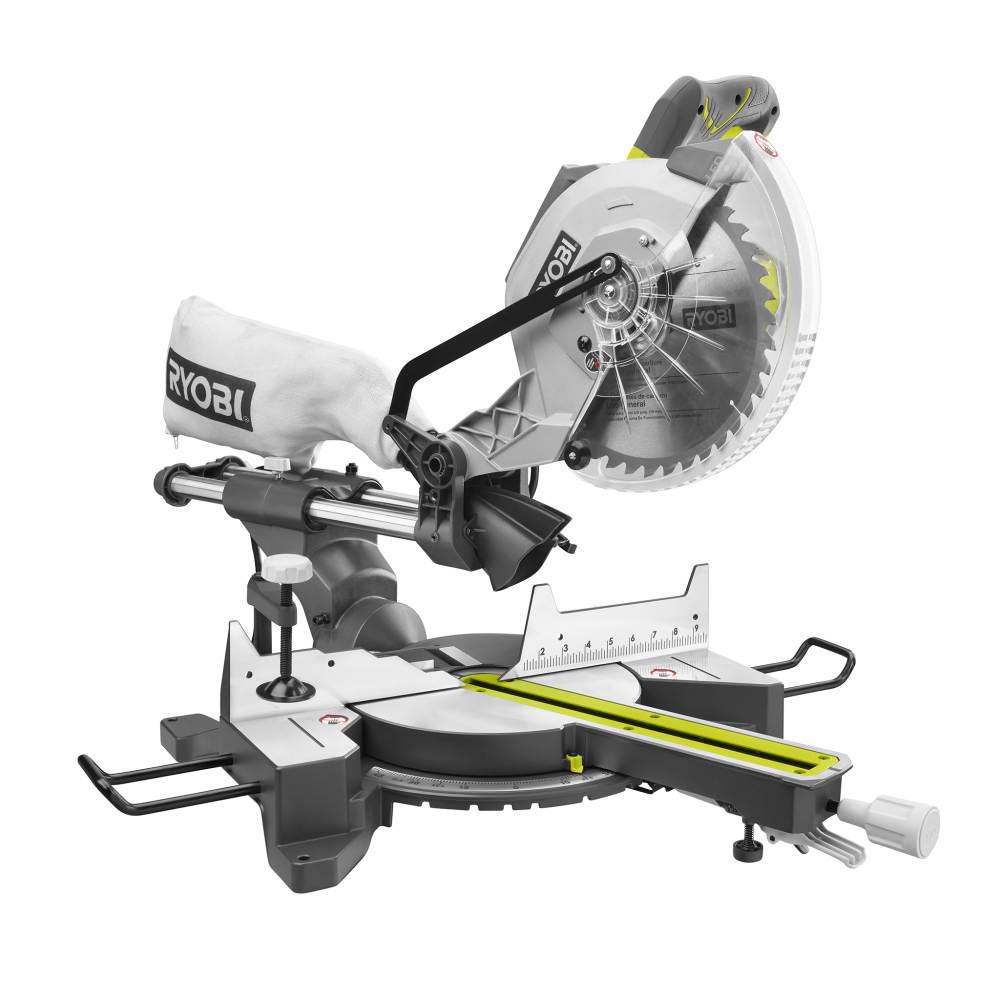

RYOBI introduces the 15 Amp 10 in. Sliding Compound Miter Saw. This saw features a 15 Amp, 4,600 RPM motor and has a 12 in. cross cut capacity. The LED Cutline Indicator and work-light illuminates material to help improve accuracy of the cut and visibility. The extended miter range from 47° left and right provides versatility for all DIY and professional projects by accommodating a wide variety of cuts. Backed by the RYOBI 3-Year Manufacturer’s Warranty, the 15 Amp 10 in. Sliding Compound Miter Saw includes an LED Cutline Indicator, a 40-tooth carbide-tipped blade, table extensions, a work clamp, a blade wrench, a dust bag, and an operator’s manual.
- Heavy duty 15 Amp motor to easily cut through larger material
- Sliding head provides maximum capacity for up to 12 in. cross cut
- Miter stops located at the most common crown molding angles 0°, 15°, 22.5°, 31.6°, and 45° left and right for quick cut settings
- LED Cutline Indicator and work-light projects cut line and illuminates material to improve accuracy of the cut and visibility

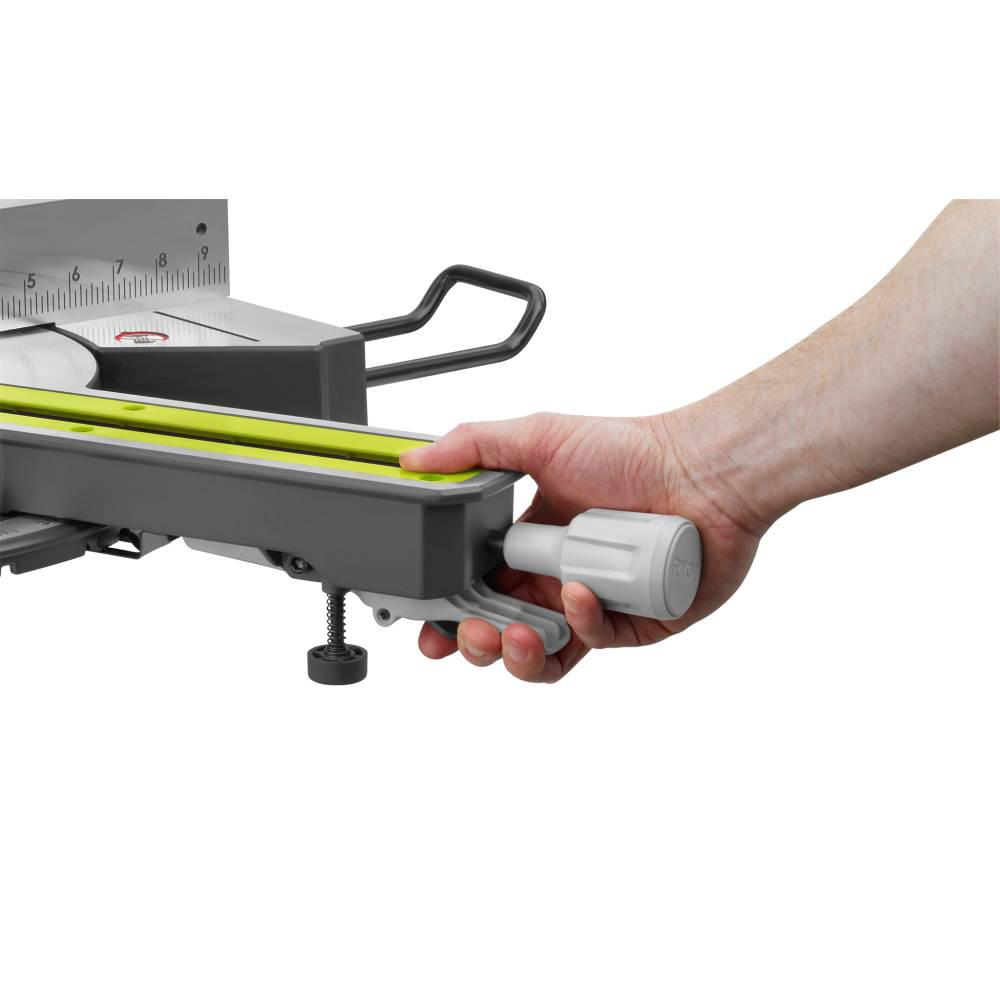

- Miter Detent Override: Quick action lever bypasses miter detent index points with one simple motion
- Machined cast-in miter scale for accurate table alignment
- Electric brake stops the blade in seconds
- Spindle lock for easy single wrench blade changes
- Extended miter range from 47° left and right to accommodate a wide variety of cuts
- Fixed Dust Port maintains the ideal position to optimize dust collection efficiencies for both plunge and sliding cuts
- 1-1/4 in. dust port provides connection to standard dust collection systems to help keep work area clean
- Horizontal “D” handle for improved comfort
- 3-year manufacturer’s warranty

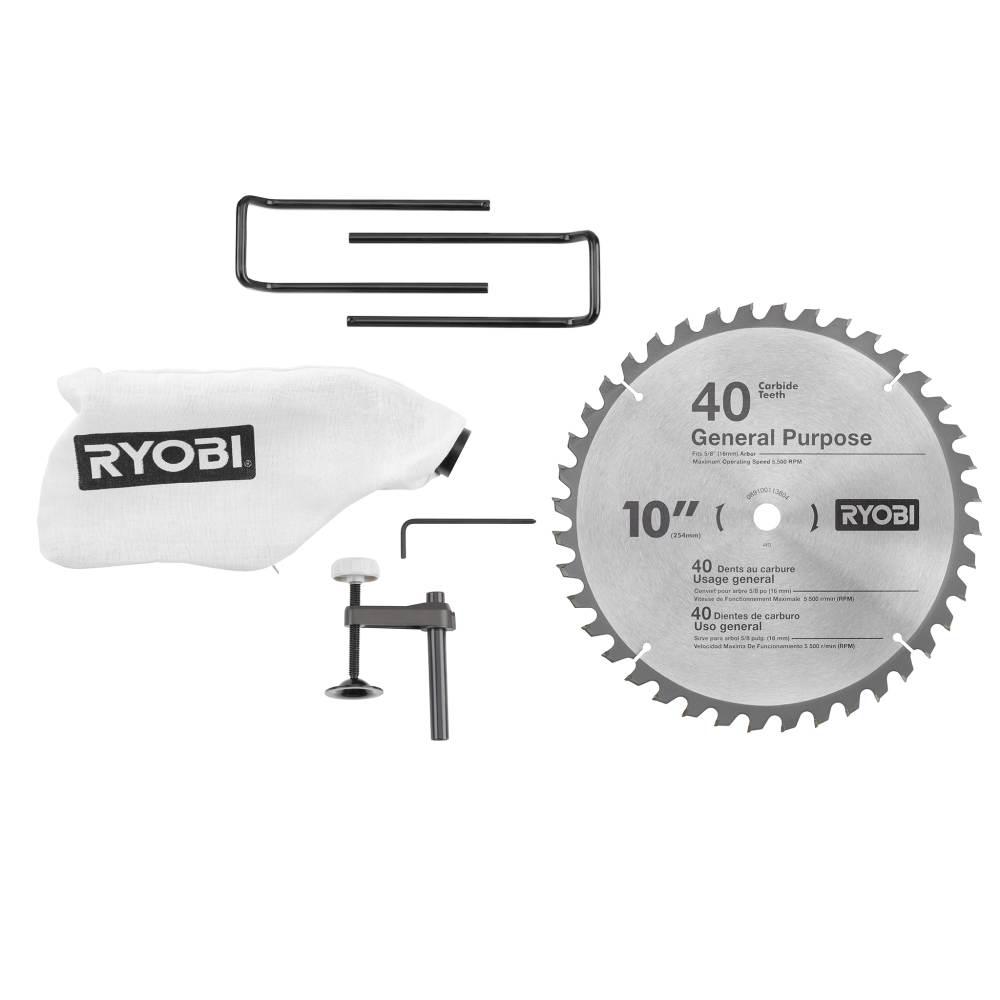

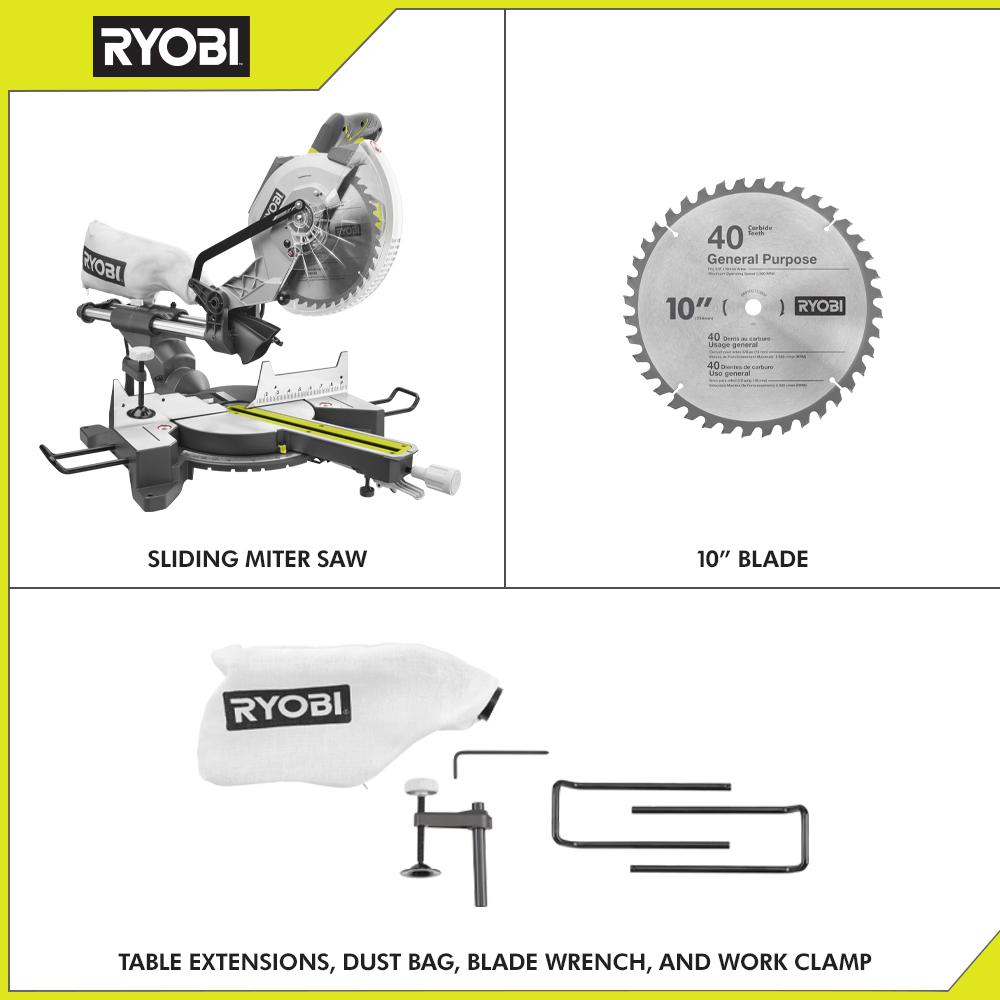

- Includes: (1) TSS103T Miter Saw with LED and 40-tooth carbide-tipped blade, table extensions, work clamp, blade wrench, dust bag, and operator’s manual
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 55.21 lbs |
|---|---|
| Dimensions | 33.86 × 22.05 × 17.09 in |
| Model | TSS103 |
| Table Width (in.) | 10 |
| Table Length (in.) | 18 |
| Power Tool Features | Positive Stops |
| Portability | Bench |
| Miter Saw Type | Sliding Compound |
| Maximum Speed (rpm) | 4800 |
| Maximum Degree Miter Cuts - Right | 45 |
| Maximum Degree Miter Cuts - Left | 45 |
| Maximum Cutting Thickness (in.) | 3.5 |
| Included Accessories | Allen Key/Wrench, Blades, Clamp |
| Dust Collection Method | 1.5 in. Dust Port |
| Cord Length (ft.) | 6 |
| Cordless/ Corded | Corded |
| Construction Material | Acrylonitrile Butadiene Styrene (ABS) |
| Condition | New |
| Color Family | Green |
| Blade Diameter (in.) | 10 |
| Bevel Type | Single |
| Bench & Stationary Tool Type | Slide Miter Saw |
| Arbor Size | .63 |
| Amperage (amps) | 15 |
| 90 Degree Crosscut Capacity Maximum - Right | 1-1/2" x 12" |
| 90 Degree Crosscut Capacity Maximum - Left | 1-1/2" x 12" |
| 45 Degree Crosscut Capacity Maximum | 2 x 8 inches (nominal) |
| Tools Product Type | Power Tool |
