Description

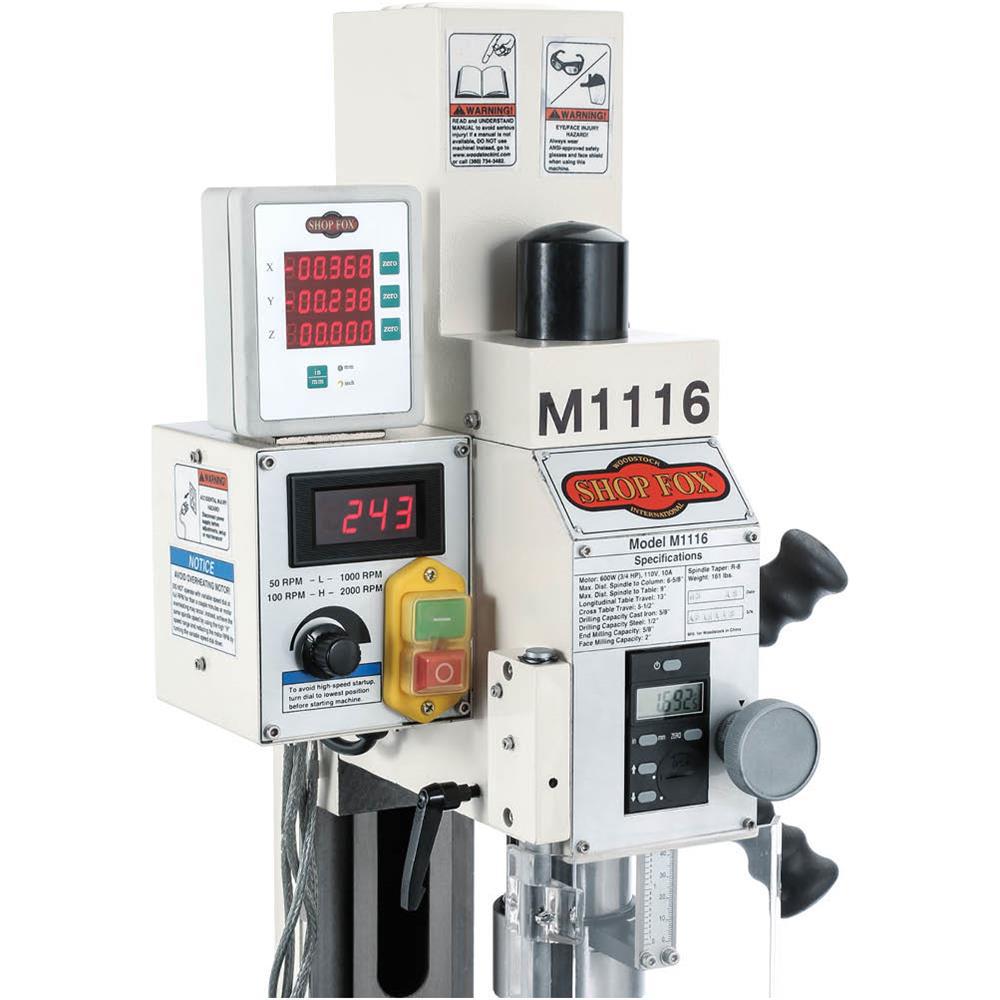

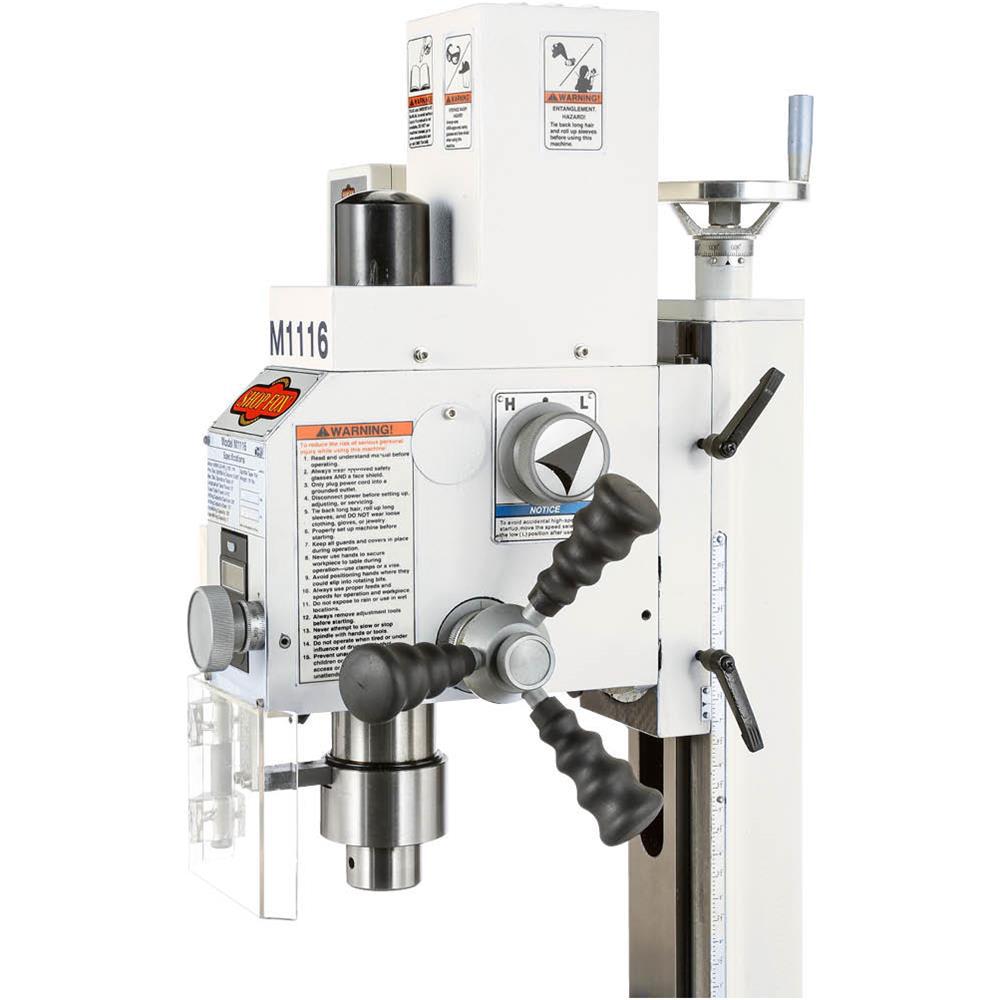

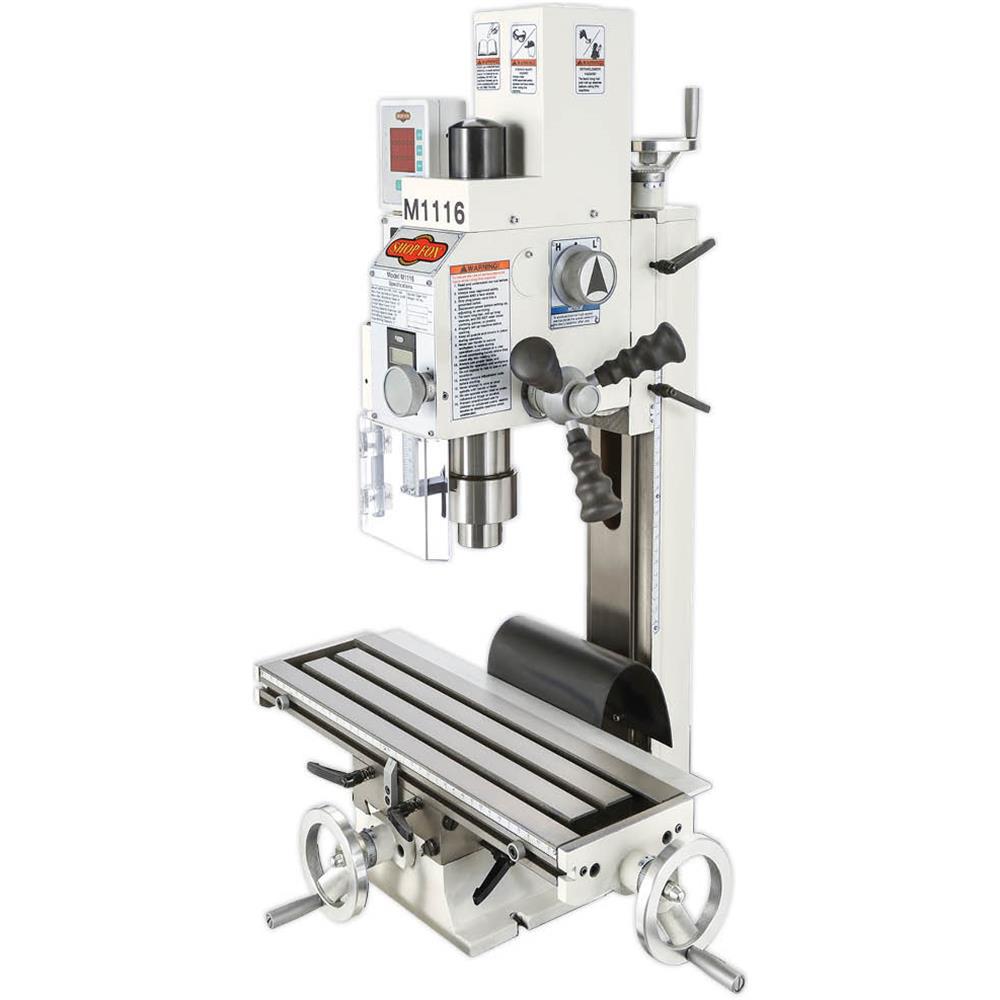

This great little machine sports some of the same features found on much larger mill/drills: dovetail column, variable speed 3/4 HP motor, R8 spindle with digital read out, tapered gibs with double locks and large 5-1/2 in. x 19-11/16 in. table. This is an excellent value and great for just starting out or even as a dedicated, single-purpose machine in the shop. Purchase the optional D4780 Stand for the ultimate mill/drill package.
- Motor: 3/4 HP, 110-Volt, 8 Amp, single-phase
- Max. distance spindle to table: 13 in.
- Spindle taper: R8
- Variable speed range: 50 RPM to 200 RPM
- Head tilt: 45° left and right
- Swing: 15 in.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 161 lbs |
|---|---|
| Dimensions | 24 × 22 × 32 in |
| Model | M1116 |
| Voltage (volts) | 110 |
| Tools Product Type | Power Tool |
| Spindle Travel | 2 |
| Portability | Stationary |
| Number of Speeds | 50 |
| Minimum speed (rpm) | 50 |
| Maximum Speed (rpm) | 200 |
| Magnetic | No |
| Cord Length (ft.) | 6 |
| Lockout Power Switch | Yes |
| Condition | New |
| Color Family | White |
| Chuck Key Storage | No |
| Chuck Capacity | 5/8 In. |
| Built-In Light | No |
| Bench & Stationary Tool Type | Drill Press |
| Amperage (amps) | 8 A |
| 360- Degree Swivel | No |
| Work Light | No |
