Description

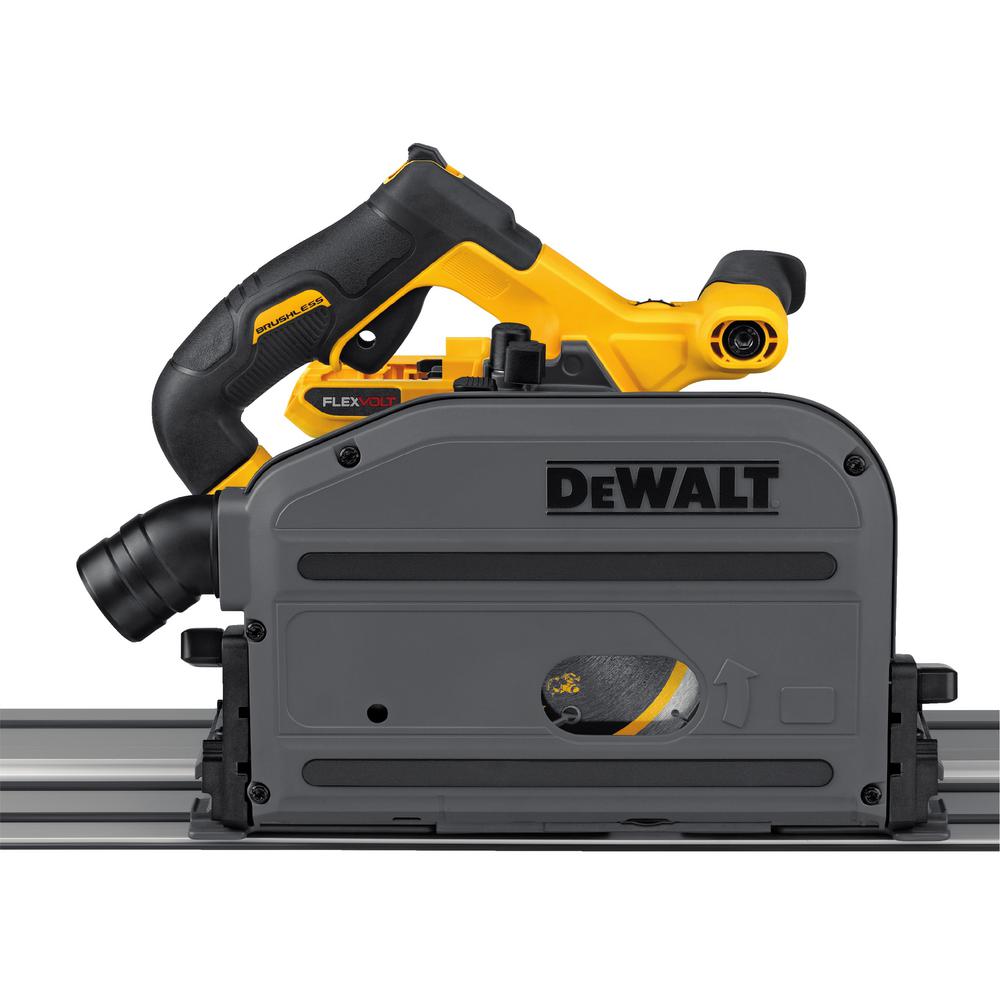

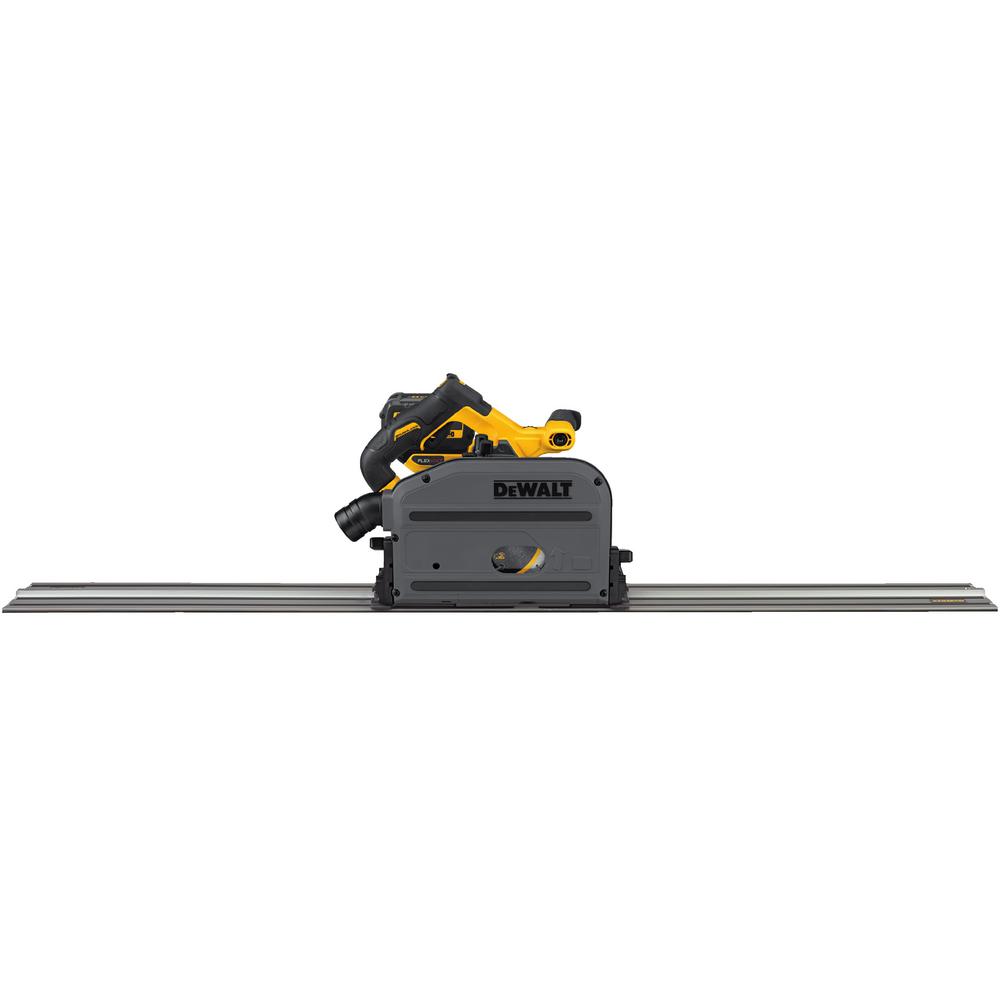

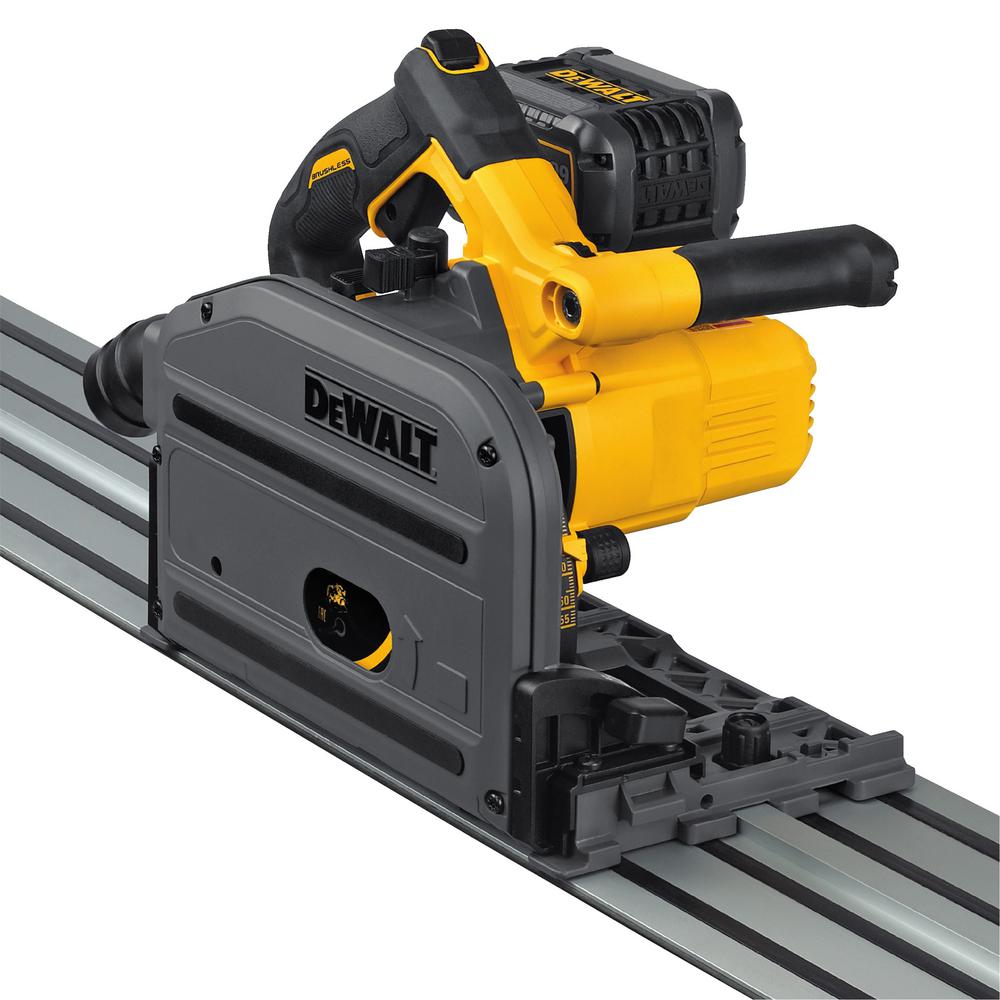

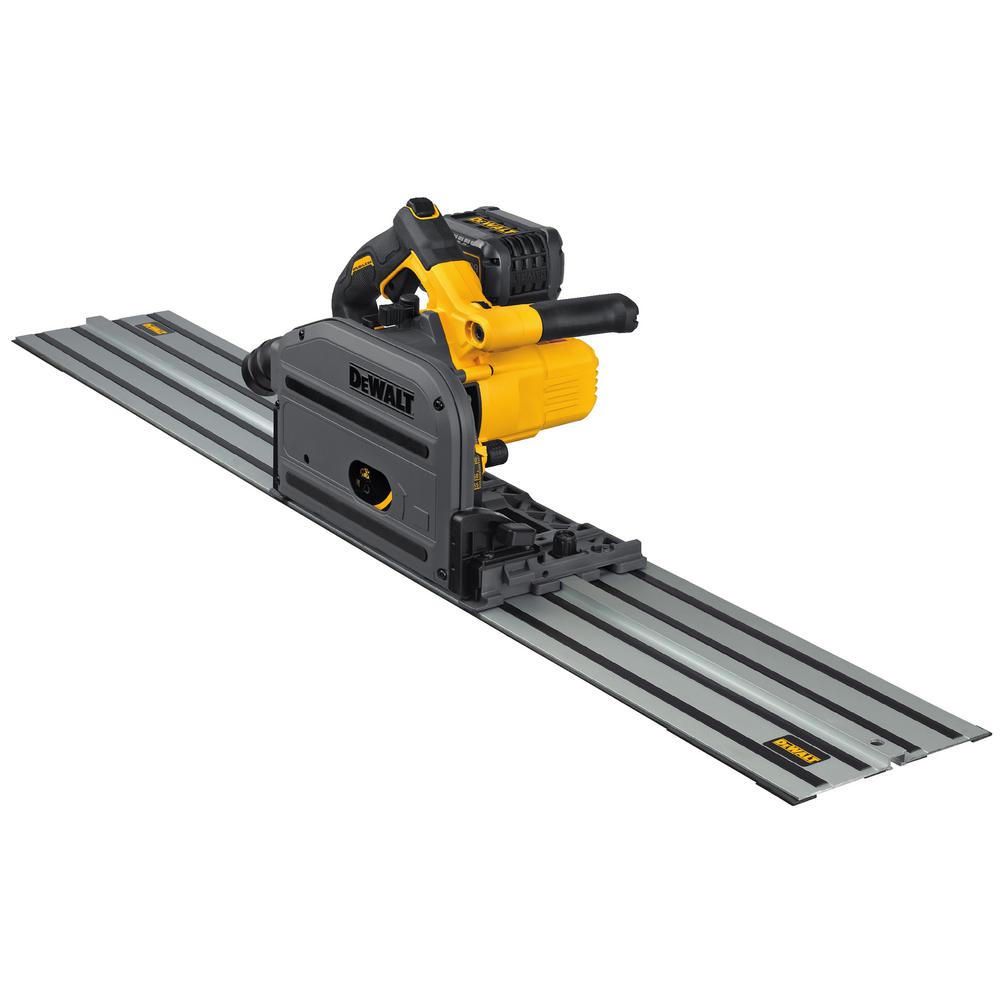

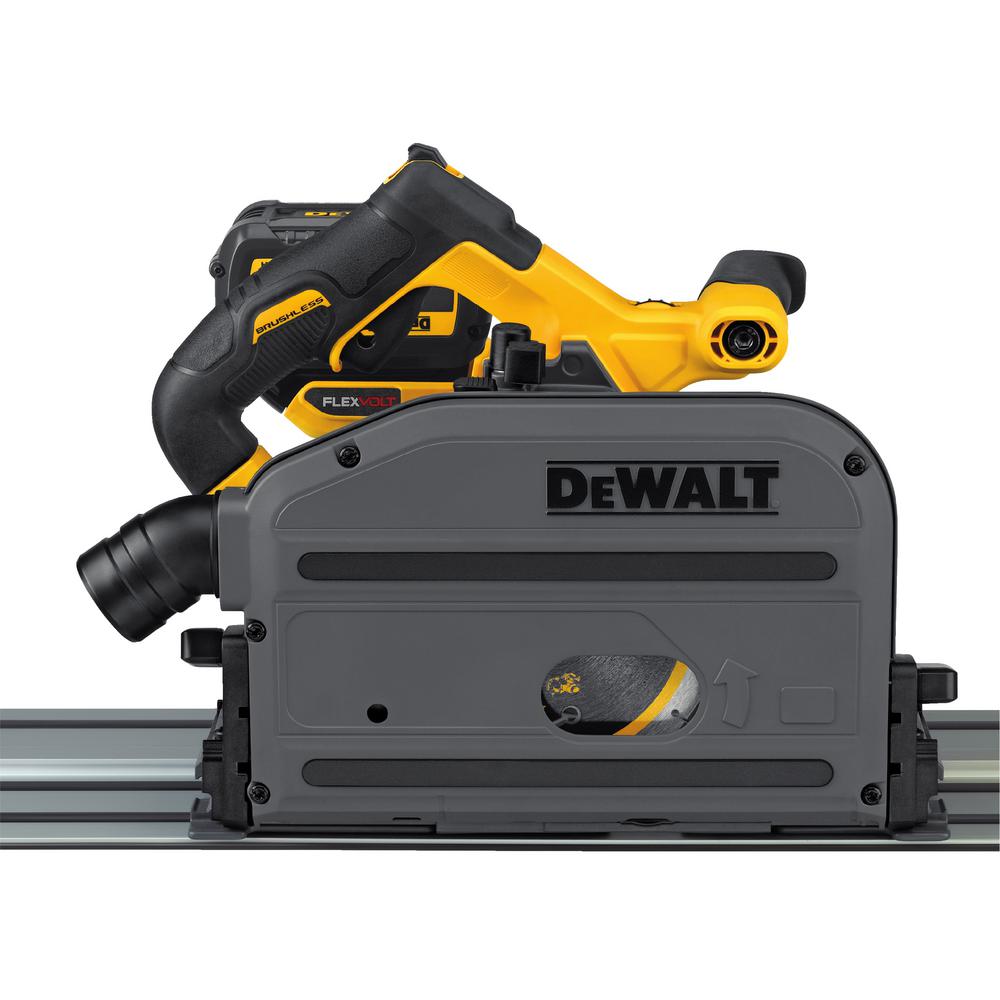

The DCS520 60-Volt MAX 6-1/2 in. TrackSaw Kit easily powers through hardwoods up to 2-1/8 in. thick. Features straight plunge mechanism for optimal ergonomics. For use with TrackSaw cutting system to deliver precise, straight, splinter-free cuts.
- Zero clearance track saw cutting system delivers precise, straight, splinter-free cuts
- For use with tracksaw dual-edged tracks for perfectly straight cuts in both directions
- On-track cut depth: 2/1/8 in. (54 mm) at 90°; 1-5/8 in. (41 mm) at 45°
- Brushless motor effortlessly powers through hardwoods up to 2/1/8 in. thick
- Continuous anti-kickback mechanism and riving knife prevent kickback when engaged
- Straight plunge mechanism for optimal ergonomics
- Low-profile blade guard allows saw to be used in confined spaces
- Universal 1-1/4 in. dust port for 90% efficient dust collection with vacuum
- Ideal for custom built-ins (cabinets on site)
- Ideal for filler strips, laminate counter tops
- Ideal for hardwood floor installation
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 15.2 lbs |
|---|---|
| Dimensions | 17.375 × 13.25 × 11.875 in |
| Model | DCS520B |
| Tools Product Type | Power Tool |
| Saw Drive Type | Sidewinder |
| Power Tool Features | Keyed Blade Change, Spindle Lock |
| Number of Total Batteries Included | 0 |
| Motor Type | Brushless |
| Maximum Speed (rpm) | 4200 |
| Maximum Cut Depth @ 90 Deg. | 2.125 |
| Maximum Cut Depth @ 45 Deg. | 1.625 |
| Included Accessories | Tool Only |
| Included | No Additional Items Included |
| Depth Adjustment | Yes |
| Cordless/ Corded | Cordless |
| Construction Material | Cast Aluminum |
| Cordless Tool Type | Circular Saw |
| Condition | New |
| Color Family | Yellow |
| Charger Included | Charger Not Included |
| Blade Location | Right |

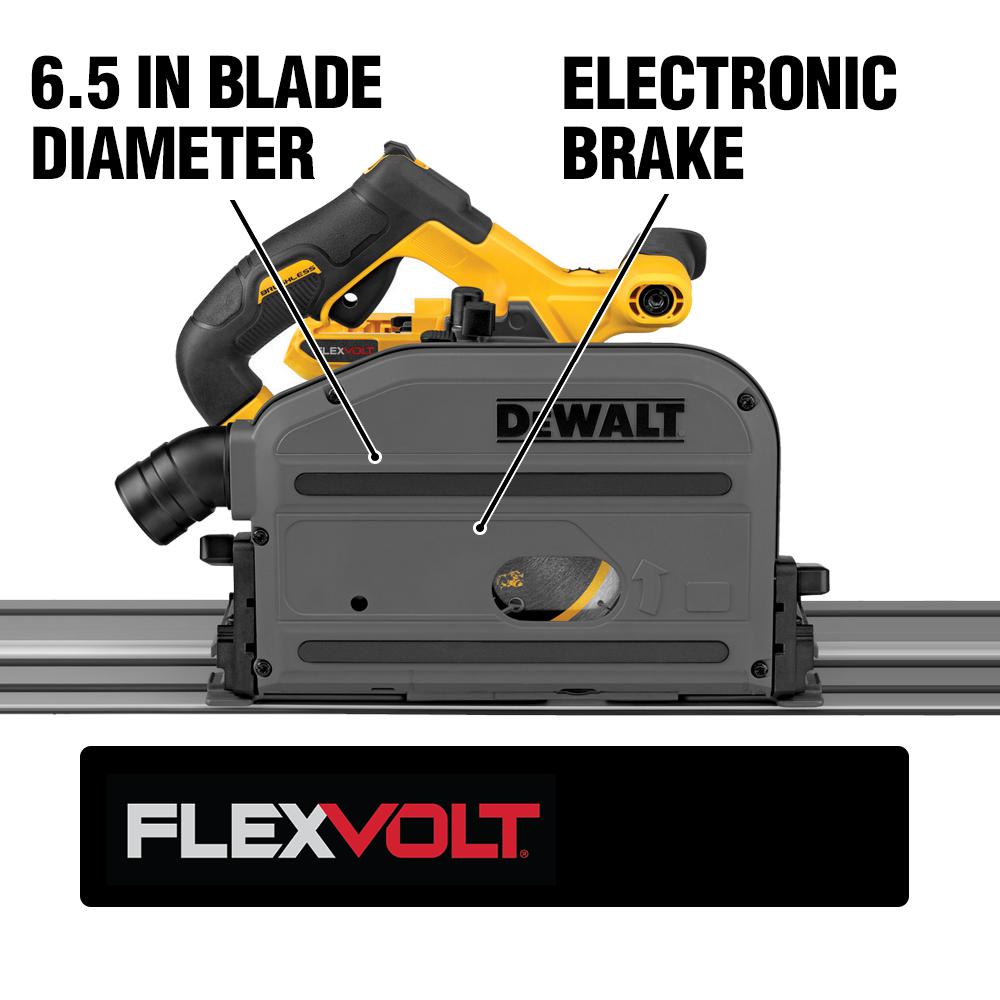

| Blade Diameter (in.) | 6-1/2 |
| Blade Diameter | 6-1/2 |
| Bevel Capacity | 47 |
| Battery/Charger | Tool Only |
| Battery Size | Lithium Ion |
| Battery Power Type | Lithium Ion |
| Battery Amp Hours | No Battery |
| Batteries Included | No |
| Voltage (volts) | 60 |
