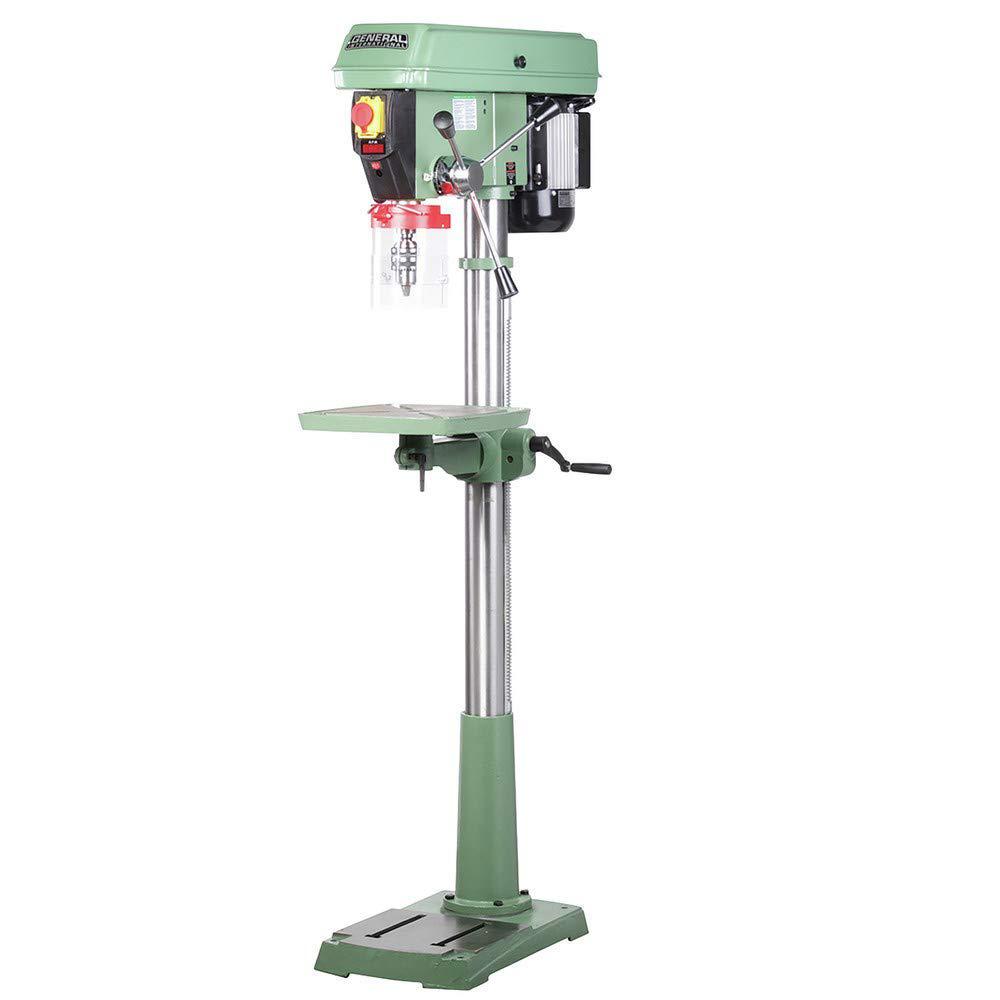

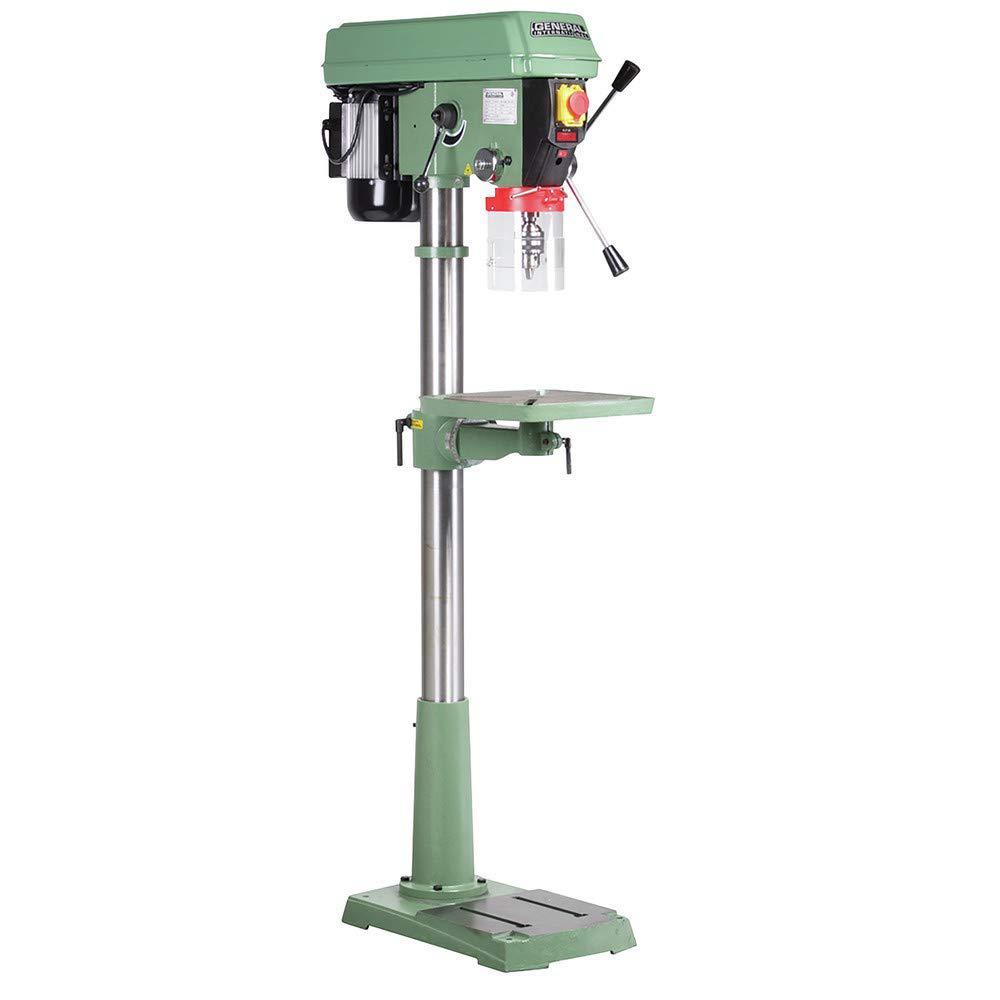

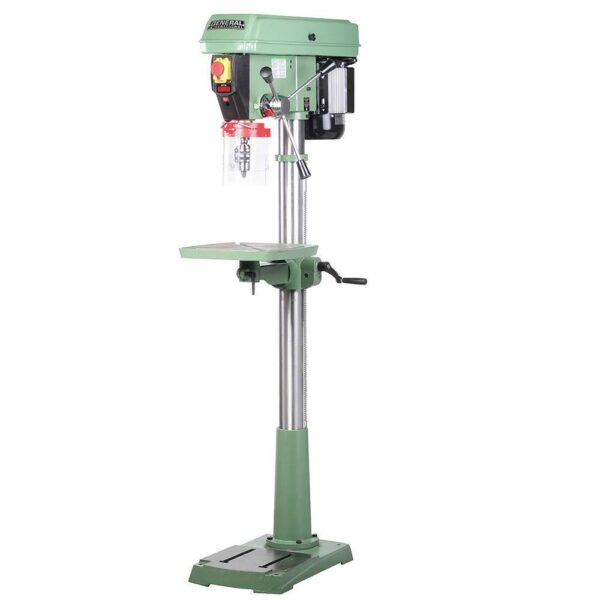

General International 17 in. 3/4 HP Electronic Variable Speed Drill Press with Flip-Up Guard and Integrated Laser Pointer
$602.61
Complete your cutting applications with the selection of this affordable General International Electronic Variable Speed Drill Press with FlipUp Guard and Integrated Laser Pointer.
In stock
Description
General International specializes in high quality woodworking and metal working machinery. The 17 in. Drill Press features an adjustable spindle tension return spring, built-in laser pointer, sturdy design with cast-iron head, base and table. With simple hand lever controlled mechanical variable speed (280 RPM to 2100 RPM) and Digital spindle speed display. High-quality bearings for smooth, vibration-free operation. The drill is fitted with a 3/4 HP industrial-quality 120-Volt motor (6 Amp). Equipped with easy-to-adjust dual depth stop for complete control of both down stroke depth and upstroke travel. 5/8 in. chuck with key and convenient on-board chuck key holder. Easy-to-use see-through flip-up chuck guard included. Crank-operated rack and pinion table height adjustment. Forced opening line interrupter switch, requires machine restart in case of power failure or circuit interruption. Covered by a 2-year Limited Warranty.

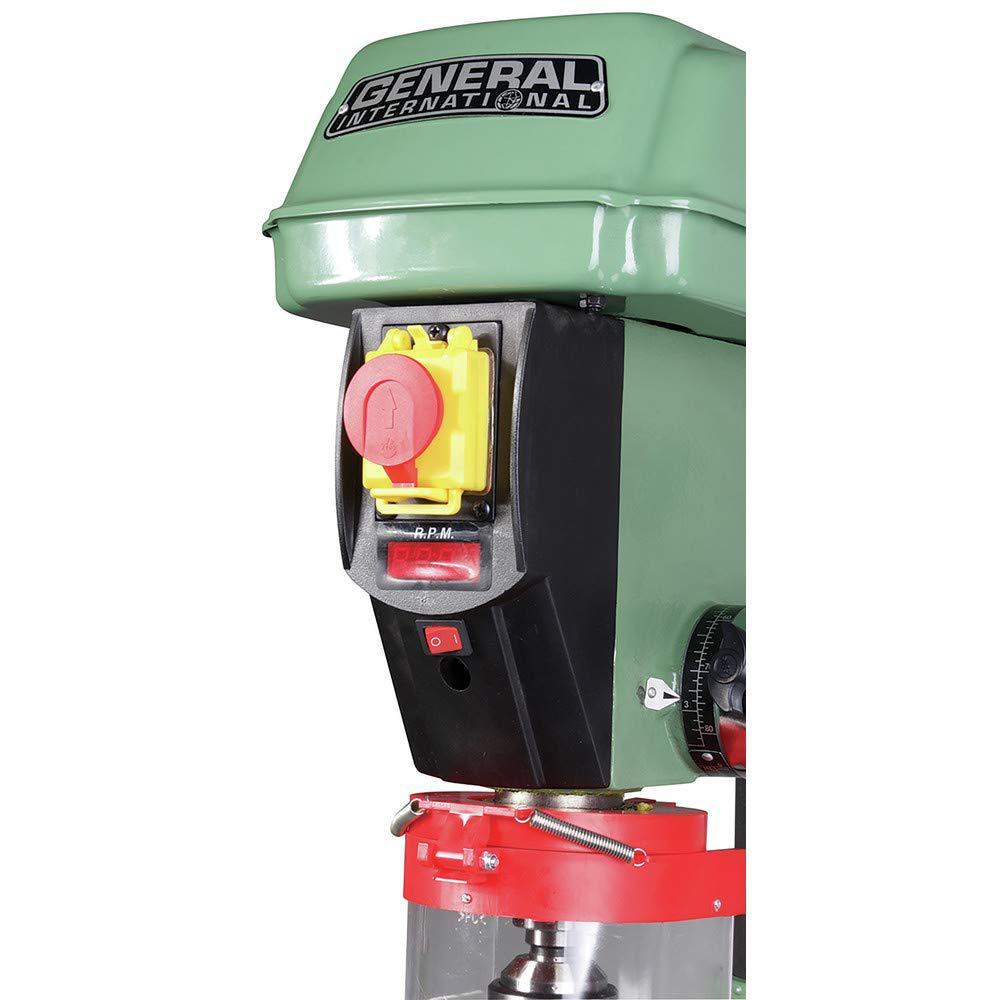

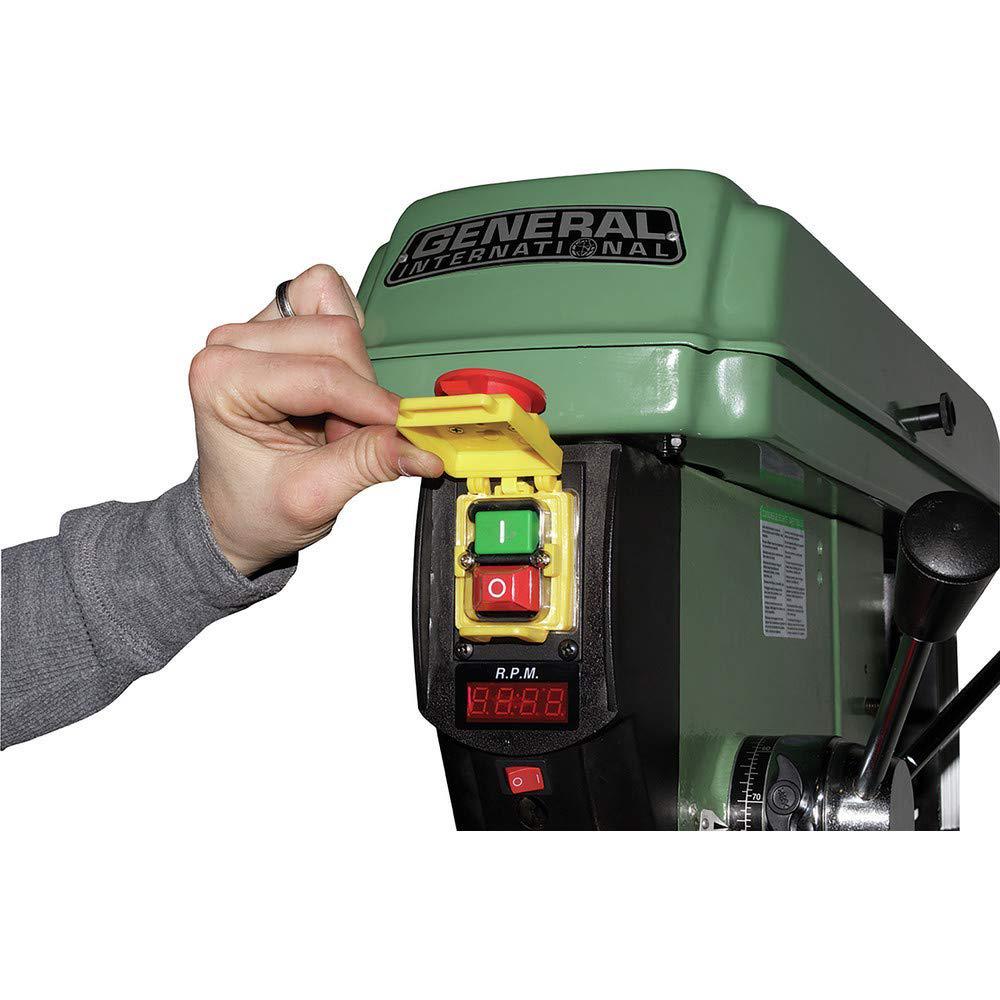

- Forced opening line interrupter switch: requires machine restart in case of power failure or circuit interruption

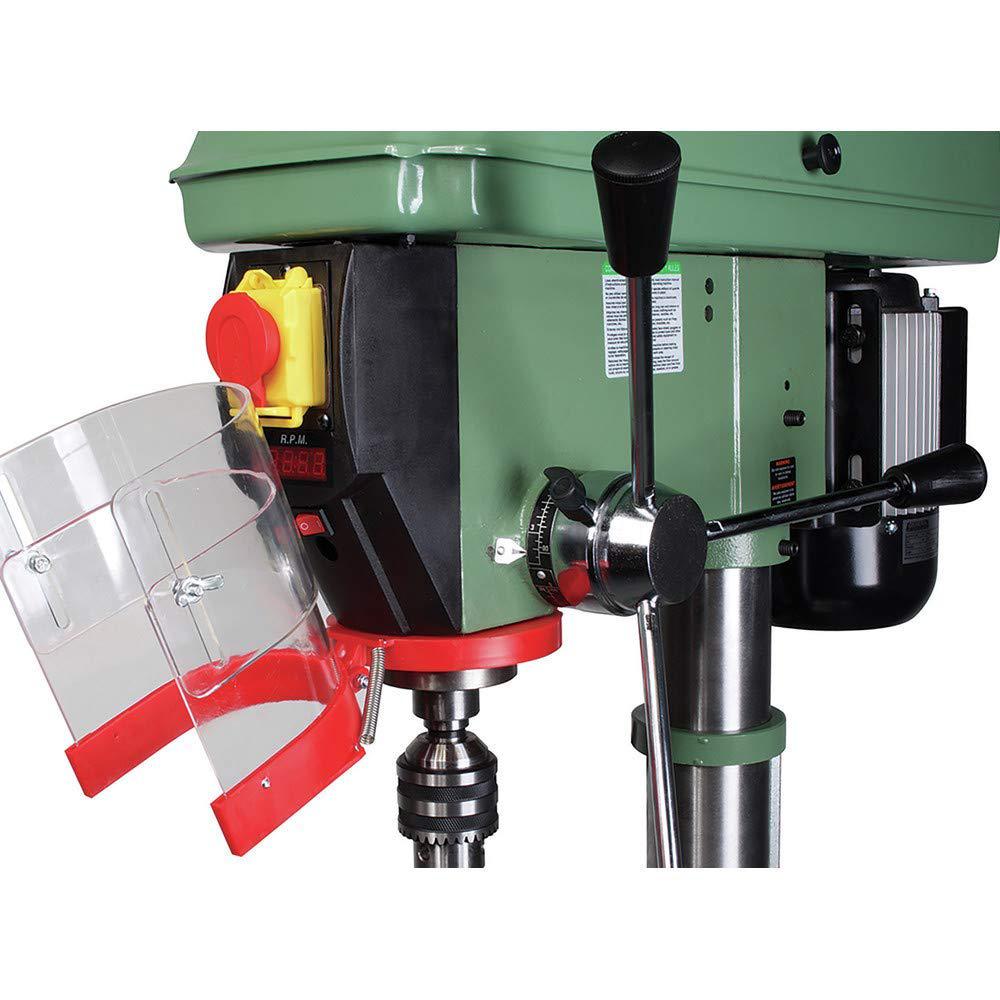

- Easy to use see-through flip-up chuck guard
- Sturdy design with cast-iron base and head, high-quality bearings for smooth, vibration-free operation

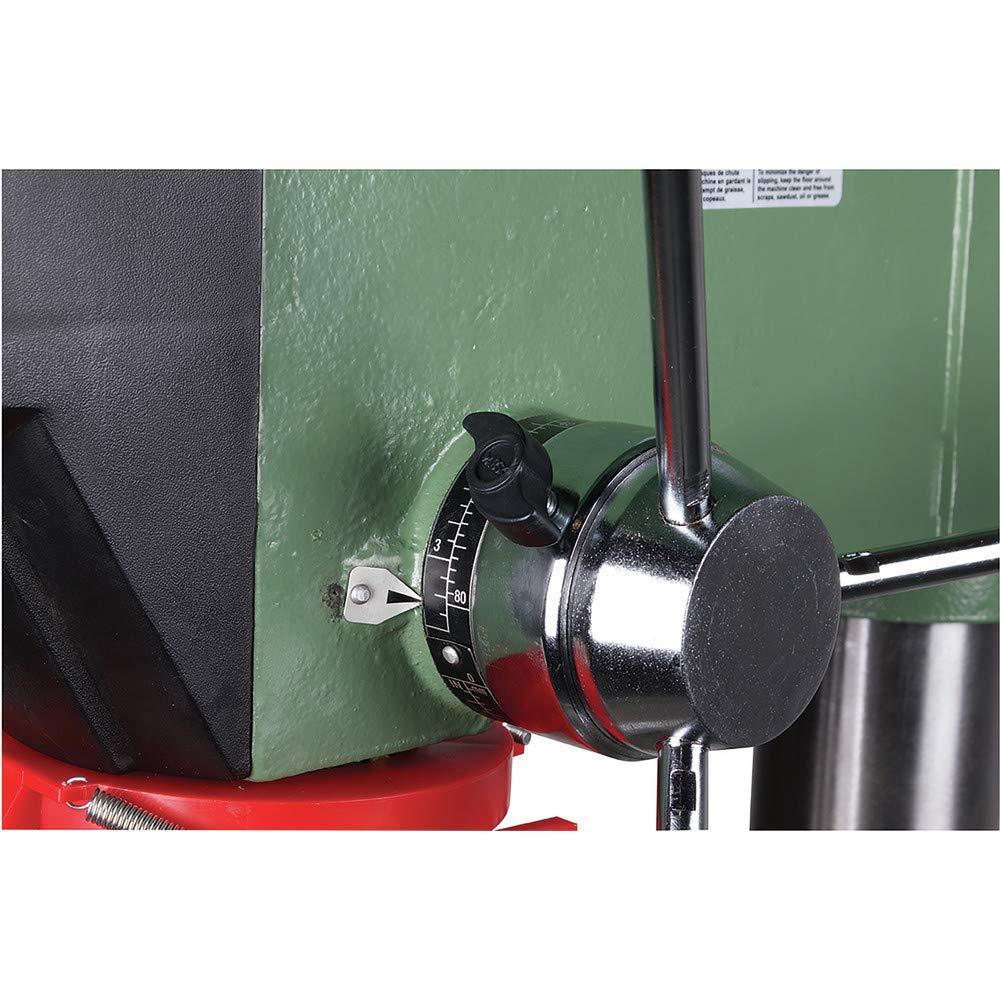

- Equipped with easy to adjust dual depth stop for complete control of both down stroke depth and upstroke travel

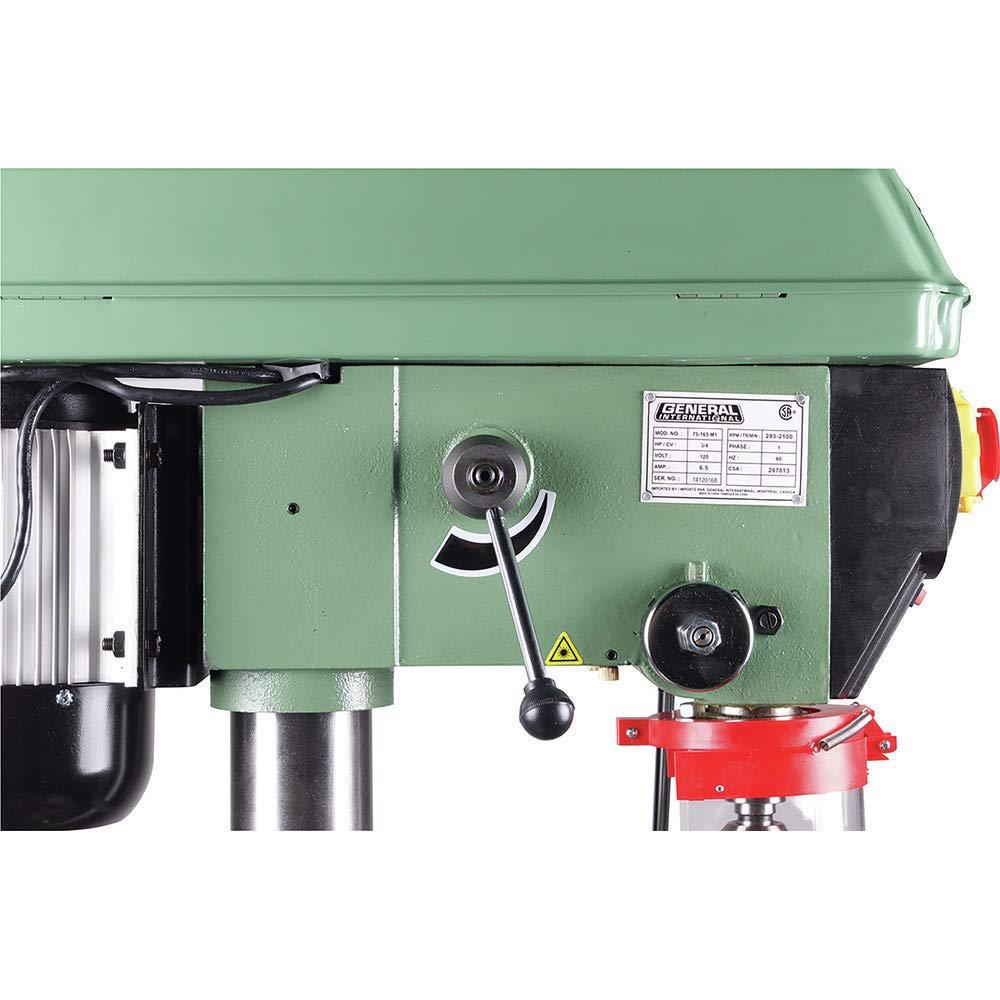

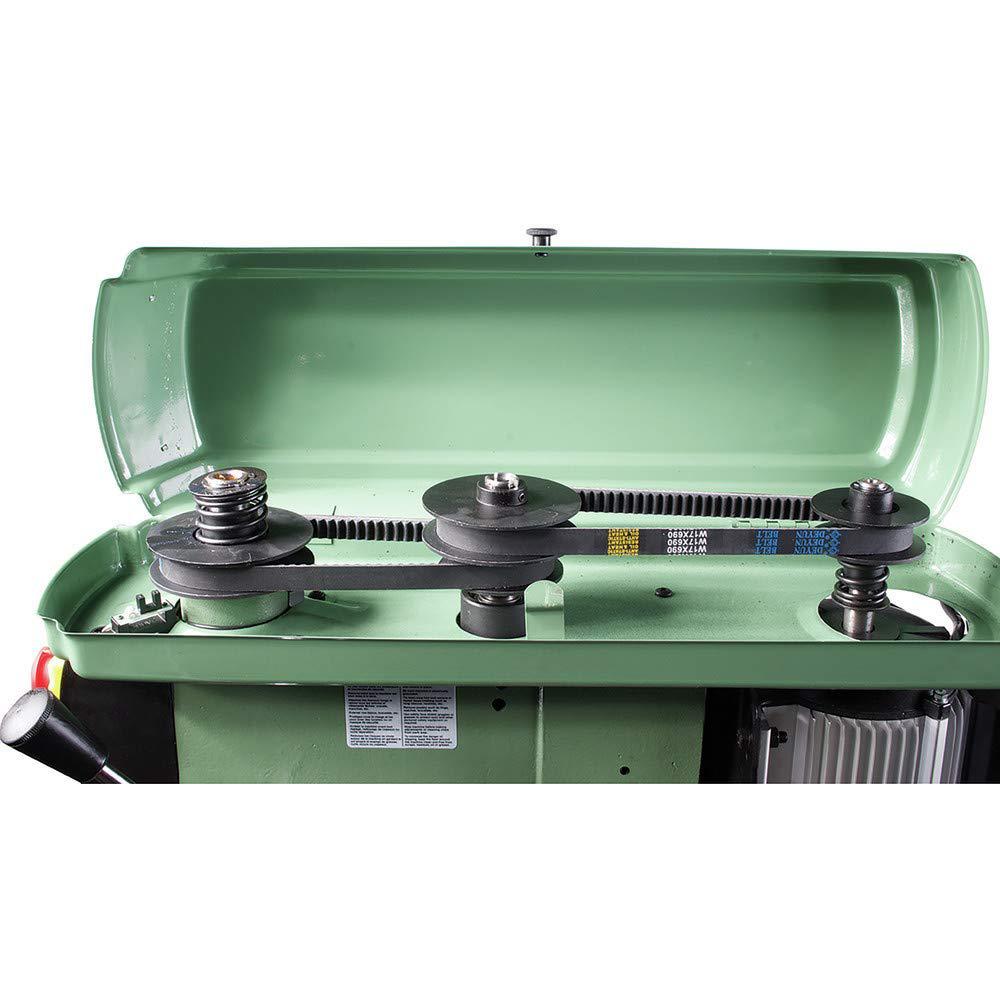

- Adjustable spindle tension return spring and simple hand lever controlled mechanical variable speed from 280 RPM to 2100 RPM
- Swing: 17 in., drilling capacity: 1-1/8 in., chuck size: 5/8 in.
- Spindle travel: 3-1/8 in., spindle distance to table: 29 in., spindle distance to base: 48-5/8 in.
- Spindle speeds: variable- 280 RPM to 2100 RPM, spindle: MT3

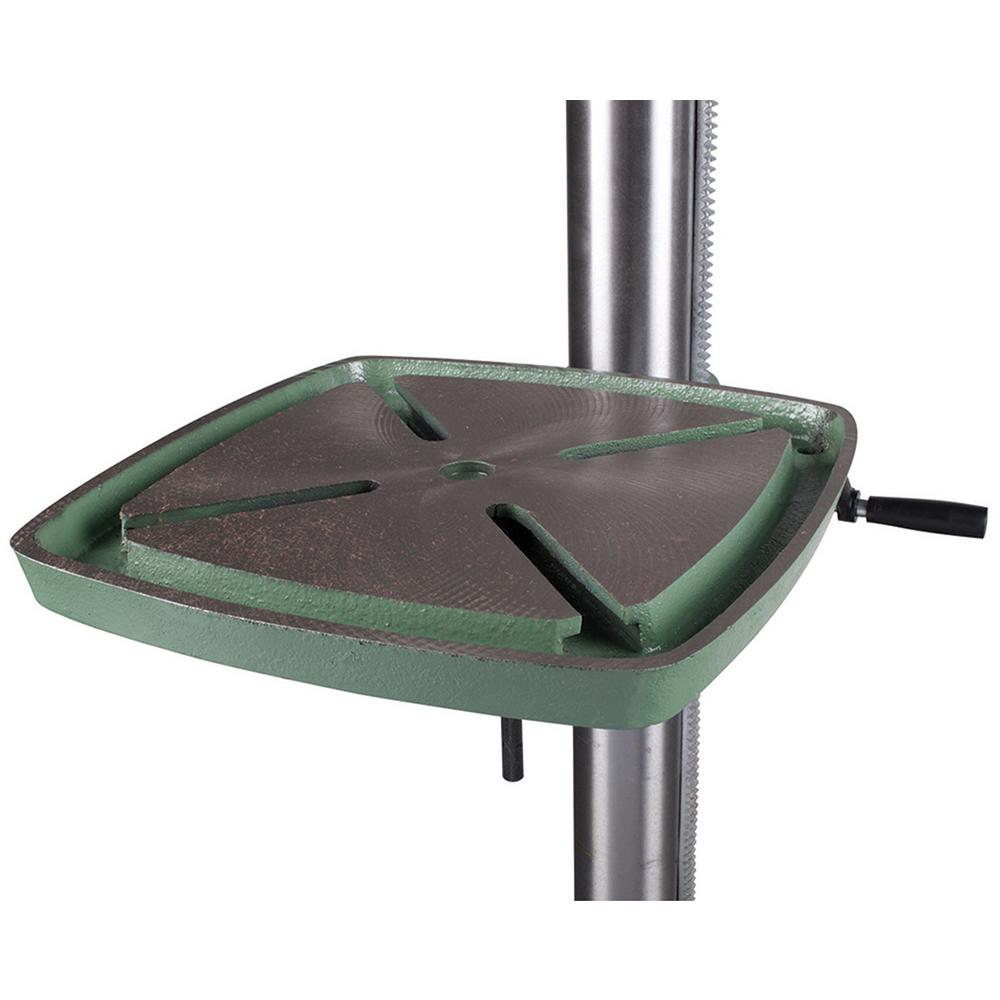

- Table size: 13-3/16 in. x 13-3/16 in., column diameter: 3-1/8 in.
- Overall height: 64-3/8 in., base size: 20-1/4 in.
- 3/4 HP industrial quality 120-Volt motor, 6 Amp
- 2-year limited warranty
Additional information
| Weight | 165 lbs |
|---|---|
| Dimensions | 24 × 65 × 14 in |
| Model | 75-165 M1 |
| Voltage (volts) | 120 |
| Tools Product Type | Power Tool |
| Spindle Travel | 3-1/8 in |
| Portability | Stationary |
| Number of Speeds | 20 |
| Minimum speed (rpm) | 280 |
| Maximum Speed (rpm) | 2100 |
| Magnetic | No |
| Cord Length (ft.) | 6 |
| Lockout Power Switch | Yes |
| Condition | New |
| Color Family | Green |
| Chuck Key Storage | Yes |
| Chuck Capacity | 5/8 In. |
| Built-In Light | No |
| Bench & Stationary Tool Type | Drill Press |
| Amperage (amps) | 6 A |
| 360- Degree Swivel | No |
| Work Light | No |
