Description

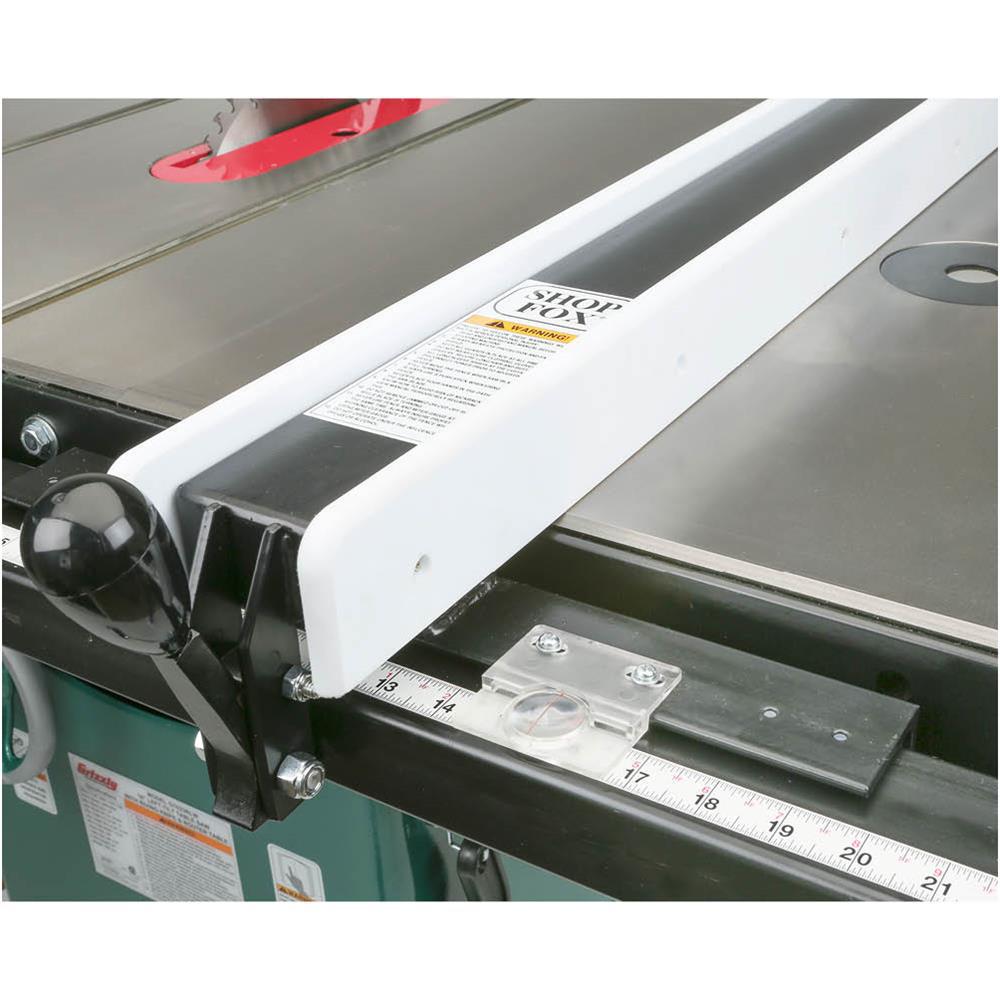

We took our new G1023RL table saw with riving knife and made it even better by including a built-in router table that doubles as a table extension wing. The router table includes support legs and universal T-track router clamping system and the Shop Fox Classic Fence included for the table saw doubles as a router table fence. You’ll find that using this system is actually much nicer and more convenient than using a typical router table or hand held router for those cuts where the fence is not required to be offset, especially if the table saw is set up with large outfeed tables. Another great advantage is being able to make laser straight dadoes without having to change table saw blades. CSA certified meeting CSA C22.2 #71.2-08 and UL 987 standards. Features: Motor: 3 HP, 240-Volt, single-phase, 14 Amp. Solid cast-iron table is first heat treated to remove warpage, then milled perfectly flat and ground to a mirror like finish. Fully assembled table size: 48 in. W x 27 in. D. Table has T-slots so your miter gauge will not fall off the table when retracted. 5/8 in. Dia arbor is long enough to accept dado blades up 7/8 in. Extra large handwheels are the heaviest in the industry and really ease arbor movement. Includes 10 in. x 40T blade.
- 1-piece steel cabinet type stand

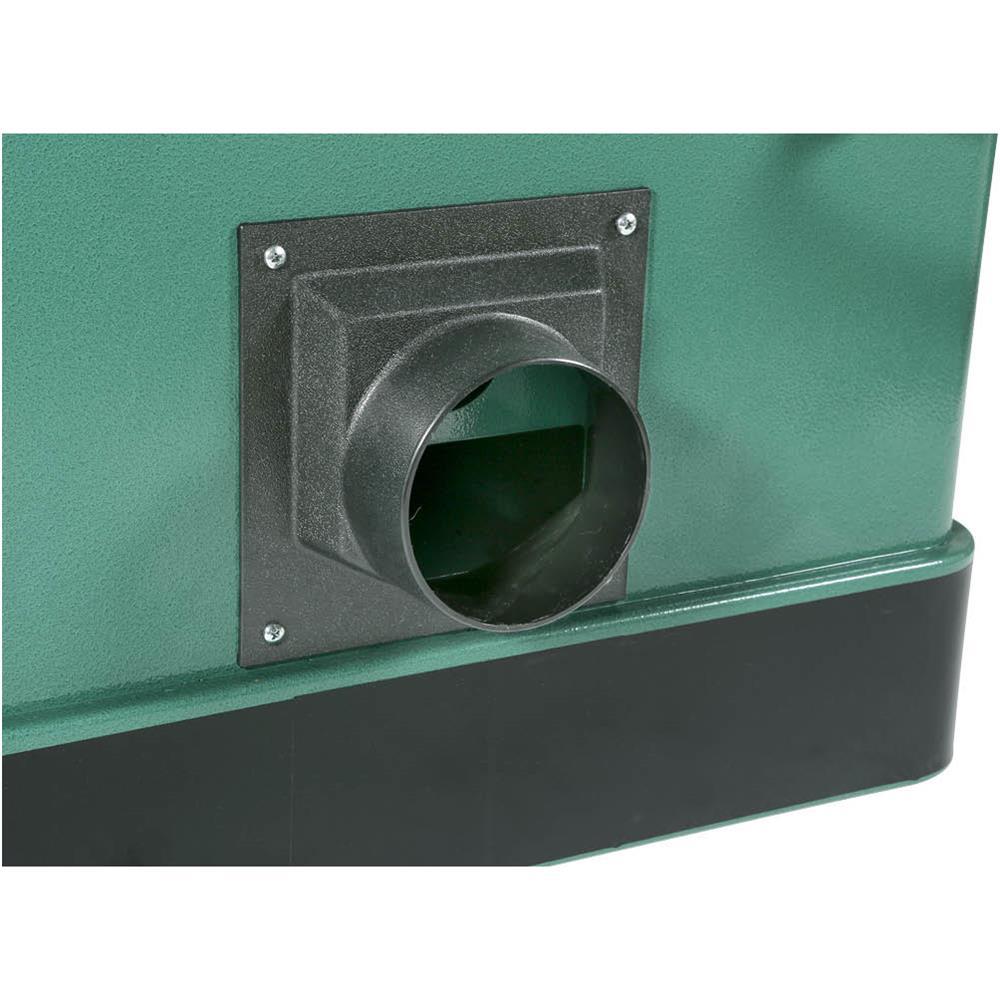

- 4 in. dust port
- Extra-large cast-iron handwheels and lock
- Heavy-duty miter gauge
- Smooth and quiet poly-V serpentine belt system
- Precision-ground cast-iron table with beveled edge
- Hinged motor cover
- All machined cast-iron internal structure
- Quick-release blade guard and spreader
- Powder coated paint
- Magnetic safety switch protects motor and operator
- Angled dust chute in bottom of stand
- All sealed ball bearing construction
- Table has T-slots so your miter gauge will not fall off the table when retracted

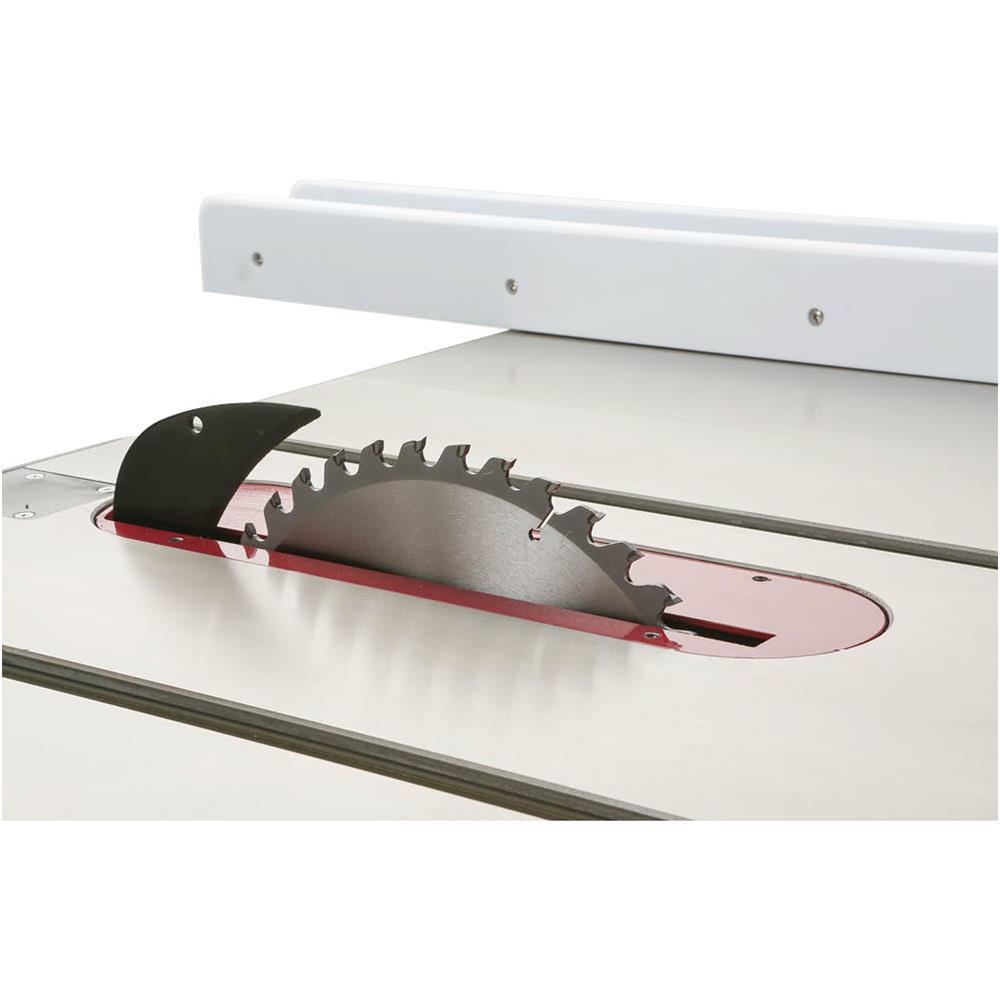

- Riving knife included
- Inboard and outboard arbor bearing
- 2 table inserts for blade and dado
- Cast-iron router table extension
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 509 lbs |
|---|---|
| Dimensions | 29 × 30 × 39 in |
| Model | G1023RLW |
| Tools Product Type | Power Tool |
| Table Width (in.) | 48 |
| Table Tilt Right Max (degrees) | 0 |
| Table Tilt Left Max (degrees) | 45 |
| Table Length (in.) | 48 |
| Rip Capacity - Right | 32 |
| Rip Capacity - Left | 8 |
| Power Tool Features | Blade Guard System, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 3 |
| Maximum Speed (rpm) | 4200 |
| Maximum Cut Depth @ 90 Deg. | 3 |
| Maximum Cut Depth @ 45 Deg. | 2.13 |
| Horsepower (hp) | 3 |
| Included Accessories | Blade Guard System, Blades |
| Dust Collection Method | 4 in. Dust Port |
| Depth Control | Adjustable |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 10 |
| Construction Material | Cast Iron |
| Condition | New |
| Color Family | Multi-Colored |
| Blade Speed | 4200 |
| Blade Location | Centered |
| Blade Diameter (in.) | 10 |
| Bench & Stationary Tool Type | Table Saw |
| Amperage (amps) | 14 A |
| Work Table Surface | 48 in. x 48 in. |
