Description

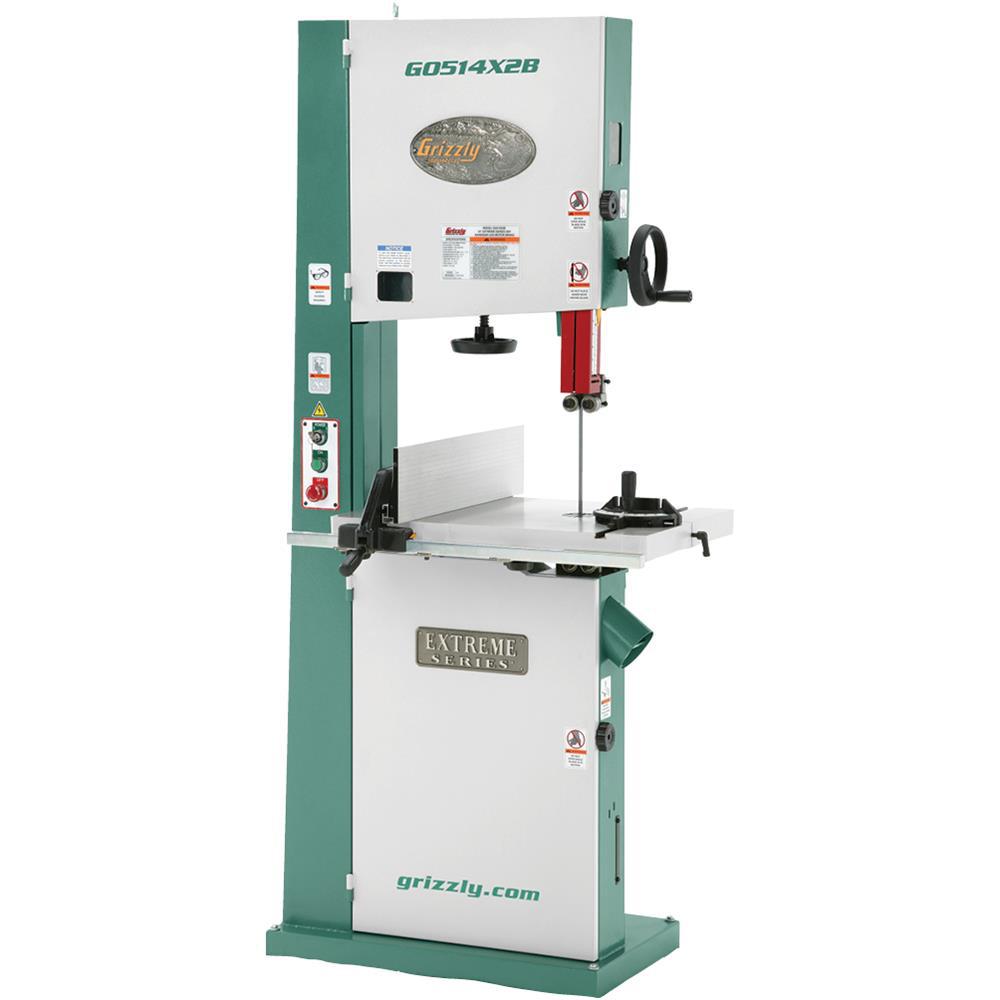

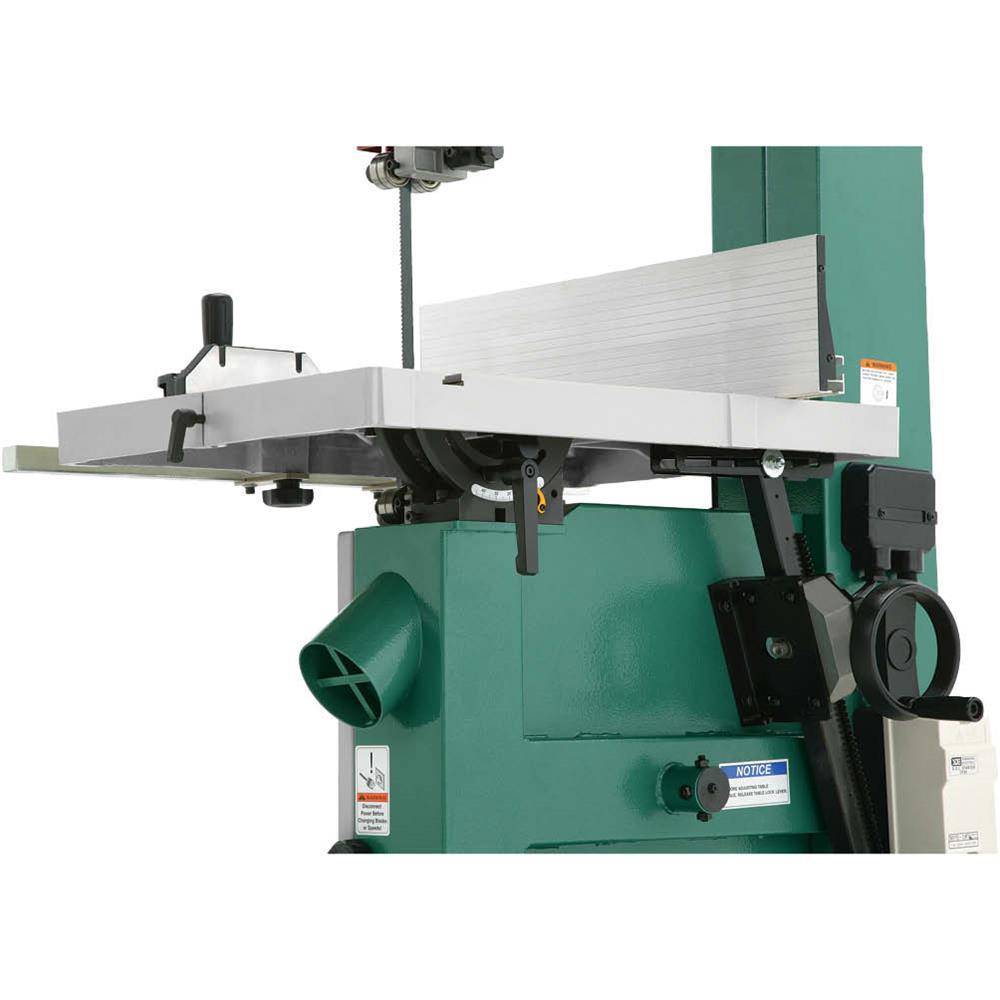

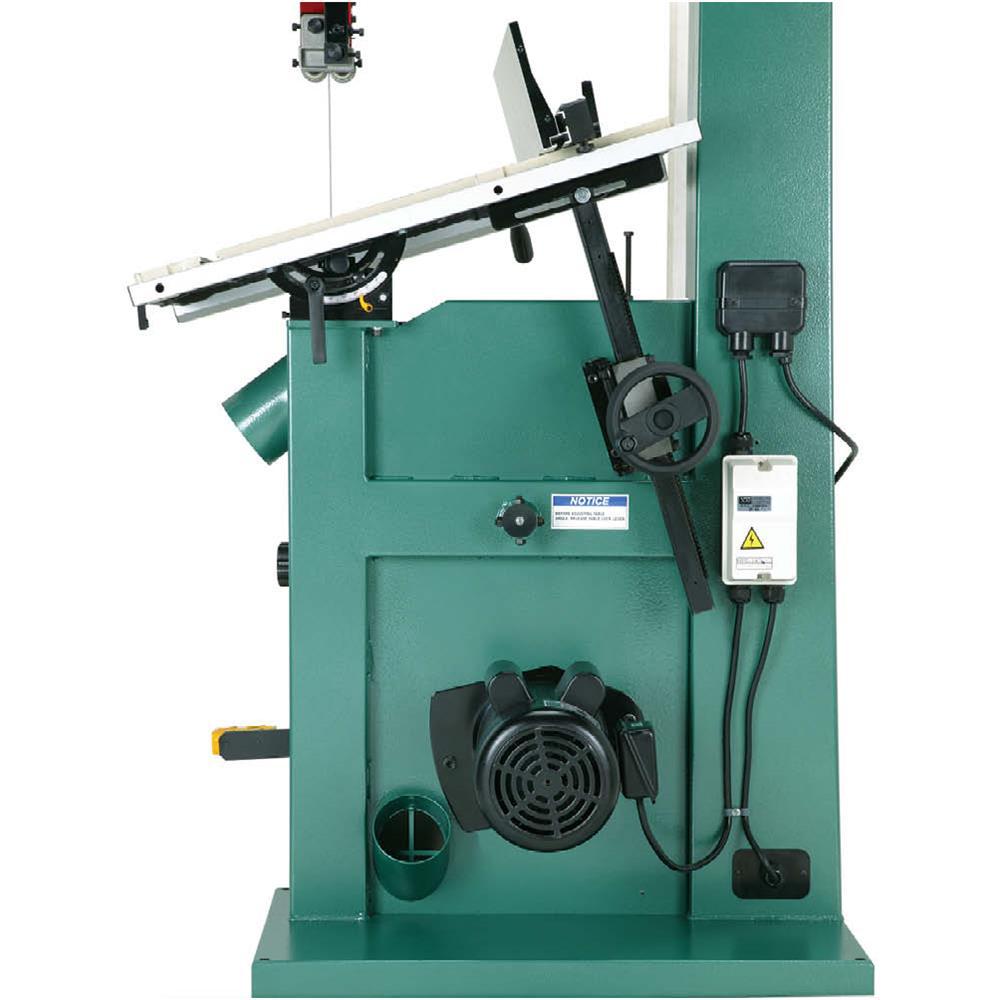

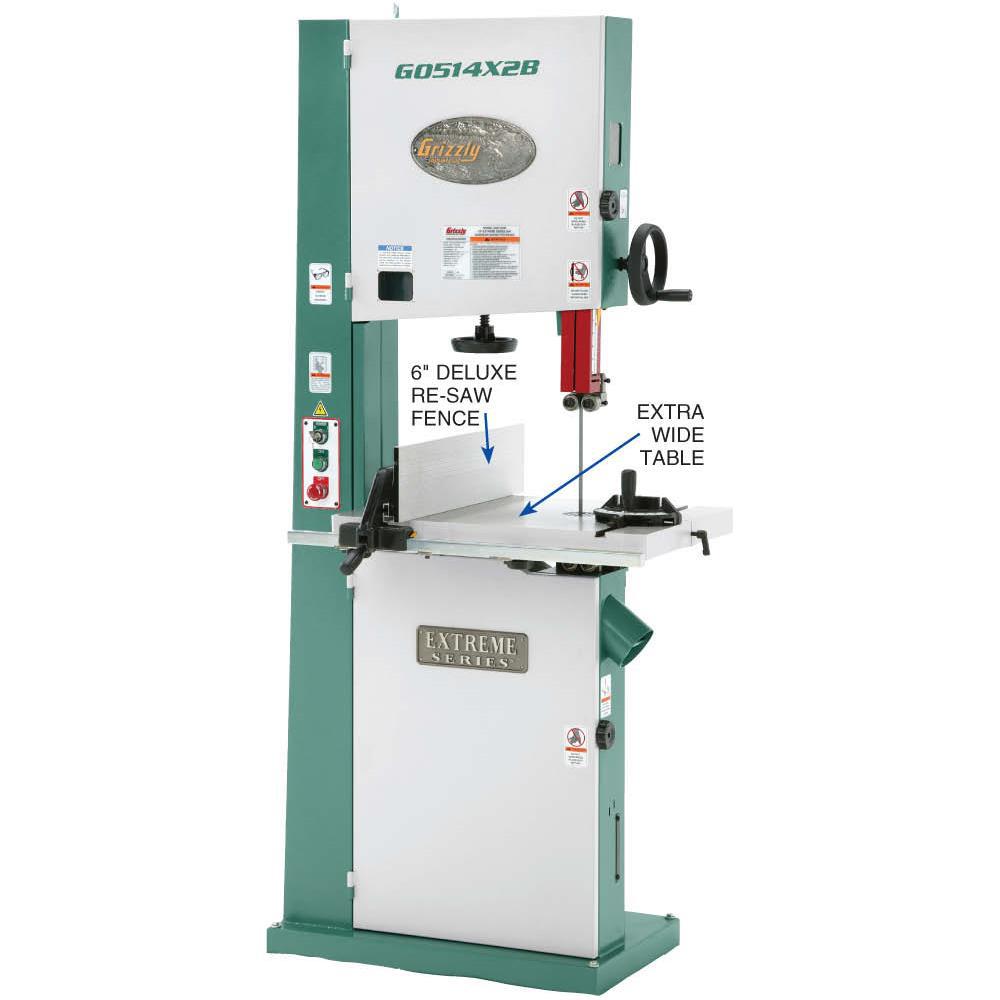

We took our rock-solid G0514X 19 in. Heavy-duty Extreme Series Bandsaw, added a few more features and came up with a new line of ultimate 19 in. Bandsaws. This saw features an lightning-fast electronic motor brake, a cast iron table trunnion, rack and pinion table tilt control with extra table support, and an innovative resaw fence. The electronic motor brake stops the blade in approximately 3 seconds—all with the simple push of a switch. Now that’s fast and easy.
- Motor: 3 HP, 220-Volt, single-phase, 12 Amp, TEFC, 60 Hz
- Table size: 26-3/4 in. x 19 in. x 1-1/2 in. thick
- Floor to table height: 37-1/2 in.
- Cutting capacity/throat: 18-1/4 in.
- Maximum cutting height: 12 in.
- Blade size: 143 in. L
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 427 lbs |
|---|---|
| Dimensions | 34 × 21 × 83 in |
| Model | G0514X2B |
| Voltage (volts) | 220 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 19 |
| Table Tilt Right Max (degrees) | 45 |
| Table Tilt Left Max (degrees) | 5 |
| Table Length (in.) | 26.75 |
| Power Tool Features | Lockout Power Switch, No Tool Blade Change, Quick-Release Tension, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 3 |
| Minimum Blade Width | 1/8 |
| Minimum Blade Length | 141-1/2 |
| Maximum Speed (rpm) | 1725 |
| Maximum Blade Width | 1-1/4 |
| Maximum Blade Length | 143 |
| Included Accessories | Stand |
| Dust Port Size (In.) | 4 |
| Dust Collection Method | 4 in. Dust Port |
| Cutting Capacity Width / Depth Of Throat(In.) | 18-1/4 |
| Cutting Capacity Height / Height under Guide (In.) | 12 |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 6 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Multi-Colored |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Vertical |
| Amperage (amps) | 12 |
| Work Table Surface | 26.75 in. x 19 in. |
