Description

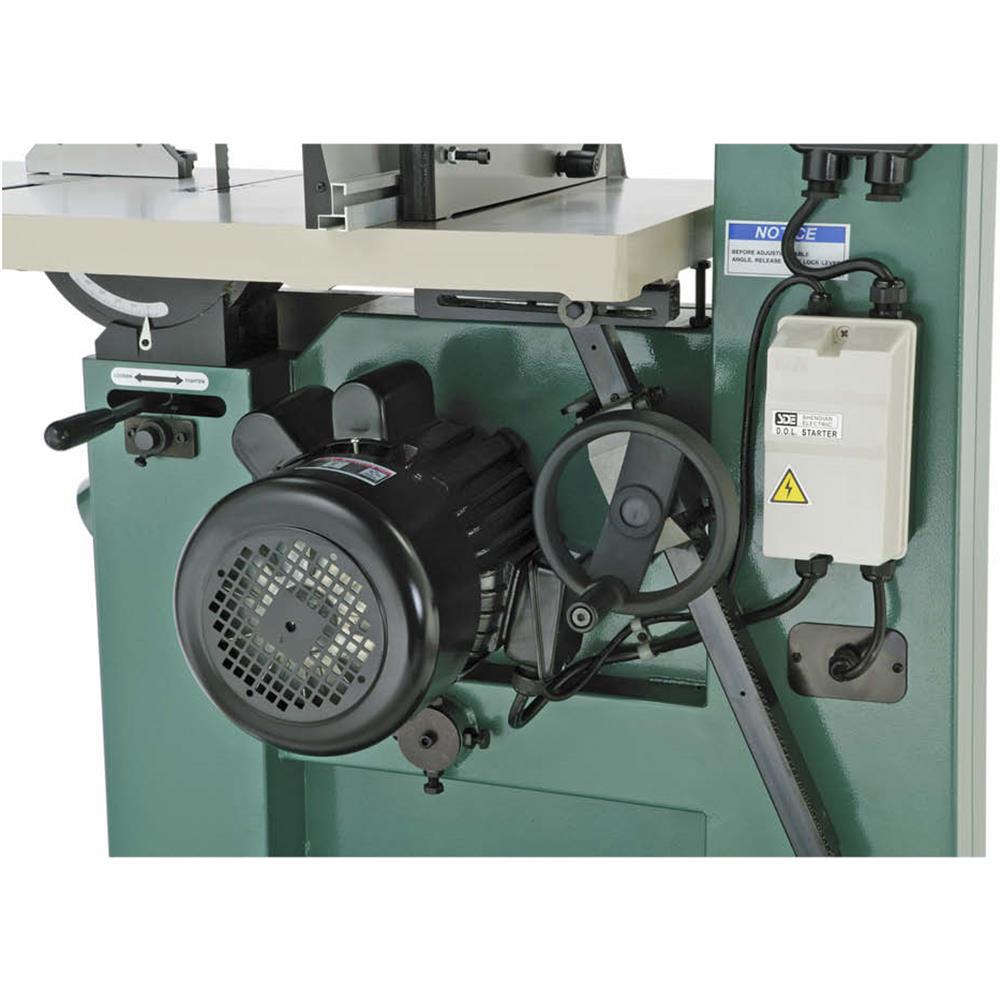

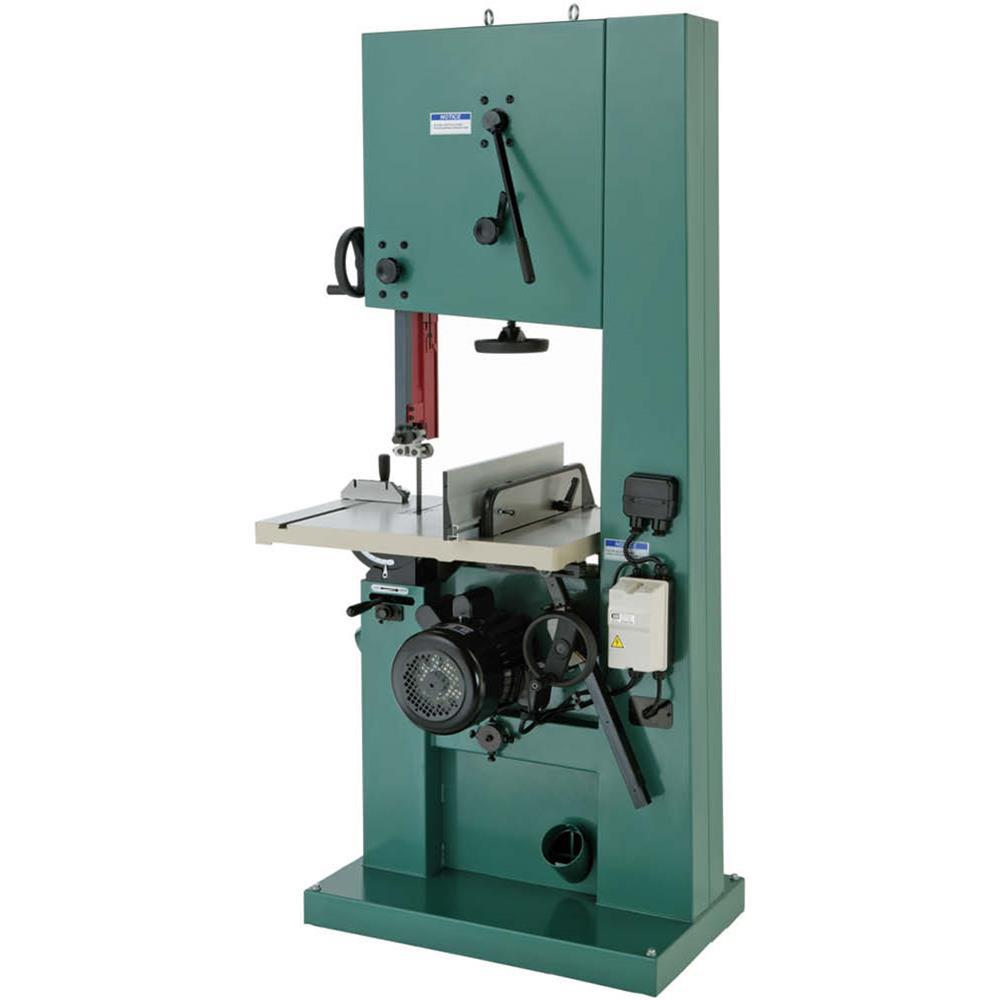

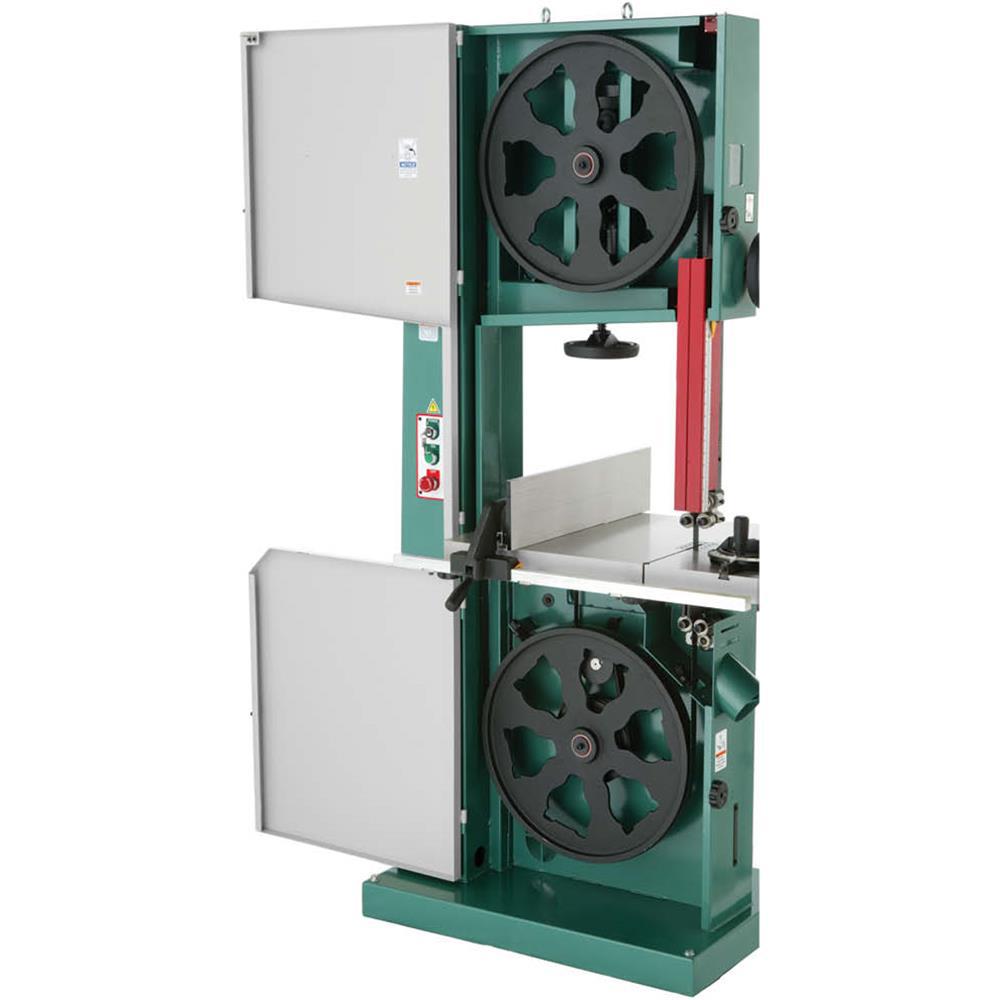

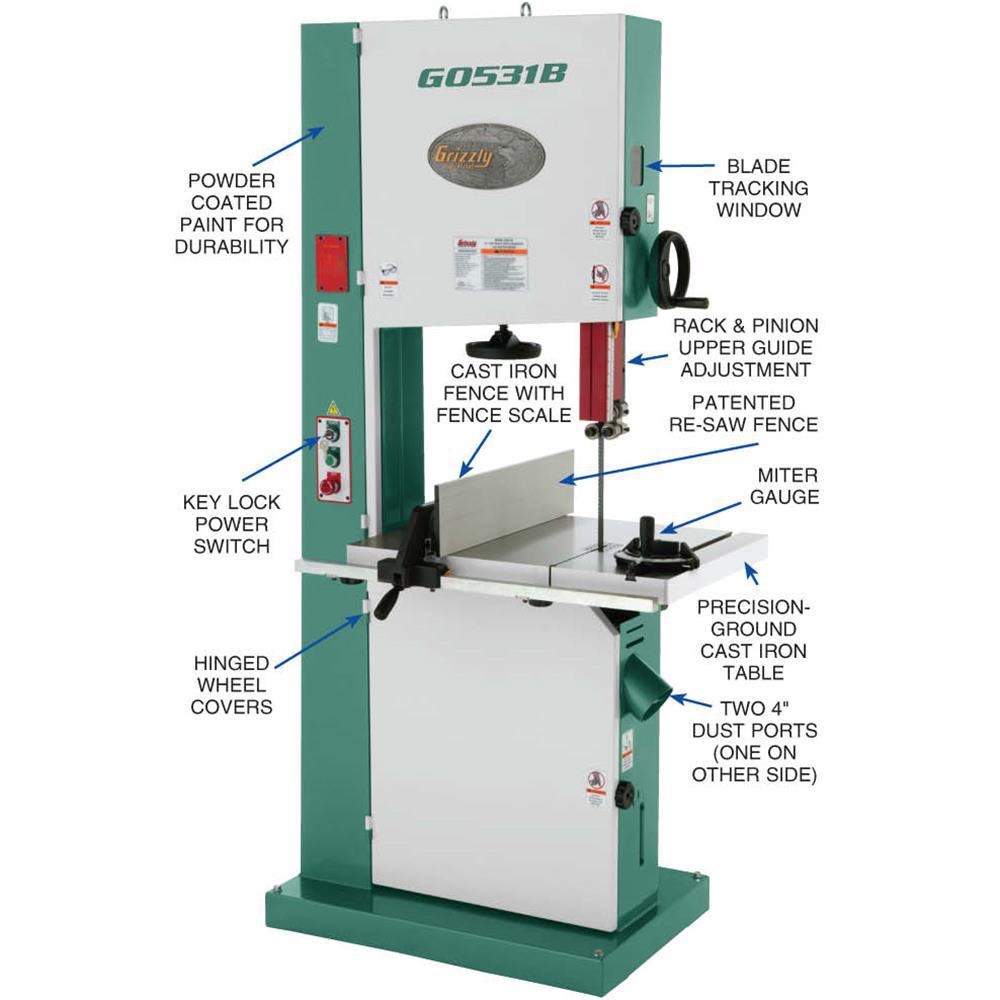

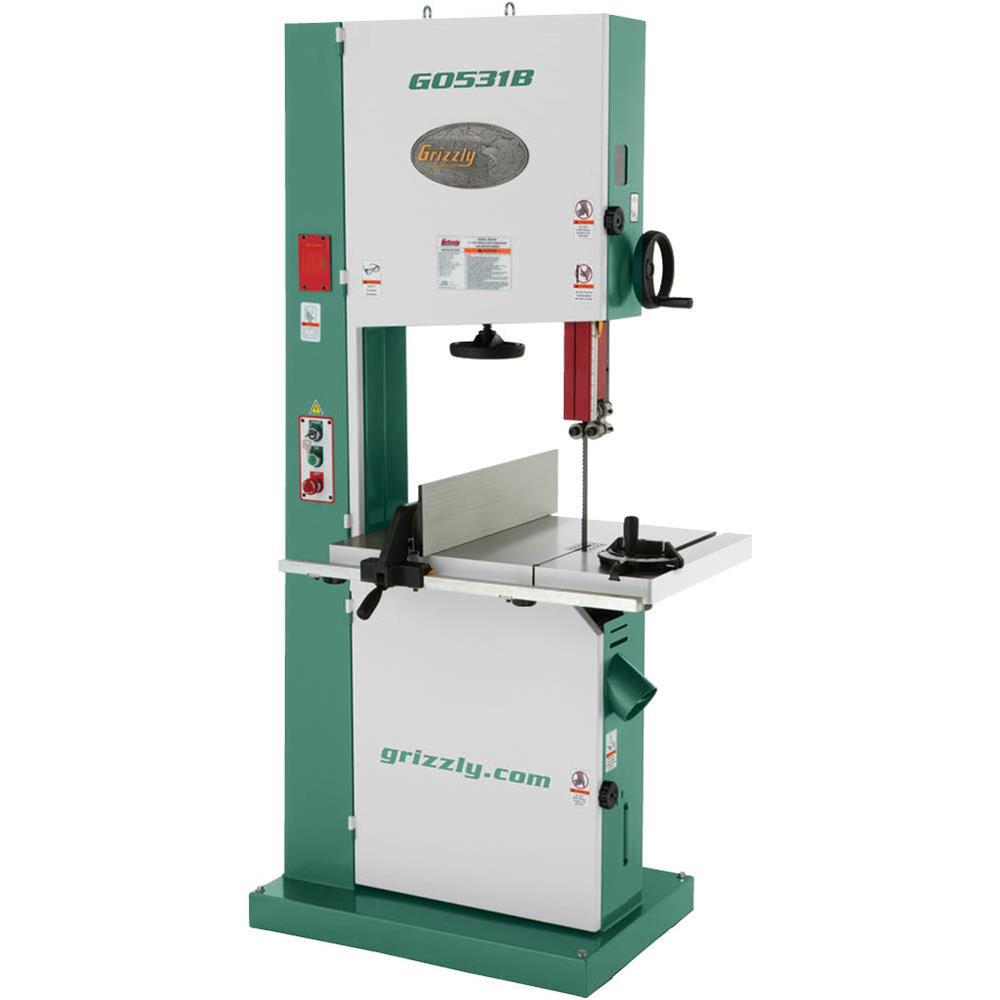

Built for production and sized for cutting work up to 20 in. W to the left of the blade and 14 in. tall, this Heavy-Duty Bandsaw won’t back down to anything less. The 5 HP, TEFC motor powers the fully balanced cast iron wheels for smooth operation all day long. Other features like blade tension indicator, micro adjusting tilt table, motor brake and rack and pinion upper guide adjustment make operating functions quick and convenient.
- Motor: 5 HP, 230-Volt, single-phase
- Throat capacity: 20 in.
- Height capacity: 14-1/4 in.
- Table size: 29-1/2 in. x 20-3/4 in. x 1-7/8 in. thick

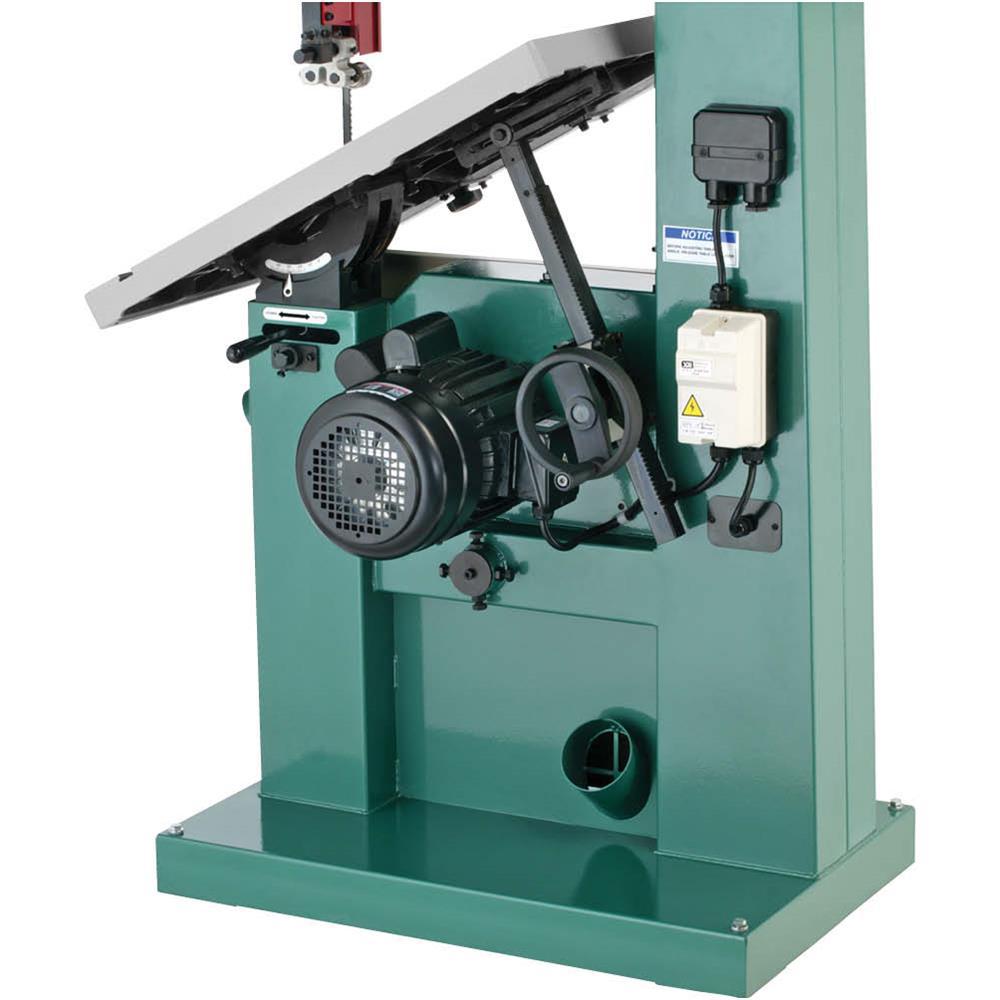

- Table tilt: 5° left, 45° right
- Blade size range: 1/4 in. – 1-3/8 in.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 594 lbs |
|---|---|
| Dimensions | 30 × 38 × 84 in |
| Model | G0531B |
| Voltage (volts) | 230 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 20.75 |
| Table Tilt Right Max (degrees) | 45 |
| Table Tilt Left Max (degrees) | 5 |
| Table Length (in.) | 29.5 |
| Power Tool Features | Lockout Power Switch, No Tool Blade Change, Quick-Release Tension, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 5 |
| Minimum Blade Width | 1/4 |
| Minimum Blade Length | 164 |
| Maximum Speed (rpm) | 1720 |
| Maximum Blade Width | 1-3/8 |
| Maximum Blade Length | 165-1/2 |
| Included Accessories | Stand |
| Dust Port Size (In.) | 4 |
| Dust Collection Method | 4 in. Dust Port |
| Cutting Capacity Width / Depth Of Throat(In.) | 20 |
| Cutting Capacity Height / Height under Guide (In.) | 14-1/4 |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 0 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Multi-Colored |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Vertical |
| Amperage (amps) | 22 |
| Work Table Surface | 29.5 in. x 20.75 in. |
