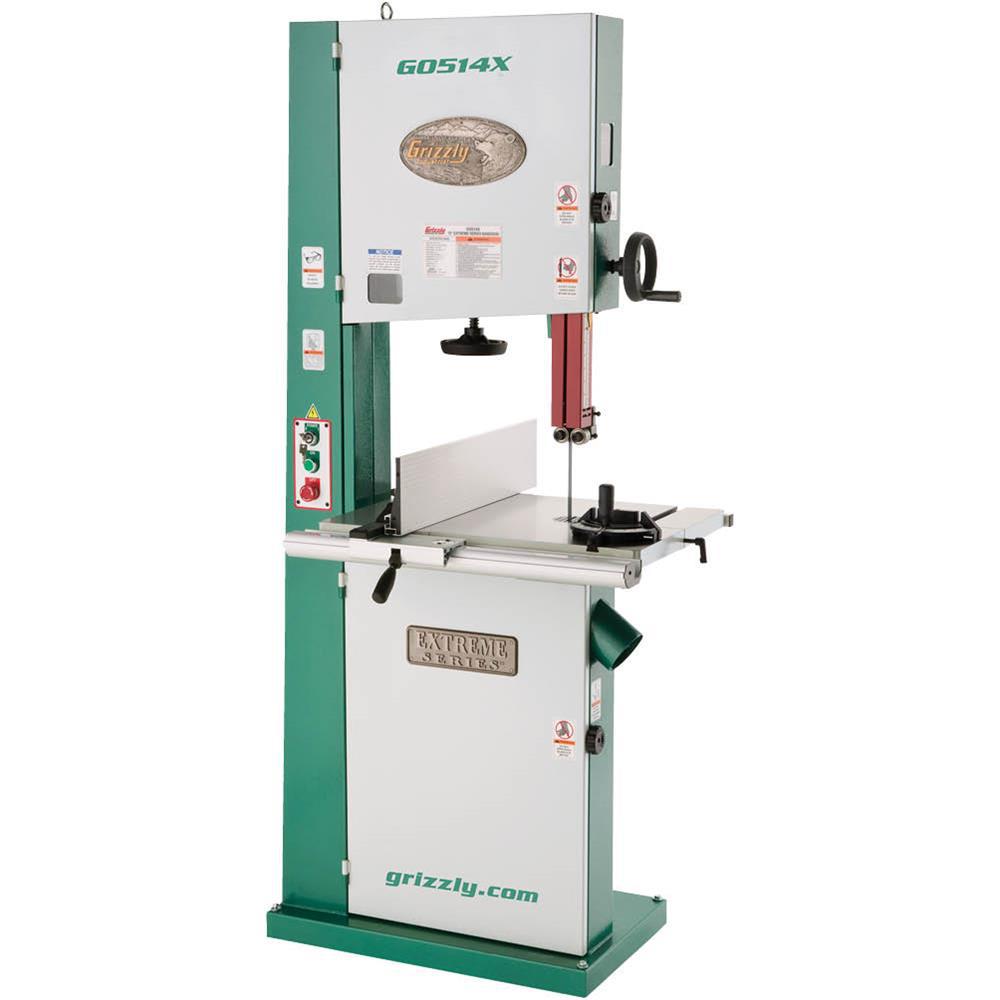

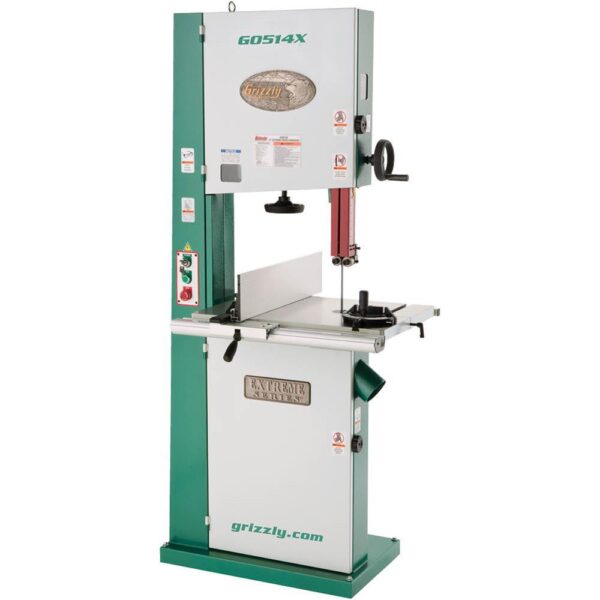

Grizzly Industrial 19″ 3 HP Extreme Series Bandsaw
$862.00
Bring an accurate work support to your work area with the addition of this sophisticated and adorable Grizzly Industrial 5-Extreme Series Bandsaw. Fits into budget.
Order within 20 hours 52 minutes
to get it on or before Mon, Apr 29th (See details)
In stock
Description

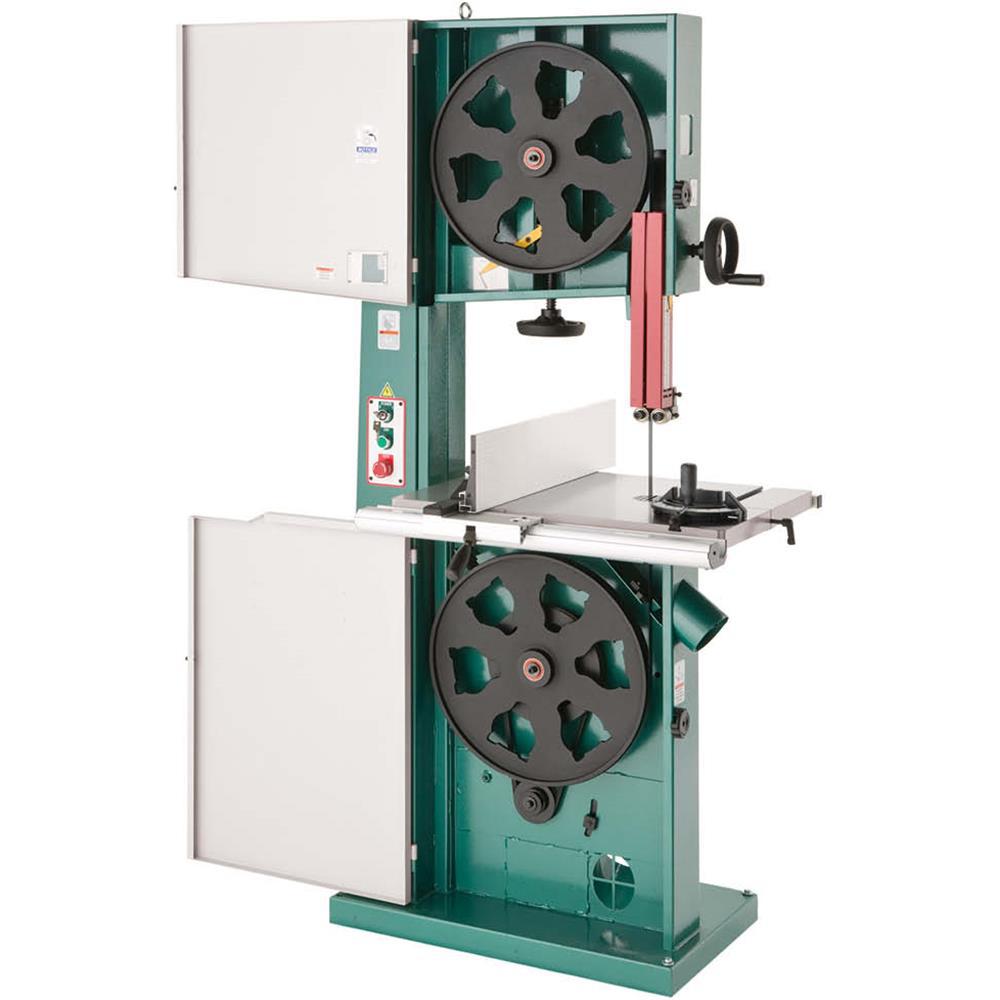

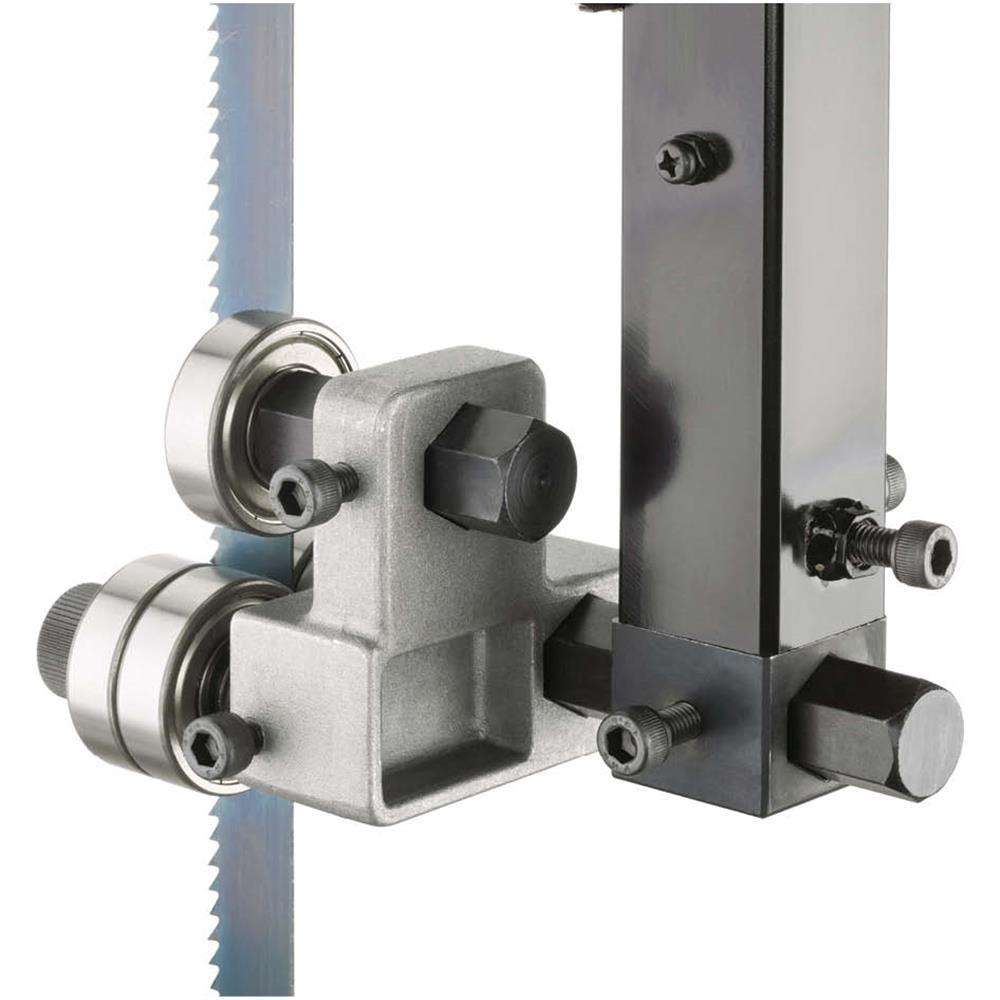

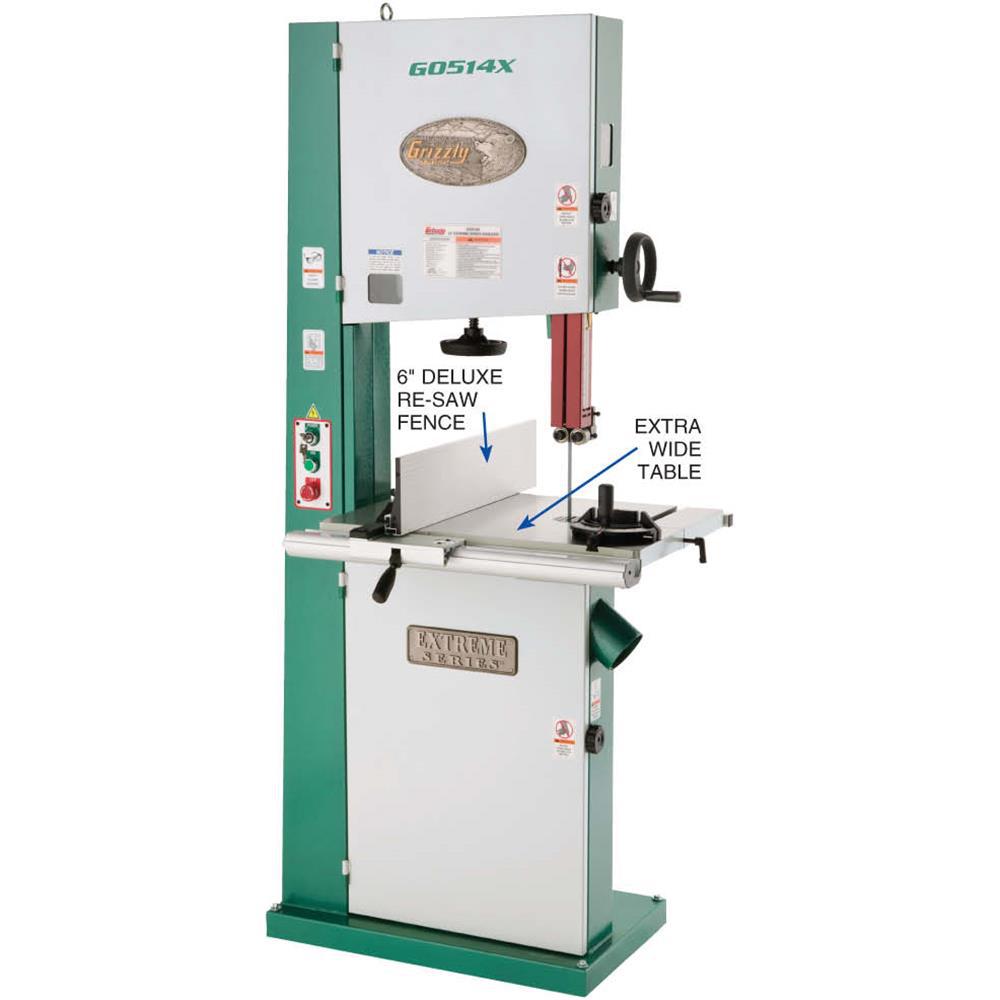

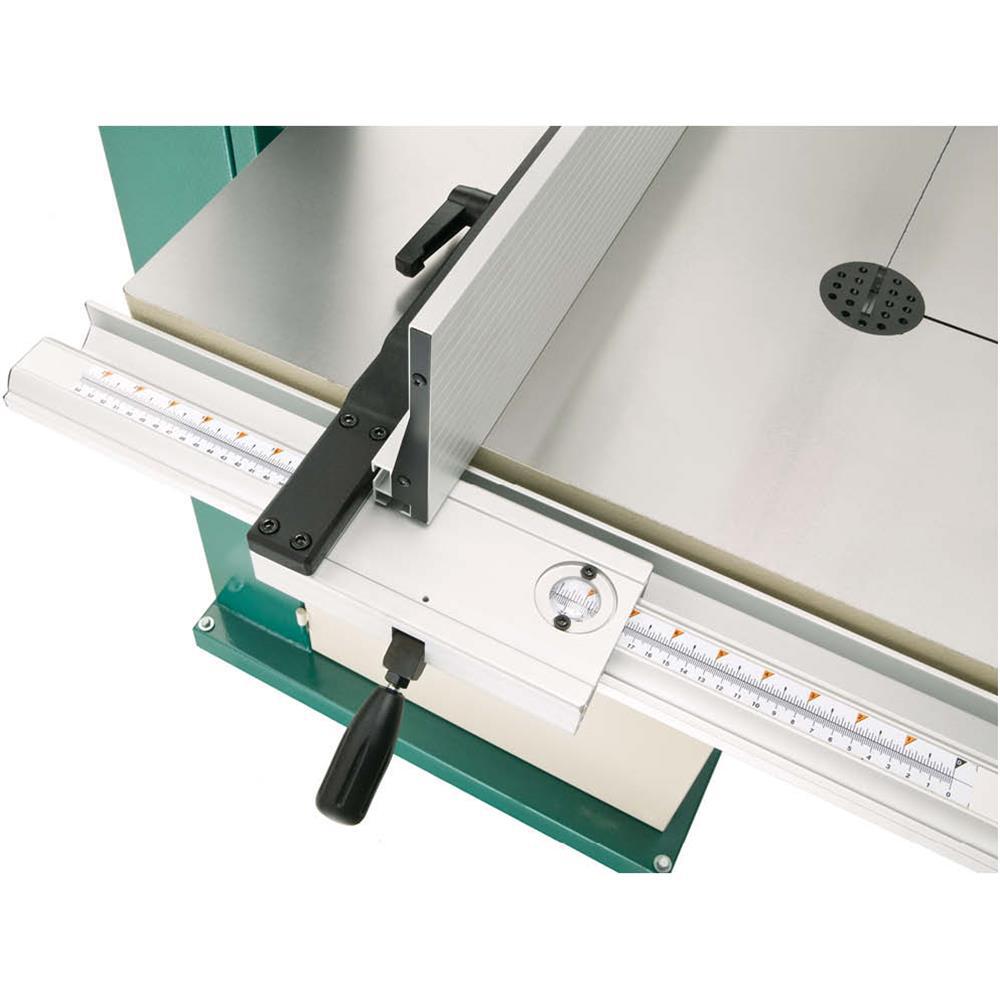

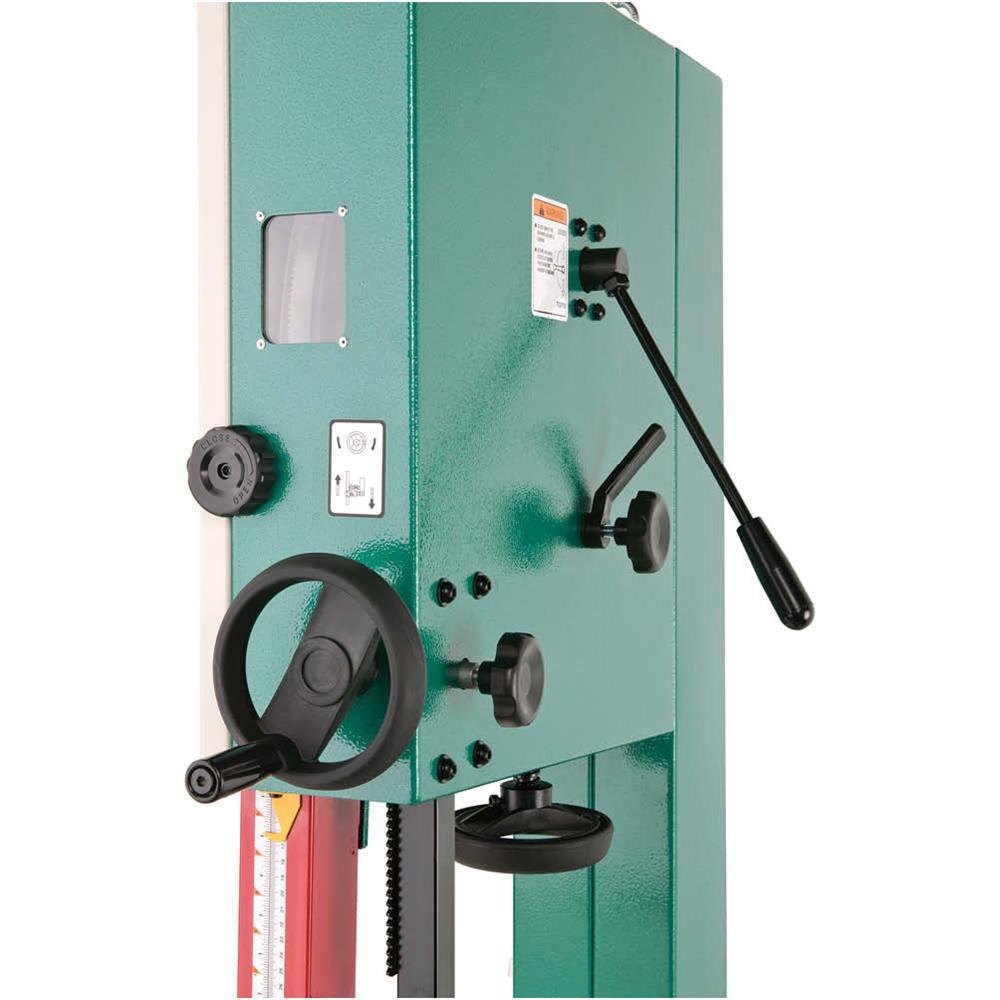

We’ve taken our ever popular and highly regarded G0514 and made another Extreme Machine. Cast-iron wheels, double-row ball-bearing blade guides, and a 3 HP motor help make this a wood devouring saw. Also, the extra-large tilting table and Grizzly patent-pending Re-saw Fence make controlling the cut easy. You’ll really appreciate the extra features like two 4 in. dust ports, a tracking window, quick-release blade tension device, and blade tension scale. Both blade guide height and blade tension are handwheel controlled, and the wheel covers are hinged for convenience.

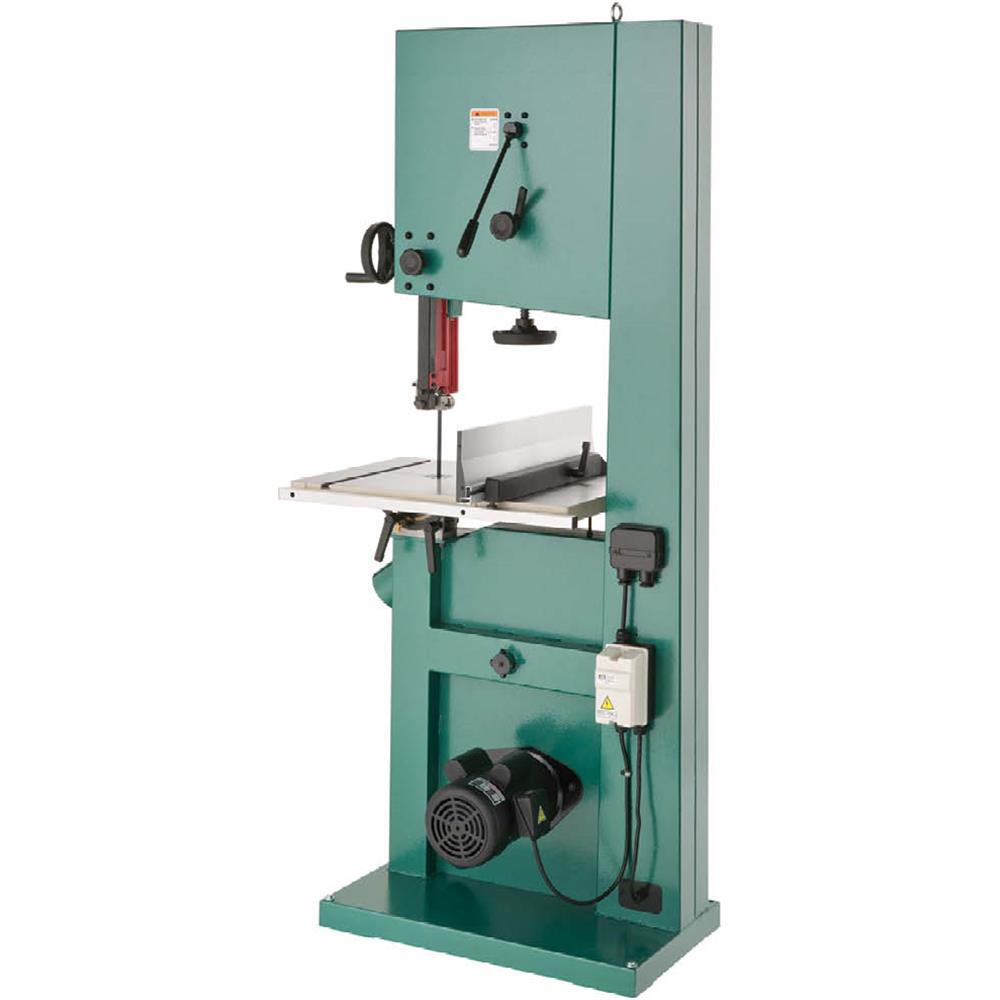

- Motor: 3 HP, 220-Volt, single-phase, TEFC capacitor start induction, 60 Hz, 12 Amp, 1725 RPM
- Table size: 26-3/4 in. x 19 in. x 1-1/2 in. thick
- Floor to table height: 37-1/2 in.
- Cutting capacity/throat: 18-1/4 in.
- Maximum cutting height: 12 in.
- Blade size: 143 in. L
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 383 lbs |
|---|---|
| Dimensions | 21 × 33 × 85 in |
| Model | G0514X |
| Voltage (volts) | 220 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 19 |
| Table Tilt Right Max (degrees) | 45 |
| Table Tilt Left Max (degrees) | 5 |
| Table Length (in.) | 26.75 |
| Power Tool Features | Lockout Power Switch, No Tool Blade Change, Quick-Release Tension, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 3 |
| Minimum Blade Width | 1/8 |
| Minimum Blade Length | 141-1/2 |
| Maximum Speed (rpm) | 1725 |
| Maximum Blade Width | 1-1/4 |
| Maximum Blade Length | 143 |
| Included Accessories | Stand |
| Dust Port Size (In.) | 4 |
| Dust Collection Method | 4 in. Dust Port |
| Cutting Capacity Width / Depth Of Throat(In.) | 18-1/4 |
| Cutting Capacity Height / Height under Guide (In.) | 12 |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 6 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Multi-Colored |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Vertical |
| Amperage (amps) | 12 |
| Work Table Surface | 26.75 in. x 19 in. |
