Description

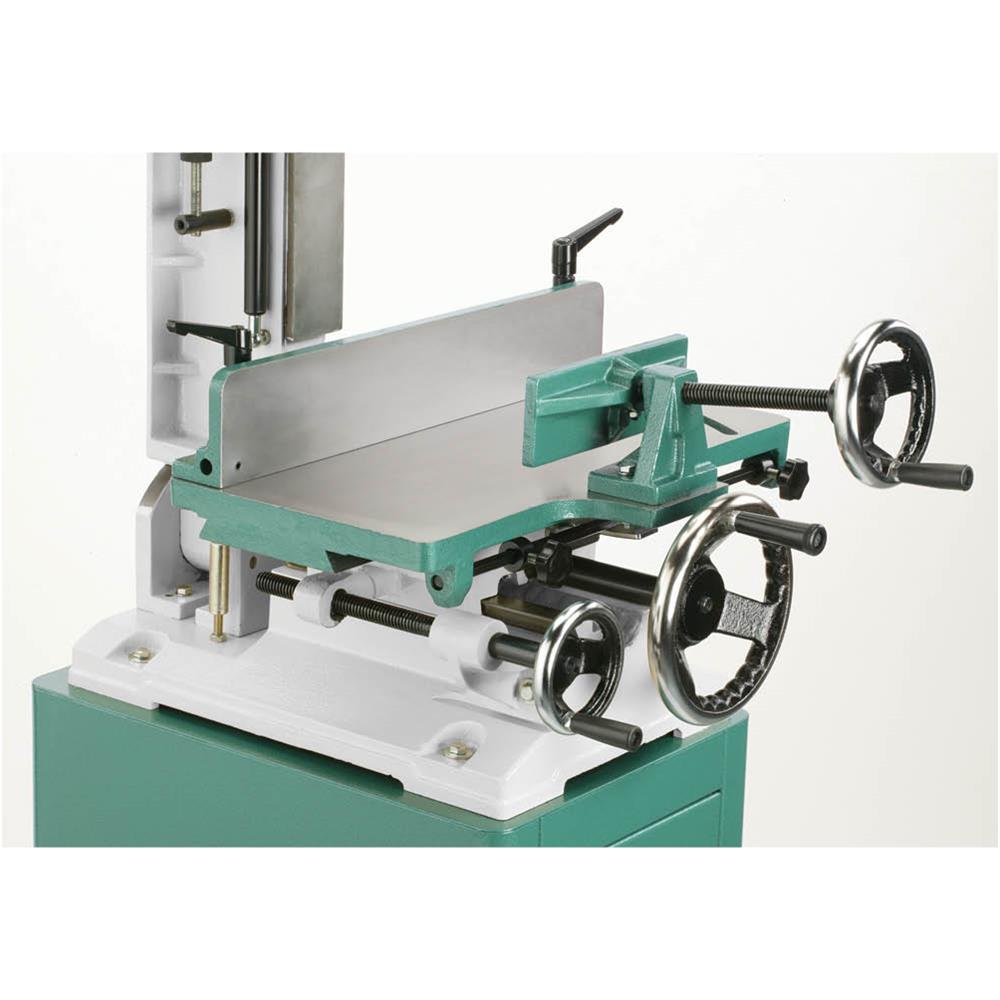

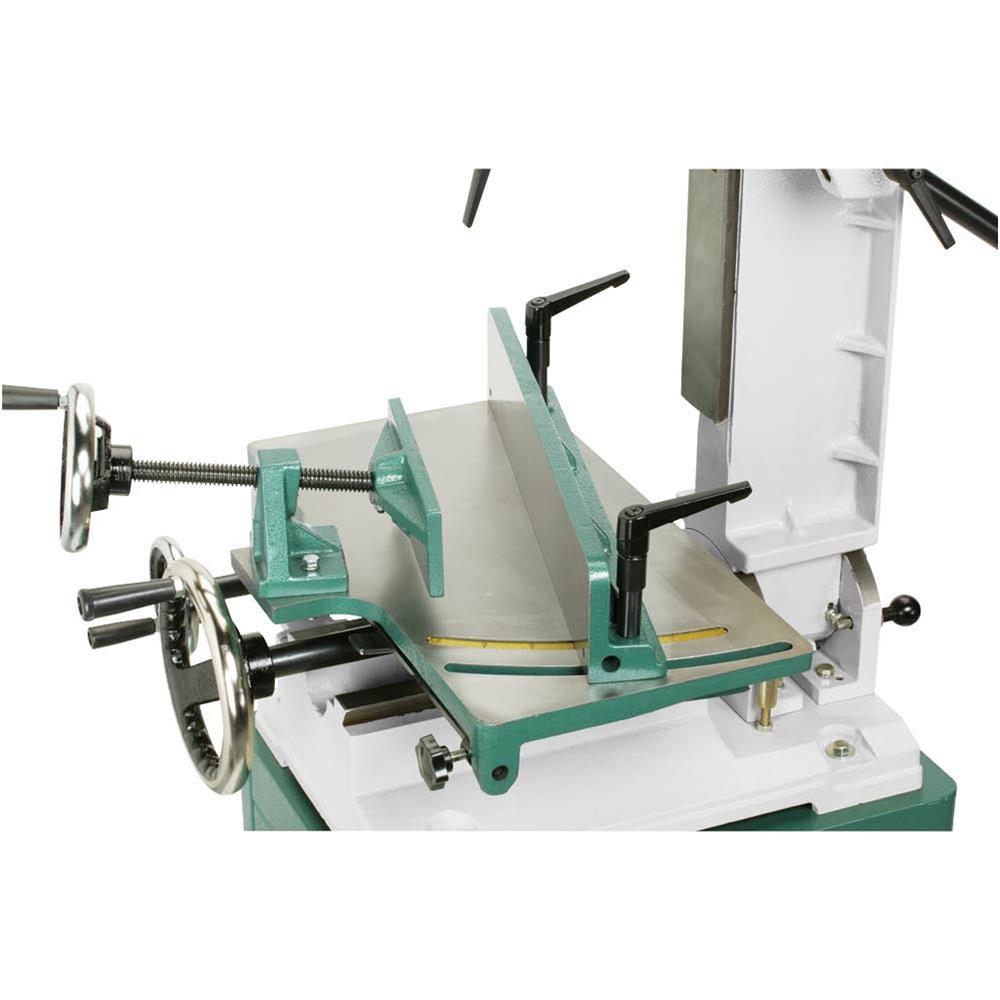

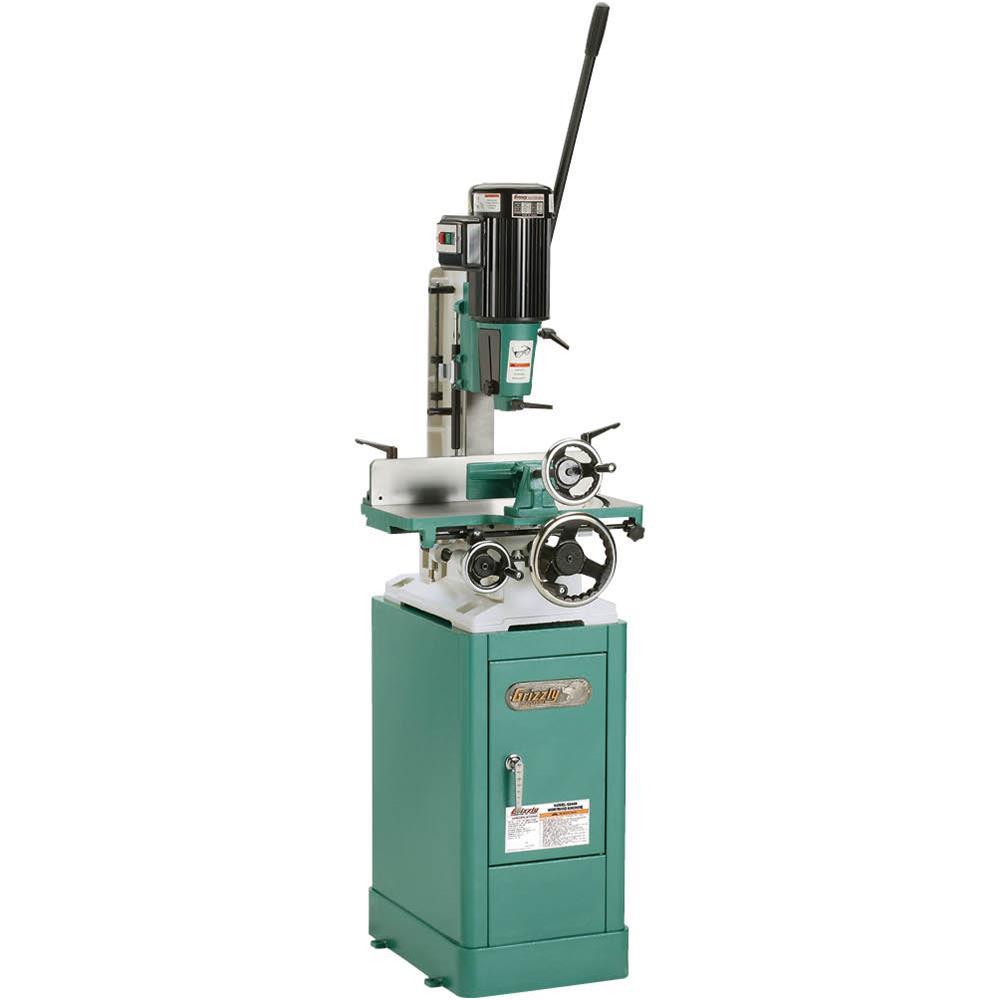

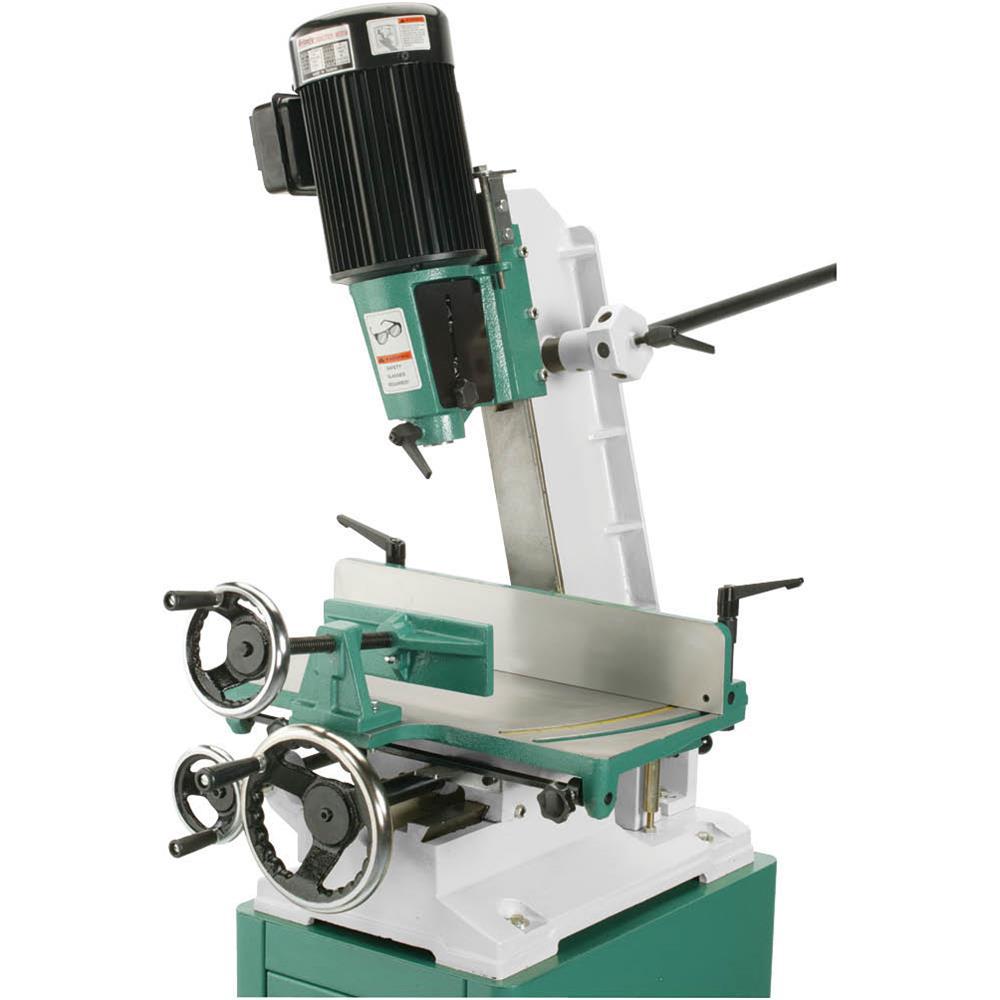

The flexibility to perform compound-angled mortises with perfect control is what sets this Heavy-Duty Mortiser apart from all others. Simple adjustments allow the head to tilt up to 30 left or right, and the fence also pivots up to 30, providing just about any combination of angles. Handwheel controls allow you to move the table left/right and forward/backward with precision and ease. Adjustable work stops help ensure consistent results with production runs. Round all this out with a 1-1/2 HP motor and solid cast iron construction, and you’ll see why this has become the mortiser of choice for busy shops around the country!
- 1-1/2 HP, 110V/220V, single phase, TEFC Motor, prewired 110V
- Rack-and-pinion headstock control
- Angled fence adjustment
- Steel cabinet stand with indexed storage shelf
- Work stop with extension rods for setting each workpiece the same
- Tilting column
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 332 lbs |
|---|---|
| Dimensions | 24 × 27 × 37 in |
| Model | G0448 |
| Portability | Stationary |
| Pivot Head | No |
| PT Horsepower (Hp) | 1-1/2 |
| Minimum speed (rpm) | 1725 |
| Maximum Speed (rpm) | 1725 |
| Cord Length (ft.) | 6 |
| Condition | New |
| Chuck Key Storage | No |
| Color Family | Green |
| Chuck Capacity | 1/2 In. |
| Built-In Light | No |
| Bench & Stationary Tool Type | Mortiser |
| Base Width (in.) | 17.5 |
| Base Length (in.) | 20.5 |
| Amperage (amps) | 14 A |
| 360- Degree Swivel | No |
| Voltage (volts) | 110 |
