Description

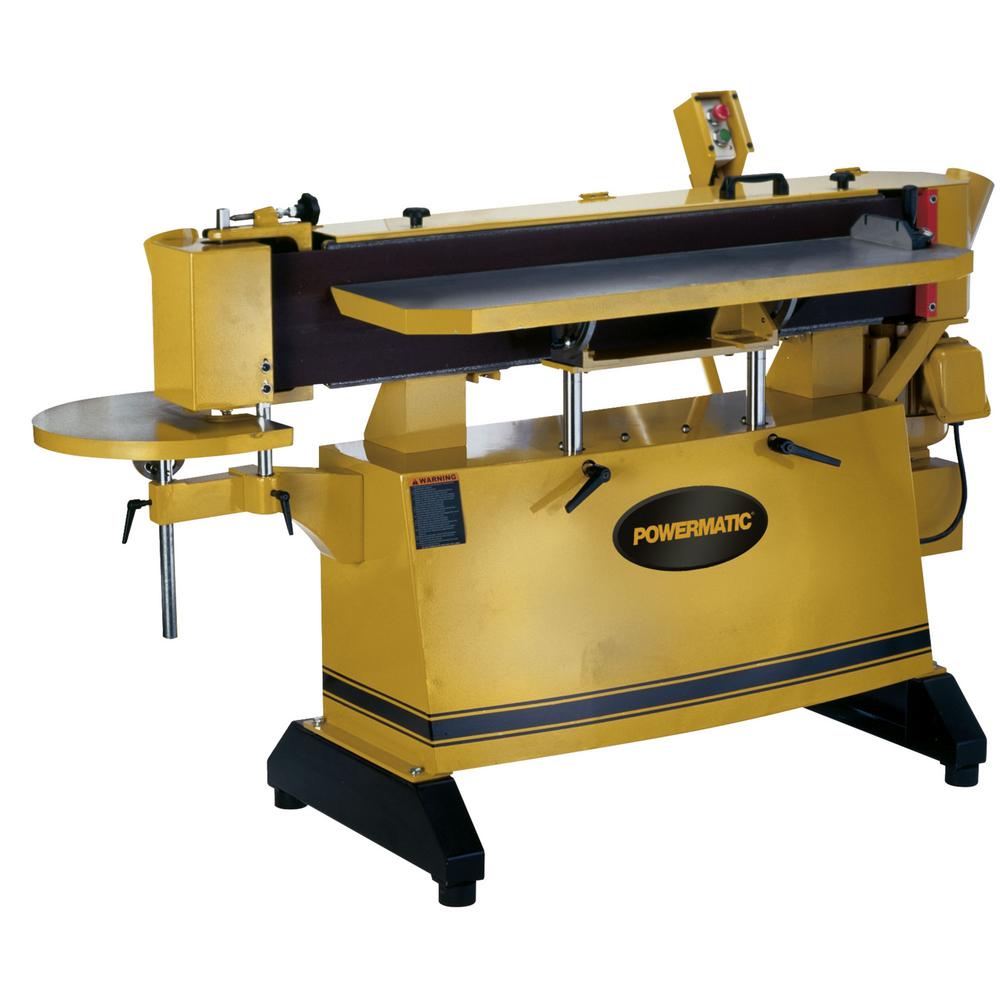

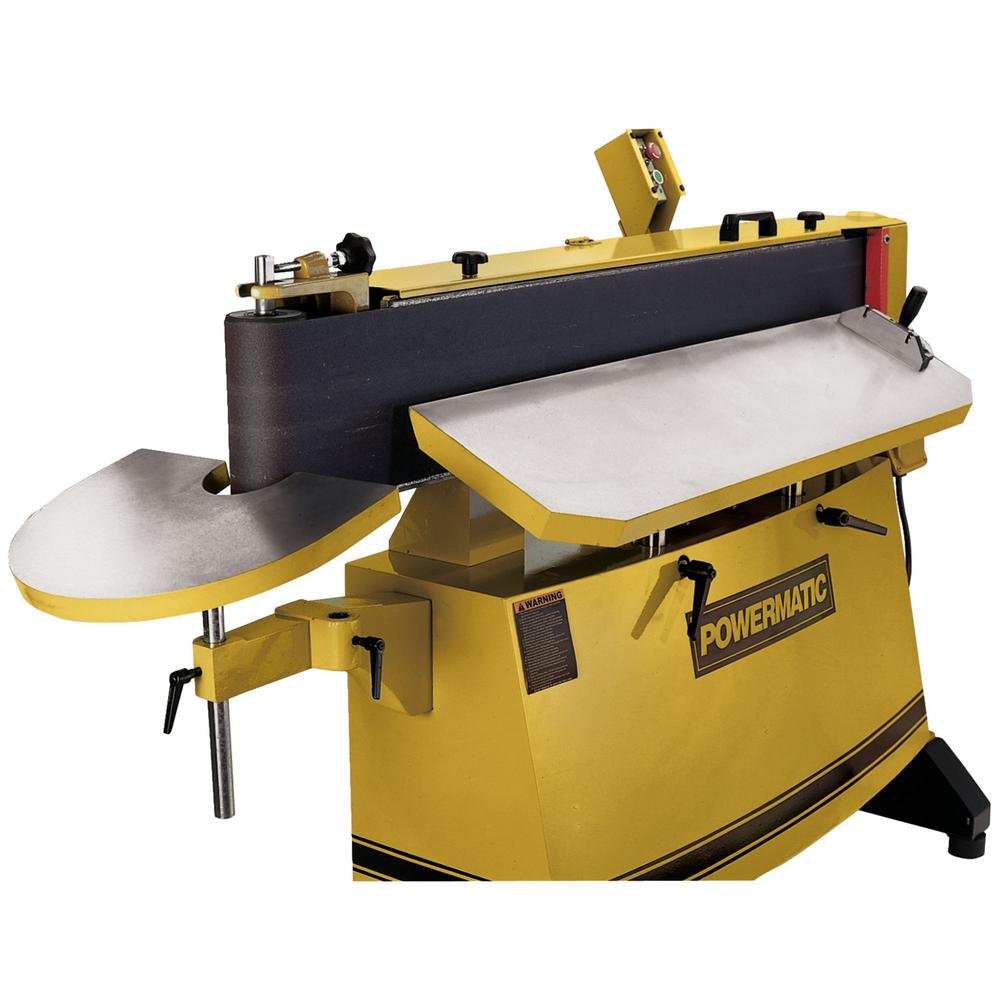

The large 11-3/4 in. x 48 in. table on the OES9138 oscillating edge sander travels a full 8 in. in vertical height to accommodate most woodworking pieces. It will also tilt negative 5 and out to positive 45. The cast iron platen is a generous 48 in. x 9-1/2 in. and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3 HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with 2 sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.
- 3 HP motor with 9 in. x 138-3/4 in. abrasive belt handles large work pieces
- Oscillates 24 cycles per minute for better finish and longer belt life
- 9-1/2 in. x 48 in. platen with graphite pad offers largest work surface in its class

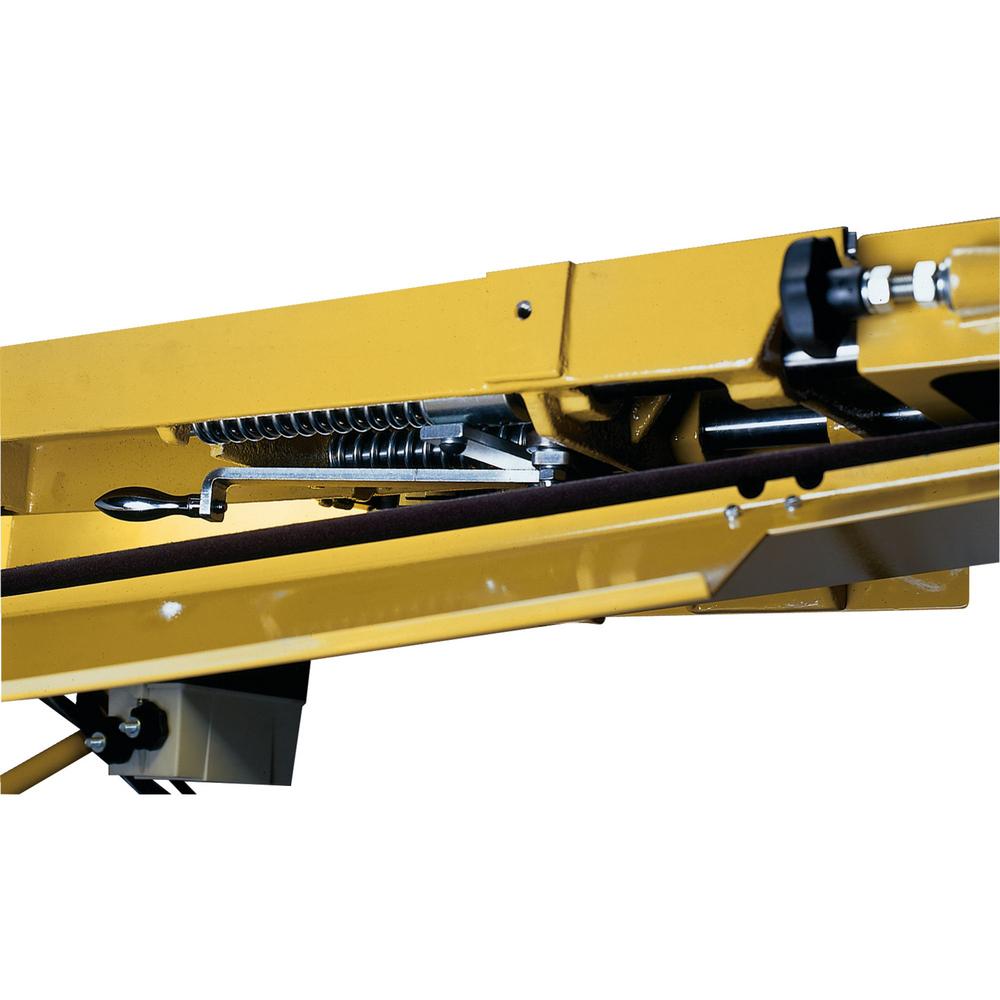

- Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
- Pedestal control switch for easy access

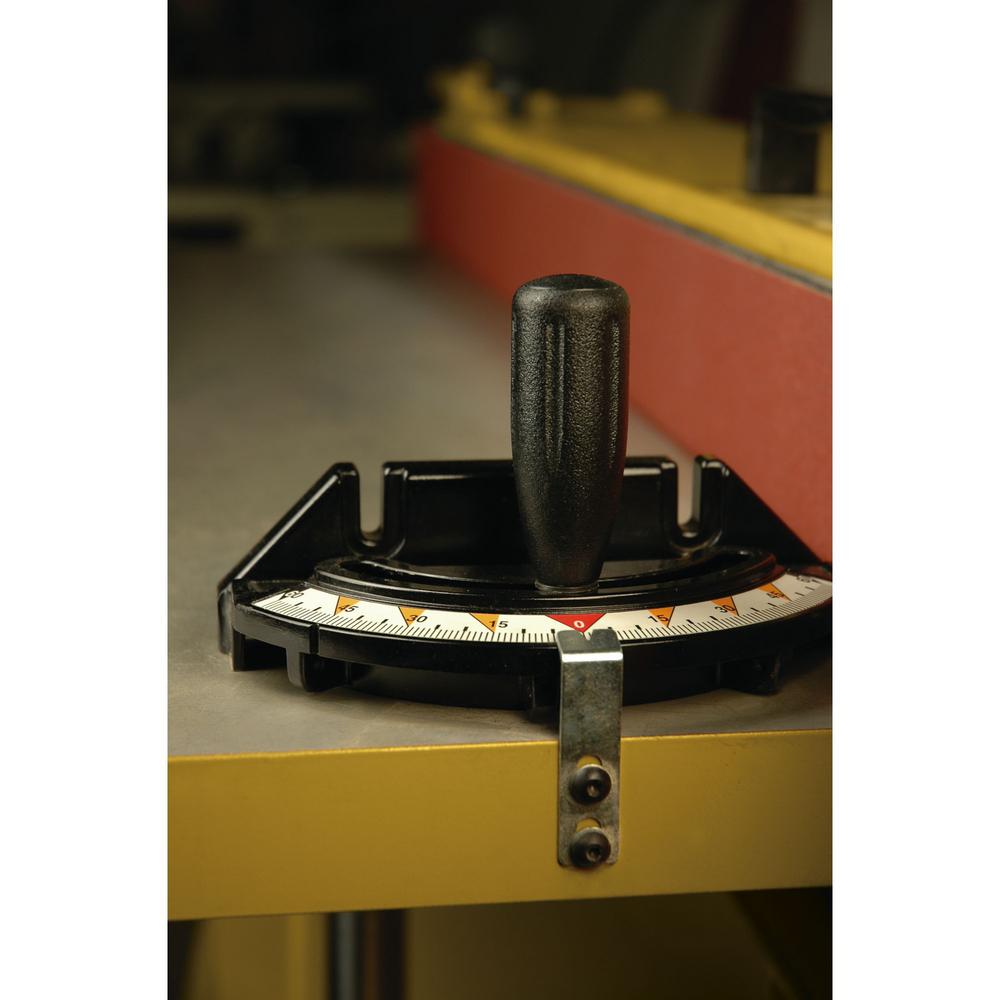

- Large 11-3/4 in. x 48 in. front worktable with 8 in. vertical travel and 45° tilt, includes miter head for angle work
- Precision balanced 9 in. Dia drive drum and 4 in. Dia rubber coated idler pulley for positive drive and rigid tracking

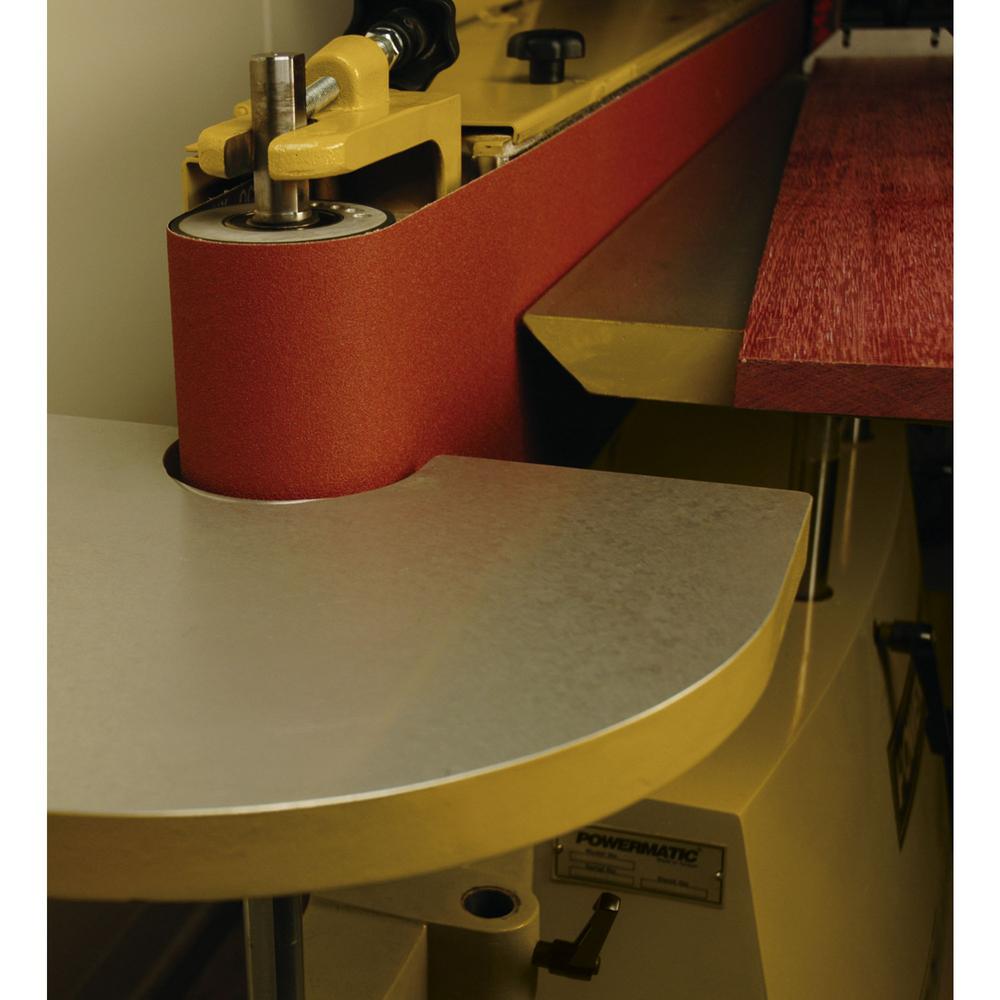

- Large radius end table has 6 in. vertical travel and 45 tilt for any angle and working height needed
- Heavy-duty oscillating gearbox and shaft for long maintenance-free use

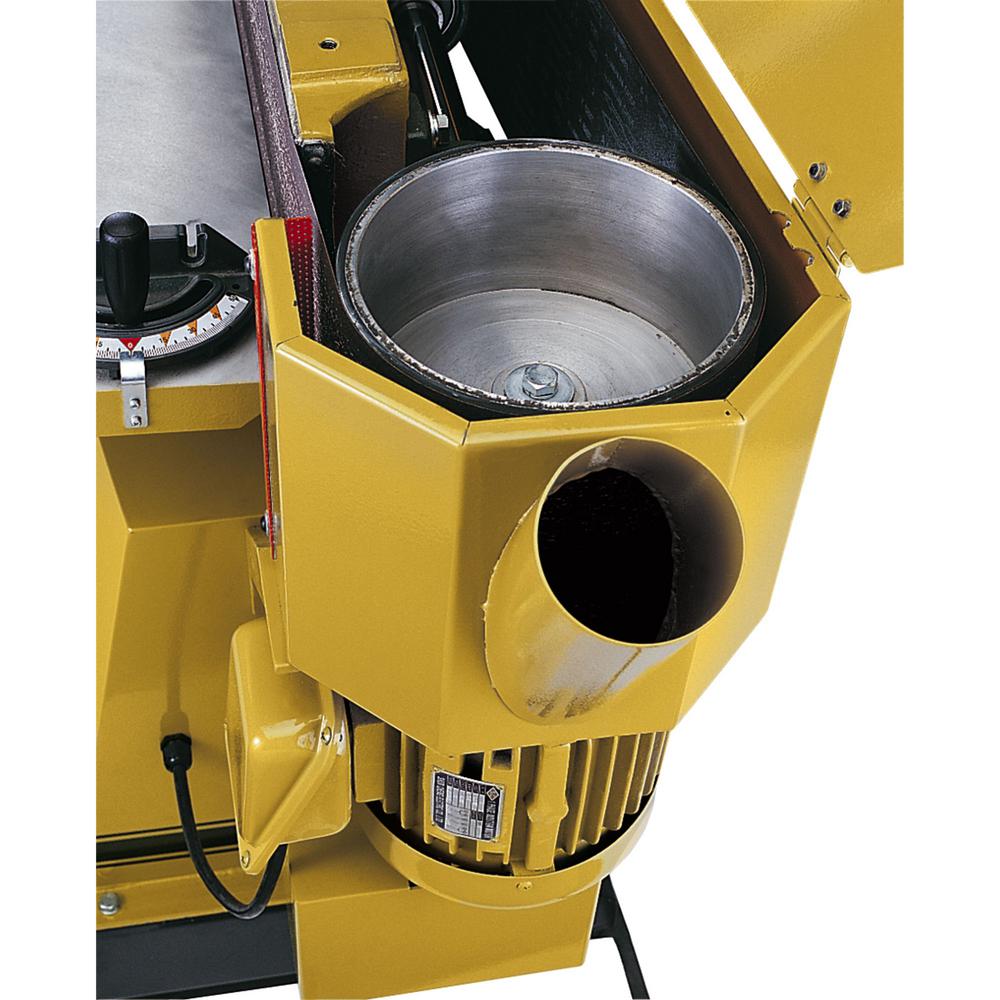

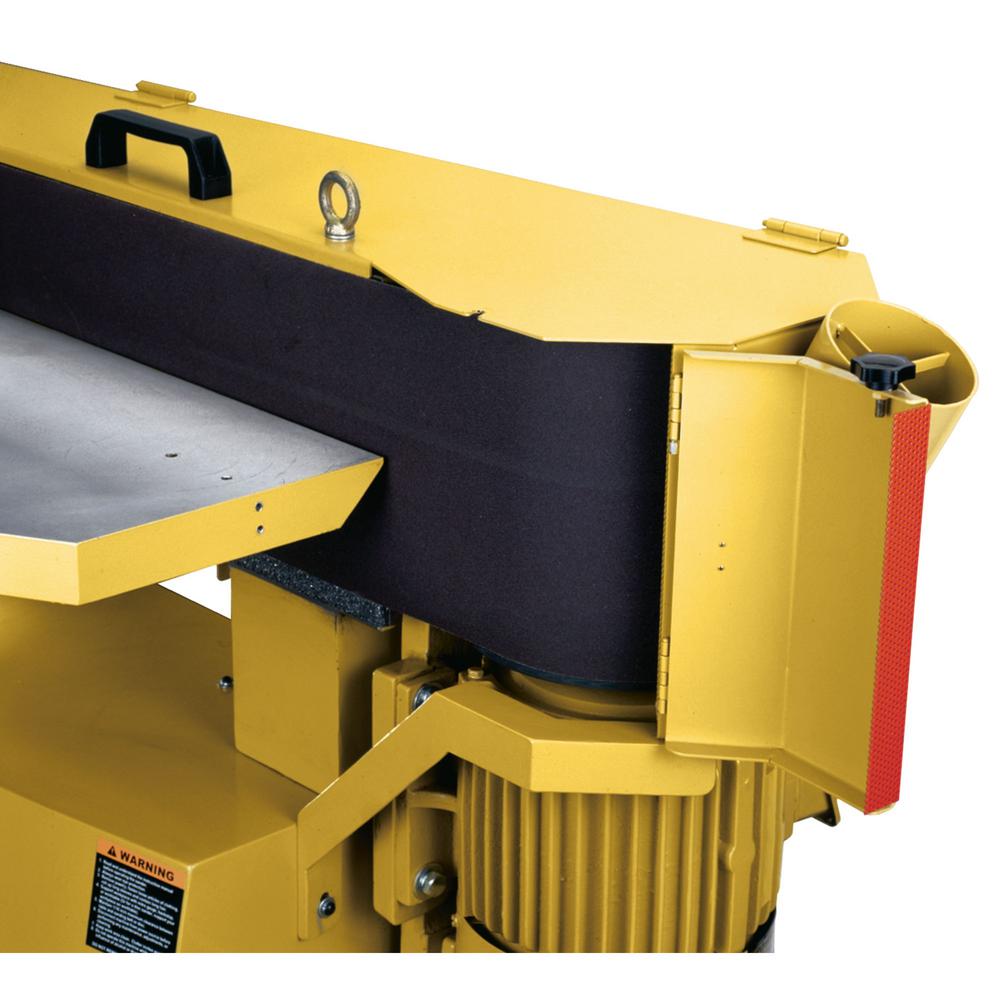

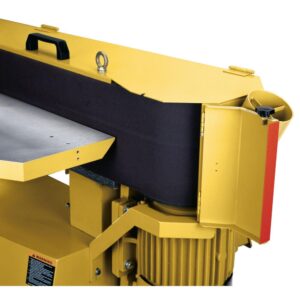

- Hinged guard opens for infinite length sanding
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 870 lbs |
|---|---|
| Dimensions | 83 × 32 × 50 in |
| Model | 1791293 |
| Variable Speed | No |
| Tools Product Type | Power Tool |
| Table Width (in.) | 11.75 |
| Table Length (in.) | 48 |
| Reconditioned | No |
| Power Tool Features | No Additional Features |
| Portability | Stationary |
| Minimum belt sanding speed (ft./min.) | 3542 |
| Maximum belt sanding speed (ft./min.) | 3542 |
| Dust collection type | Port |
| Cord Length (ft.) | 6 |
| Condition | New |
| Color Family | Yellow |
| Bench & Stationary Tool Type | Edge/Belt Sander |
| Belt width (in.) | 138.75 |
| Belt length (in.) | 9 |
| Amperage (amps) | 15 A |
| Voltage (volts) | 460 |
