Description

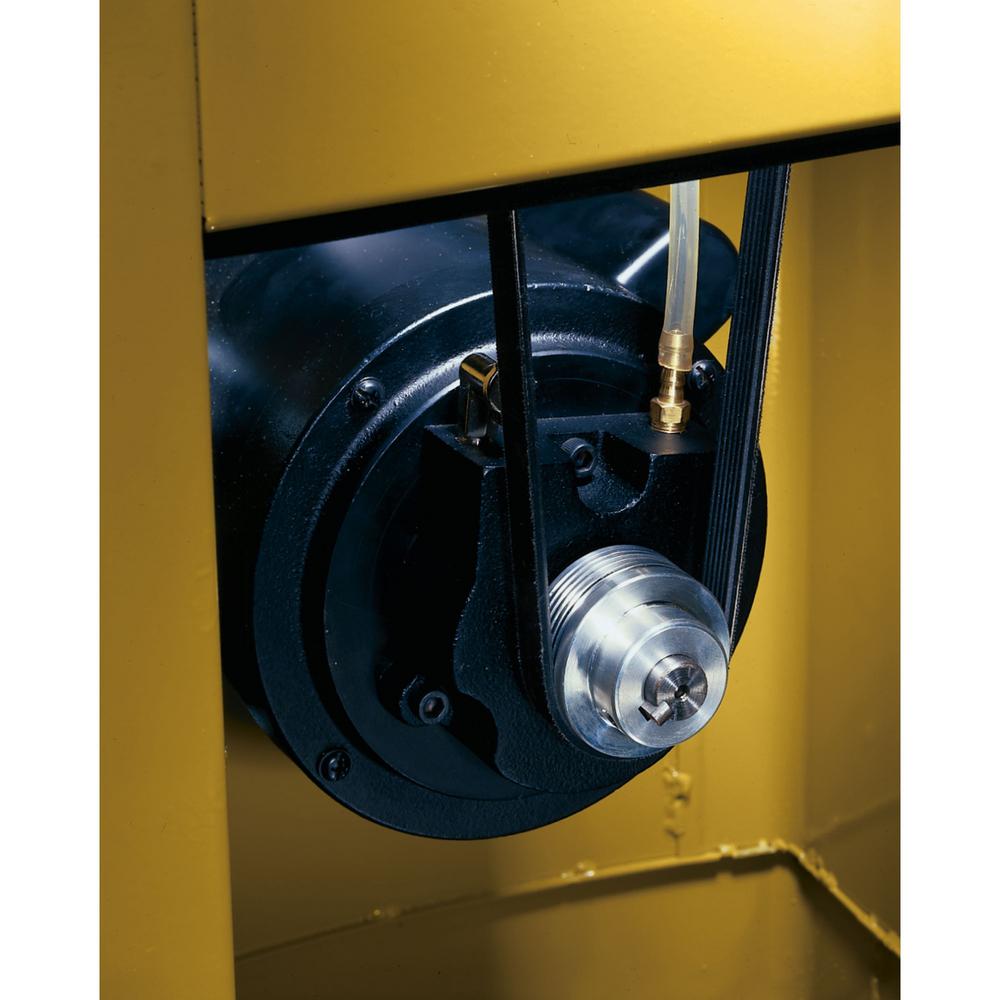

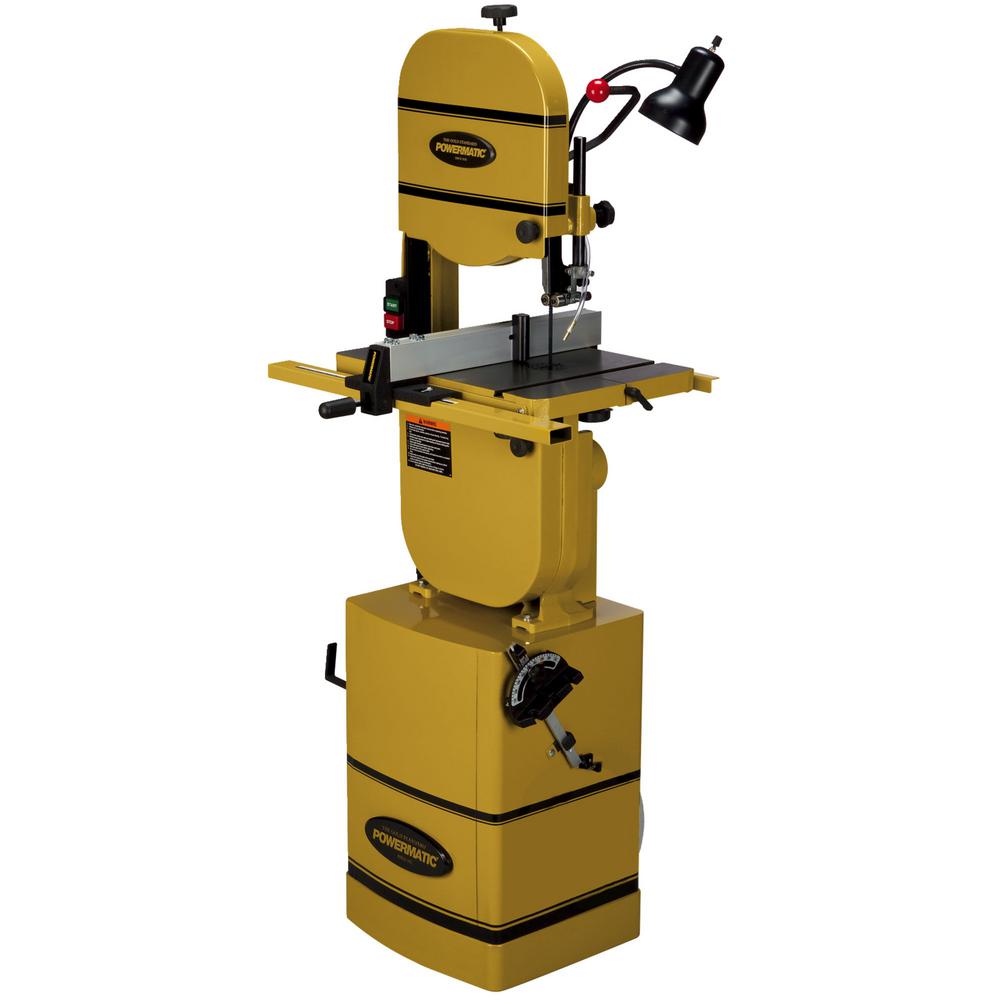

The PWBS-14CS Band saw has an X-large, 2-piece cast iron table. It consists of a 15 in. x 15 in. tilting section and a fixed 15 in. x 5 in. extension for a total working surface area of 15 in. x 20 in. A balanced, 9-spoke cast iron wheel makes for smooth blade travel and a Carter quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6 in. under guide capacity with 13-1/2 in. frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

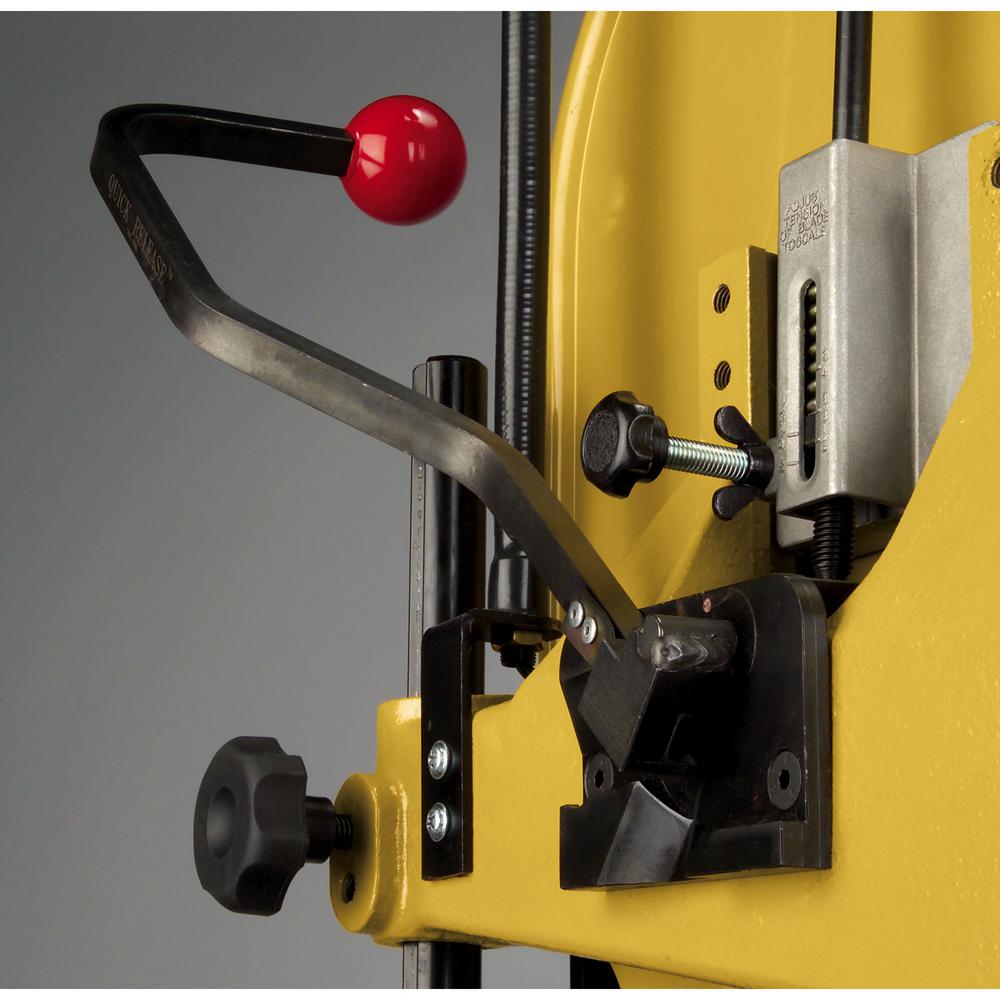

- CARTER quick tension lever speeds blade changes and the de-tension setting extends blade life during non-use
- X-large, 2-piece cast iron table consists of a 15 in. x 15 in. tilting section and a fixed 15 in. x 5 in. extension for a total working surface area of 15 in. x 20 in.
- Chip blower ensures a clean, visible cut line

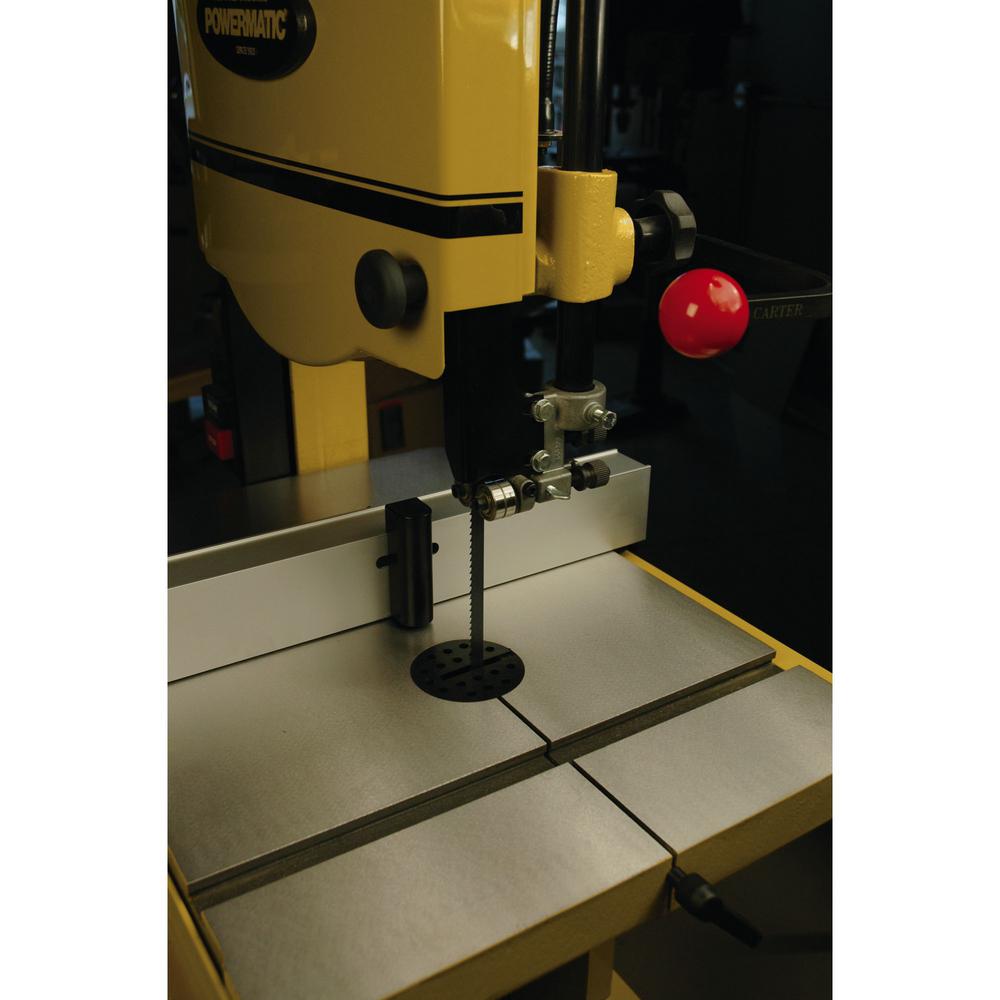

- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction

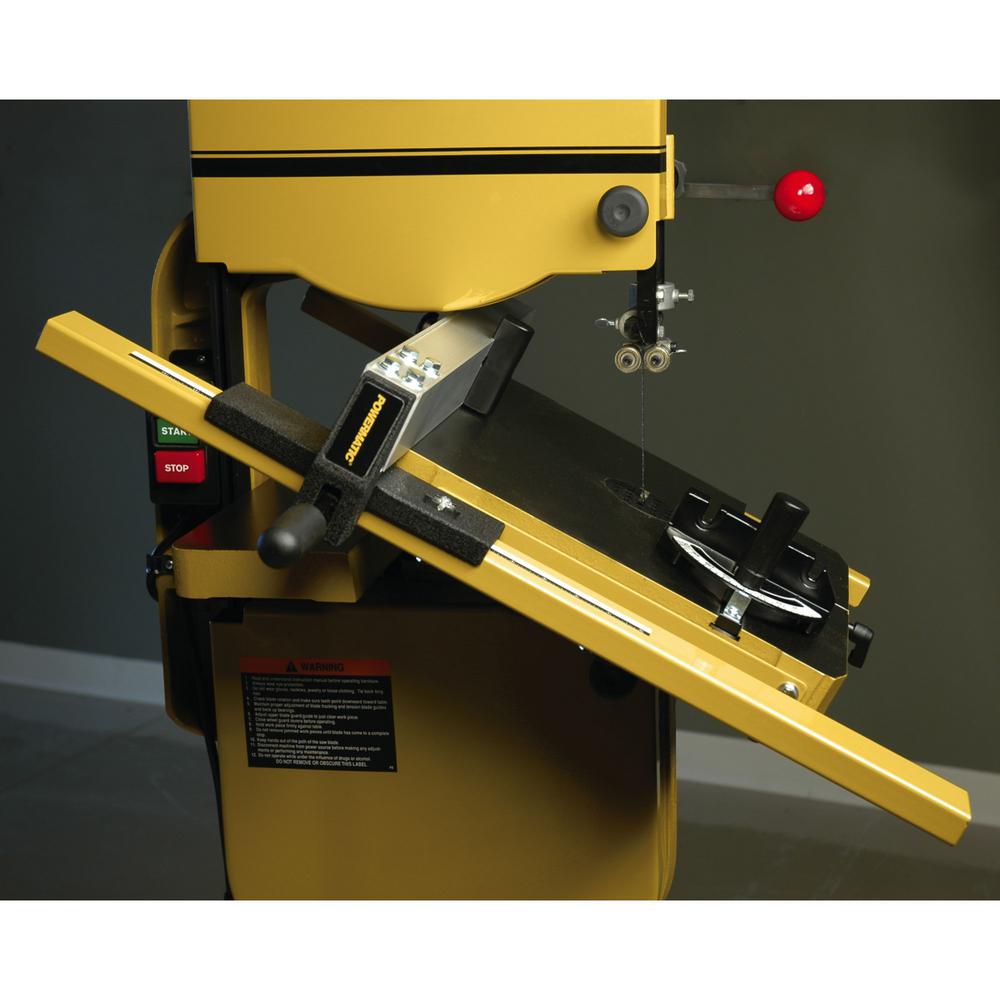

- Exclusive design, quick-release precision T-square style rip fence with 4 in. resaw attachment

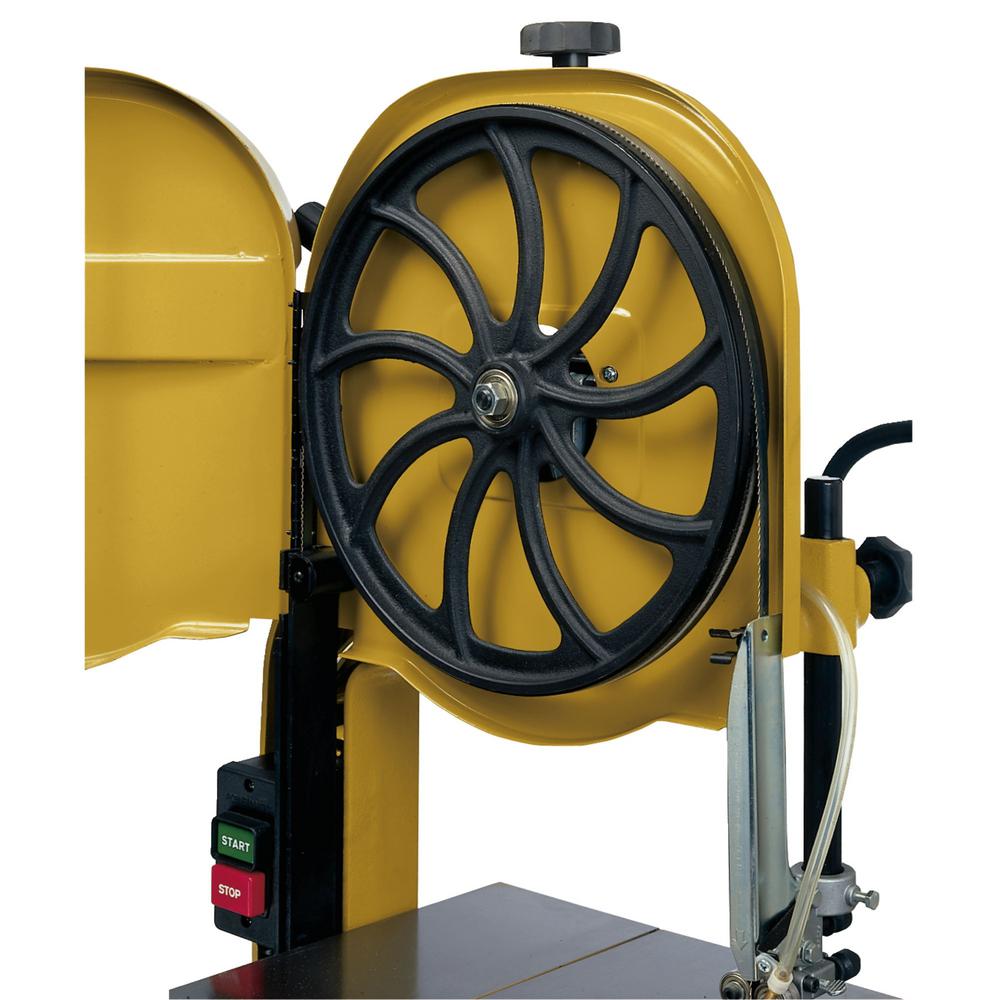

- Precision balanced, 9-spoke cast iron wheels reduce vibration
- Easy to read tensioning gauge settings indicated in blade width increments
- Full 6 in. resaw capacity (12 in. with riser block) with 13-1/2 in. W capacity
- 60-Watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
- Rigid 1-piece welded stand requires no assembly
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 266 lbs |
|---|---|
| Dimensions | 20 × 34 × 68 in |
| Model | 1791216K |
| Voltage (volts) | 230 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 15 |
| Table Tilt Right Max (degrees) | 45 |
| Table Tilt Left Max (degrees) | 10 |
| Table Length (in.) | 15 |
| Power Tool Features | No Additional Features |
| Portability | Stationary |
| PT Horsepower (Hp) | 1-1/2 |
| Minimum Blade Width | 0.125 |
| Minimum Blade Length | 93.5 |
| Maximum Speed (rpm) | 3000 |
| Maximum Blade Width | 0.75 |
| Maximum Blade Length | 93.5 |
| Included Accessories | Tool Only |
| Dust Port Size (In.) | 0 |
| Dust Collection Method | None |
| Cutting Capacity Width / Depth Of Throat(In.) | 13.5 |
| Cutting Capacity Height / Height under Guide (In.) | 6 |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 6 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Yellow |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Vertical |
| Amperage (amps) | 30 A |
| Work Table Surface | 15 in. x 15 in. |
