Description

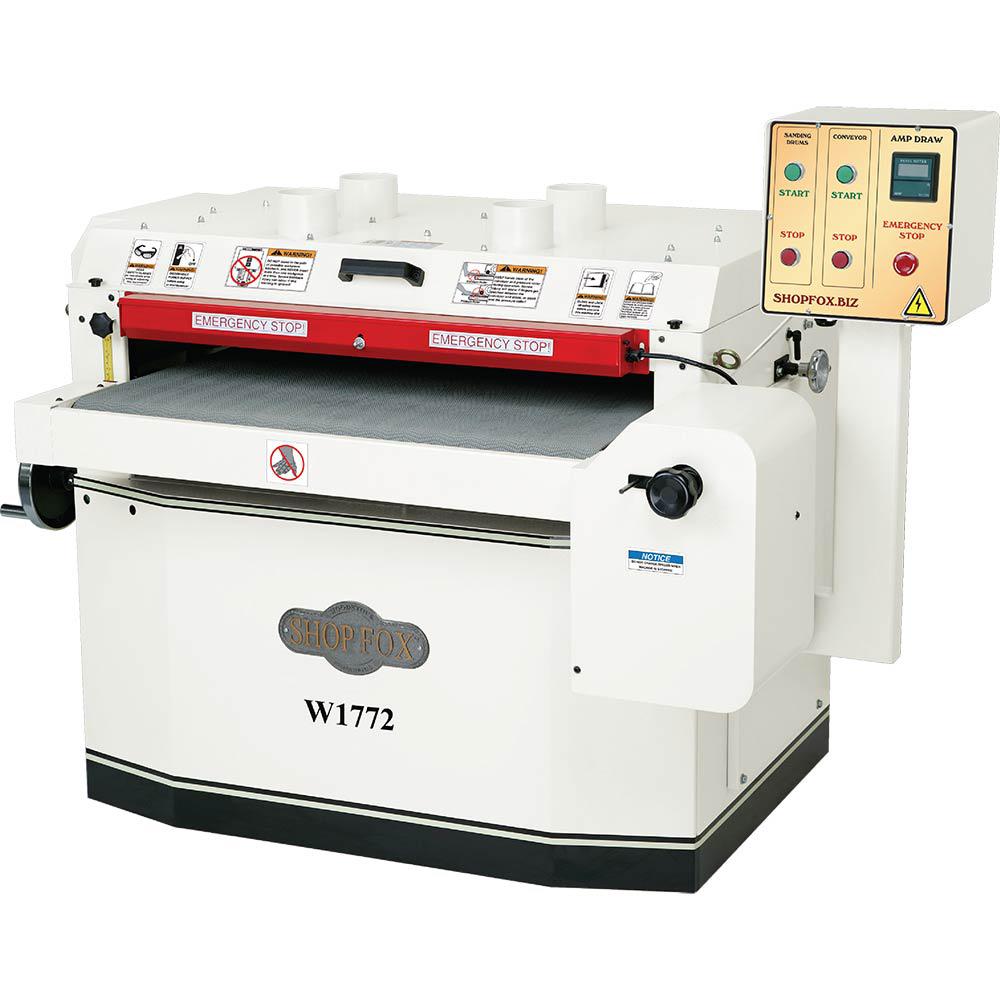

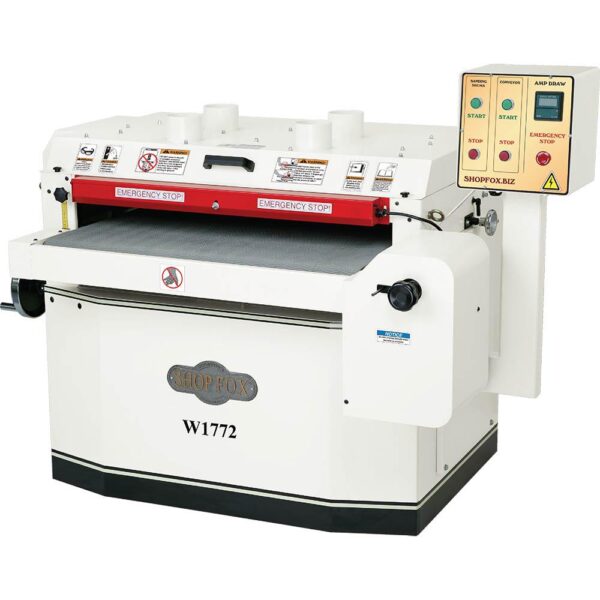

Designed for production shops, this 37 in. sander has what it takes to get those big jobs done fast. Sand boards and panels up to 4 in. T and 36-1/2 in. W, using 2 different abrasive grits in the same pass with the dual 6 in. sanding drums. Feed speed is adjustable from 6 to 18 FPM. The variable-speed knob conveyor adjustment and amp meter make it easy to monitor the sanding load to ensure maximum efficiency. Other great features include a hinged hood, emergency stop bar, pedestal-mounted controls, four 4 in. dust ports and a 10 HP, 240-Volt, single-phase motor.

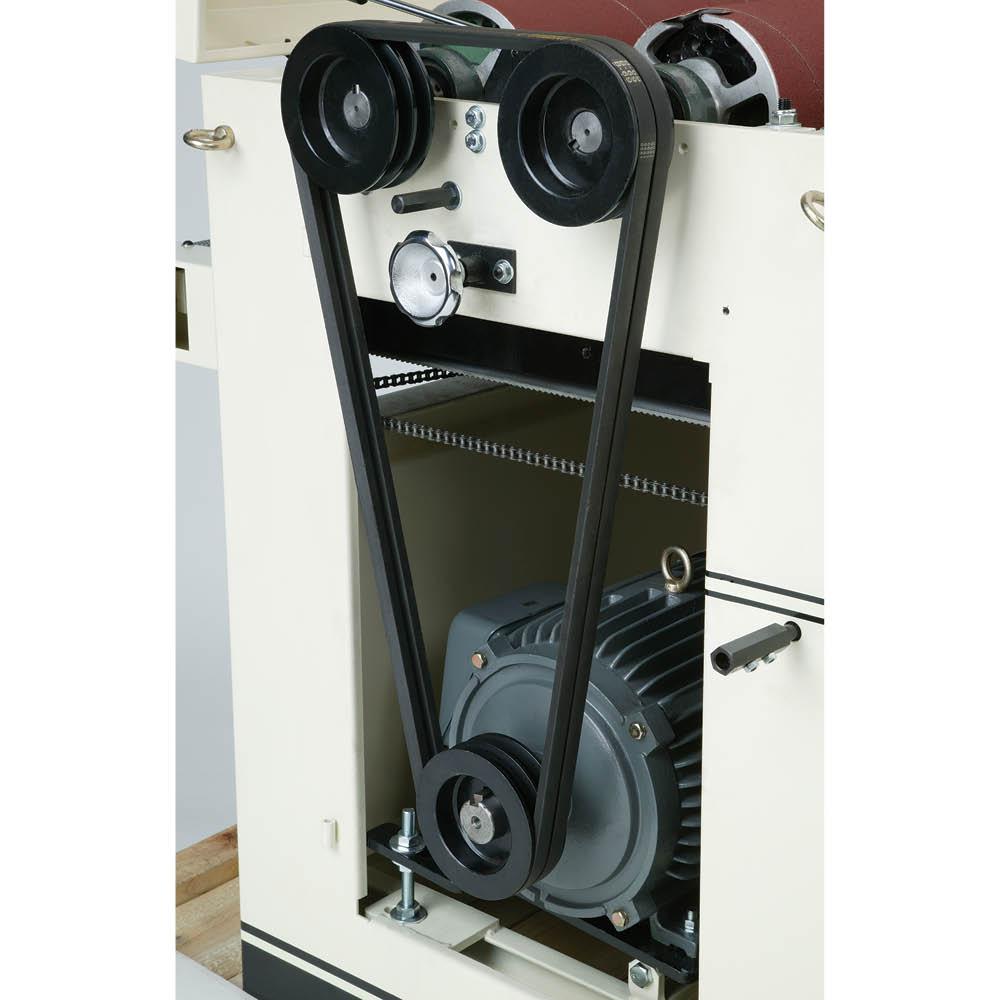

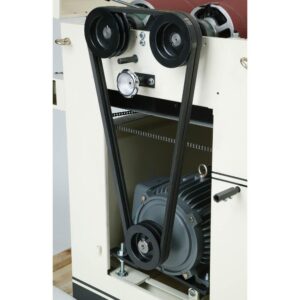

- Sanding drum motor: 10 HP, 240-Volt, single-phase, TEFC, 1725 RPM

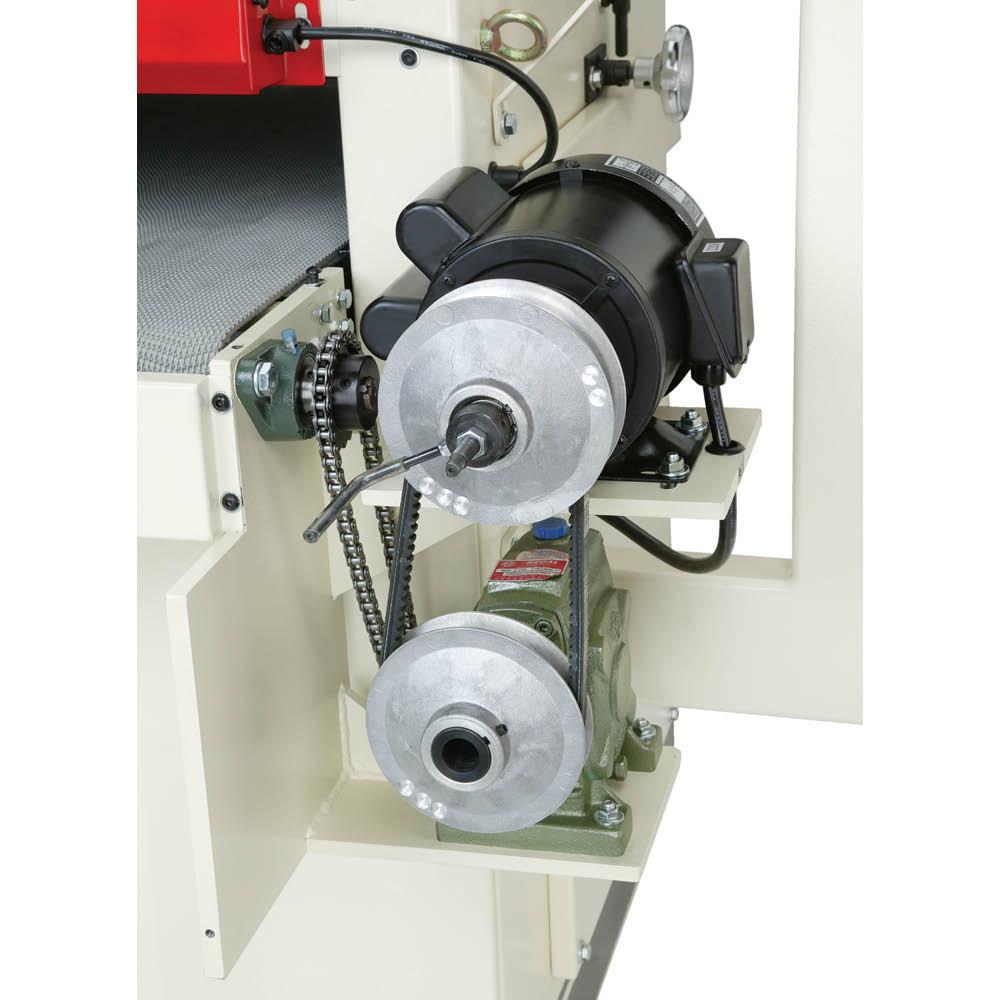

- Conveyor motor: 1/3 HP
- Drum surface speed: 2800 FPM
- Conveyor feed rate: variable, 618 FPM

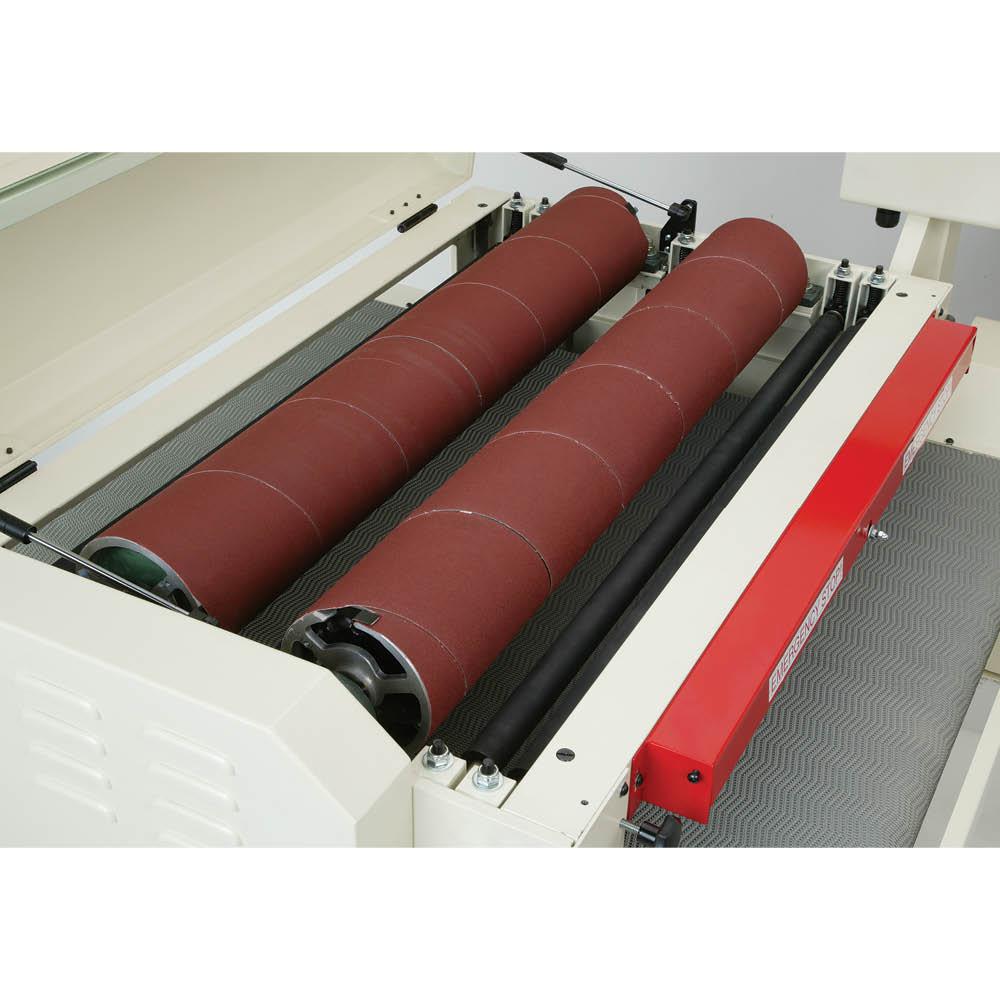

- Sanding drums: 2 steel/rubber
- Dust ports: four 4 in.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 1379 lbs |
|---|---|
| Dimensions | 56.25 × 61.25 × 43 in |
| Model | W1772 |
| Variable Speed | Yes |
| Tools Product Type | Power Tool |
| Table Width (in.) | 36.5 |
| Table Length (in.) | 90.5 |
| Reconditioned | No |
| Power Tool Features | Variable Speed |
| Portability | Stationary |
| Minimum feed height (in.) | 0.0625 |
| Maximum feed rate (ft./min.) | 18 |
| Maximum feed height (in.) | 4 |
| Maximum Speed (rpm) | 1725 |
| Dust collection type | Port |
| Cord Length (ft.) | 9 |
| Condition | New |
| Color Family | White |
| Bench & Stationary Tool Type | Drum Sander |
| Belt width (in.) | 36.5 |
| Belt length (in.) | 90.5 |
| Amperage (amps) | 46.7 A |
| Voltage (volts) | 220 |
