Description

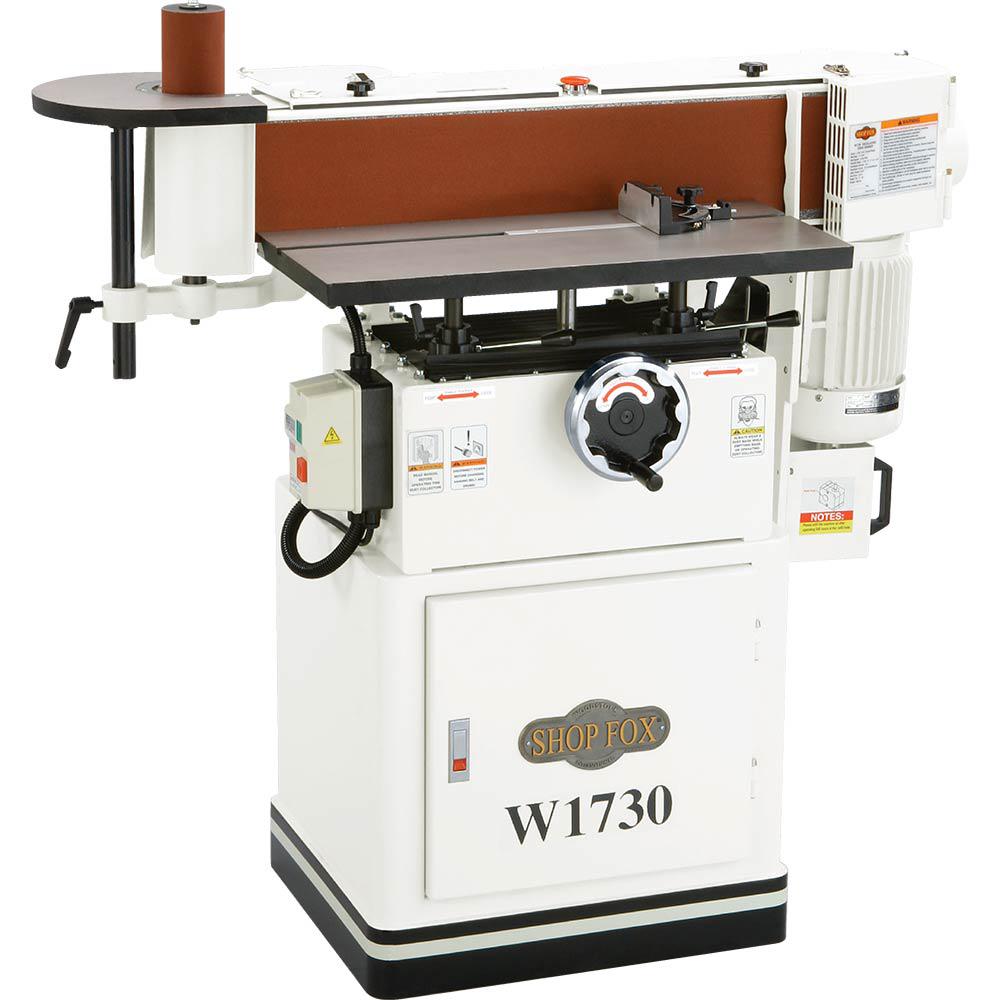

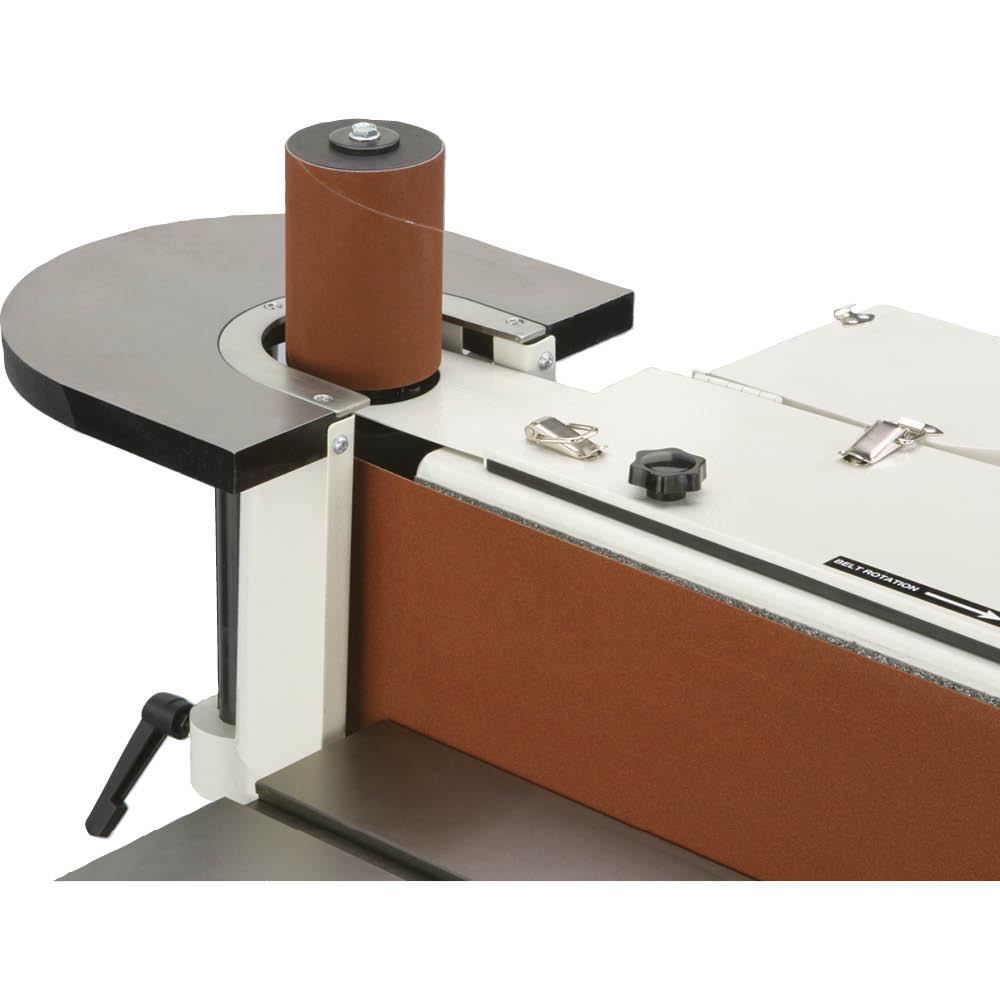

This sander features a 6 in. x 89 in. belt that oscillates 1/4 in. vertically at 52 times per minute. It also has a quick-release belt tension lever, graphite-coated platen that tilts 0° to 90° and a 2 HP, 240-Volt motor. The W1730 has a 26-7/8 in. x 12 in. precision-ground cast-iron main table for edge sanding and a 10 in. x 11-1/2 in. cast-iron auxiliary table for spindle sanding. 3 non-oscillating spindle sanding drums, measuring 1-1/2 in., 2 in. and 3 in. Dia are included for sanding smaller contoured surfaces. Other features include a 180° adjustable miter gauge, two 4 in. dust ports, powder-coated finish and a removable fence.
- Motor: 2 HP, 240-Volt, single-phase, 1725 RPM
- Table size: 26-7/8 in. x 12 in.
- Table travel: 3-3/4 in. vertical
- Aux. table size: 10 in. x 11-1/2 in., travel: 10 in.
- Sanding belt size: 6 in. x 89 in.
- Sanding belt speed: 3150 FPM
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 396 lbs |
|---|---|
| Dimensions | 30 × 48 × 42 in |
| Model | W1730 |
| Variable Speed | No |
| Tools Product Type | Power Tool |
| Table Width (in.) | 12 |
| Table Length (in.) | 26.88 |
| Reconditioned | No |
| Power Tool Features | Lockout Power Switch, Stand Included |
| Portability | Stationary |
| Minimum belt sanding speed (ft./min.) | 3150 |
| Maximum belt sanding speed (ft./min.) | 3150 |
| Dust collection type | Port |
| Cord Length (ft.) | 10 |
| Condition | New |
| Color Family | White |
| Bench & Stationary Tool Type | Edge/Belt Sander |
| Belt width (in.) | 6 |
| Belt length (in.) | 89 |
| Amperage (amps) | 9 |
| Voltage (volts) | 240 |
