Description

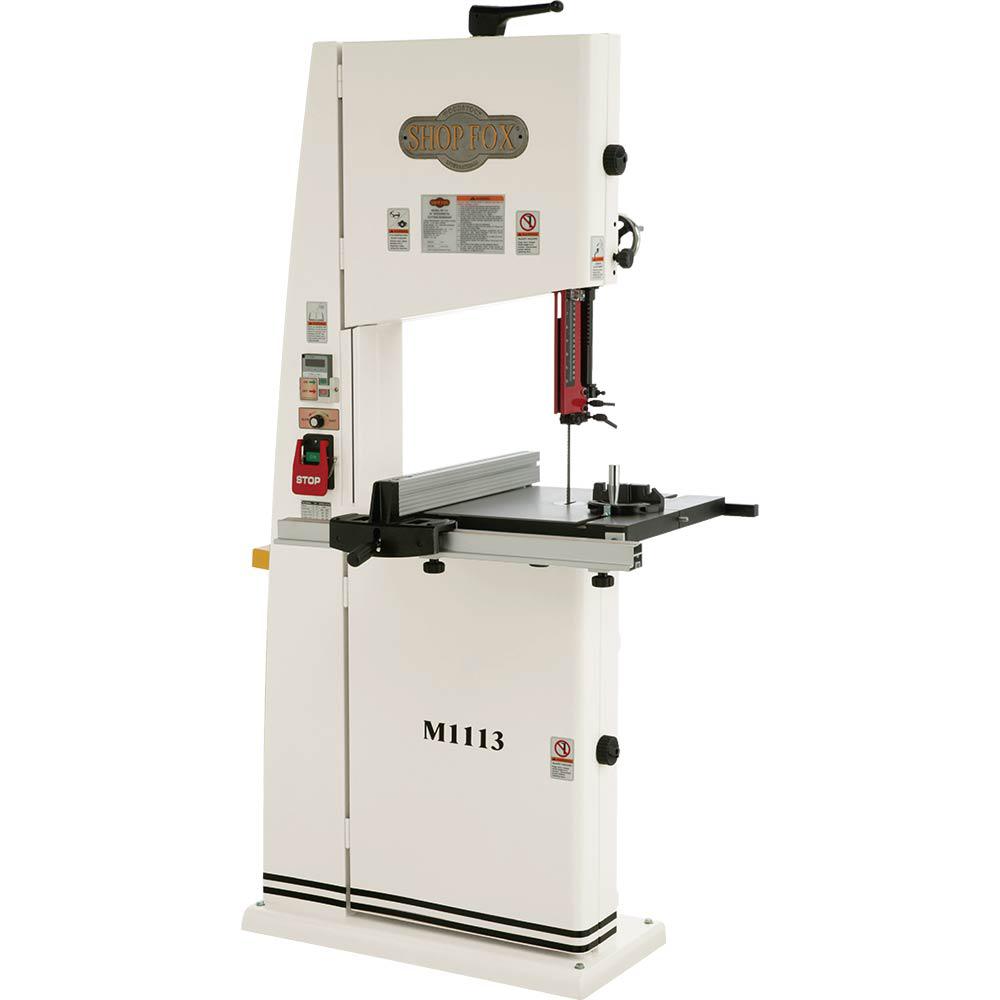

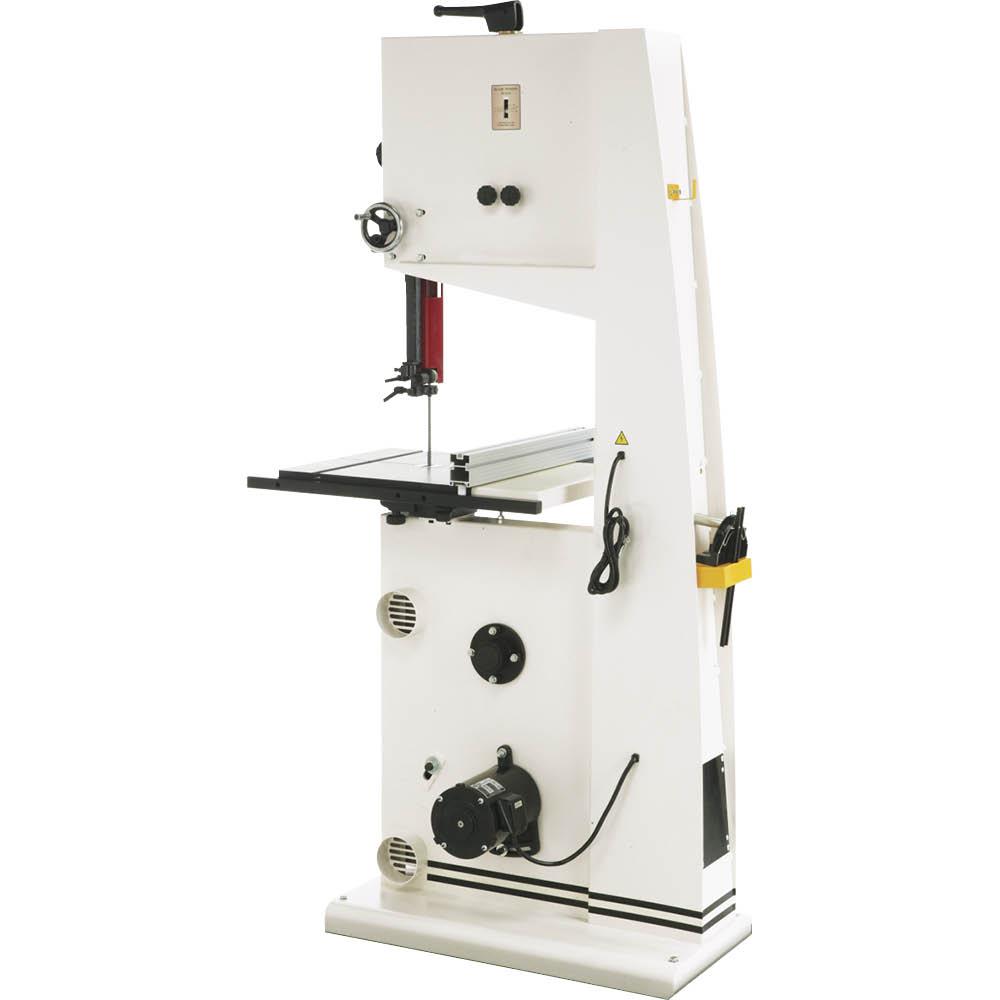

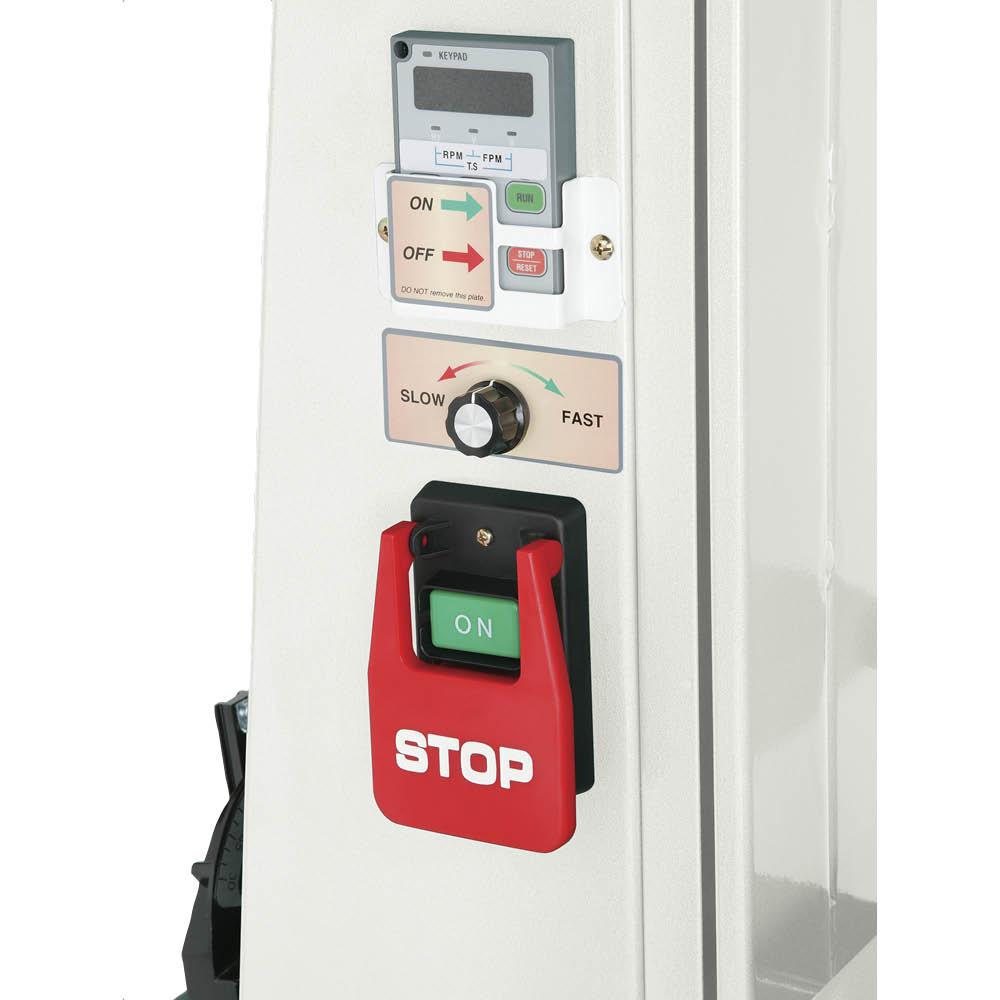

A VFD (Variable Frequency Drive) with digital readout provides infinitely variable blade speeds between 150 FPM and 3000 FPM, making this saw great for cutting wood and metal alike. Just turn the speed control dial to set the perfect cutting speed for each type of material you’re cutting. Besides providing the variable-speed control, the VFD also allows this machine to take full advantage of the high-torque/low-speed characteristics of a 3-phase motor while only requiring a single-phase power supply. The vertical cutting configuration and massive cast-iron table also makes it easy to feed intricate, curved cuts. All in all, the strong versatility of this 18 in. Vertical Wood/Metal Bandsaw makes it an ideal choice when shop space is limited and the range of prefect types is diverse.
- Motor: 1-1/2 HP, 220-Volt, 3-phase
- Power supply requirement: 220-Volt, single-phase, 15 Amp
- Maximum cutting height: 12 in.
- Throat capacity: 17-1/2 in.
- Blade length: 133 in.
- Blade size range: 1/8 in. to 1-1/4 in.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 314 lbs |
|---|---|
| Dimensions | 19 × 33 × 79 in |
| Model | M1113 |
| Voltage (volts) | 220 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 18 |
| Table Tilt Right Max (degrees) | 45 |
| Table Tilt Left Max (degrees) | 5 |
| Table Length (in.) | 24 |

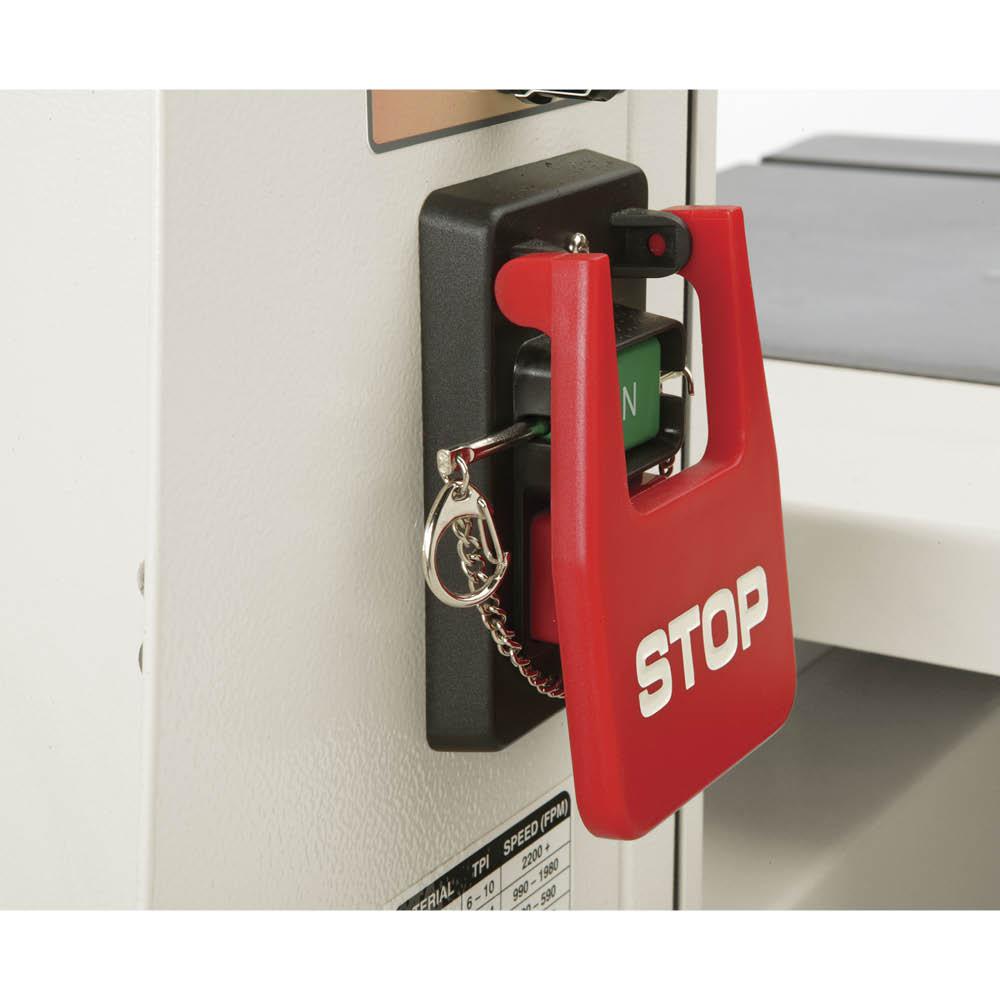

| Power Tool Features | Lockout Power Switch, Quick-Release Tension, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 1-1/2 |
| Minimum Blade Width | .13 |
| Minimum Blade Length | 133 |
| Maximum Speed (rpm) | 1725 |
| Maximum Blade Width | 1.25 |
| Maximum Blade Length | 133 |
| Included Accessories | Stand |

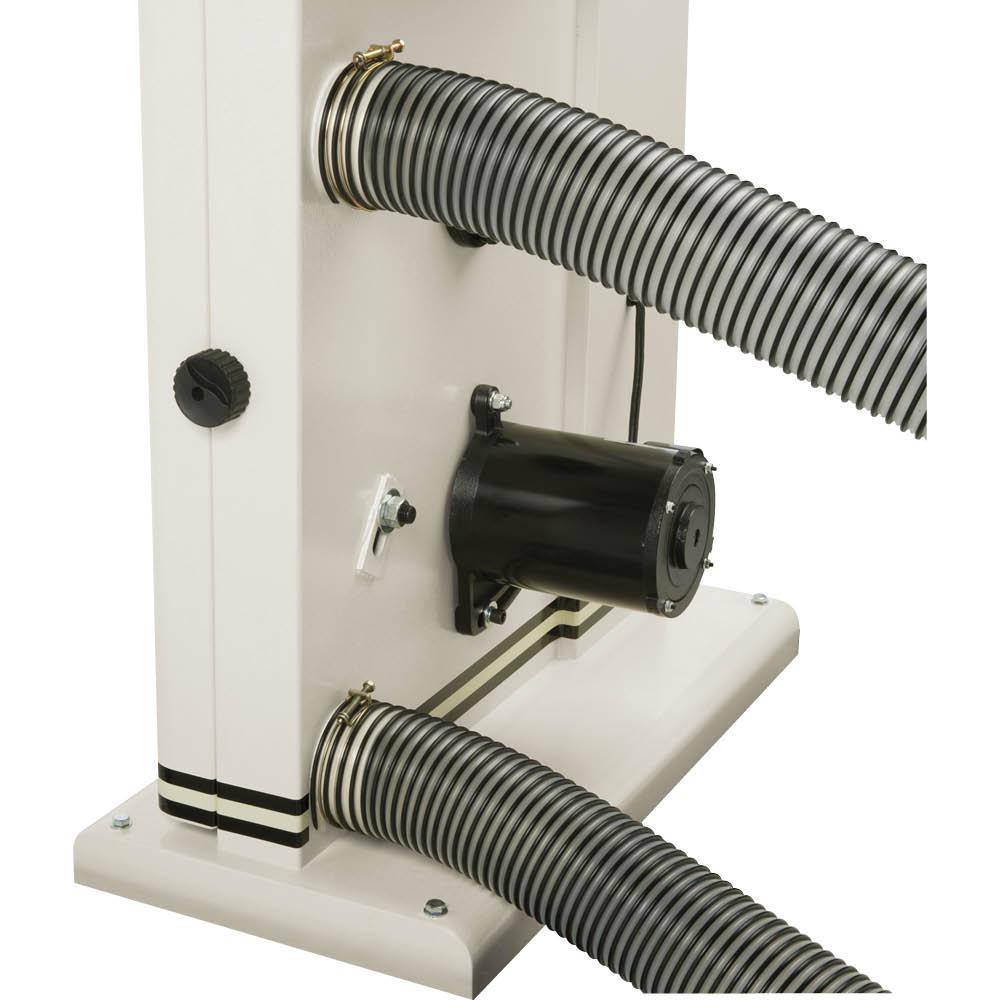

| Dust Port Size (In.) | 4 |
| Dust Collection Method | 4 in. Dust Port |
| Cutting Capacity Width / Depth Of Throat(In.) | 17.5 |
| Cutting Capacity Height / Height under Guide (In.) | 12 |
| Cuts Through | Steel, Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 6 |
| Construction Material | Steel |
| Condition | New |
| Color Family | White |
| Bench & Stationary Tool Type | Band Saw |
| Band Saw Type | Vertical |
| Amperage (amps) | 5 |
| Work Table Surface | 24 in. x 18 in. |
